WOOD PELLET FIRE STOVE

INSTALLER: Leave this manual with the appliance. CONSUMER: Save these Instructions for future reference.

THE AUTHORITY HAVING JURISDICTION (SUCH AS MUNICIPAL BUILDING DEPARTMENT, FIRE

DEPARTMENT, FIRE PREVENTION BUREAU, ETC.) SHOULD BE CONSULTED BEFORE INSTALLATION

TO DETERMINE ANY NEED TO OBTAIN A PERMIT. OBSERVE ALL LOCAL BUILDING CODES.

OPERATING INSTRUCTIONS

AND OWNER’S MANUAL

Model #

PS20W

READ INSTRUCTIONS CAREFULLY: Please read this entire manual before installation and use of this

pellet fuel-burning room heater. Failure to follow these instructions could result in property damage, bodily

injury or even death. Do not allow anyone who has not read these instructions to assemble, light, adjust or

operate the stove. Place instructions in a safe place for future reference.

PS20W (F500215)

Apple Store Google Play Store

2Operating Instructions and Owner’s ManualCleveland Iron Works Wood Pellet Fire Stove

GENERAL HAZARD WARNING:

FAILURE TO COMPLY WITH THE PRECAUTIONS

AND INSTRUCTIONS PROVIDED WITH THIS

STOVE CAN RESULT IN DEATH, SERIOUS

BODILY INJURY AND PROPERTY LOSS OR

DAMAGE FROM HAZARDS OF FIRE, EXPLOSION,

BURN, ASPHYXIATION, CARBON MONOXIDE

POISONING, AND/OR ELECTRICAL SHOCK.

ONLY PERSONS WHO CAN UNDERSTAND AND

FOLLOW THE INSTRUCTIONS SHOULD USE OR

SERVICE THIS STOVE.

IF YOU NEED ASSISTANCE OR STOVE

INFORMATION SUCH AS AN INSTRUCTIONS

MANUAL, LABELS, ETC. CONTACT THE

MANUFACTURER.

WARNING:

FIRE, BURN, INHALATION, AND EXPLOSION

HAZARD. KEEP SOLID COMBUSTIBLES, SUCH AS

BUILDING MATERIALS, PAPER OR CARDBOARD,

A SAFE DISTANCE AWAY FROM THE STOVE

AS RECOMMENDED BY THE INSTRUCTIONS

NEVER USE THE STOVE IN SPACES WHICH DO

OR MAY CONTAIN VOLATILE OR AIRBORNE

COMBUSTIBLES, OR PRODUCTS SUCH AS

GASOLINE, SOLVENTS, PAINT THINNER, DUST

PARTICLES OR UNKNOWN CHEMICALS.

WARNING: This product can expose you to

chemicals including lead and lead compounds, which

are known to the State of California to cause cancer

and birth defects or other reproductive harm. For

more information visit www.P65Warnings.ca.gov

Contents

SPECIFICATIONS................................................................................. 3

SAFETY PRECAUTIONS.......................................................................4

CLEARANCE TO COMBUSTIBLES........................................................5

UNPACKING & ASSEMBLY..................................................................6

INSTALLATION ................................................................................... 6

ADDITIONAL MOBILE HOME REQUIREMENTS ................................. 10

OPERATION ......................................................................................12

SMART STOVE WIFI CONNECTION ................................................... 14

WIFI CONTROLS................................................................................15

MULTI FUNCTION CONTROLS .......................................................... 16

MAINTENANCE.................................................................................17

WIRING DIAGRAM........................................................................... 25

SERVICE PARTS ................................................................................ 26

3Operating Instructions and Owner’s ManualCleveland Iron Works Wood Pellet Fire Stove

SPECIFICATIONS

Model # PS20W

DIMENSIONS

Stove Weight

[LBS (kg)] 143.3 (65)

Stove Dimenions LxWxH

[in. (cm)]

18.25” x 20“ x 28.5”

(46.36 x 50.8 x 72.4)

Air Inlet Pipe Diameter

[in. (mm)] 1.25” (32)

Air Outlet Pipe Diameter

[in. (mm)] 3” (80)

Pellet Hopper Capacity

[LBS (kg)] 17.6 (8)

OPERATION SPECIFICATIONS

Fuel Wood Pellet

Heats approximately [ft2 (m2)]** 431-646 (40-60)

Carbon Monoxide Produced (g/hr) 0.00

Pellet Consumption Rate High [LBS/HR (kg/HR)] 2.95 (1.34)

Pellet Consumption Rate Medium [LBS/HR (kg/HR)] 1.39 (0.63)

Pellet Consumption Rate Low [LBS/HR (kg/HR)] 1.21 (0.55)

Automatic Mode Duration [minimum hours

(maximum hours)] 7 (13)

Stove Efficiency 86.5%

Rate [BTU/HR (kW)] - HIGH 21,064 (6.17)

Rate [BTU/HR (kW)] - MED 10,249 (3.00)

Rate [BTU/HR (kW)] - LOW 9,072 (2.66)

ELECTRICAL SPECIFICATIONS

Electrical Supply Requirements [Voltage / Frequency

/ Phase] 120V / 60 Hz / Single

Electric Current During Lighting Phase [Amperes] 3.3

Auger Motor R.P.M. 2.4

*BTU input/output will vary, depending on the brand of fuel you use in your Stove

** Depending on climate zone. Variations in climate and location affect attributes such as stove efficiency

and CO produced.

This manual describes the installation and operation of the brand “Cleveland Ironworks” wood pellet fire stove.

This stove meets the applicable U.S. Environmental Protection Agency’s emission limits for pellet fired heaters sold

after 2020.

4Operating Instructions and Owner’s ManualCleveland Iron Works Wood Pellet Fire Stove

SAFETY PRECAUTIONS

HAVE AN ESTABLISHED PLAN FOR WHAT

TO DO IN THE EVENT OF A FIRE. CONTACT

YOUR LOCAL FIRE AUTHORITY TO ACQUIRE

INFORMATION AND A PLAN FOR WHAT TO DO

IN THE EVENT OF A CHIMNEY FIRE.

WARNING: DO NOT INSTALL IN SLEEPING

ROOM.

CAUTION: HANDLE STOVE WITH CARE.

AVOID STRIKING, SCRATCHING OR

SLAMMING GLASS ASSEMBLIES. DO NOT

OPERATE WITH CRACKED, BROKEN OR

SCRATCHED GLASS.

WARNING: HOT WHILE IN OPERATION. KEEP

CHILDREN, CLOTHING AND FURNITURE

AWAY. CONTACT MAY CAUSE SKIN BURNS.

WARNING: NEVER LEAVE CHILDREN NEAR

THE STOVE UNATTENDED WHILE THE STOVE

IS OPERATING.

WARNING: DO NOT OVERFIRE. OVERFIRING

THE APPLIANCE MAY CAUSE A FIRE. IF THE

UNIT OR CHIMNEY CONNECTOR GLOWS,

YOU ARE OVERFIRING.

WARNING: THIS WOOD HEATER HAS A

MANUFACTURER-SET MINIMUM LOW

BURN RATE THAT MUST NOT BE ALTERED.

IT IS AGAINST FEDERAL REGULATIONS

TO ALTER THIS SETTING OR OTHERWISE

OPERATE THIS WOOD HEATER IN A

MANNER INCONSISTENT WITH OPERATING

INSTRUCTIONS IN THIS MANUAL.

CARBON MONOXIDE

WARNING:

WHEN USED WITHOUT ADEQUATE

COMBUSTION AND VENTILATION AIR, THIS

STOVE MAY GIVE OFF EXCESSIVE CARBON

MONOXIDE, AN ODORLESS, POISONOUS GAS.

WARNING:

EARLY SIGNS OF CARBON MONOXIDE

POISONING RESEMBLE THE FLU, WITH

HEADACHE, DIZZINESS AND/OR NAUSEA. IF

YOU HAVE THESE SIGNS, STOVE MAY NOT

BE WORKING PROPERLY. GET FRESH AIR AT

ONCE! HAVE STOVE SERVICED.

SOME PEOPLE - PREGNANT WOMEN,

PERSONS WITH HEART OR LUNG DISEASE,

ANEMIA, THOSE UNDER THE INFLUENCE OF

ALCOHOL, THOSE AT HIGH ALTITUDES - ARE

MORE AFFECTED BY CARBON MONOXIDE

THAN OTHERS.

Regardless of how safe this stove is, every fuel burning

appliance creates Carbon Monoxide. It is always a good

plan to reduce risk to you and your loved ones as much

as possible by installing a Carbon Monoxide detector.

It is recommended to install monitors in areas that are

expected to generate carbon monoxide such as heater

fueling areas, pellet fuel bulk storage areas, or sheds

containing hydronic heaters. Follow the installation,

operation, & maintenance instructions provided by the

manufacturer of your detector.

SMOKE DETECTORS

Have at least 1 smoke detector on each floor of

your building. Follow the installation, operation, &

maintenance instructions provided by the manufacturer

of your detector. Avoid false alarms by placing the

detector outside the immediate vicinity of the stove.

Typically a good installation location for smoke

detectors is near bedrooms.

FOR MORE SAFETY INFORMATION

For auxiliary information regarding pellet stove safety

and operation information contact the National Fire

Protection Association (NFPA) by mail at:

NFPA, Batterymarch Park, Quincy, MA 02269

or visit the NFPA website:

https://www.nfpa.org/

5Operating Instructions and Owner’s ManualCleveland Iron Works Wood Pellet Fire Stove

CLEARANCE TO COMBUSTIBLES

The following stated clearances represent the minimum

distances between the stove and any other object. No

objects should encroach into this space. This includes

but is not limited to carpet, furniture, children, pets,

clothing, fuel, or any other object. These clearances

may only be reduced by means approved by the

regulatory authority having jurisdiction.

REAR WALL

SIDE WALL

FRONT OF HEATER

NON-COMBUSTIBLE

FLOOR PROTECTION

Figure 1 Clearance to Combustibles

USA CANADA

A9” (229 mm) 9” (229 mm)

B9.4” (239 mm) 9.4” (239 mm)

C15.9” (404 mm) 15.9” (404 mm)

D7.9” (201 mm) 7.9” (201 mm)

E3” (77 mm) 3” (77 mm)

F5.9” (150mm) 5.9” (150mm)

G19” (483mm) 19” (483mm)

FLOORING SPACE & CLEARANCES

When installed on a combustible floor, non-

combustible floor protection is required to:

• Cover the area beneath the stove and extend at

least 15.9 inches (404 mm) to the front

• Cover the area at least 7.9 inches (201 mm) beyond

each side and 5.9 inches (150mm) beyond rear of

the room heater.

• Cover the area under the exhaust venting and 2

inches (50.8 mm) beyond each side.

Additionally, the wood pellet fire stove shall be

positioned such that:

• It has at least 9” (229 mm) of clearance from the

each side to the nearest body.

• It has at least 9.4” (239 mm) of clearance from the

rear to the nearest body.

• Vertical runs of vent pipe must be at least 3” (77

mm) from any wall.

Finally, the area which the wood pellet fire stove is

installed shall have a floor-to-ceiling distance of at least

84” (2134 mm).

FLOORING MATERIAL

Floor protection must be all of the following:

• Listed to UL 1618.

• At least 0.5” (13 mm) thick

• Constructed of non-combustible material.

• Have either:

Thermal resistance value R of 1.19

(ft2)(hr)(0F)

Btu

Thermal conductivity value k of 0.84 (Btu) (inch)

(ft2)(hr)(0F)

For assistance evaluating the suitability of substitute

materials, the following equivalences of specifications

and example below have been provided.

Thermal conductivity k =

thickness

R((Btu) (inch)

(ft2)(hr)(0F) or

(m)(0K) )

Thermal conductance C =

R((Btu)

(ft2)(hr)(0F) or

(m2)(0K))

Example: Required to protect floor with R value of 1.19

(ft2)(hr)(0F)

Btu .

Evaluating merit of 2¼ inch (57 mm) thick brick with

thermal conductivity k = 4.16

(Btu) (inch)

(ft2)(hr)(0F) on top of ¼ inch

(6.3 mm) thick mineral board that has C value of 2.3

(Btu)

(ft2)(hr)(0F) .

Step 1. Calculate the R value of each floor material

RBRICK =

thickness

2.25

4.16 = 0.54

RBOARD =

2.3 = 0.434

Step 2. Add the equivalent R values for each floor

material

RBRICK + RBOARD = 0.54 + 0.434 = 0.974

Step 3. This combined R value is insufficient and so

more protection must be provided. For example,

by using 2 layers of bricks:

RBRICK + RBRICK + RBOARD = 0.54 +0.54 + 0.434 = 1.514

Step 4. Because this combined R value is larger than

the specification, this is a sufficient method for

protecting the floor area underneath the stove.

(Imperial or SI units)

6Operating Instructions and Owner’s ManualCleveland Iron Works Wood Pellet Fire Stove

UNPACKING & ASSEMBLY

1. Remove heater from carton.

2. Remove all protective packaging applied to heater

for shipment.

3. Check heater for any shipping damage. If any

damage is found immediately contact the

manufacturer at 800-251-0001.

CAUTION: DAMAGED PARTS MAY

COMPROMISE SAFE OPERATION.

• DO NOT INSTALL INCOMPLETE COMPONENTS.

• DO NOT INSTALL SUBSTITUTE COMPONENTS.

• DO NOT INSTALL DAMAGED COMPONENTS.

4. Some components are packaged unattached from

the stove in order to ensure their safety during

shipping. Please find the protective packaging, likely

inside the stove door, to proceed with assembly.

Main Power Cord

The main power cord attaches to the stove at the

exposed socket in the rear of the stove. Once any

necessary assembly of the display panel screen is

complete you may briefly plug your stove in make

sure that it functions properly before proceeding with

installation. Unplug the stove once you confirm that

the display panel works.

CAUTION: DO NOT LEAVE THE STOVE

PLUGGED INTO ANY ELECTRICAL SUPPLY

DURING ASSEMBLY OR INSTALLATION.

Firepot

With the stove unplugged from any power supply, the

firepot should be inserted into the stove so that it is

securely positioned and also the hot surface igniter

should be able to make physical contact with pellets

that would be held in the firepot. See figure 2.

Figure 2: PS20W Firepot

A cleaning kit is also packaged which facilitates safely

cleaning the firepot perforations of debris.

Air Intake Kit

Locate the air intake kit packaged with the stove. See

Figure 4. Take measurements of your space and plan

for the installation of horizontal venting to the outside

as may be required per recommendations in “FRESH

AIR AND VENTILATION REQUIREMENTS 1” on page

7. Follow all ventilation requirements and guidelines

specified in “INSTALLATION” on page 7.

Termination Cap

2” Flex Hose

Hose Clamp

Figure 3 Intake Kit

Additional Assembly

• The display panel: insert the display panel into the

top and rear of the stove. Be sure that the display

panel screen is facing towards the front of the stove.

Secure the screen using two of the provided screws.

• The power cord for the display panel: this cord

should be wrapped up near the top of the stove.

Insert free end into the back of the display panel

(see figure 16 on page 14). This wire should

already be connected to the stoves power board. This

connection can be checked behind the access plate at

the bottom and rear of stove .

Figure 4: PS20W Exhaust Duct Adapter & Gasket

Exhaust Duct Adapter

Locate the exhaust outlet pipe for your model of

stove. During assembly of the exhaust duct adapter

be sure to sandwich the sealing gasket between the

duct adapter and the stove. Use four of the provided

screws to complete the assembly. See Figure 4.

7Operating Instructions and Owner’s ManualCleveland Iron Works Wood Pellet Fire Stove

INSTALLATION

WARNING: WHEN THIS STOVE IS NOT

PROPERLY INSTALLED, A HOUSE FIRE MAY

RESULT. TO REDUCE THE RISK OF FIRE,

FOLLOW THE INSTALLATION INSTRUCTIONS.

CONTACT LOCAL BUILDING OR FIRE

OFFICIALS ABOUT RESTRICTIONS AND

INSTALLATION INSPECTION REQUIREMENTS

IN YOUR AREA.

CAUTION: ANY DEVIATION OR ALTERATION

FROM THESE INSTALLATION INSTRUCTIONS

MAY RESULT IN DAMAGE TO YOU, THE

STOVE, YOUR CHIMNEY, AND YOUR HOME.

YOUR WARRANTY MAY BECOME VOID. READ

AND FOLLOW ALL INSTRUCTIONS. Contact

Cleveland Iron Works with any comments,

concerns, or questions.

CAUTION: CONTACT LOCAL BUILDING OR

FIRE OFFICIALS ABOUT RESTRICTIONS AND

INSTALLATION INSPECTION REQUIREMENTS

IN YOUR AREA.

CONTACT INFORMATION

If you have any questions regarding ventilation options

of your stove, contact either:

The manufacturer Cleveland Ironworks Company at

1-800-251-0001 • CLEVELAND-IRONWORKS.COM Our

office hours are 8:00 AM – 5:00 PM, EST, Monday

through Friday.

The National Fire Protection Association (NFPA) and

request a copy of the latest editions of NFPA Standard

211. The mailing address of the NFPA is Batterymarch

Park, Quincy, MA 02269

PLANNING

Make sure that you have selected the correct stove

for your heating requirements by checking the

specifications table on page 3.

Take measurements of your space and plan for

your chimney system as detailed in the following

instructions.

This stove may be installed for use in a mobile home.

In addition to the following instructions, review and

adhere to the mandatory requirements on page 10.

ELECTRICAL CONSIDERATIONS

The rear of the stove will need to be within power cord

distance, which is roughly 80 inches (203 cm), of an

electrical outlet. Lay the power cord out such that it will

not come into contact with the stove’s surface.

WARNING: When this stove is not properly installed, a

house fire may result. To reduce the risk of fire, follow

the installation instructions. Contact local building or

fire officials about restrictions and installation inspec-

tion requirements in your area.

TOOLS REQUIRED (NOT SUPPLIED)

• Safety Glasses

• Gloves

• Tape Measure

• Phillips Screwdriver or

comparable electric

screw driver & drill bit.

• Stud Finder

• Plumb bob

• Reciprocating saw

• High Temperature

Silicone

• A friend (the stove is

heavy, do not attempt

to move the stove

without assistance)

PARTS & MATERIALS REQUIRED (NOT SUPPLIED)

• Floor Protection (see “FLOORING SPACE” and

“FLOORING MATERIAL” on page 5)

• Manufactured venting of 3” (80 mm) diameter, of

type “L” or “PL” which is listed to UL 641, ULC S609

(Standard for 650°C Factory-Built Chimneys), or

ULC/ORD C441. Install per chimney manufacturer’s

instructions.

FRESH AIR AND VENTILATION REQUIREMENTS

When deciding the location of the stove ensure

that the space will always have a source of fresh air

available. Failure to do so may result in air starvation

of other fuel burning appliances and the possible

development of hazardous conditions.

Provision for outside combustion air may be necessary

to ensure that fuel-burning appliances do not discharge

products of combustion into the house. Guidelines to

determine the need for additional combustion air may

not be adequate for every situation. If in doubt, it is

advisable to provide additional air. Outside combustion

air may be required if these or other indications

suggest that infiltration air is inadequate:

• The wood pellet fired stove does not draw steadily,

experiences smoke roll-out, burns poorly, or back-

drafts, whether or not there is combustion present.

• Existing fuel-fired equipment in the house, such as

fireplaces or other heating appliances, smell, do

not operate properly, suffer smoke roll-out when

opened, or back-draft, whether or not there is

combustion present.

• Any of the above symtoms are alleviated by opening

a window slightly on a calm (windless) day.

• The house is equipped with a well-sealed vapour

barrier and tight fitting windows and/or has any

powered devices which exhaust house air.

• There is excessive condensation on windows in the

winter.

• A ventilation system is installed in the house.

Additional combustion air may be directly provided

from the outdoors to the wood pellet fired stove by

using the included air intake kit to connect to the

inlet at the bottom and rear of the stove. Any such

installation must satisfy Clause 4 of CSA Standard

B365.

8Operating Instructions and Owner’s ManualCleveland Iron Works Wood Pellet Fire Stove

CAUTION: NEVER DRAW OUTSIDE

COMBUSTION AIR FROM:

• A WALL, FLOOR OR CEILING CAVITY.

• AN ENCLOSED SPACE SUCH AS AN ATTIC,

GARAGE OR CRAWL SPACE.

CAUTION: IF USING AN AIR INTAKE CONNECTION

THEN THE STOVE MUST BE INSTALLED SUCH THAT

IT IS ATTACHED TO THE STRUCTURE.

CONNECTOR REQUIREMENTS AND ASSEMBLY

CAUTION: A CHIMNEY CONNECTOR SHALL

NOT PASS THROUGH AN ATTIC OR ROOF

SPACE, CLOSET OR SIMILAR CONCEALED

SPACE, OR A FLOOR, OR CEILING. WHERE

PASSAGE THROUGH A WALL, OR PARTITION

OF COMBUSTIBLE CONSTRUCTION IS

DESIRED, THE INSTALLATION SHALL

CONFORM TO CAN/CSA-B365, INSTALLATION

CODE FOR SOLID-FUEL-BURNING

APPLIANCES AND EQUIPMENT

Any connector pipes or elbows should be installed with

the crimped end on the stove end of the path (not the

chimney cap end) and should be secured with three

evenly spaced sheet metal screws.

Connectors, elbows, and chimneys should be type ‘L’

or ‘PL’ and have a 80mm, or 3 inch diameter, diameter

as the flue system is based on negative pressure in the

combustion chamber and a slight overpressure on the

flue gas outlet. It is therefore important that the flue

gas connection is fitted correctly and is airtight.

It is recommended that connectors, elbows, and

chimneys be at least 24 gauge, double walled, type B

ventilation.

Note that bends in the exhaust path restricts air flow,

reducing performance and provides a collection point

for ash deposits requiring more frequent cleaning.

CAUTION: THE JOINTS OF ANY AND ALL

CONNECTIONS FOR ANY VENTILATION

SYSTEMS (COMBUSTION EXHAUST AND

OPTIONAL INLET AIR DUCT) MUST BE

SEALED WITH HIGH TEMPERATURE

SILICONE.

GENERAL VENTING REQUIREMENTS

CAUTION: DO NOT CONNECT TO ANY AIR

DISTRIBUTION DUCT OR SYSTEM.

CAUTION: DO NOT CONNECT THIS UNIT

TO A CHIMNEY FLUE SERVING ANOTHER

APPLIANCE.

CAUTION: DO NOT INSTALL A FLUE DAMPER

IN THE EXHAUST VENTING SYSTEM OF THIS

WOOD PELLET FIRED STOVE.

This wood pellet fire stove must be connected to

either of the following:

• Class A listed chimney complying with the

requirements for Type HT chimneys in the

Standard for Chimneys, Factory-Built, Residential

Type and Building Heating Appliance, UL 103.

• A International Conference of Building Officials

(ICBO) standards for solid fuel Stoves code-

approved masonry chimney.

VENT TERMINATION

• Install exhaust vent at clearances specified by the

vent manufacturer.

• Install exhaust vent terminations at clearances

specified by the vent manufacturer.

• If using the air intake kit, ensure that there is at

least 12 inches clearance between the exhaust vent

termination and the intake air inlet.

• It is recommened to keep at least 12” (30.5 cm)

of clearance between any vent termination and

windows, doors, or outside corners.

• Use silicone to create an effective vapor barrier at

the location where the chimney or other component

penetrates to the exterior of the structure.

• For additional requirements check local codes.

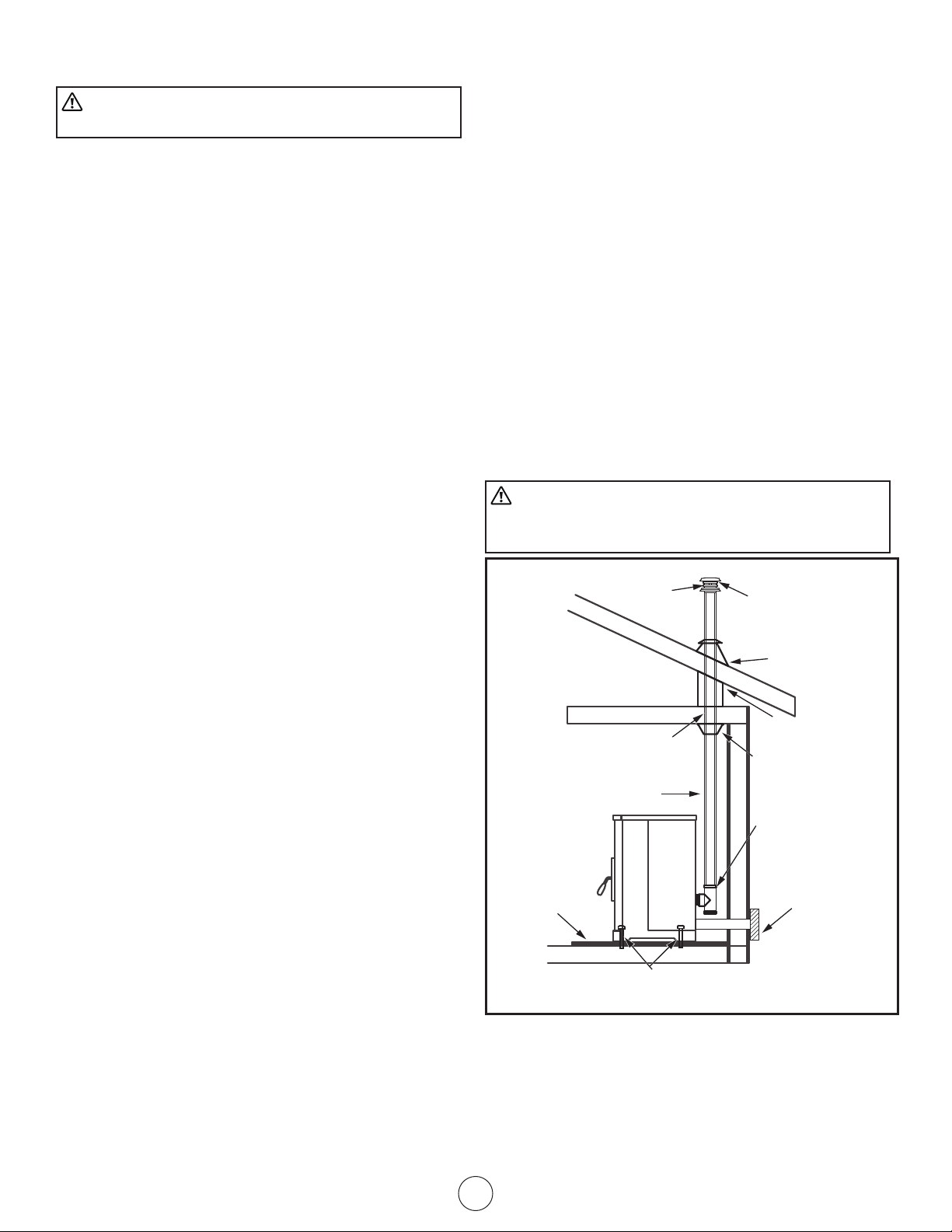

Any vertically terminated chimney systems must meet

the following minimum requirements:

• Must be at least 15 feet (4.6 m) tall, measured from

the top of the stove to the tip of the chimney cap.

• Must be at least 3 feet above the roof, measured

from the highest point of contact with the roof and

the tip of the chimney cap.

• Must be at least 2 feet (61 cm) above the highest

point of the slope of the roof within 10 feet (305

cm) horizontally.

Any horizontally terminated chimney systems must

meet the following minimum requirements:

• Must have at least 12” (30.5 cm) clearance above

grade, veranda porch, deck or balcony (Including

vegetation and mulch).

PASSING THROUGH A WALL

Where passage through a wall or partition of

combustible construction is desired, the installation

shall conform to chimney manufacturer’s instructions.

NOTE: In Canada, installation must conform to

CAN/CSA-B365 when passing through combustible

construction.

Hole with a minimum

clearance of 18”(450

mm) between

connector and wall

1” (25mm) clearance

Stove connector pipe

Non-combustible cover, one

side only. If two covers are

used, each must be mounted

on non-combustible spacers

at least 7/8” (21mm) away

from the wall.

Figure 6

ONLY APPROVED CANADIAN WALL PASS

THROUGH

9Operating Instructions and Owner’s ManualCleveland Iron Works Wood Pellet Fire Stove

Figure 5 (US ONLY)

Brick Masonry: Minimum 3.5 inch (89 mm)thick brick

masonry all framed into combustible wall with a

minimum of 12 inch (305 mm) brick separation from

clay liner to combustibles. The fireclay liner shall run

from outer surface of brick wall to, but not beyond,

the inner surface of chimney flue liner and shall be

firmly cemented in place.

Figure 6 (US ONLY)

Insulated Sleeve: Solid-insulated, listed factory-built

chimney length of the same inside diameter as the

chimney connector and having 1 inch (25.4 cm) or

more of insulation with a minimum 9 inch (229 mm)

air space between the outer wall of the chimney

length and combustibles.

Figure 7 (US ONLY)

Ventilated Thimble: Sheet steel chimney connector,

minimum 24 gauge in thickness, with a ventilated

thimble, minimum 24 gauge in thickness, having

two 1 inch (25.4 mm) air channels, separated from

combustibles by a minimum of 6 inches (152 mm)

of glass fiber insulation. Opening shall be covered,

and thimble supported with a sheet steel support,

minimum 24 gauge in thickness.

Figure 8 (US ONLY)

Chimney Section Pass-through: Solid insulated, listed

factory-built chimney length with an inside diameter

2 inches (51 mm) larger than the chimney connector

and having 1 inch (25.4 mm) or more of insulation,

serving as a pass-through for a single wall sheet

steel chimney connector of minimum 24 gauge

thickness, with a minimum 2 inches (51 mm) of air

space between the outer wall of chimney section and

combustibles. Minimum length of chimney section

shall be 12 inches (305 mm) chimney section spaced

1 inch (25.4 mm) away from connector using sheet

steel support plates on both ends of chimney section.

Opening shall be covered, and chimney section

supported on both sides with sheet steel support

securely fastened to wall surfaces of minimum 24

gauge thickness. Fasteners used to secure chimney

section shall not penetrate chimney flue liner.

NFPA 211 (US ONLY) APPROVED WALL PASS THROUGH TECHNIQUES

10 Operating Instructions and Owner’s ManualCleveland Iron Works Wood Pellet Fire Stove

ADDITIONAL MOBILE HOME REQUIREMENTS

WARNING: DO NOT INSTALL IN SLEEPING

ROOM.

PARTS & MATERIALS REQUIRED (NOT SUPPLIED)

• A 80mm diameter chimney which complies to

UL 103, Standard for Factory-Built Chimneys for

Residential Type and Building Heating Appliances.

• Ceiling thimble suitable for use in mobile home.

• Roof thimble suitable for use in mobile home.

• Spark arrestor suitable for use in mobile home.

• Roof flashing suitable for use in mobile home.

ADDITIONAL INSTALLATION REQUIREMENTS

• The chimney shall attach directly to the room heater

and shall extend at least 3 feet (0.9 m) above the

part of the roof through which it passes.

• The top of the chimney is to be at least 2 feet (0.6

m) above the highest required elevation of any part

of the mobile home within 10 feet (3 m) of the

chimney.

• All roof-chimney terminations shall be able to be

readily removed at or below an elevation of 13½ feet

(4.1 m) above ground level and reinstalled without

the use of special tools or instructions.

• The chimney assembly shall be provided with

a mechanical securement means to secure the

chimney to the ceiling support box.

• Chimney Guard Requirements:

—When the chimney exits the mobile home at

a location other than through the roof, and

exits at a point 7 feet (2.1 m) or less above

the ground level on which the mobile home is

positioned, a guard or method of enclosing the

chimney shall be provided at the point of exit for

a height up to 7 feet.

—The chimney guard shall not have any openings

large enough that a 3/4 inch diameter rod can

enter.

—The chimney guard shall not have any openings

large enough that a 1/2 inch diameter rod can

enter beyond 4 inches

• The stove must be on installed on a level surface

which can support the weight of the stove.

• The stove must be bolted to the level surface so

that it permanently secured and can not be moved,

tipped, or have ventilation seals compromised.

• The stove must be provided a permanently ducted

source of outside air to support combustion which

meets the following requirements:

—The duct must be made of metal exclusively, not

other materials such as plastic.

—The end of this duct must be equipped with a

screen which prevents rodents from infiltrating.

—The end of this duct must be kept free of leaves,

snow, ice, or other debris that could restrict air

supply when the appliance is in operation.

• The joints of any and all connections for both of

ventilation systems (the inlet air and the combustion

exhaust) must be sealed with high temperature

silicone.

• The chimney must comply with all applicable

codes and requirements of the authority having

jurisdiction.

• The chimney must be removed for any mobile

home transportation, and reinstalled abiding all

requirements after transportation.

The flue system is based on negative pressure in

the combustion chamber and a slight overpressure

on the flue gas outlet. It is therefore important

that the flue gas connection is fitted correctly and

is airtight.

CAUTION: THE STRUCTURAL INTEGRITY OF

THE MOBILE HOME FLOOR, WALL, CEILING,

AND ROOF MUST BE MAINTAINED.

Mobile Home

Thimble

Permanent,

All-metal

Combustion air

Source with

Exterior Seal &

Screen

Bolted to floor

Floor

Protector

Joist Shield

/ Firestop

UL 103 Pass-through system

according to Manufacturer’s Parts

& Instructions

Double-wall UL 103 High

Temperature Chimney Pipe

Chimney Support

Storm Collar & Roof

Flashing per Local

Mobile Home Building

Codes

Mandatory Chimney Cap &

Spark Arrestor

UL 103 Chimney

Clean Out T

Figure 9 Mobile Home Vertical Chimney

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Cleveland Herd Handbücher

Cleveland

Cleveland ERIE H090 Montageanleitung

Beliebte Herd Handbücher anderer Marken

Arada

Arada Cassette Stove Bedienungsanleitung

Parmco

Parmco FS 600 Bedienungsanleitung

MCZ

MCZ SUITE AIR 10 M2 Bedienungsanleitung

HearthStone

HearthStone Stowe DV 8321 Fehlerbehebungshandbuch

Cattara

Cattara FAMILY Bedienungsanleitung

Stanley

Stanley Argon F500 OVAL Bedienungsanleitung

Avalon

Avalon B-VENT Bedienungsanleitung

Nordpeis

Nordpeis Vega Bedienungsanleitung

Exquisit

Exquisit EKC601-5 Bedienungsanleitung

Stanley

Stanley Oisin Oil MK II Betriebsanleitung

Thermocet

Thermocet Brookfield S/CC Bedienungsanleitung

HASE

HASE delhi Bedienungsanleitung

Vermont Castings

Vermont Castings Intrepid 2 Bedienungsanleitung

Italiana Camini

Italiana Camini CLASSICA Kurzanleitung

Avalon

Avalon Vashon Avanti DVS FS Bedienungsanleitung

Spartherm

Spartherm ambiente a1 Bedienungsanleitung

Dimplex

Dimplex MCFSTV12AU Bedienungsanleitung

Warmlite

Warmlite WL46040 Bedienungsanleitung
