CLF Quadcolor Mini Par 156120 Bedienungsanleitung

CLFQuadcolor Mini Par

Item #: 156120

Version 1.1

November2014

CONTENTS

1.BEFORE YOU BEGIN .......................................................3

What is included...............................................................3

Un packing Instructions......................................................3

A C P O W E R ..................................................... . 3

Safety Inst ructions............................................................4

2.INTRODUC TI O N ............................................................5

Features.............................................................................5

Product overview ...............................................................6

Dimensions.............................................................................6

3.SETUP................................................................................7

Installation Requirement......................................................7

Connection of DMX Signal Wire.............................................8

3-PIN TO 5-PIN CONVE R S I O N CHART ............................8

4.OPERATIG INSTRUCTIONS ...............................................9

Control Panel Functions.......................................................9

Menu Map ............................................................................10

Operating instructions ............................................................11

DMX512 Controller Mode ......................................................12

DMX512 Channel

Values ......................................................1

ID Address Instructions .....................................................16

Master/Slave Control Mode ................................................17

5 . A PPE N D I X ................................................18

Service Maintenance Guide ................................................18

B l o w -ou t Diagram................................................ 2 0

1.BEFORE YOU BEGIN

What is included

1 x Fixture

1 x Power cable with plug

1 x User Manua

Unpacking Instructions

Immediately upon receiving a xture, carefully unpack the carton; check the

contents to ensure that all parts are present, and have been received in good

condition. Notify the shipper immediately and retain packing material for

inspection if any parts appear damaged from shipping or the carton itself shows

signs of mishandling. Save the carton and all packing materials. In the event that

a xture must be returned to the factory , it is important that the xture be returned

in the original factory box and packing.

AC POWER

This xture has an auto-switching switch-mode power supply that can

accommodate a wide range of input voltages. The only thing necessary to do

before powering on the unit is to make sure the line voltage you are applying is

within the range of accepted voltages. This xture will accommodate between

100V and 240V AC 50-60 Hz.

Help preserve the environment! Ensure that this product is

recycled at the end of its life. Y our supplier can give details

of local arrangements for the disposal of products.

Safety Instructions

WARNING!

Please read these instructions carefully , which includes

important information about the installation, usage and

maintenance of this product..

The following symbols are used to identify important safety information on the

product and in this manual:

DANGER!

Safety hazard.

Risk of severe

injury or death

DANGER!

Hazardous

Voltage. Risk of

lethal or severe

electric shock.

WARNING!

Fire hazard

WARNING!

LED light

emission. Risk

of eye injury .

WARNING!

Refer to user

This light belongs to grade I protection device, therefore the light must connect

to the earth excellently. And the power connection must be operated by the

professional technician.

Make sure that the working voltage will not higher or lower than the rated value.

Make sure that the cable didn't be damage or lacerated by sharp.

The light must be power of f when it's standing idle or before clearing.

The cable must with plug, and you must pull out the cable by handle the plug.

Please be careful when installing the lighting. Never touch the bared cable, or

it will cause the deadly electric shock.

Please use the suitable and safe cable to connect the light.

Please never remodel the light randomly, we will not take the guarantee for the

faulty and damage which caused by dismantle repair or remodel of the

nonprofessional person.

Maximum ambient temperature 40 °C. Do not operate at temperatures

higher than this.

Never connect the device to a dimmer pack.

2.INTRODUCTION

Voltage Rating: AC100V 240V 50-60Hz

Power Rating: 60W

LED Quantity: 7pcs 4 in 1LEDs (RGBW)

LED: 500mA

Beam Angle: 20 °/30°/40° (option)

Ingress Protection: IP65/IP20

Product Size: 190 X 148 X 238 mm

Package Size: 230 X200 X295 mm

N/W: 2.5Kgs

Features

RGBW color mixing with or without DMX controller

5 distinct dimming curves

User d program/ inne r optional program

LED display with passwor d protection

Transfer custom programs between s

Operating Modes: DMX512 Connection with ID Address/Master & Slave...

DMX Channels: STAG/col.d

11 channels(STAG): Dimmer+RGBW + Macro + strobe + AUTO + auto speed

+ dimming speed +ID

5 channels(col.d): Dimmer+RGBW

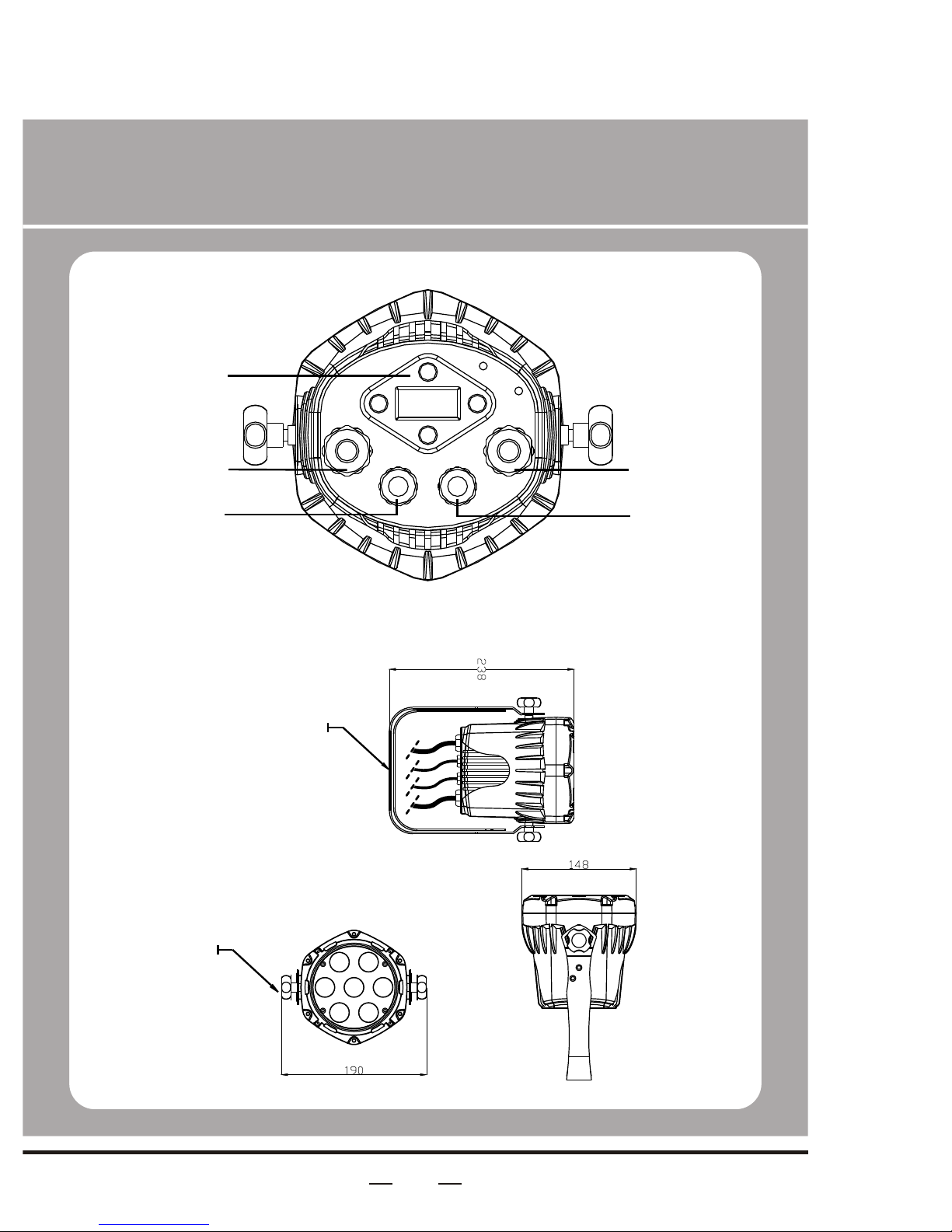

Product Overview

Dimensions

C o n tr o l b o a rd

DMX I N D MX O U T

Ha nging

brac ke t/ floor

st an d

Br ac ke t

ad justmen t

knob

P O W E R I N P O W E R O U T

3.SETUP

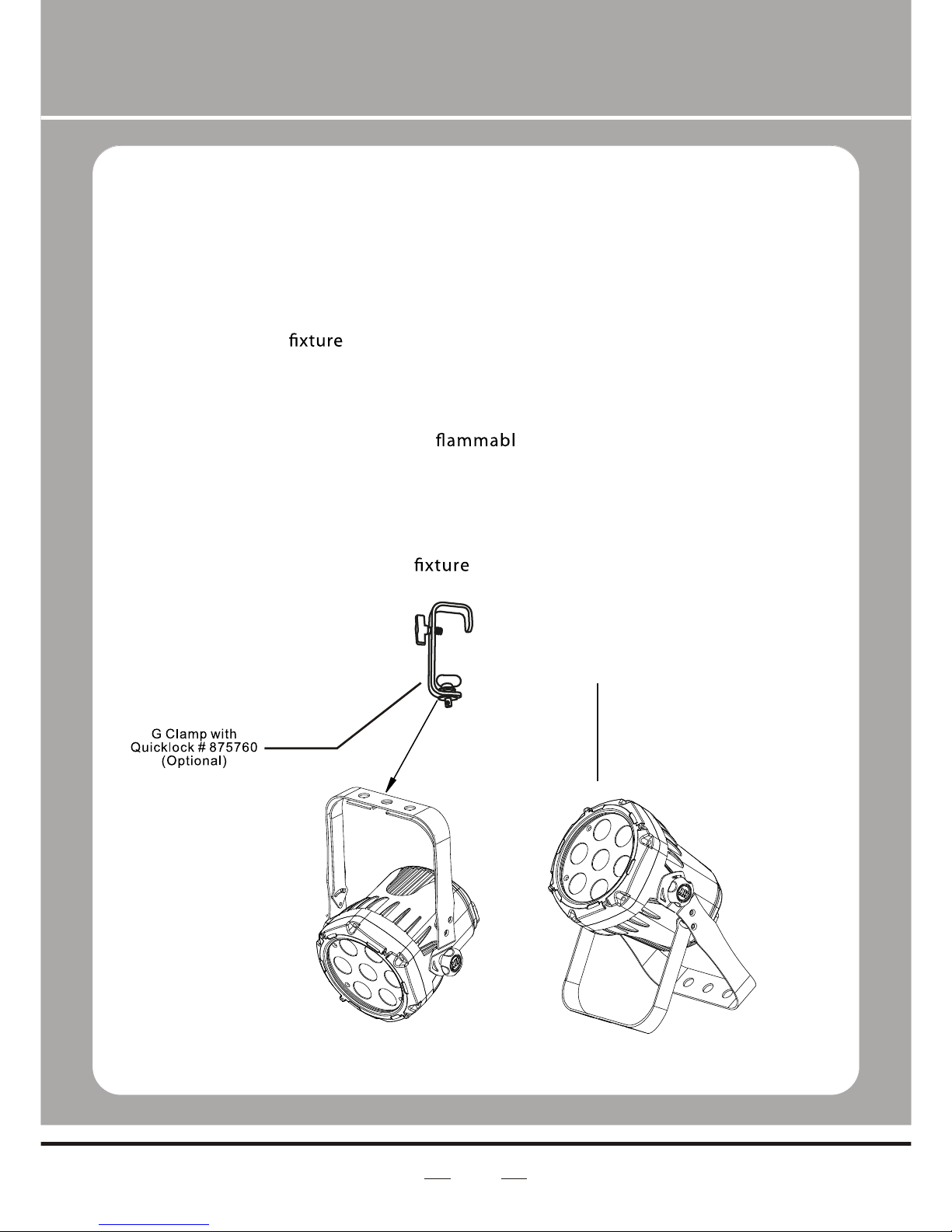

Installation Requirement

This product can be used in a variety of situations, can hang and put on

the ground.

If hanging the for over head use, then please follow the below steps.

Please choose the suitable location to put or hang the light when installing it.

You must use the exclusive clamp hanger and screw when hanging it, and

make sure the weight of the light is within limits of the hanger.

Please make sure without any e objects within 0.5m when

installing the light.

The installation should be operated by professional person; any irregular

installation will cause the body injury or equipment damage.

Block access below the work area and use suitable and stable platform

when installing or servicing .

Safety Cable

Note: the cable must be

secured through the heat

sink ventilation

passageway.

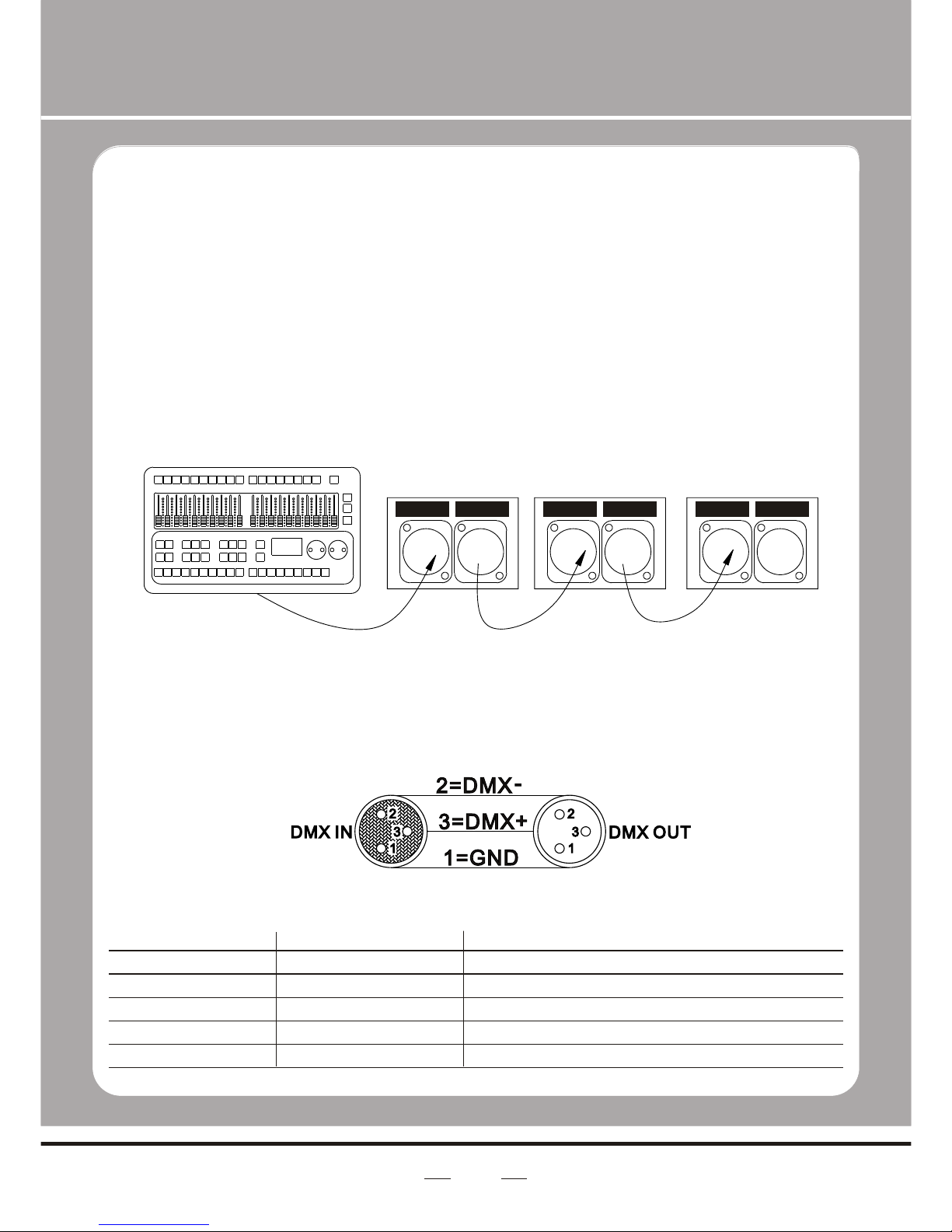

Connection of DMX Signal Wire

1Please use the xture controller wire specially when use the DMX512

Controller. Connect the (male) 3 pin connector side of the DMX cable to

the output (female) 3 pin connector of t he rst xture.

2Connect the end of the cable coming from the rst xture which will have

a (male) 3 pin connector to the input connector of the next xture

consisting of a (female) 3 pin connector. Then, proceed to connect from

the output as stated above to the input of the following xture and so on.

3This product can be connected numerous lamps in series without the

need for the signal amplier; the signal will not be weakened.

DMX IN DMXOUTDMX IN DMXOUTDMX IN DMXOUT

3-PIN TO 5-PIN CONVERSION CHART

Note! If you use a controller with a 5 pin DMX output connector, you will

need to use a 5 pin to 3 pin adapter.

Conductor

Ground/Shield

Data ( - ) signal

Data ( + ) signal

Do not use

3 Pin Female(output)

Pin 1

Pin2

Pin 3

5 Pin Male (Input)

Pin 1

Pin2

Pin 3

Do not use

3 PIN TO 5 PIN CONVERSION CHART

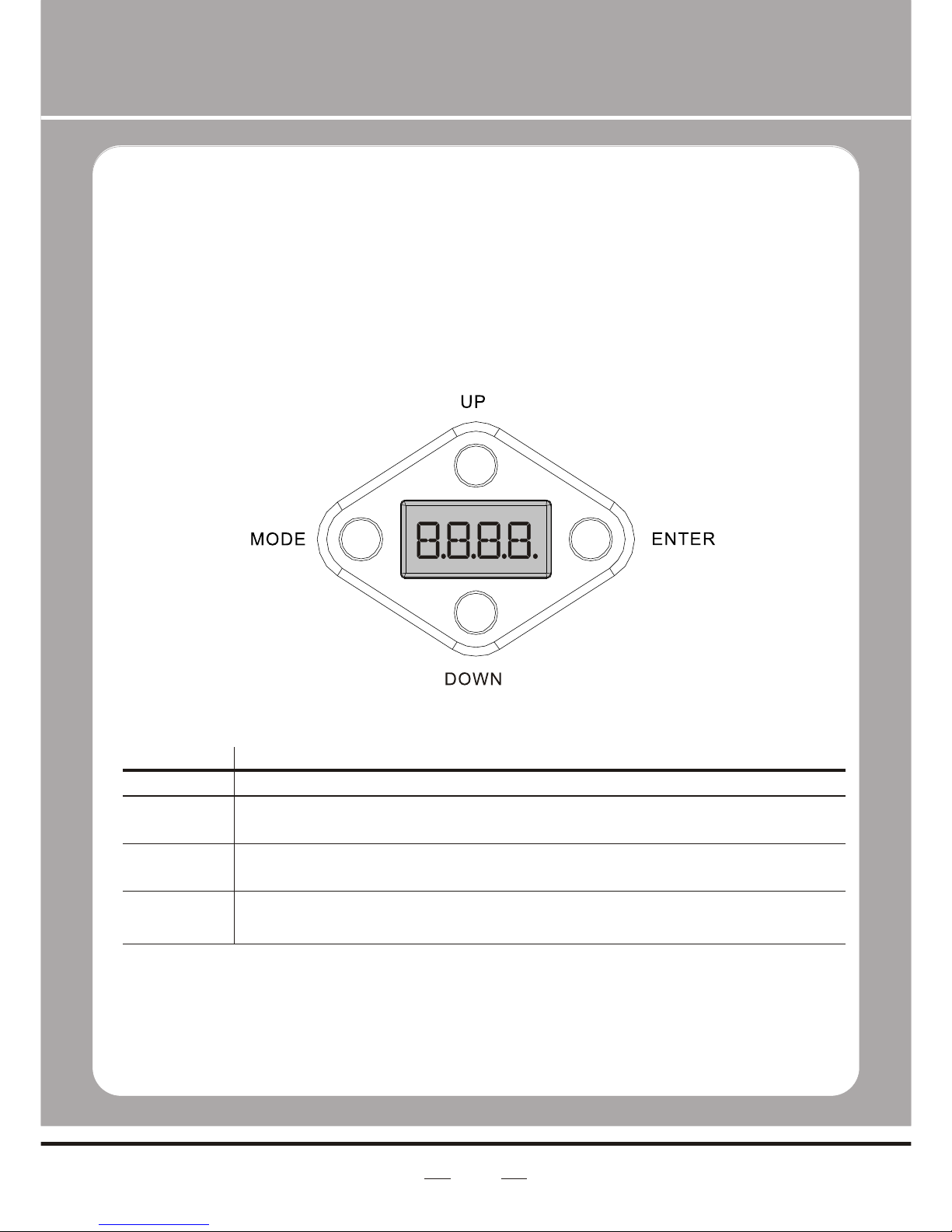

BUTTON

MODE

ENTER

DOWN

FUNCTION

Exits from the current menu or function

Enables the currently displayed menu or sets the currently selected

value in to the selected function

Navigates upwards through the menu list and increases the numeric

value when in a function

Navigates downwards through the menu list and decreases the numeric

value when in a function

4.OPERATING INSTRUCTIONS

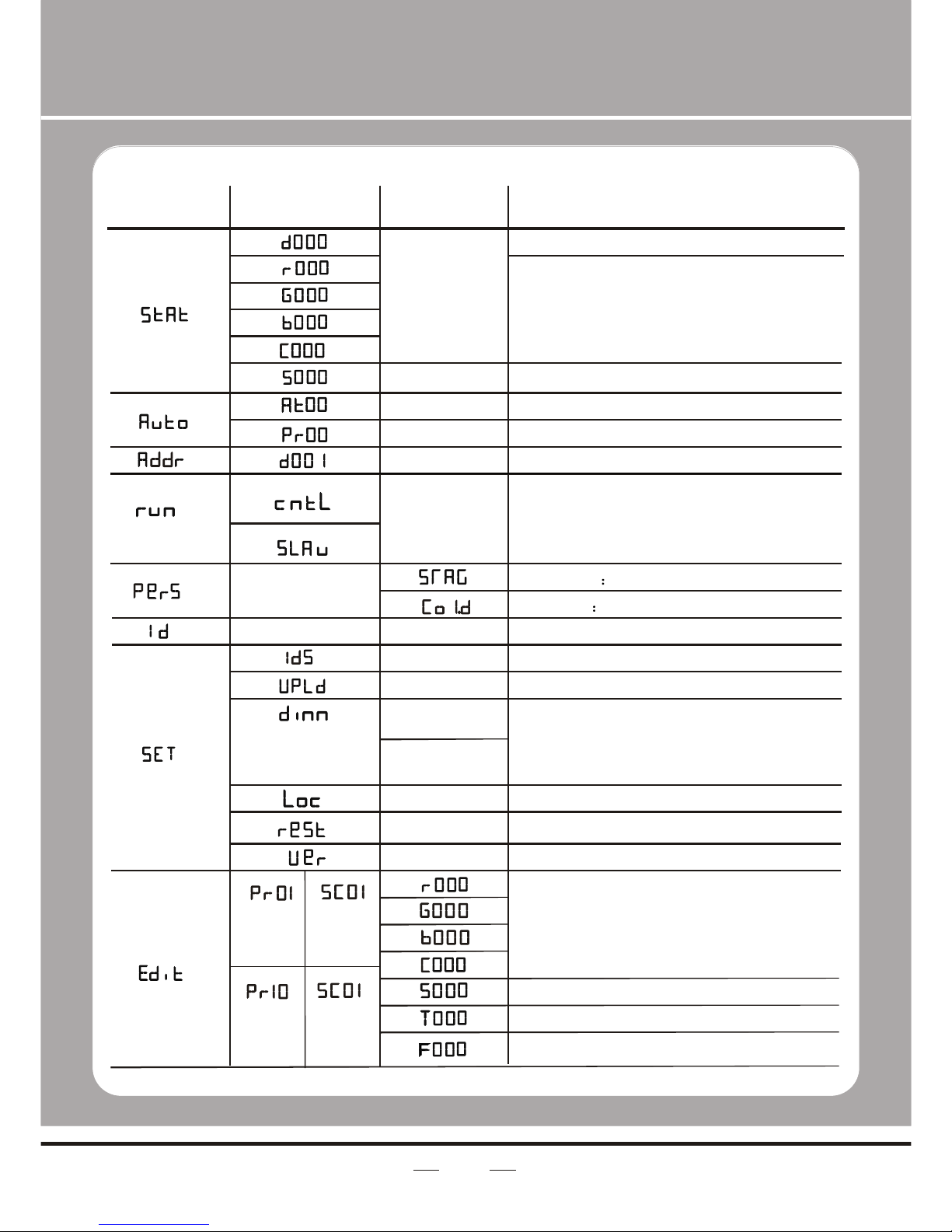

Control Panel Functions

MAIN

FUNCTION

SUB-

FUNCTIONSELECTION

000~255

(0 ~ 100%)

00~20

01~10

001~512

ON~OFF

Password

OFF

DIM1/2/3/4

ON~OFF

Password

V1.38

01~66

01~09

custom

01~30

scene

01~90

scene

INSTRUCTION

Dimmer

User can combine RED, GREEN, BLUE

and WHITE to generate a custom color

Select strobe frequency

10 auto programs available

chose program from 10 “EDIT ”programs

Set DMX start addressSets the

operating mode for the xture:to

receive signal from a DMX controller

(cntl) .receive signal or Download

programs from Master xture. (Slave)

11 channels D+RGBW +S …

5 channels D + RGBW

Assign ID address for xtures

Enable or disable ID

Upload programs(Password required)

"O" means select linear dimming, or

choose dimmer 1-4 to control the dimming

speed, dimming 1 of the fastest dimming

curves, 4 for the most slowly dimming curve

Enables or Disables password lockout

Reset factory defaults

Version number

User can combine RED, GREEN,BLUE

and WHITE to generate a custom

color(0~255)

(0~20Hz)Select strobe frequency

(0~255) step time

transition time of last step to current step
