Click FT-40MD Bedienungsanleitung
40cm Drum Pedestal Fan
Model Number: FT-40MD
USER MANUAL
AFTER SALES SUPPORT
(AU) 1300 886 649 (NZ) 0800 836 761
E209
AFTER SALES SUPPORT
(AU) 1300 886 649 (NZ) 0800 836 761 | info@tempo.org
2
Important Safety Instructions 3
Product Overview 6
Getting Started 7
Instructions 10
Other Useful Information 12
AFTER SALES SUPPORT
(AU) 1300 886 649 (NZ) 0800 836 761 | info@tempo.org 3
Important Safety Instructions
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
Read this manual thoroughly before first use, even if you are familiar with this
type of product. The safety precautions enclosed herein reduce the risk of fire,
electric shock and injury when correctly adhered to. Make sure you under-
stand all instructions and warnings. Keep the manual in a safe place for future
reference, along with any warranty information, your purchase receipt and the
packaging carton. If you sell or transfer ownership of this product, please pass
on these instructions to the new owner. Always follow basic safety precau-
tions and accident prevention measures when using an electrical appliance,
including the following:
Electrical safety and cord handling
• Voltage: Make sure your outlet voltage and circuit frequency correspond to
the voltage stated on the rating label. If this is not the case, do not use the
fan.
• Water: To protect against fire and electric shock, do not immerse the cord,
plug or the fan in water or other liquid, or expose the electrical connections
to water. Ensure your hands are dry before handling the plug or switching
on the fan. Do not use the fan outdoors or on wet surfaces. Protect it from
liquid spills.
• Damage: Check the power cord regularly for visible damage. If the cord is
damaged, it must be replaced by the manufacturer, its authorised service
centres or appropriately qualified personnel in order to avoid any hazards.
• WARNING! Do not pick up or operate the appliance if the supply cord, plug
or housing is damaged, or after it malfunctions or has been dropped or
damaged in any manner. In case of damage, contact our after sales support
centre.
• Protect the power cord:
- Do not operate the fan with the cord coiled up; always fully unwind.
- Do not twist or kink the cord or let it touch heated surfaces.
- Do not put any stress on the cord where it connects to the product.
- Never carry the fan by the cord.
- Arrange the cord away from any trac area so no one will trip over it.
- Do not run the cord under carpeting or cover it with rugs or runners.
• WARNING! No extension cord, no timer: Do not use this fan with an
extension cord, plug adaptor, external timer or separate speed control
device.
• Connection: To insert the plug, grasp it firmly and guide it into outlet.
AFTER SALES SUPPORT
(AU) 1300 886 649 (NZ) 0800 836 761 | info@tempo.org
4
Important Safety Instructions (Cont.)
• Disconnection: Unplug the appliance from the power outlet when it is
not in use and before cleaning, servicing, moving or storing the appli-
ance. Grasp the plug and remove it from the outlet, do not pull the cord
when disconnecting.
• Guard removal: Ensure that the fan is switched o from the supply
mains before removing the guard (grille).
• WARNING! Do not leave unattended during use! Always switch it o
and unplug when not in use, if left unattended, and before cleaning and
storing.
• WARNING! Electric shock hazard! Do not plug in the fan until fully as-
sembled.
• RCD: Unless your home is already fitted with a residual current device
(safety switch), we recommend installing an RCD with a rated residual
operating current not exceeding 30mA to provide additional safety
protection when using electrical appliances. See your electrician for
professional advice.
Usage conditions and restrictions
• Domestic use only: This fan is intended for indoor household use only.
It is not suitable for commercial, industrial or outdoor use. Do not use it
for anything other than its intended purpose (do not use it as a dryer),
and only use it as described in this manual. Any other use may cause
fire, electric shock or injury.
• Attachments: The use of accessory attachments not recommended in
this manual may cause injury or hazards.
• Usage restriction: This fan is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for
their safety.
• Children should be supervised to ensure they do not play with the
appliance. Close supervision is necessary when any appliance is used by
or near children.
• Location: Place the fan on a dry, flat, stable surface to avoid overturning.
• Keep the top clear: Do not place anything on top of fan.
• Proper assembly: Do not operate the fan until fully assembled with all
parts. Do not use the appliance without the protective grilles (rear and
front guards). Do not attempt to force the grille in order to stop or start
the fan.
AFTER SALES SUPPORT
(AU) 1300 886 649 (NZ) 0800 836 761 | info@tempo.org 5
Important Safety Instructions (Cont.)
• WARNING! DO NOT use the fan in the following areas:
- Near an open flame, a hot burner, oven or other source of high heat.
- On a soft surface (such as carpet) or where it may tip over during use.
- Outdoors or in areas of high humidity without suitable ventilation
(e.g., in a bathroom, laundry area), near a sink, washer, pool or any
source of water.
- Near curtains or in tight corners, to enjoy maximum airflow.
- In areas where flammable substances (e.g., paint, petrol, etc.) are
stored or being sprayed and there is a risk of explosion or fire.
• CAUTION! Personal safety: Avoid contact with moving parts. Never
insert fingers, pencils or any other objects through the grilles when
the fan is running. Keep hair and loose clothing well away from the fan
when it is in use.
• Free airflow: Ensure nothing is blocking the airflow outlet and air intake
grilles. Do not insert foreign objects into any opening as this may cause
electric shock and/or a fire hazard.
• Liability: We assume no liability for any damages or personal injury
caused by misuse of the product and/or failure to follow these
instructions.
AFTER SALES SUPPORT
(AU) 1300 886 649 (NZ) 0800 836 761 | info@tempo.org
6
Parts List
1
2
4
5
7
Parts list
1 Safety guards
(front and rear grilles)
2 Fan blade
3 Motor with speed control
and oscillation knob
(at the back, not visible
here)
4 Pivot knob
(see page 8 for details)
5 Oscillation knob
6 Extension pole
7 Height adjustment
knob
8 Stand base
3
6
8
NOTE: Due to continued product
improvement, images and illustrations
in this manual may vary slightly from
the product purchased. All images in this
manual are for reference purposes only.
Parts are not necessarily pictured to scale.
AFTER SALES SUPPORT
(AU) 1300 886 649 (NZ) 0800 836 761 | info@tempo.org 7
Getting Started
Before first use
• Unpacking: This product has been packaged to protect it against
transportation damage. Unpack the appliance and keep the original
packaging carton and materials in a safe place. It will help prevent any
damage if the product needs to be transported in the future, and you can
use it to store the appliance when it is not in use. In the event it is to be
disposed of, please recycle all packaging materials where possible.
• Safe packaging disposal: Plastic wrapping can be a suocation hazard
for babies and young children, so ensure all packaging materials are out
of their reach and disposed of safely.
• Inspection: Unwind the cord to its full length and inspect it for damage.
Do not use the appliance if the appliance or its cord have been damaged
or are not working properly. In case of damage, contact our after
sales support centre for advice on examination, repair or return of the
damaged product.
• Documentation: Make sure you have read and understood all
instructions and warnings in this manual. Refer to the illustrations to
familiarise yourself with the product and identify all parts. Pay particular
attention to the safety instructions on the previous pages.
• Assembly: Your new fan has been shipped partially assembled to
minimise packaging waste. Assembly instructions are provided on the
following pages; the illustrations show how all the parts fit together.
WARNING: Electric shock hazard!
Do not plug the power supply cord into an electrical outlet until fully
assembled.

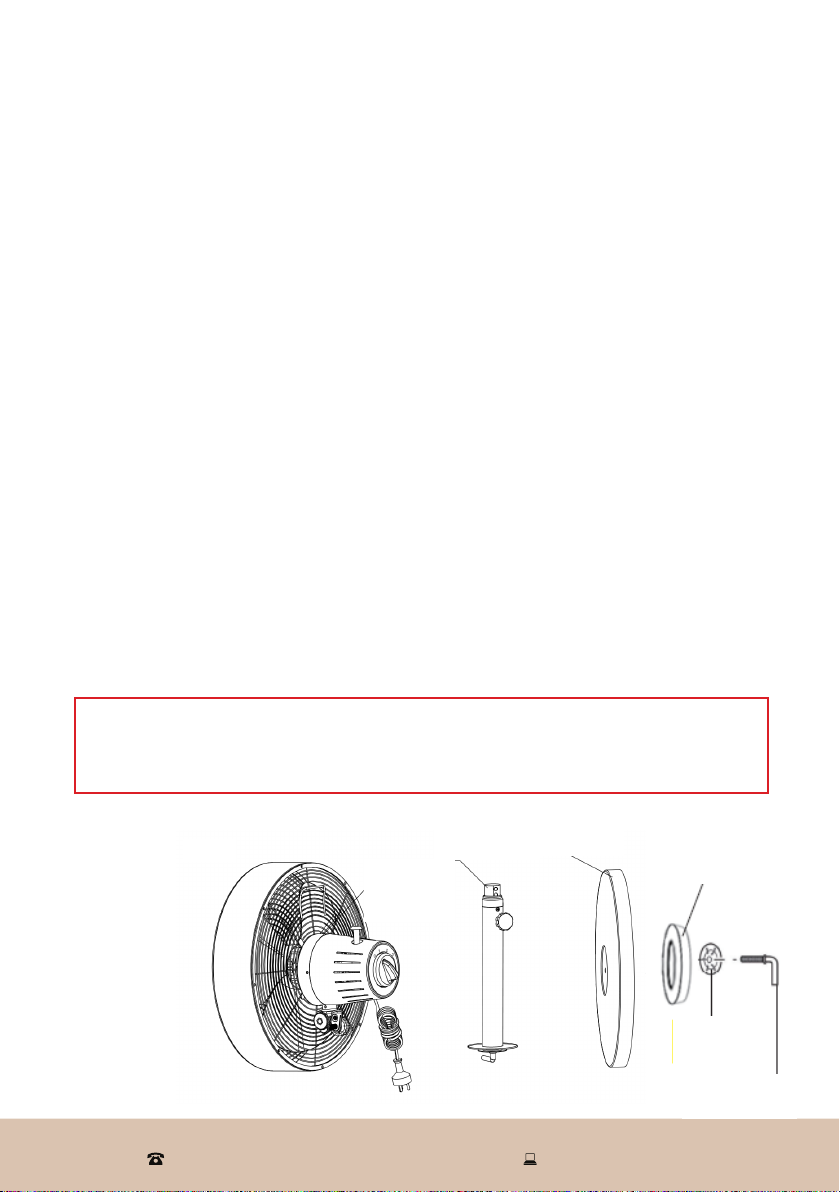

Parts of the fan
Fan head
and motor
assembly
Column sub-
assembly
Base
Fig. 1
Weight
Washer
L-shaped
screw
AFTER SALES SUPPORT
(AU) 1300 886 649 (NZ) 0800 836 761 | info@tempo.org
8
Getting Started (Cont.)
Assembly
Fig. 2: Attaching the telescopic stand to the stand base
• The washer and L-shaped screw are attached to the lower column, or
supplied separately. Unscrew the bolt, if applicable, and remove both
from the bottom of the lower column.
• Turn over the stand base. Place the weighted base centre in its place on
the underside of the base and the washer in the centre of the weighted
base. Then thread the L-shaped screw through the assembly and into the
thread in the lower column. Tighten firmly, but do not overtighten.
• Loosen the height adjustment knob and pull out the extension pole to
the desired height, then retighten the knob.
Fan head assem-
bly
Extension pole
Height adjustment
knob
Lower column
Stand base
Fig. 2
Weight
Washer
L-shaped screw
AFTER SALES SUPPORT
(AU) 1300 886 649 (NZ) 0800 836 761 | info@tempo.org 9
Getting Started (Cont.)
• First remove the pivot knob (2) and the large pivot bolt (6) from the top of
the telescopic stand, then remove the neck retaining screw (3) and small
adjustment knob (5) from the motor housing bracket.
• Place the fan head and motor assembly on the top of the stand and
thread the large pivot bolt (6) through the bracket. Screw in the neck
retaining screw (3) and tighten, but do not overtighten.
• Fit the large pivot knob (2) onto the end of the bolt (6) and the small
adjustment knob (5) at the other side above the bolt. Tighten the knobs
while holding the fan motor upright.
Assembly
Fig. 3
1 Telescopic stand
2 Pivot knob
3 Neck retaining screw
4 Motor housing
5 Small adjustment knob
6 Large pivot bolt
NOTE: The illustration above
shows the motor housing
without the fan head. On the
fan model you purchased, the
fan head is already assembled
to the motor housing.
AFTER SALES SUPPORT
(AU) 1300 886 649 (NZ) 0800 836 761 | info@tempo.org
10
The fan is equipped with 3 speeds and an oscillation option. To use the
fan, follow the simple instructions below.
Place the fan on a dry, level surface where it will not overturn during use.
Make sure the speed control at the back of the motor housing is in the
OFF [ 0 ] position, then insert the power plug into an appropriate electrical
outlet.
Speed selection
The speed control is located at the back of
the motor housing (Fig. 4). To select the fan
speed, move the speed control from the OFF
[ 0 ] position to the desired setting:
0 = OFF - 1 = LOW - 2 = MEDIUM - 3 = HIGH
Oscillation
• Press the oscillation knob on top of
the motor housing to activate the
oscillation function for widespread breeze
distribution. The fan head will pivot from
one side to the other.
• For stationary operation, pull up the oscillation knob when the air is
blowing in the desired direction.
CAUTION: Do not reach across the front of the fan when operating the
oscillation control to avoid the possibility of your clothing, sleeves, etc.
entering and getting caught in the front guard.
Adjusting the height
• Loosen the height adjustment knob (turn anticlockwise), pull out or push
down the extension pole to the desired height, then retighten the knob
firmly.
Instructions
Fig. 4
Inhaltsverzeichnis
Andere Click Lüfter Handbücher
Click
Click PFM7-SZ Bedienungsanleitung
Click
Click CLHHF Bedienungsanleitung
Click
Click TF-A02 Bedienungsanleitung
Click
Click EXC250 Bedienungsanleitung
Click
Click EXC200 Bedienungsanleitung
Click
Click CSEF200S Installationsanleitung
Click
Click FT-30MD Bedienungsanleitung
Click
Click CMT-60W Bedienungsanleitung
Click
Click CLF6-BLK Bedienungsanleitung
