ClimaxDigital BNC Bedienungsanleitung
VIDEO CONVERTER
USER’S MANUAL
BNC/CVBS TO VGA Converter
1
Introduction of Production
It can change the interlacing signals of s-video of video into VGA signals non-interlacing.
Let your monitor change into flicker free display. It also can be connected to
VCD/DVD/Webcam/set-top box etc.And made your monitor be like digital TV.
1：Input/Output
Input: 1xAV, 1xS-Video, 1xVGA
Output：1xVGA
2：Output resolution
800X600@60Hz, 800X600@75Hz, 1024X768@60Hz, 1280X1024@60Hz, 1440X900@60Hz,
1680X1050@60Hz, 1920X1080@60Hz, 1920X1200@60Hz
3：Input format
AV/S-Video Input: Auto-Detect PAL, NTSC, SECAM
VGA Input: BYPASS

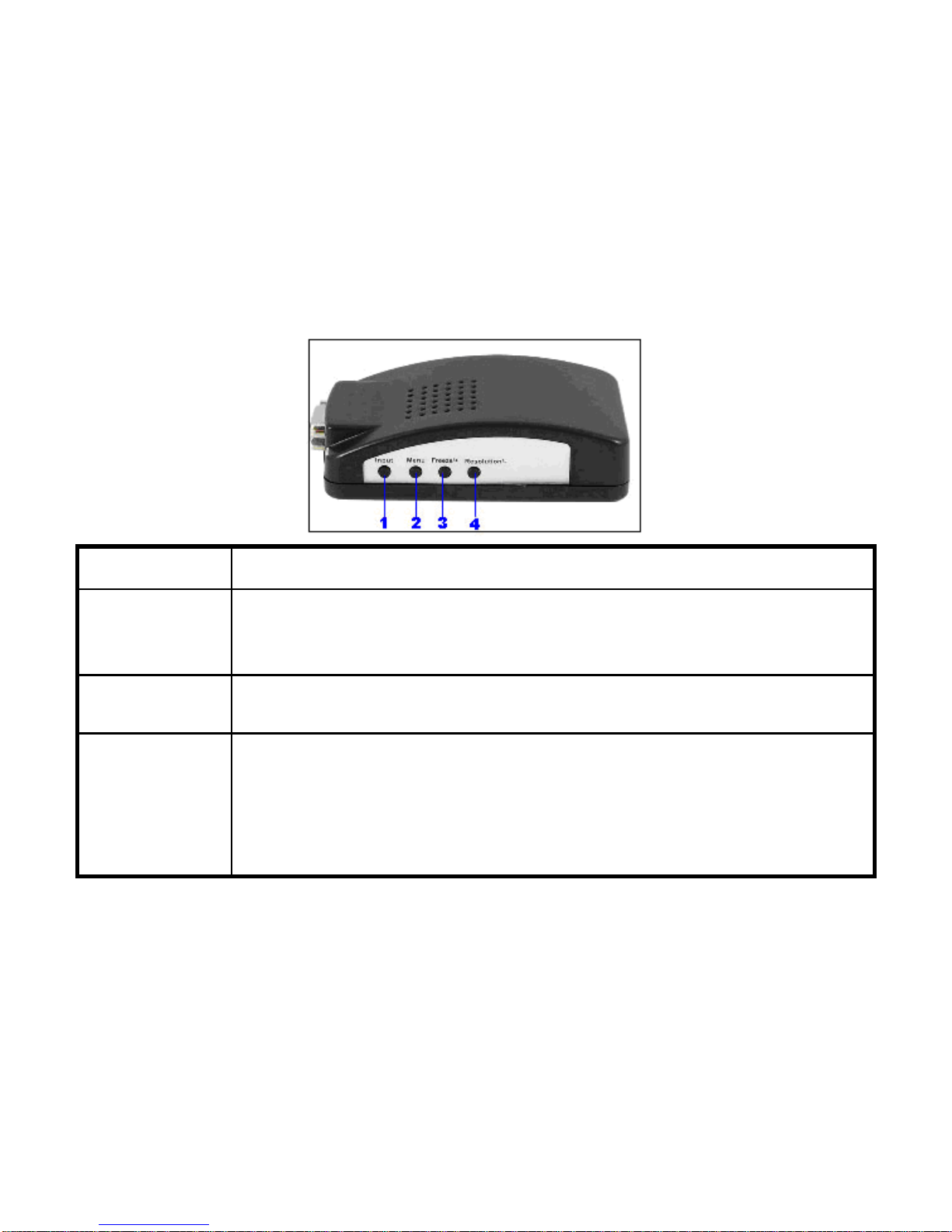

4：Key
2
Name
Description
(1)Input
Input selection: AV（CVBS）>>SV（S_VIDEO）>>VGA>>AV（CVBS）
Note: Reset feature: Press the Input key and power on the set will reset all
the setting.
(2)Menu
Menu: Brightness, Contrast, Sharpness, Saturation, Tint, HP(Horizontal
position), VP(Vertical position)
(3)Freeze/+
If the menu is displayed on the screen, e.g. Brightness,
Contrast, Sharpness, Saturation, Tint, HP(Horizontal position), VP(Vertical
position):
3
(4)Resolution/-
"Freeze/+" works as "+", such as increase the Brightness, shift the horizontal
position.
"Resolution/-" works as "-", such as decrease the Brightness, etc.
- If no menu is displayed on the screen:
"Freeze/+" works as "Freeze"
"Resolution/-" works as "Resolution Selection" for 800X600@60Hz 、
800X600@75Hz、1024X768@60Hz、1280X1024@60Hz、1440X900@60Hz、
1680X1050@60Hz、1920X1080@60Hz、1920X1200@60Hz
Note：Press the Resolution/- will change the output resolution from 800X600
to 1920X1200. If the resolution is too high and your monitor doesn't support
it, please keep on press this key to change the resolution to a lower format.
Also, you can press the Input key and power on the set will reset all the
setting
Features:
1：Supports PAL/NTSC/SECAM
2：Output resolution: up to 1920X1200
3：Brightness, Contrast, Sharpness, Saturation, Tint, HP(Horizontal position), VP(Vertical
4
position)
4：OSD
5：Freeze
6：Digital comb filter, no more cross color
7：3D motion adaptive de-interlacing
8：Standard VGA output works with all standard monitor
9：Industry-level design
(size: 110X56X36mm)
10：5V/1AAC-DC adapter
5

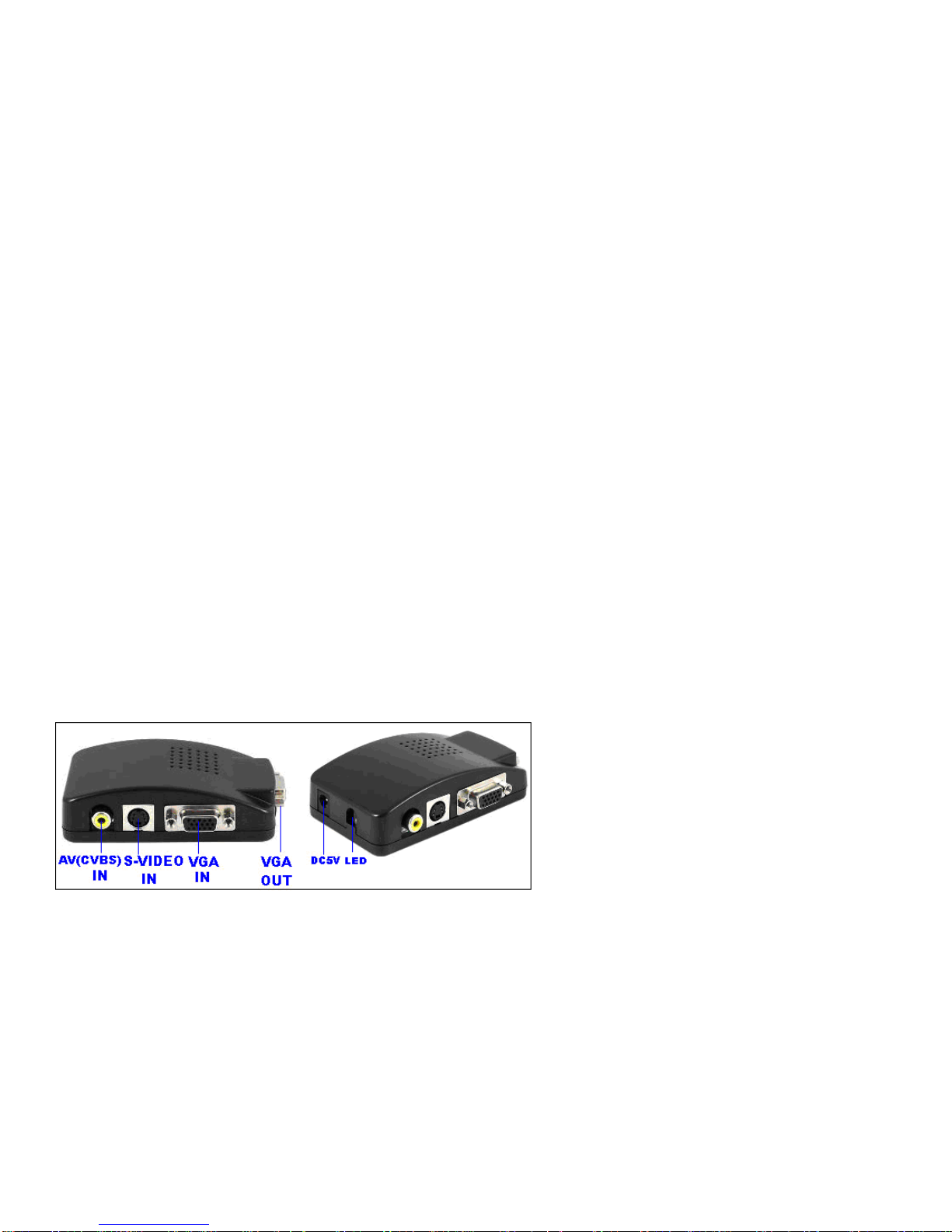

Name
Description
VGA Out
VGA output for monitor
AV(CVBS) In or BNC
CVBS or BNC input for DVD, camera, etc.
S-VIDEO In
S-video for DVD, camera, etc.
VGA In
VGA input for PC
DC 5V
5V/1A AC-DC adapter
LED
LED
Accessories
AV to VGA converter
1 PCS
5V/1AAC-DC adapter
1 PCS
AVcable(BNC no cable)
1 PCS
S-VIDEO cable
1 PCS
User's Manual
1 PCS
6
Product Warranty information
Model
Purchase Date
Distributor
Information
Distributor
TEL
Address
User
Information
User
TEL
Address
Maintenance
Records
Descriptions
Causes
Repaired By
Date
1
2
3
