CMA Dishmachines CWS Bedienungsanleitung

MODEL CWS

PARTS MANUAL

Rev.1.00

CMA DISHMACHINES

12700 KNOTT AVENUE

GARDEN GROVE, CALIFORNIA 92841

800-854-6417

FAX 714-895-2141

www.cmadishmachines.com

TABLE OF CONTENTS

MODEL CWS

1. PARTS MANUAL ..........................................................................................3

1.1. INITIAL PARTS KIT (P/N)................................................................................................................. 3

1.2. OPTIONAL SANI ALARM.................................................................................................................. 4

1.3. EXPLODED VIEW DRAWINGS........................................................................................................... 5

1.3.1. Cabinet Assembly ................................................................................................................... 5

1.3.2. Three Compartment Sink........................................................................................................ 6

1.3.3. Control Box Assembly ............................................................................................................ 7

1.3.4. Door Actuator Assembly......................................................................................................... 8

1.3.5. Pump Assembly....................................................................................................................... 9

1.3.6. Plumbing System Assembly................................................................................................... 10

1.3.7. Spray System Assembly......................................................................................................... 11

1.3.8. Power Drain Assembly......................................................................................................... 12

1.3.9. Peristaltic Pump Assembly................................................................................................... 13

1.3.10. Booster Heater Assembly...................................................................................................... 14

www.cmadishmachines.com

Parts Manual

1. Parts Manual

1.1. Initial Parts Kit (P/N)

P/N DESCRIPTION Qty

00104.86 50 RPM Drain Motor, 220 V 50 HZ 1

00115.85 Drain Sump Screen 1

00121.60 Drain Diaphragm 1

00105.81 Drain Spring 1

00200.14 Pump Assembly CWS 1

00205.00 Pump Gasket 1

00206.00 Pump Seal kit 1

00304.06 Spray Arm A&C 1

00308.50 Spray Arm End Plug SS 1

00341.00 Spray Arm Bearing 1

00363.00 Spray Base Lock Pin 1

00404.80 Contactor 220 V 20 Amp 1

00411.00 Micro Switch 1

00415.20 Peristaltic Pump Assembly 220 V/60Hz 1

00418.00 Peristaltic Pump Cover 1

00421.35 Lighted Rocker Switch 220 V (Amber) 1

00421.87 CMA-44 Rocker Switch (White) 1

00433.00 Master Switch (30 Amp) 1

00435.00 Squeeze Tube 8” Silicone 1

00501.10 Timer Motor Assembly 2Min 220/60Hz 1

00562.00 Roller Door Switch 1

00631.05 Ice Cube Relay 220 V 1

00706.00 3/4” Water Solenoid Repair Kit JE 1

00715.00 1/2” Boll Check Valve 1

00735.00 3/4” Vac. Breaker Repair Kit Watts 1

13003.50 Contactor 60 Amp 3 Pole 1

13003.50 Contactor 30 Amp 1

13415.00 EGO Thermostat Retrofit Kit 1

17523.51 Hi Limit Switch 250 Deg. 1

MODEL CWS PARTS MANUAL Rev. 1.00 Page 3

Parts Manual

1.2. Optional Sani Alarm

Part Number 12508.05

Exploded View

ITEM

NO. NO.

REQ’D P/N DESCRIPTION ITEM

NO. NO.

REQ’D P/N DESCRIPTION

1 3 00400.00 Conduit, 3/8” Sealtite 8 5 00931.00 Wire Tie, Small

2 1 00401.00 S.T. 3/8” Straight Connector 9 1 12510.00 Sanitizer Alarm Box Assembly

3 1 00402.00 S.T. 90 Degree 3/8” Connector 10 1 12511.00 Sanitizer Low Level Vacuum Switch

4 1 00406.05 Control Box Light, .5” Diameter, Red 11 1 12512.05 Sanitizer Alarm Buzzer, 220 Volts

5 1 00435.00 Squeeze Tube, 8” 12 4 40126.10 #10 x 3/4" Sheet metal Screw

6 1 00521.00 Wire, 18 Gauge, Orange, 6 ft. 13 4 40127.00 Wall Anchors

7 1 00531.00 Wire, 18 Gauge, White, 6 ft.

14 1 00426.00 Y Hose Connector, 3/16”

MODEL CWS PARTS MANUAL Rev. 1.00 Page 4

Parts Manual

1.3. Exploded View Drawings

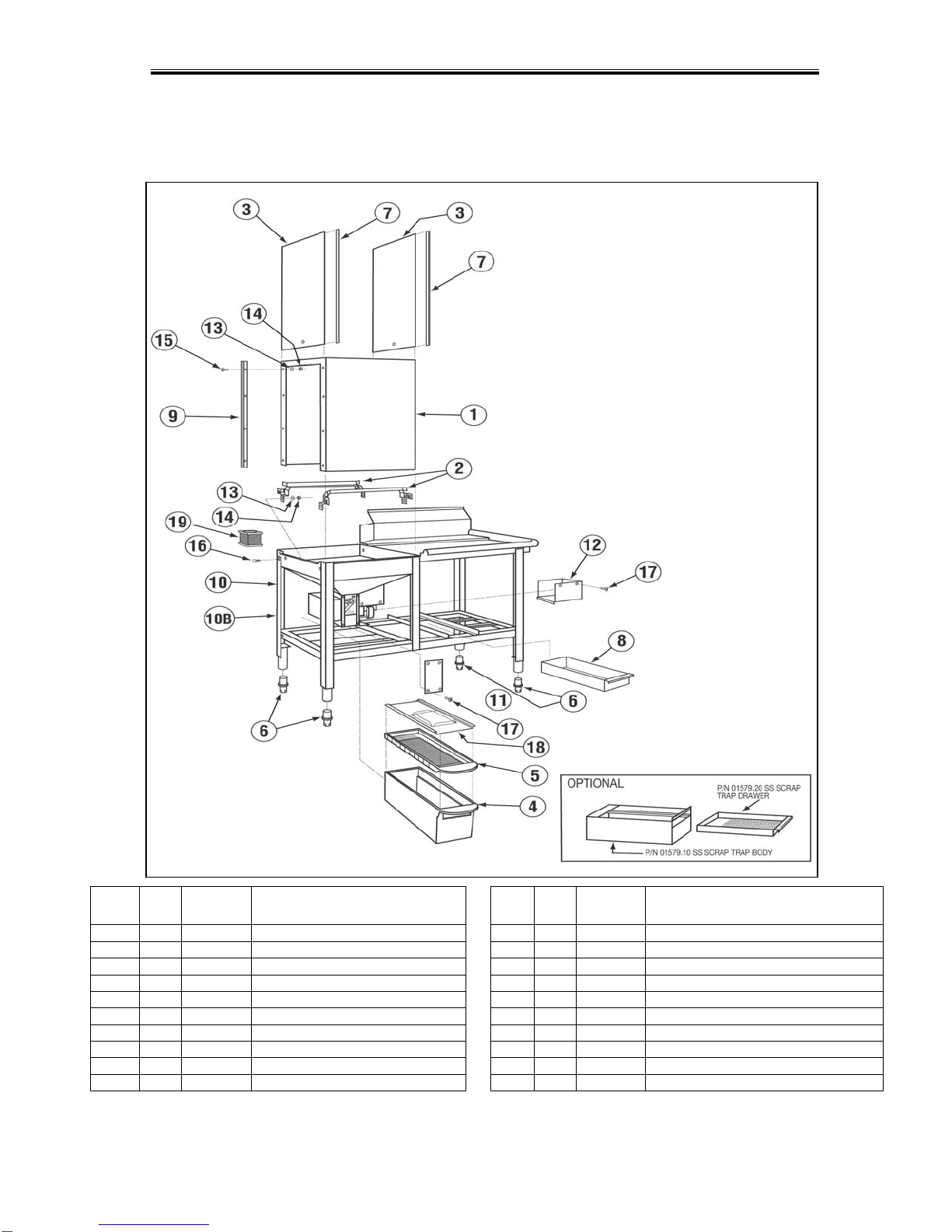

1.3.1. Cabinet Assembly

ITEM

NO. NO.

REQ’D P/N DESCRIPTION ITEM

NO. NO.

REQ’D P/N DESCRIPTION

1 1 01500.21 Wrapper 10B 1 16920.00 CWS Pan /Stand Left Sink

2 2 01505.32 Tray Track Inline (AH) 11 1 00120.50 Power Drain Cover CWS/N-EVA

3 2 01506.20 Door (Scullary & CWS) 12 1 01573.50 Sani Mount Drain Lid-CWS

4 1 01577.10 Molded Scrap Trap Body (New) 13 24 00924.00 ¼”ss Washer

5 1 01577.20 Molded Scrap Trap Drawer (New) 14 24 00912.00 ¼”-20 Nylon Lock Nut

6 4 01310.00 Bullet Foot 15 20 00905.00 ¼”-20x1/2” Truss Head Bolt

7 4 00636.30 EZ Glide Plastic Dr 31 ¾” 16 4 00914.10 ¼”-20x5/8” Hex Head Bolt

8 1 16904.00 CWS Chemical Tray 17 4 00911.00 8-32x1/2 » Pan Head Screw

9 4 01554.50 EZ Glide Door Guide ss.33”

18 1 01577.40 Scrap Trap Lid

10 1 16920.50 CWS Pan /Stand Right Sink 19 1 00115.85 Drain Screen VA

MODEL CWS PARTS MANUAL Rev. 1.00 Page 5

Parts Manual

1.3.2. Three Compartment Sink

ITEM

NO. NO.

REQ’D P/N DESCRIPTION ITEM

NO. NO.

REQ’D P/N DESCRIPTION

1 1 16922.00 CWS 3 Comp Sink Left 9 1 20472.00 Bumper Spray

1A 1 16922.50 CWS 3 Comp Sink Right 10 1 20475.00 Spray Valve

2 1 16906.00 CWS Sink Scrap Basket 11 1 20450.00 Pre Rinse Hose Handle

3 2 16905.00 CWS Sink Covers 12 1 20416.00 Pre Rinse Check Valve

4 3 20500.00 CWS Rotary Waste Valve 13 1 20451.00 Pre Rinse Hose

4A 3 20500.10 Waste Valve Screen Gasket 14 1 20417.00 Pre Rinse Spring

4B 4 20500.20 Waste Valve Screen 15 1 20419.00 Pre Rinse Hook

5 2 01310.00 Bullet foot 16 1 20420.00 Pre Rinse Hose Pipe Adapter

6 1 20505.00 CWS ½” Faucet

17 1 20415.00 Pre Rinse Wall Bracket

7 1 20411.00 Pre Rinse Unit 18 1 20418.00 Pre Rinse Riser Pipe

8 1 20414.00 Pre Rinse Brush 19 1 20413.00 Add On Faucet

MODEL CWS PARTS MANUAL Rev. 1.00 Page 6

Parts Manual

1.3.3. Control Box Assembly

ITEM

NO. NO.

REQ’D P/N DESCRIPTION ITEM

NO. NO.

REQ’D P/N DESCRIPTION

1 3 00416.20 Peristaltic Pump Motor 220 V 17 3 00911.50 8-32 X 3/8” Pan Head Screw

2 3 00417.00 Peristaltic Pump Block 18 3 00927.00 8-32 Nylon Lock Nut

3 3 00418.00 Peristaltic Pump Cover 19 1 00631.05 Ice Cube relay 220 V

4 3 00419.00 Peristaltic Pump Rotor 20 1 00433.10 Master Switch (20Amp)

5 6 00919.00 10-32 X 1 ½” Panhead Bolt 21 1 13404.20 Socket Terminal Block

6 12 00911.00 8-32 X ½” Panhead screw 22 2 13825.00 8-32 X 1” Pan Head Screw

7 3 00918.00 10-32 X 1 ½” Filister Bolt 23 6 00907.00 6-32 X 1/2” Pan Head Screw

8 1 00449.00 Lock and Key 24 1 00535.00 Control Box Lid Handle

8A 1 00450.00 Key Only 25 1 01504.14 Control Box Lid

9 1 00562.00 Roller Switch 26 3 03470.00 Primer Switch (Momentary)

10 1 00562.60 Roller Switch Connector 27 1 00475.30 Delimer Switch (DPDT 15Amp)

11 5FT 00546.00 Switch Cord 28 1 00421.35 Illuminated Rocker Switch (Amber)

12 1 00404.80 Motor Contactor 20 Amp

29 1 00421.87 Illuminated Rocker Switch (White)

13 1 13003.17 Main Contactor 60 Amp 30 1 03408.55 Counter (Panel Mount) 220 V

14 1 00408.40 Timer 120 Sec 8 Cam 220V/60Hz 31 1 16903.00 Control Box Body

15 1 01514.00 Timer Support Bar 32 5 00470.10 Toggle Switch Rubber Boot

16 8 00411.00 Microswitch

MODEL CWS PARTS MANUAL Rev. 1.00 Page 7

Parts Manual

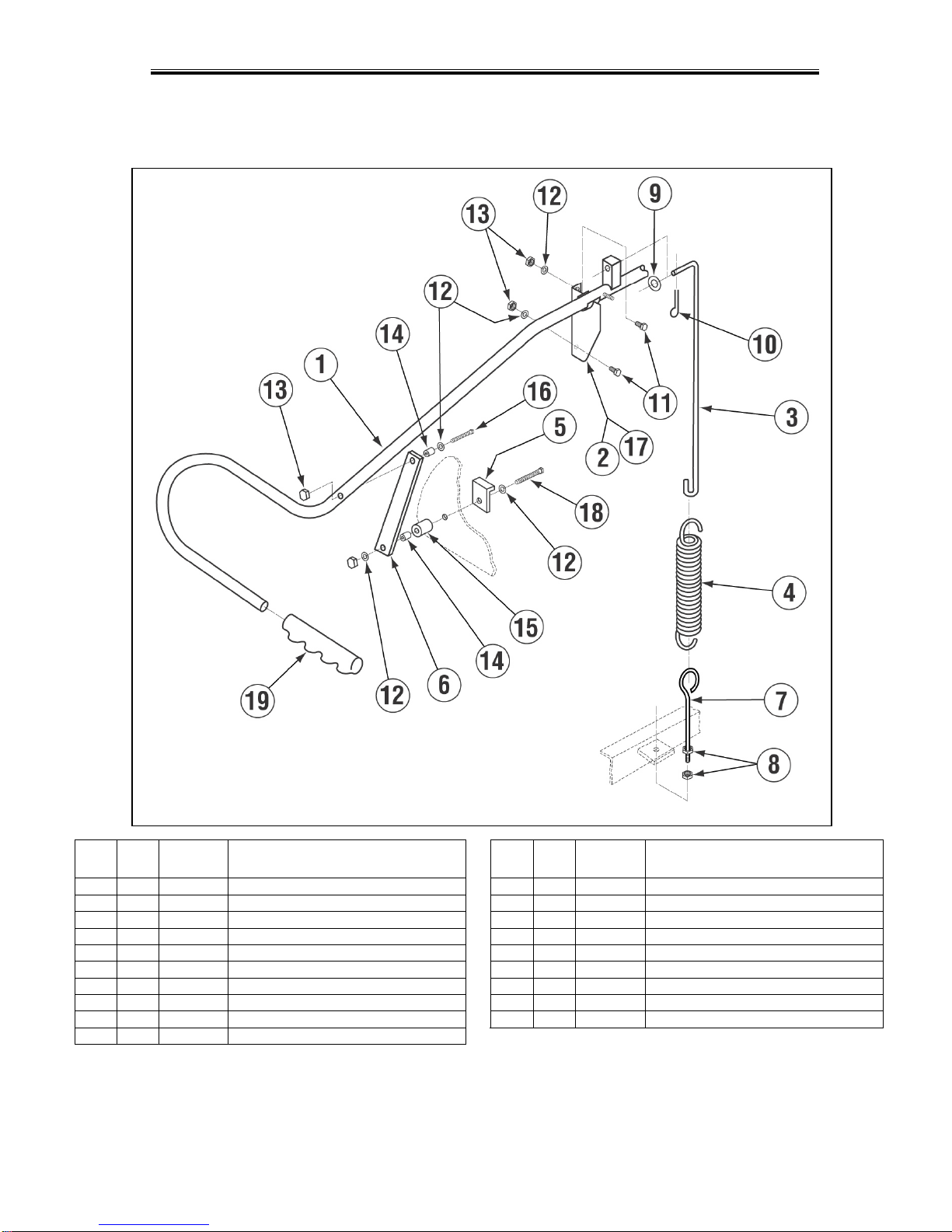

1.3.4. Door Actuator Assembly

ITEM

NO. NO.

REQ’D P/N DESCRIPTION ITEM

NO. NO.

REQ’D P/N DESCRIPTION

1 1 00613.65 Door Handle For CWS 11 4 00906.00 1/4-20 x 1/2" Hex Head Screw

2 1 01556.50 Door Handle Support, 1” (Right) 12 6 00924.00 1/4" SS Washer

3 2 00603.63 Door Spring Extension Rod 13 8 00912.00 1/4-20 Nylon Locknut

4 2 00602.00 Door Spring 14 4 00610.00 Door Handle Spacer, Small

5 2 01552.00 Door Stop 15 4 00611.00 Door Handle Spacer, Large

6 2 01553.20 Door Handle Link 16 2 00904.00 1/4-20 x 2” Hex Screw

7 2 00606.00 5/16-18 x 7” Eyebolt 17 1 01555.50 Door Handle Support, 1” (Left)

8 2 00913.00 5/16-18 Nut 18 2 00903.00 1/4-20 x 1-3/4” Hex Head Screw

9 2 00926.00 5/16” SS Washer 19 2 00607.04 Door Handle Cap, 1”

10 2 00900.00 Cotter Pin

MODEL CWS PARTS MANUAL Rev. 1.00 Page 8

Parts Manual

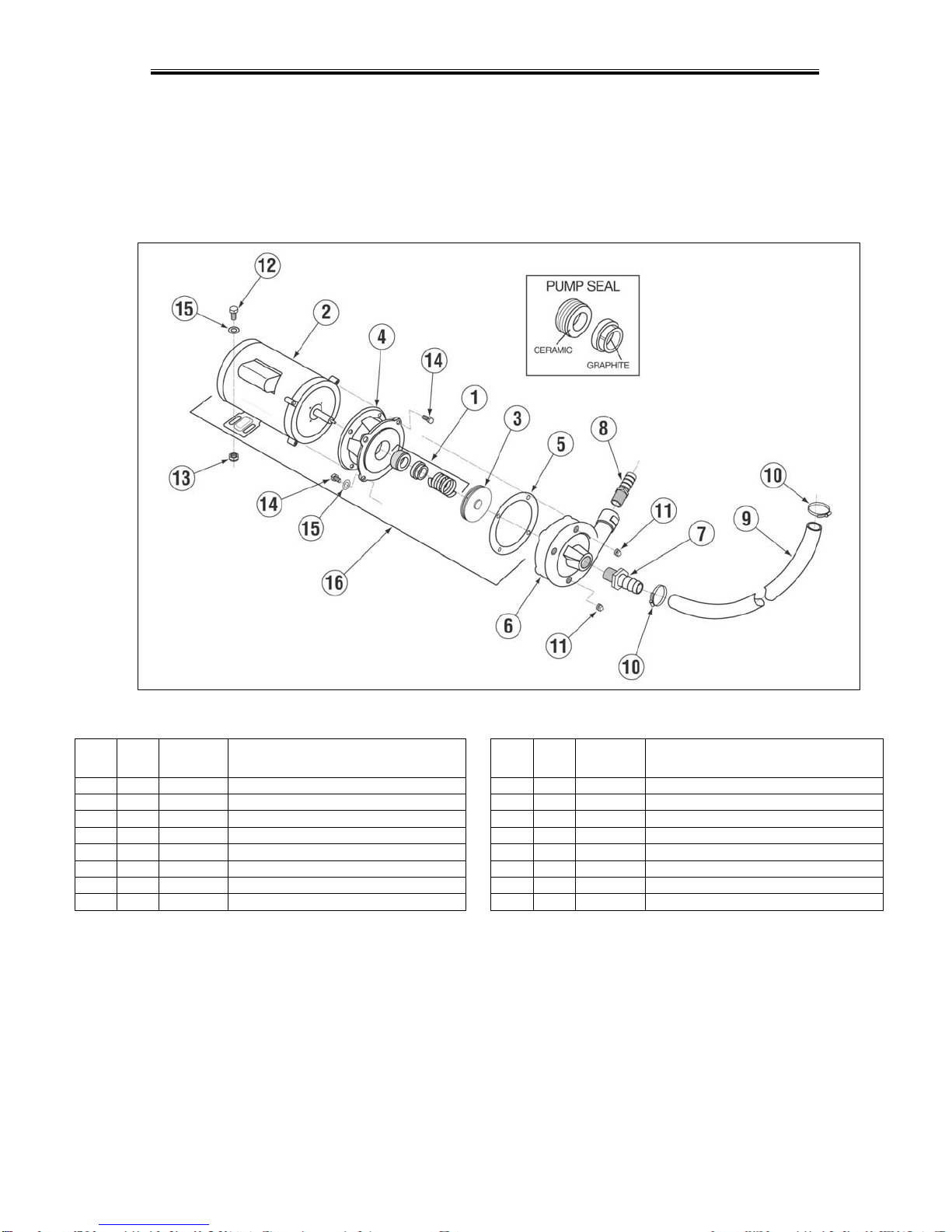

1.3.5. Pump Assembly

ITEM

NO. NO.

REQ’D P/N DESCRIPTION ITEM

NO. NO.

REQ’D P/N DESCRIPTION

1 1 00206.00 Pump Seal Kit 9 1 03108.61 Intake Hose

2 1 00201.30 Pump Motor 2HP 230/115 V 10 2 03108.00 Hose Clamp

3 1 00203.05 Impeller (close) 4-1/2” 11 2 00238.00 3/8” Male Plug

4 1 00202.00 Pump Base Large 12 2 00914.10 1/4 “ - 20 X 5/8 “ Hex Head Bolt

5 1 00205.00 Pump Gasket 13 2 00912.00 1/4 “ - 20 Nylon Lock Nut

6 1 00204.00 Pump Cover 14 8 00921.00 3/8 “ –16 X 3/4” Hex Head Bolt

7 1 50302.40 1-1/4” MIP X 1” Barb Fitting 15 4 00926.00 5/16” SS Washer

8 1 50302.06 1” MPT X 1” Barb Fitting

16 1 00200.14 CWS Pump Motor Assembly

MODEL CWS PARTS MANUAL Rev. 1.00 Page 9

Parts Manual

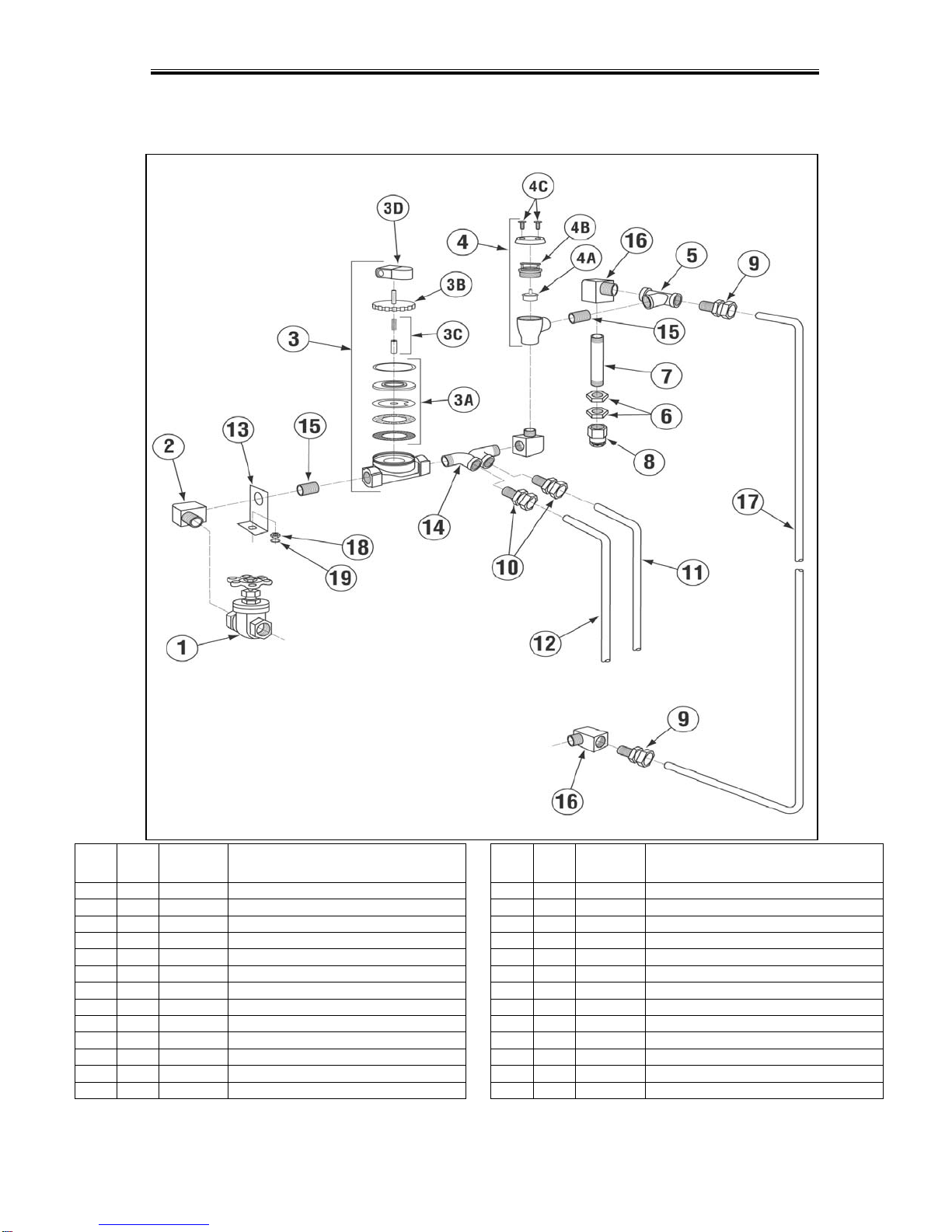

1.3.6. Plumbing System Assembly

ITEM

NO. NO.

REQ’D P/N DESCRIPTION ITEM

NO. NO.

REQ’D P/N DESCRIPTION

1 1 00700.00 3/4" Gate Valve 7 1 00747.10 Nipple Brass 1/2” X 5”

2 2 00704.00 3/4" Street Elbow 8 2 00748.00 1/2” Sprinkler Head

3 1 00705.05 3/4" Water Solenoid Valve JE 220 V 9 2 00760.00 5/8 “ Comp X 1/2” MIP Adapter

3A 1 00706.00 Solenoid Valve Repair Kit ¾” 10 2 00761.00 5/8 “ Comp X 3/4” MIP Adapter

3B 1 00705.20 Solenoid Valve Bonnet 11 1 00797.00 CWS Booster Heater Water Line

3C 1 00786.00 Solenoid Valve Plunger w/Spring 12 4 00797.10 CWS Booster Heater Water Line

3D 1 00738.15 Solenoid Valve Coil 220 V 13 1 01525.06 Plumbing Support Bracket

4 1 00710.50 3/4” Vacuum Breaker, Watts 14 1 13633.20 Booster Heater ¾”’ In/Out Adapter

4A 1 00735.00 3/4” Vacuum Breaker Repair Kit

15 2 13639.00 Nipple S/S 3/4” Close

4B 1 00735.60 Vacuum Breaker Bonnet, Brass 16 2 00745.00 1/2” 90 Deg. Street Elbow

4C 2 00970.40 6-32 X 1/4” Self Threading Screw 17 1 00795.60 Flush Tube CWS

5 1 00716.00 1/2 “ X 1/2” X 3/4” Tee F X F X F 18 1 00912.00 1/4”-20 Nylon Lock Nut

6 2 00721.00 1/2 “ Jamb Nut Thin Pattern 19 1 00922.00 1/4” Lock Nut

MODEL CWS PARTS MANUAL Rev. 1.00 Page 10
