CMC OUTBACK HARNESS Bedienungsanleitung
Activities involving the use of this equipment are potentially dangerous. Special knowledge
and training are required to use this product. You are responsible for your own actions and
decisions. Before using this device, you must:
• Read and understand these user instructions and warnings.
• Familiarize yourself with its capabilities and limitations.
• Getspecictraininginitsproperuse.
• Understand and accept the risks involved.
FAILURE TO HEED ANY OF THESE WARNINGS MAY RESULT IN SEVERE INJURY OR DEATH.
Find the latest version and translations of this Manual at cmcpro.com
Convertible Harness System Patent Pending
EN
DE
ES
FR
IT
NO
SV
WARNINGS
OUTBACK™ HARNESS
CONVERTIBLE HARNESS SYSTEM
ASTM 1772-17EN 12277:2015+A1:2018
!
Imminent risk of serious
injury or death.
Imminent risk of accident
or injury.
Appropriate function
or use.
Equipment
incompatibility.
2 |CMCPRO.COM
Outback Convertible Sit Harness
Waist Belt Leg Loops Leg Loop Rear Strap
Outback Convertible Chest Harness
Chest Harness Chest Harness Rear Strap
Outback Chest Ascender Kit
Atom™ Ascender Strap Kong Futura™
Chest Ascender
Maillon Rapide
Stainless Steel Delta
Quick Link
Outback Pouch
Outback Pouch
CONVERTIBLE HARNESS SYSTEM
|OUTBACK HARNESS USER MANUAL 3
CONTENTS
1 | TRACEABILITY & MARKINGS 4
2 | FIELD OF APPLICATION 5
3 | NOMENCLATURE 6
4 | INSPECTION POINTS TO VERIFY 8
5 | COMPATIBILITY 8
6 | HARNESS DONNING AND FITTING 8
DONNING THE WAIST BELT 8
ADDING THE LEG LOOPS 9
ADDING THE TYPE D CHEST HARNESS 10
USE OF DIFFERENT BUCKLE TYPES 11
SIZING 11
7 | OPTIONAL COMPONENTS 12
INSTALLATION OF THE OUTBACK™ POUCH (OPTIONAL) 12
INSTALLATION OF THE LEG LOOP REAR STRAP (OPTIONAL) 12
INSTALLATION OF THE CHEST HARNESS REAR STRAP (OPTIONAL) 13
INSTALLATION OF THE CHEST ASCENDER (OPTIONAL) 13
8 | TIE-IN POINTS / CONNECTIONS 14
SIT HARNESS CONNECTION POINT 14
FULL BODY HARNESS CONNECTION POINT 14
CONNECTING COMPONENTS 15
9 | ADDITIONAL INFORMATION 16
10 | MANUAL TEXT 18
Page No.
4 |CMCPRO.COM
1 TRACEABILITY & MARKINGS
D E F
G C
EN 12277+A1
TYPE C
A
D E F
CB
EN 12277+A1
TYPE D
000121_Rev01
3.625” (92.075MM)
1” (24MM)
3.625” (92.075MM)
1” (24MM)
THIS DRAWING AND ALL INFORMATION HEREIN IS THE PROPERTY OF CMC RESCUE, INC.
ANY COPYING, REPRODUCTION OR UNAUTHORIZED USE WITHOUT WRITTEN CONSENT IS FORBIDDEN.
LABEL, COVER 1”
DESCRIPTIONREV. DATE INITIALS
ADD PROP65 WARNING, UPDATE TO CMC TEMPLATE01
NOTES:
1. WHITE SATIN POLY - TEAR RESISTANT
2. 100% BLACK PRINT
3. PART NUMBER TO BE HIDDEN WHEN SEWN IN
CMC RESCUE
6740 CORTONA DR. GOLETA, CA
PART#: 000121
DATE: 12/02/2020DRAWN BY: AHOUTS
DRAWING SCALED @ 100%
12/02/20 AH
WARNING: Cancer and Reproductive Harm
www.P65Warning.ca.gov
!
WARNING
• SERIOUS INJURY OR DEATH MAY RESULT FROM THE IMPROPER USE OF THIS EQUIPMENT.
• THIS EQUIPMENT HAS BEEN DESIGNED AND MANUFACTURED FOR USE BY EXPERIENCED PRO-
FESSIONALS ONLY.
• DO NOT ATTEMPT TO USE THIS EQUIPMENT WITHOUT PRIOR TRAINING.
• THOROUGHLY READ AND UNDERSTAND ALL LABELS AND INSTRUCTIONS BEFORE USE.
• USE, INSPECT AND REPAIR ONLY IN ACCORDANCE WITH MANUFACTURER’S INSTRUCTIONS.
DO NOT REMOVE THIS LABEL!
000307
MODEL NO:____________________________________
DATE OF MANUFACTURE:________________________
LOT NO:_______________________________________
FITS WAIST SIZE:________________________________
NYLON AND POLYESTER MATERIALS
TESTED TO ASTM F1772-17
000522
WAIST
MODEL NO:____________________________________
DATE OF MANUFACTURE:________________________
LOT NO:_______________________________________
NYLON AND POLYESTER MATERIALS
TESTED TO ASTM F1772-17
000522
LEGS
MODEL NO:____________________________________
DATE OF MANUFACTURE:________________________
LOT NO:_______________________________________
FITS CHEST CIRCUMFERENCE:_____________________
NYLON AND POLYESTER MATERIALS
TESTED TO ASTM F1772-17
000522
CHEST
BAG
MODEL NO:____________________________________
DATE OF MANUFACTURE:________________________
LOT NO:_______________________________________
NYLON AND POLYESTER MATERIALS
000522
I
H
|OUTBACK HARNESS USER MANUAL 5
A Location of rope or lanyard attachment.
B Drawing to indicate that the Type D
harness shall not be used alone.
C Graphical symbol that advises the user
to read the information provided in the
user manual.
D CEMarkandNumberofnotiedbody
controlling production of this PPE:
1019
VVUÚ, a.s.
Pikartská 1337/7
716 07 Ostrava-Radvanice
Czech Republic
tel.: 00420 596 252 111
fax: 00420 596 232 098
E European Standard EN
12277:2015+A1:2018 and harness type
designation.
F Drawing showing how to fasten and
secure load transmitting buckles and
adjusting devices.
G Location and method of rappel and
belay device attachments
H Component size and year of
manufacture
I ManufacturerIdentication
CMC Rescue, Inc.
6740 Cortona Drive
Goleta, CA 93117 USA
805-562-9120 / 800-235-5741
cmcpro.com
J Product Label Locations
2 FIELD OF APPLICATION
SEE TEXT
J
J
J
6 |CMCPRO.COM

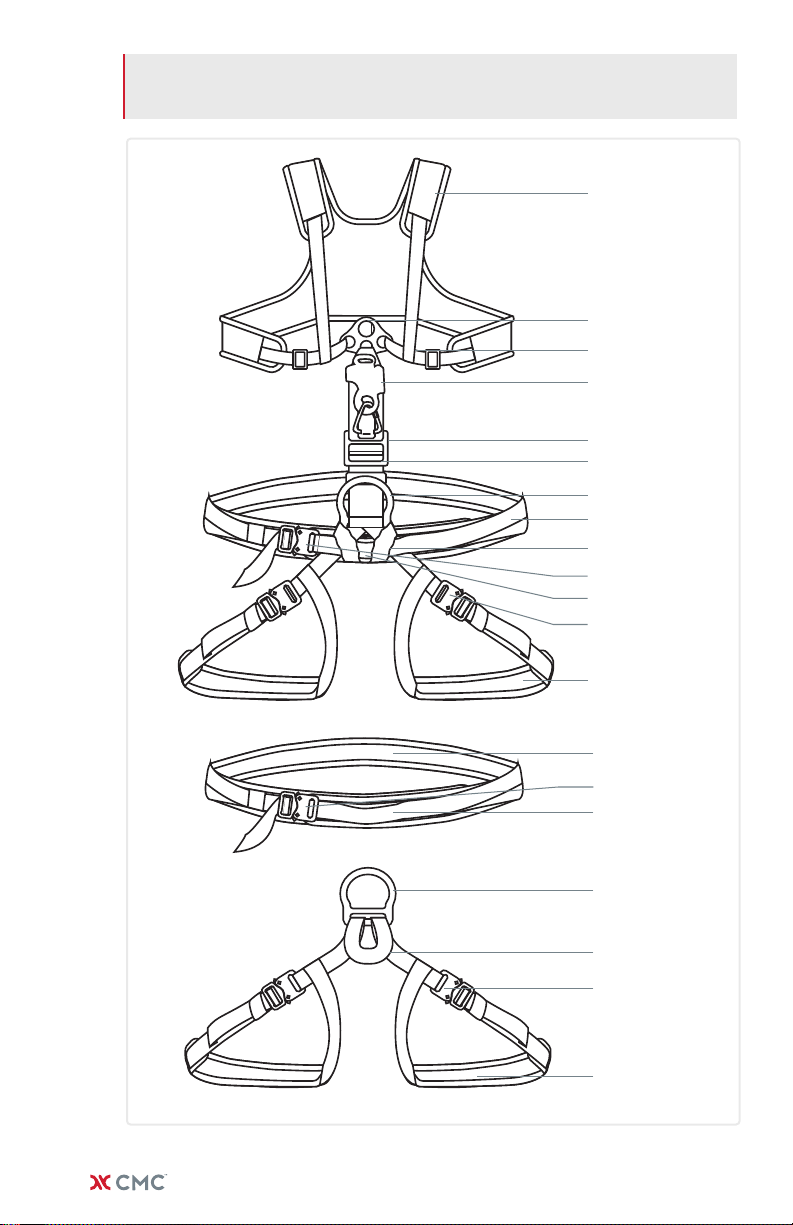

3 NOMENCLATURE
13
12
8
9
10
4
1
7
2
3
6
5
14
4
3
2
1
7
6
5
|OUTBACK HARNESS USER MANUAL 7
15
11
16
5
1 Waist Belt
2 Waist Belt Quick Connect Buckle
3 Waist Belt Connect Loop
4 Ventral D-Ring
5 Leg Loop Assembly
6 Leg Loops Quick Connect Buckles
7 Leg Loop Assembly Girth Hitch
8 Front Lift
9 Chest Ascender (optional)
10 Chest Ascender (optional) Front Lift
Adjuster Buckle
11 Chest Harness
12 Sternal Attachment Point
13 Shoulder Strap
14 Adjustment Buckles
15 Chest Harness Rear Strap (optional)
16 Leg Loop Rear Strap (optional)
8 |CMCPRO.COM
4 INSPECTION POINTS TO VERIFY
SEE TEXT FOR MORE
5 COMPATIBILITY
SEE TEXT FOR MORE
6 HARNESS DONNING AND FITTING

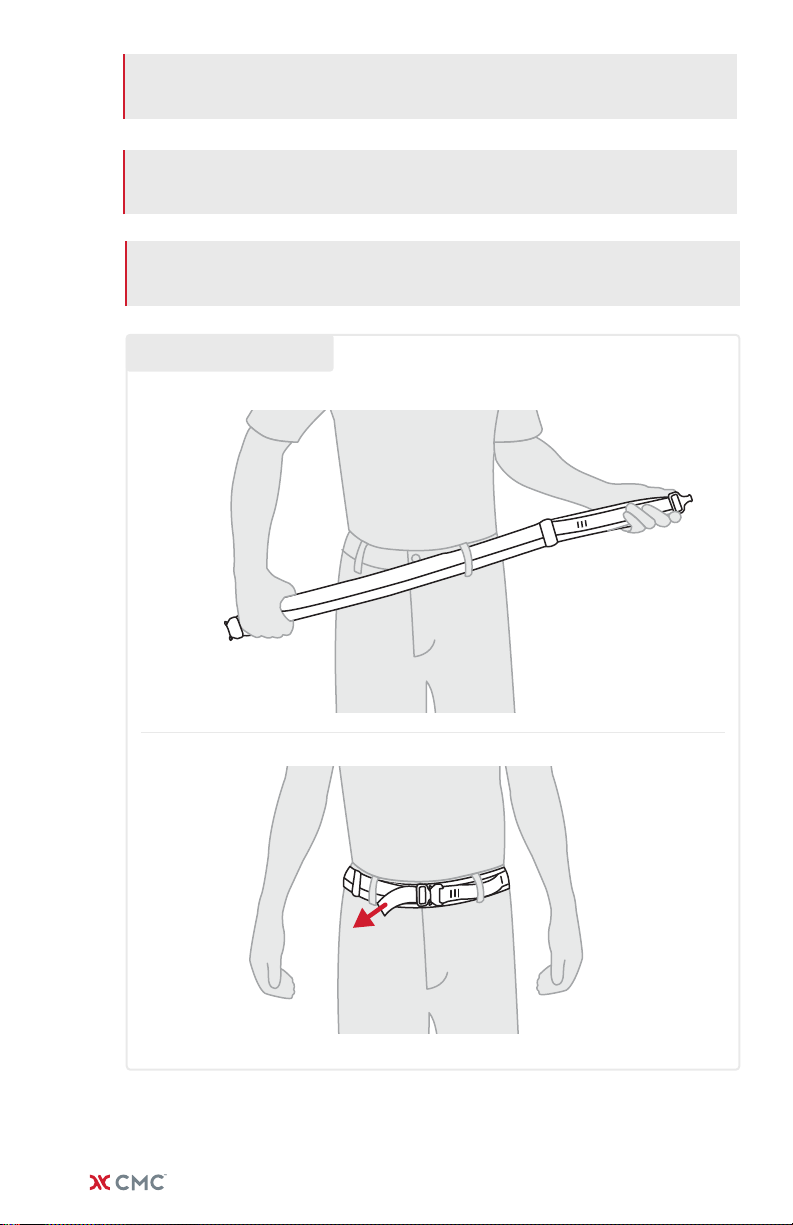

Donning the Waist Belt
|OUTBACK HARNESS USER MANUAL 9

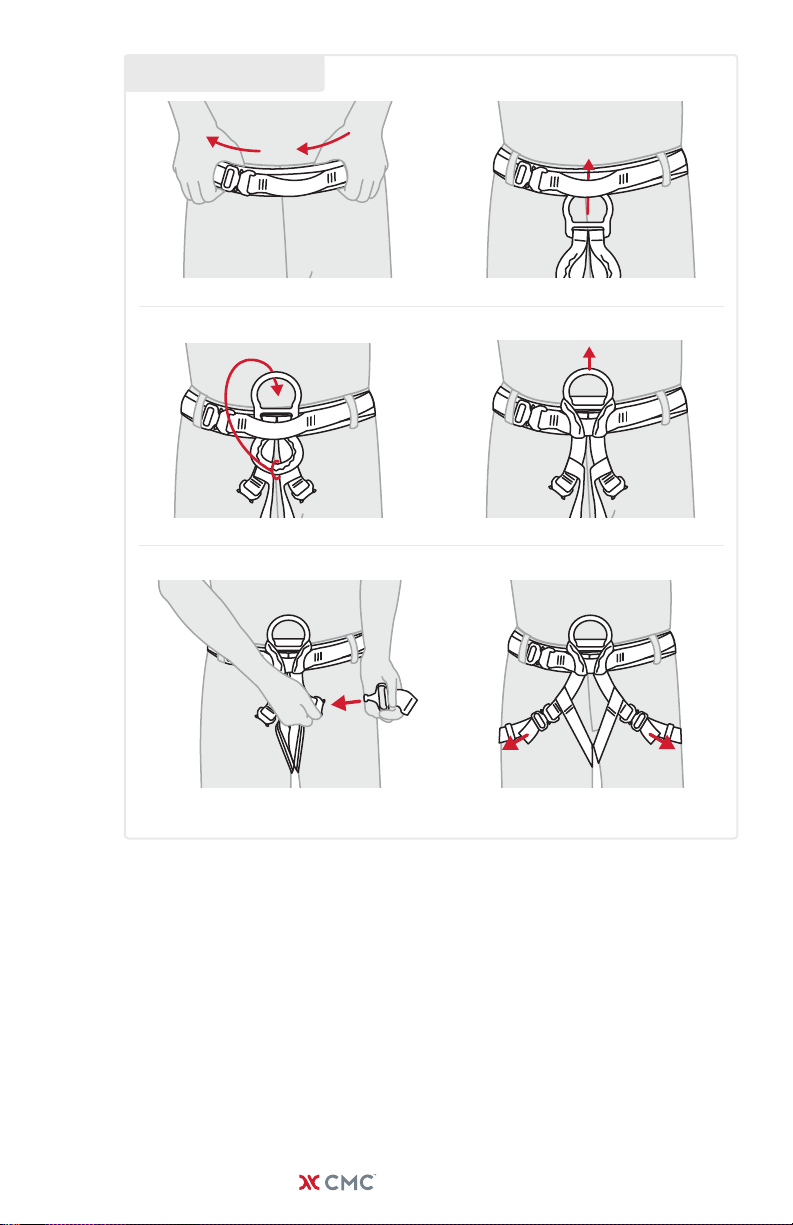

Adding the Leg Loops
10 |CMCPRO.COM
Adding the Type D Chest Harness
