Coantec C50 Series Bedienungsanleitung

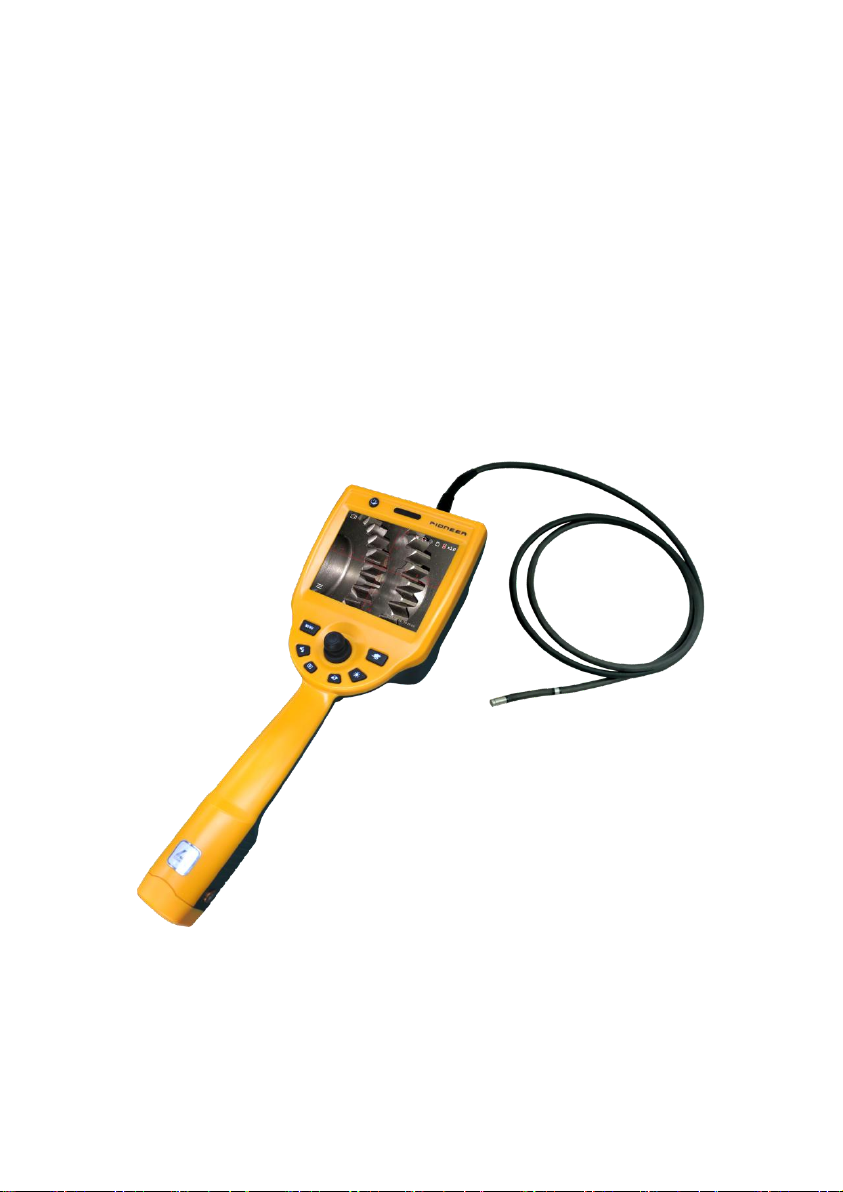

Industrial Videoscope
Users Manual
COANTEC C50 Series
Before using，do read the manual
Copyright declaration
This instruction is applicable to the C50 series. The copyright belongs to the Shenzhen
Coantec Automation Technology Co., Ltd. All the contents are protected by the state
copyright laws and regulations. No one can copy the instructions and any information
contained therein without the consent of the written permission of Shenzhen Coantec
Automation Technology Co., Ltd. In case of copying or translating into other languages
or spreading the instructions in any form, the offender will be held liable.
Attention:
Our company is committed to improving the function and the quality of the service
of the product constantly, so the right to change the contents of any product and
software described in this manual, as well as the content of this manual, is reserved
without prior notice. We have carried out strict collation and repeated checking of this
manual, but we can not guarantee that we can avoid errors and omissions completely.
This manual is only used as a guide to help you correctly use Coantec products, but
does not represent any description of the hardware and software configuration of the
product.
Any questions,please contact our after-sales personality by tel: 0755-89728626
Catalog
1. Users notice..................................................................................................................... 4
1.1 Uses and scope of application...............................................................................4
1.2 Repair and refit..................................................................................................... 4
1.3 Safety precautions.................................................................................................4
2. COANTEC C50 Product instruction............................................................................6
2.1 System Parameters............................................................................................. 6
2.2 Operation Environment.........................................................................................8
3. Operation process...........................................................................................................8
4. Operation guide.............................................................................................................. 9
4.1 Button Introduction............................................................................................9
4.2 C50 A quick start guide for work patterns..........................................................10
4.3 Battery disassembly............................................................................................ 12
4.4 Boot preparation...............................................................................................14
5. Function Introduction..................................................................................................15
5.1 Menu Settings..................................................................................................... 15
5.2 Lock/bending control....................................................................................... 19
5.3 Playback mode:...................................................................................................20
5.4 Photo/Video switching........................................................................................23
5.5 LED brightness adjustment.................................................................................24
5.6 Speed adjustment............................................................................................. 25
5.7 Battery state detection.........................................................................................25
5.8 Reading photos and video files........................................................................... 26
5.9 HDMI external output.........................................................................................26
5.10 Shutdown.......................................................................................................... 28
6. Instrument storage....................................................................................................... 28
7. Solutions to common problems................................................................................... 29
1. Users notice
1.1 Uses and scope of application
This product can only be applied to the real-time detection and analysis in the industrial
field. It can directly observe whether there are defects or anomalies on the inner surface
of the pipe, turbine, cylinder, engine and other devices. This product has direct visual
characteristics, can take photo and video in real time, providing users with appropriate
data collection.
1.2 Repair and refit
This product has no spare parts for the user to maintain, do not try to disassemble, refit
and repair.So if the damage and loss to the users caused by that,Shenzhen Coantec
Automation Technology Co., Ltd. will not bear any responsibility. The maintenance
service of this product is only provided by Shenzhen Coantec Automation Technology
Co., Ltd. and authorized dealers.
1.3 Safety precautions
It is not appropriate to control the operating handle for a long time
in the maximum bending angle during operation, which will make
the equipment in high load state and affect the service life of the
equipment.So please control the maximum bending angle within 40
seconds.
When using this product, please comply with the following
contents:
1) Prohibit use this instrument to observe human body or animal body；
2) Prohibit work under charged condition in order to avoid electric shock；
3) Do not contact the end of the lens directly in the process of use, especially pay
attention to the use of endoscope in the high temperature environment, at this
time the contact end may cause burns；
4) Do not look closely at the strong light source emitted from the endoscope lens
at the end, avoiding the influence of strong light on eyesight；
5) Do not force excessive bending, stretching, twisting and rolling the pipeline,
otherwise it may cause damage to pipelines or equipment；
6) Long term use of this product will cause the lens to stain, resulting in blurred
picture and affecting data collection. Please wipe the lens with alcohol before
use；
7) If there is any abnormality in the angle adjustment operation, stop the current
operation and turn off the machine, then contact the supplier；
8) Keep the insertion tube away from any liquid other than water, brine, oil and
light oil；
9) When the instrument is used up, please clean the front end of the insertion
tube in time to prevent corrosion.
2. COANTEC C50 Product instruction
COANTEC C50 (hereinafter referred to as C50) series industrial videoscope is a portable
and easy to use,360 degree arbitrarily oriented industrial videoscope, researched and
developed by the Shenzhen Coantec Automation Technology Co., Ltd. This product
adopts a hand-held design,highlight 5 inches LCD daylight display, high definition image
sensing technology.The image is more HD and can be photographed and taped.The probe
is corrosion resistant, wearable, waterproof and dust-proof, meeting the requirements of
IP67. It can be widely used in many industrial fields such as special inspection, electric
power, automobile, machinery, aviation, pipeline and container.
2.1 System Parameters
Probe Diameter
φ4.8/φ6 /φ8mm
Probe Material
Hard titanium alloy
Camera Resolution
1,000,000 pixels
Depth of View
10-100mm/5-180mm/25mm-100mm
Angel of Field
120°/110°
Viewing Direction
Standard:straight view /Optional:side view
Light Type
Rear-mounted LED （≥3w hours) ,optic fiber
light guiding
Illumination
100,000lx at a maximum
Brightness
8 levels, manual adjustment
White Balance
Auto white balance
Bending Control
360°all way motor-driven control
Bending Angle
≥160°±10°
Insert Tube Length
1.5m/1.5-6m/1.5-10m
Insertion Tube
Double tungsten alloy braided insert tube of 4
layers
Insertion Tube Protection
130mm length wear resistant pipe anti twist
protection tube
Structure material
Anti - fall shell
Language Menu
Chinese, English, Japanese, Korean, German,
French, Portuguese, Spanish, and Russian.(9
language optional)
Display
Highlight 5 inches LCD daylight display
Image / Video Recording File
Format
JPEG、BMP/MP4
Host
Integrated hand-held design
Memory
Standard SD card:8G, Maximum: 32G
Data Interface
HDMI high definition output interface, external
display.
Bending Lock
One-key lock
Step Regulation
Step regulation between high-speed and low-speed
bend
Lighting function
Emergency lighting device
Dustproof &Waterproof
Host IP55,Probe IP67
Working Time
≥4 hours,Can be extended to 8 hours
Weight of the system
about 1.35kg, and the total weight is determined
by the length and diameter of the tube
Battery
2 groups of power supply (each group of 3
rechargeable lithium batteries)
Capacity
3200mAh*3(supporting online charging)
Product Warranty
One year warranty,life-long maintenance
2.2 Operation Environment
Host System Working
Temperature
-10°C~40°C (when 0°C below, the display needs
preheating)
Camera Working Temperature
-20°C~75°C ，when 0°C below, please reduce
oriented operation.
Store Temperature
-20°C~60°C
Relative Humidity Maximum
80%, non-condensing
3. Operation process
1) Take out the instrument:Press the lock to open the instrument case,take out of the
instrument main unit while drawing out the tube and holding the probe,to avoid
impact the probe and scratch the lens.
2) Ready to start: install battery and SD card.
3) Insert the pipeline: insert the insertion tube into the equipment.
4) Adjust the brightness: adjust the brightness of the light source to get the appropriate
illumination to make the picture achieve the best effect.
5) Detection operation: during observation, the direction of the probe is controlled
through the operation of the joystick, and the images and videos are taken at the
same time.
6) Insertion tube recovery: confirm that the probe of the industrial endoscope inserted
tube is in the unlocked state, so that it can automatically restore to the straight
position and then slowly extract it.
7) Storage instrument: After use, turn off the power switch, remove the battery, put the
instrument into the carrying case, and insert the insertion tube to ensure that no part
will be squeezed by the cover and close the upper cover.
4. Operation guide
4.1 Button Introduction

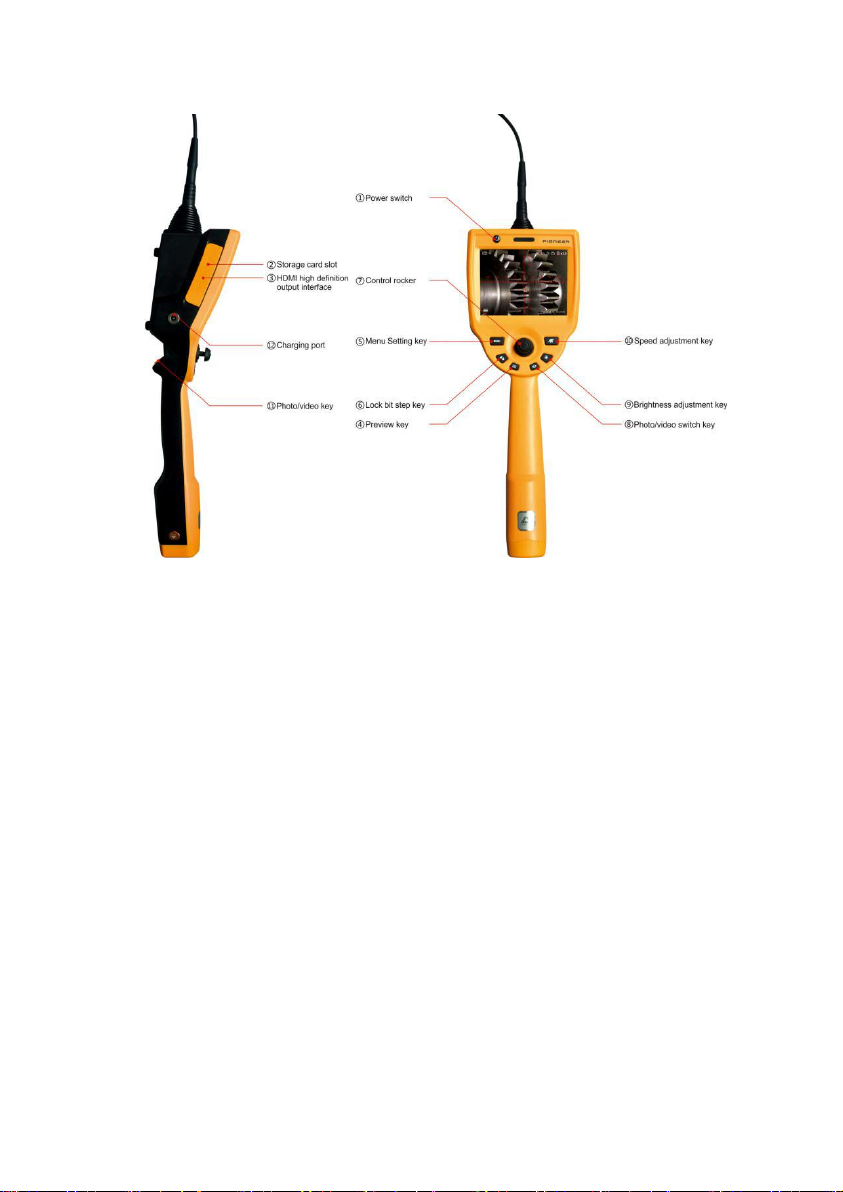

C50 button and function interface schematic diagram is shown below （Figure1）。
Figure1
①Power switch: switchgear for control equipment.
②Storage card slot: you need to install a storage card for storing JPEG/BMP
pictures and MP4 video files. If you do not install the storage card, press the photo
key / look back key will prompt "no SD card was detected, please insert SD card".
③HDMI high definition output interface: used for external display.
④Preview key: back to the JPEG/BMP picture file and MP4 video file, this mode
can take full screen view / play, file delete, file name editing, add notes and so on.
⑤Menu Setting key: for function settings.
⑥Lock bit step key: set the movement mode of the front end probe, switch the lock
step / unlock follow mode.
⑦Control rocker: control the motion direction and angle of the front end probe,
this key has the function of direction navigation, and also has auxiliary function
under different operation mode, and press the middle OK button to express it.
⑧Photo / video switch key: switch camera mode / video mode.
⑨Brightness adjustment key: adjust the brightness of the LED lamp on the front
end probe.
⑩Speed adjustment key: adjust the movement speed of the front end probe.
⑪Photo / video key: take pictures in the photo mode, video or capture in video
mode.
⑫Charging port: the power adapter can be used to supply the equipment directly or
to charge the battery in the device.
4.2 C50 Work Mode Quick Start Guide
C50 industrial endoscope system mainly has 3 working modes, which are real-time
detection mode, playback mode, and system setup mode. After the system is switched on
the system, the real-time detection mode is entered by default. Please refer to figure 1
button function list for details of button functions under different modes and sub modes.

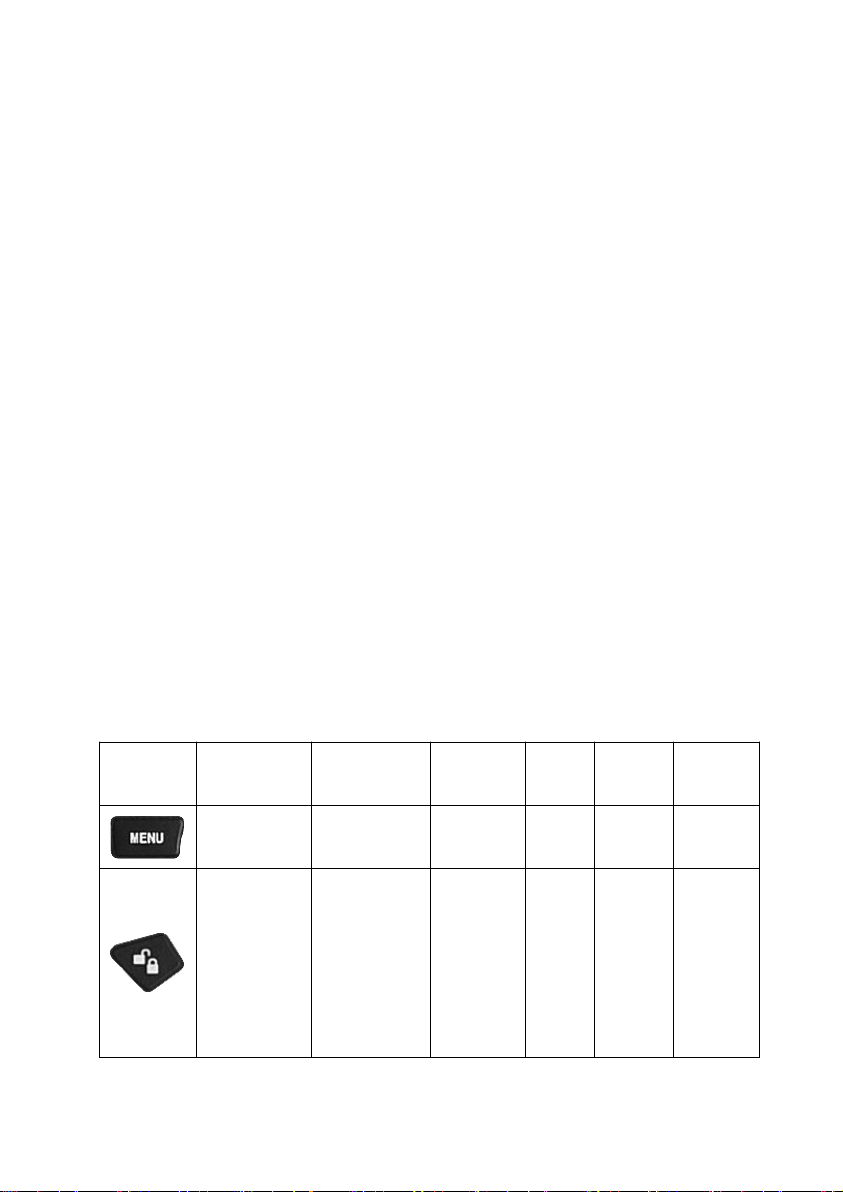

Figure 1 Button function list
Button
shape
Button
name
Real-time
detection
Playback
Video
play
system
setting
time
setting
Setup
Menu
Entry system
and setting
return
return
exit
setting
exit
setting
Locking step
Lock step
/Unlocking
and
following
probe motion
mode
---
