Cobra 602-2611 Bedienungsanleitung

23801 E. La Palma Ave., Yorba Linda, CA 92887 Ph. 714.692.8180 Fax. 714.692.5016

www.cobrausa-vtwin.com

01/20

*Cobra®recommends you always wear a helmet while riding. Please never operate your motorcycle while under

the influence of alcohol and/or drugs. Enjoy the new look of your motorcycle and please ride safely.

Items Supplied >

1 - Detachable (BA) Chrome or Black Rack with

Latches

2 - 3/8” I.D. Front Mounting Bushings

2 - 3/8” I.D. Rear Bushing Spacers

2 - 3/8” I.D. Rear Bushing Sleeves

2 - 3/8” I.D. Rear Bushings

4 - 3/8”-16 x 1-3/4” Button Head Bolts Zinc

Application(s) >

HARLEY:

SOFTAIL: FLSL 2018 - 2020

FXBB 2018 - 2020

(ONLY ABOVE MODELS AS OF JANUARY 2020)

Instruction Manual >

Read all instructions carefully before installing your new Cobra®product!

1. Remove the front bolt from the right side fender rail and discard. NOTE: Remove one side only so the

fender does not fall resulting in possible scratches or damage to the fender or paint. See FIGURE 1.

2. Install the front mounting bushing into the front hole using the supplied 3/8”-16 x 1-3/4” long

buttonhead bolt and tighten bolt securely. See FIGURE 3.

3. Remove the right rear fender rail bolt and discard. See FIGURE 1.

4. Assemble the supplied plastic bushing over the sleeve as shown in FIGURE 2. Make sure the

chamfered inner edge goes towards the wide end of the sleeve.

5. Install the rear bushing assembly as oriented in FIGURE 3, using the supplied 3/8”-16 x 1-3/4” long

button head bolt and tighten bolt securely.

602-2611 / 602-2611B

Page 1 of 3

DOCUMENT NO. 0017 REV. B

CONTINUED ON PAGE 2

FIGURE 1

REMOVE STOCK

FRONT BOLT

REMOVE STOCK

REAR BOLT

23801 E. La Palma Ave., Yorba Linda, CA 92887 Ph. 714.692.8180 Fax. 714.692.5016

www.cobrausa-vtwin.com

01/20

Instruction Manual >

602-2611 / 602-2611B

Page 2 of 3

6. Repeat Steps 1-5 on the left side.

7. Install the detachable rack onto the motorcycle by first inserting the front portions of the side plates on

to the front mounting bushings on the frame rails. Make sure the rack is seated all the way onto the

mounting bushings. See FIGURE 4.

8. Then slowly rotate the rack downward so the rear portions of the side plates slip over the rear

mounting bushings. See FIGURE 4.

DOCUMENT NO. 0018 REV. A

CONTINUED ON PAGE 3

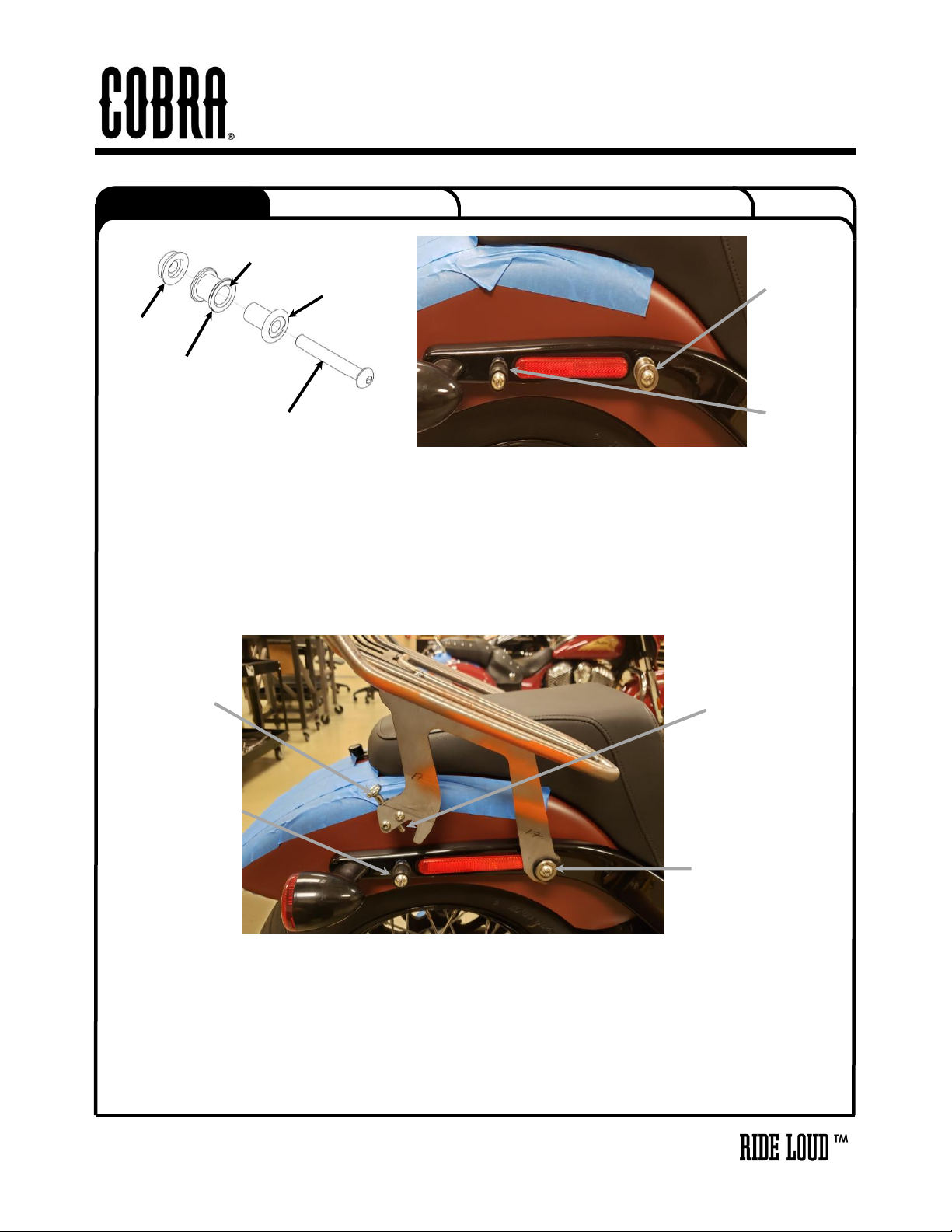

FIGURE 2

REAR

BUSHING

SPACER

3/8-16 X 1-3/4”

BUTTONHEAD

REAR

BUSHING

SLEEVE

CHAMFERED

INNER EDGE

REAR BUSHING

FIGURE 3

FRONT

MOUNTING

BUSHING

REAR

MOUNTING

BUSHING

FIGURE 4

REAR MOUNTING

BUSHING

DETACHABLE

LATCH KNOB

DETACHABLE

LATCH PIN

FRONT MOUNTING

BUSHING

23801 E. La Palma Ave., Yorba Linda, CA 92887 Ph. 714.692.8180 Fax. 714.692.5016

www.cobrausa-vtwin.com

01/20

Instruction Manual >

602-2611 / 602-2611B

Page 3 of 3

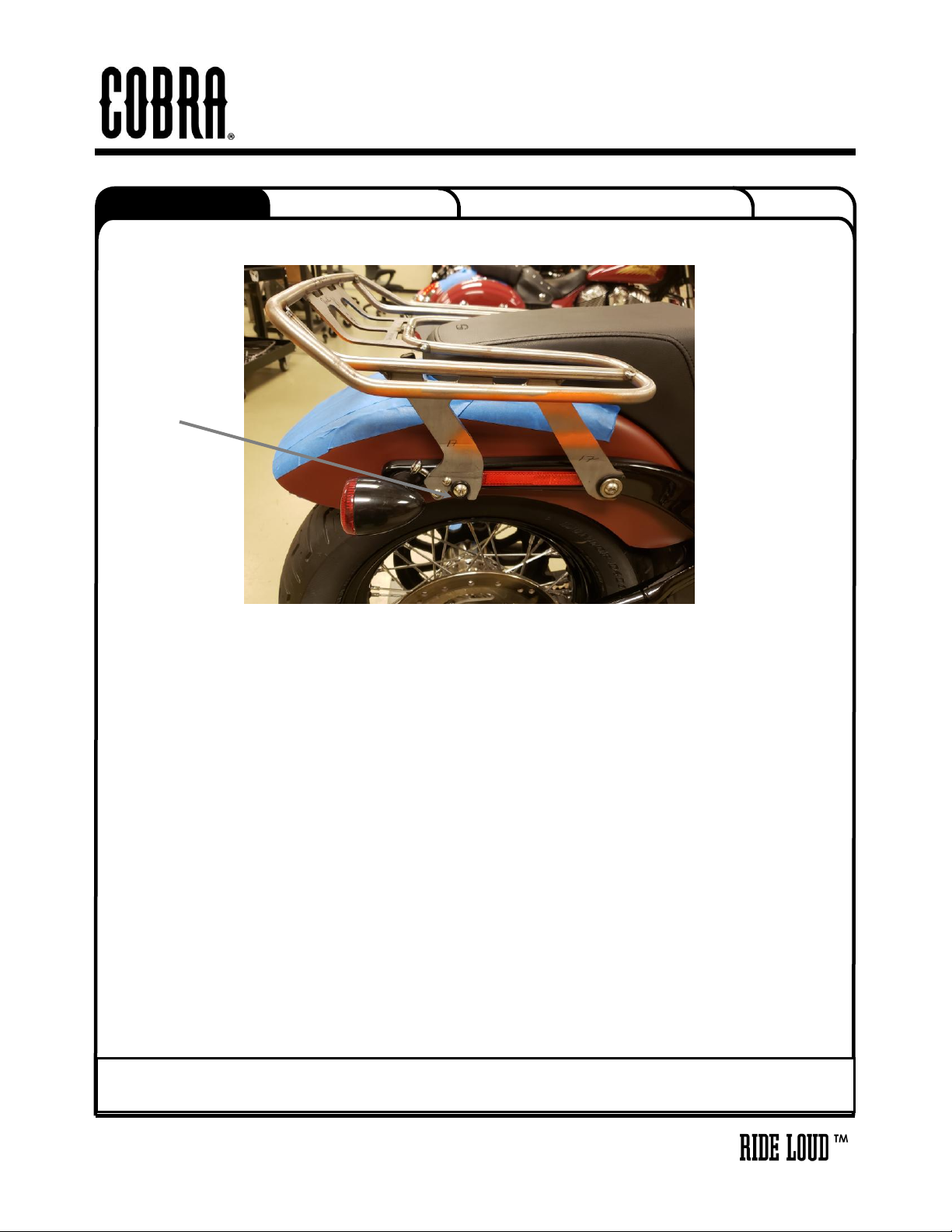

9. Pull backward on both detachable latch knobs and then push downward on the rack to allow the rack

to sit completely on the rear mounting bushings. Then release the detachable latch knob to fully

engage the latch pin underneath the mounting kit bushing. See FIGURE 5.

10. Always check to make sure both detachable latch pins are fully engaged on the bottom of the

mounting kit bushing. See FIGURE 5.

11. Before each ride, check to make sure the detachable latches are fully engaged underneath the

mounting bushings.

12. Check the tightness of all the screws after the first ride, after the first 500 miles, and at every engine

service thereafter.

DOCUMENT NO. 0018 REV. A

To clean your black accessory use a liquid based soap detergent, such as dishwashing soap applied with a soft cloth and

rinse with clean water. Note: Avoid abrasive cleaning methods such as granular or dry cleansers, simple green, Scotch-

Brite or steel wool pads. Abrasives may breach the coating and shorten life.

FIGURE 5

MAKE

SURE

LATCH PIN

IS FULLY

ENGAGED

UNDER

BUSHING
