Coleman 9230-014 Bedienungsanleitung

Glacier Creek™10’x14’

When You Are Ready

To Set Up Your Tent

– Select a level campsite clear of

rocks, branches and other hard

or sharp objects.

– Do not set up your tent under trees.

– For best results in windy conditions,

position the end of tent into the wind.

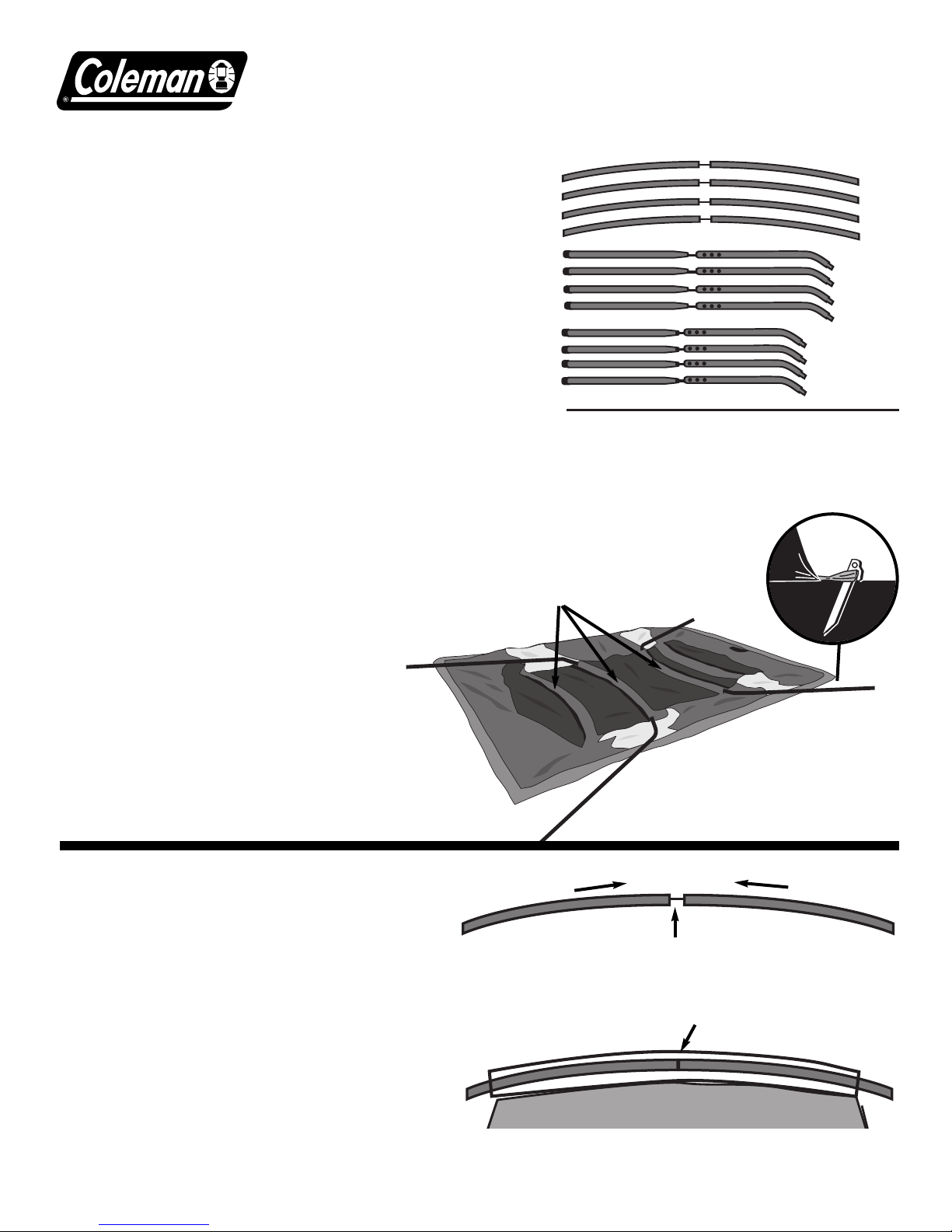

(1) Rainfly Pole

No. 9230-1061

Instructions apply to Part Number 9230-014

Rainfly

Part No.

9230-1071

(4) Ridge Poles

Part No. 9230-1031

(4) Center Poles

Part No. 9230-1041

(4) Side Pole

Part

No. 9230-1051

POLE ASSEMBLY PARTS

1Layout & Positioning of Tent

– Layout and position tent with door

facing desired direction. (illus. 1)

– Stake down tent, starting with the corners.

Do not stretch too tight. Angle the stakes

slightly toward the tent. (illus. 2)

Keep the floor taut.

– Stake down the remainder

of the stake loops.

– Unzip the door.

2Assemble & Place Roof Poles

– Assemble all shock-corded

ridge poles. When assembled will

form a continuous arch with both

ends pointing down. (illus. 3)

– Insert ridge poles through

the four roof sleeves. (illus. 4)

illus. 3 Curved roof pole assembly.

illus. 4 Curved roof pole system shown

inserted through pole sleeve.

illus. 2

Stake loops

properly staked

Front of

screen

door

Roof sleeve

illus. 1

Roof pole sleeve

Shock-corded poles

Forms an arch

illus. 8

Frame clips

THE COLEMAN CO., INC.

3600 N. Hydraulic • Wichita, Kansas 67219

1-800-835-3278 • www.coleman.com

MADE IN CHINA

PRINTED IN CHINA Rev. 12/06

Things You Should Know

• Under certain conditions (cold weather, high humidity, etc.)

condensation will form on the inside surfaces of your tent. Condensation is

caused by water vapor from your breath, perspiration, or any wet clothing

inside your tent. It is NOT LEAKAGE through the tent fabric. It can be

minimized by removing wet clothing from your tent and by providing good

ventilation through the tent.

• Never store tent, even for a short period of time, without drying it

thoroughly and brushing off caked dirt. Do not pack stakes or poles inside

your tent. Use a separate storage bag.

• STAKES SHOULD BE REMOVED BY PULLING ON THE STAKE ITSELF.

NEVER PULL ON THE TENT FABRIC OR TENT STAKE LOOP TO

REMOVE STAKE.

• TENT POLES SHOULD NOT BE LEFT TELESCOPED

TOGETHER DURING STORAGE.

• Do not leave your tent set-up for weeks at a time, be aware that

exposure to the ultraviolet rays of the sun can seriously damage material

and/or cause it to become discolored.

WARNING: KEEP ALL FLAME AND HEAT SOURCES

AWAY FROM THIS TENT FABRIC. This tent meets the

flammability requirements of CPAI-84. The fabric may burn

if left in continuous contact with any flame source. The

application of any foreign substance to the tent fabric may

render the flame-resistant properties ineffective.

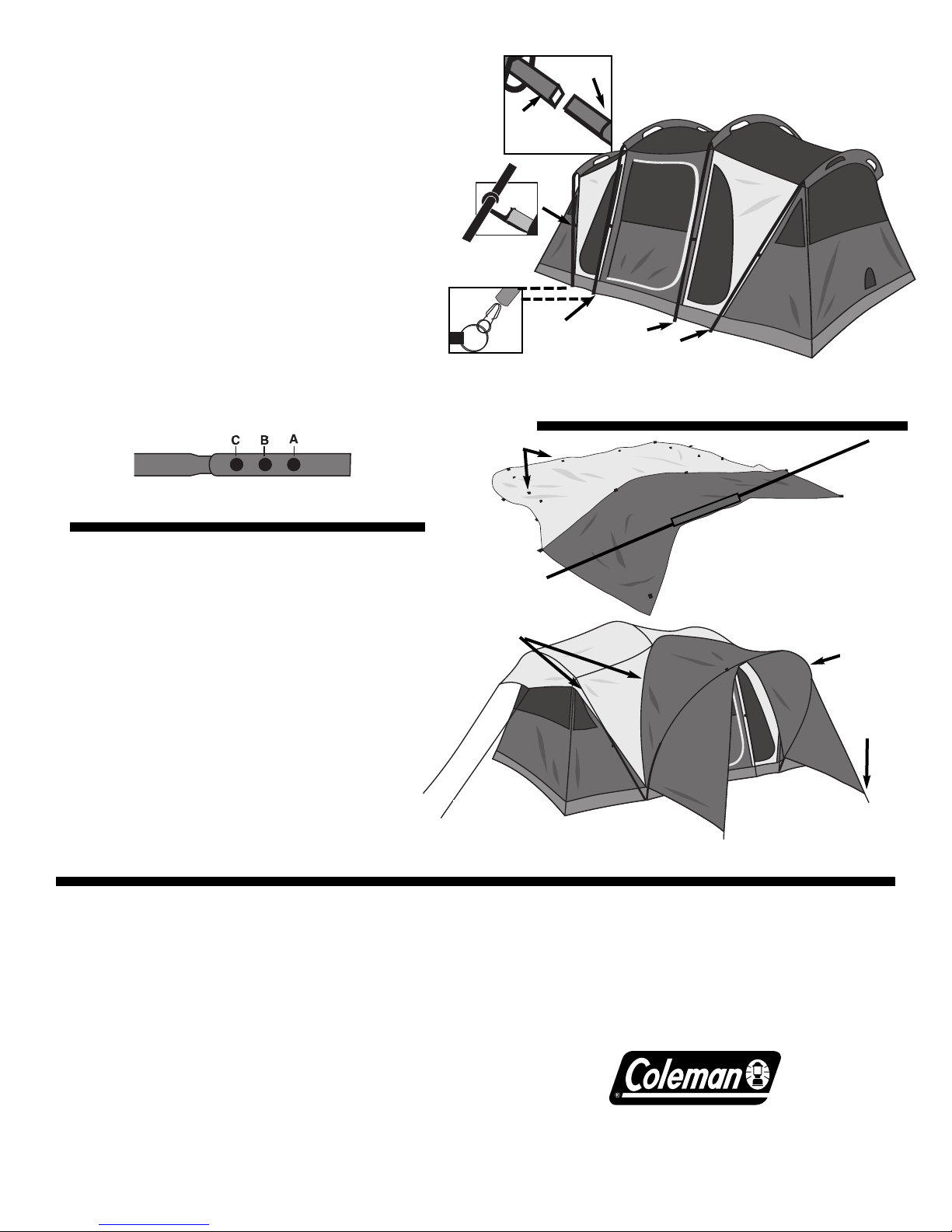

3Raise Tent

– Assemble all shock-corded brace poles.

Poles should be initially adjusted to the

inner most hole “A”. (illus. 7)

– Insert square end of Center (longer) brace

poles into curved roof poles and raise tent

upright. (illus. 5, 6, 7)

– Brace poles should attach to squeeze

pins at bottom of tent. (illus 6, 9)

– Repeat for remaing center brace poles.

– Insert side (shorter) brace poles into end

roof assemblies. MAKE SURE when

attaching brace poles to curved poles that

the bottom of the brace pole naturally

points the tent. (illus. 5, 9)

– Brace poles should attach to squeeze pins

at bottom of tent. (illus. 6)

– Adjust poles to accomodate for terrain.

– Attach Frame Clips. (illus. 8)

illus. 9

Shown with both center brace poles in position and curved

poles through center pole sleeves.

Center brace poles

Side brace poles

illus. 11 Tent shown completely set-up. Note the different

angles of the end brace poles.

Brace pole

Curved

poles in

pole sleeve

Rainfly hooks to

brace poles

illus. 7 Poles should be initially

adjusted to the inner most hole “A”.

illus. 6

Insert squeeze pin

into pole

Attach Rainfly

– Layout rainfly underside up. Assemble and

insert long Rainfly pole into sleeve over door.

– Drape rainfly over the tent, pole side down.

The rainfly pole goes in front. Attach hooks

on rainfly into the brace poles. (illus. 11)

– Insert one end onto the pin on the

stake loop. Go to opposite end of pole

and gradually apply pressure to form

an arch until you are able to insert the

pin into the end.

– Connect rainfly to tent poles with hook and

loop connectors.

– Stake out rainfly front. (illus. 11)

– Attach and stake out side guylines at the

ends of the rainfly.

Rainfly Pole

Stake out

rainly

Stake out

guylines

illus. 5 When attaching the brace poles to the

curved poles make sure that the brace poles

naturally point straight down.

illus. 10 Underside of Rainfly

showing rainfly pole through pole

sleeve and hook & loop connectors.

hook and loop

connectors.
