Commell FS-97B Bedienungsanleitung

FS-97B

Full-size PICMG CPU Card User’s Manual

Edition: 1.00

2007/04/17

FS-97BUser’sManual

reserved. The information in this document is subject to change without prior notice to make

improvements to the products.

This document contains proprietary information and protected by copyright. No part of this

document may be reproduced, copied, or translated in any form or any means without prior

written permission of the manufacturer.

All trademarks and/or registered trademarks contains in this document are property of their

respective owners. Disclaimer

The company shall not be liable for any incidental or consequential damages resulting from

the performance or use of this product.

The company does not issue a warranty of any kind, express or implied, including without

limitation implied warranties of merchantability or fitness for a particular purpose.

The company has the right to revise the manual or include changes in the specifications of

the product described within it at any time without notice and without obligation to notify any

person of such revision or changes.

Trademark

All trademarks are the property of their respective holders.

FS-97BUser’sManual

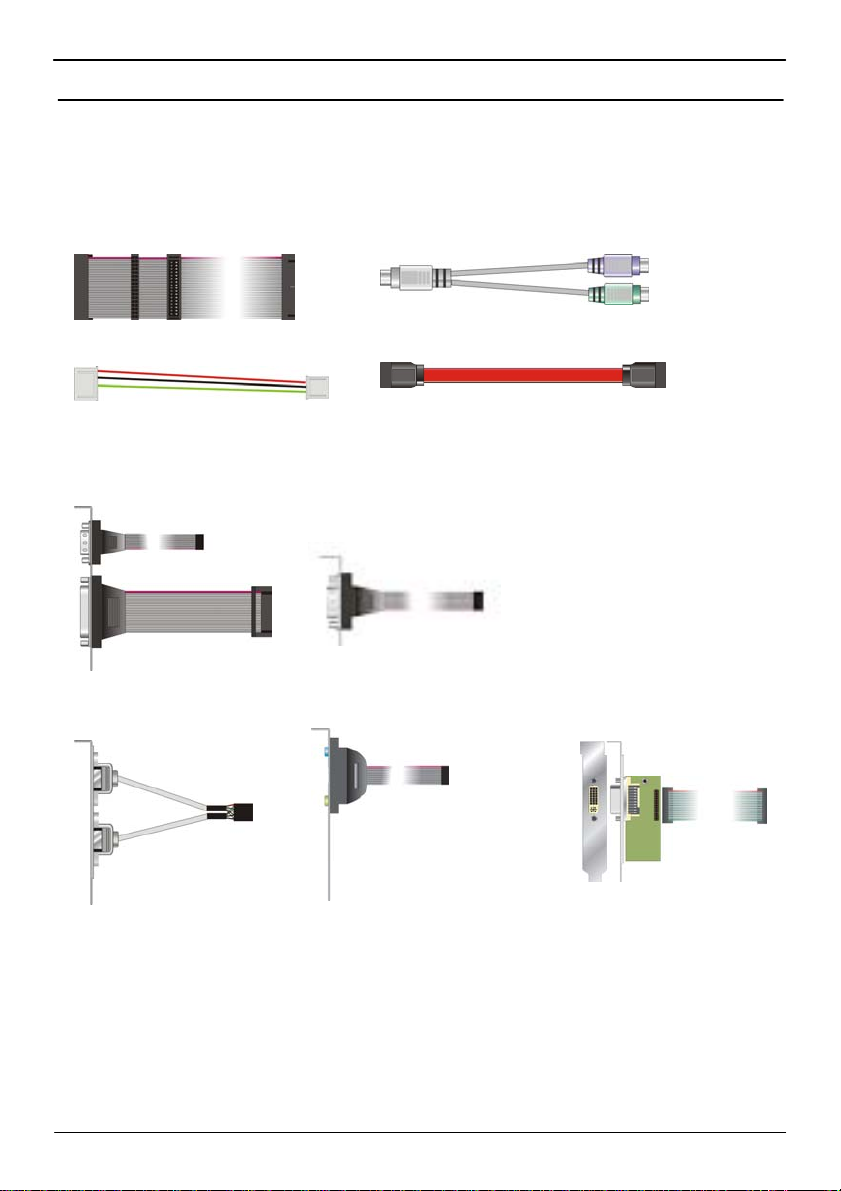

Packing List

Please check package component before you use our products.

Hardware:

FS-97B Full-Size cpucard x 1

Cable Kit:

4-pin to 3-pin ATX cable x 1

PS/2 Keyboard & Mouse Cable x 1

SATA Cable x 6

Floppy flat cable x 1

Audio Port Cable x 1

DB25 & DB9 cable x 1

DVI module with bracket x 1

(FS-97BDG/BDG2 Only)

USB cable x 2

COM Port Cable x 1

(FS-97BDG2/BXG2 Only)

Other Accessories:

Divers CD (including User’s Manual) x 1

RAID drivers Disc for Windows 2000, Windows XP and Windows Server 2003

FS-97BUser’sManual

Index

Chapter1 <Introduction>............................................................7

1.1 <Product Overview> .............................................................................................7

1.2 <Product Specification>........................................................................................8

1.3 <Block Diagram> ................................................................................................11

1.4 <Mechanical Drawing > ......................................................................................12

Chapter 2 <Hardware Setup>.................................................13

2.1 <Connector Location>.........................................................................................13

2.2 <Jumper Reference>…………………………………………………………………..13

2.3 <Connector Reference>......................................................................................15

2.3.1 <Internal Connectors> ..............................................................15

2.3.2 <External Connectors> .............................................................15

2.4 <CPU and Memory Setup>.................................................................................16

2.4.1 <CPU installation>...................................................................16

2.4.2 <Memory installation>..............................................................17

2.5 <CMOS Setup>...................................................................................................18

2.6 <Serial ATA installation>......................................................................................19

2.7 <LAN Interface>..................................................................................................20

2.8 <Onboard Display Interface>..............................................................................21

2.8.1 <Analog Display>....................................................................21

2.8.2 <LVDS Display FS-97BXG＆XG2 Only >...................................22

2.8.3 <DVI Display FS-97BDG/ DG2 Only >.......................................26

2.9 <Audio Installation> ............................................................................................27

2.11 <GPIO interface> ..............................................................................................29

2.12 <USB2.0 Interface> ..........................................................................................30

2.13 <Power and Fan Installation> ...........................................................................31

2.14 <Serial Port>.....................................................................................................34

2.15 <Switch and Indicator> .....................................................................................36

FS-97BUser’sManual

Chapter 3 <System Configuration>.......................................38

3.1 <SATA configuration>..........................................................................................38

3.2 <SATA RAID Configuration> ...............................................................................39

3.3 <Audio Configuration> ........................................................................................43

3.4 <Video Memory Setup> ......................................................................................44

3.5 <Display Properties Setting>...............................................................................46

Chapter 4 <BIOS Setup>.........................................................48

Appendix A <I/O Port Pin Assignment>................................50

A.1 <Serial ATA Port>................................................................................................50

A.2 <IrDA Port>.........................................................................................................50

A.3 <VGA Port> ........................................................................................................51

A.4 <LAN Port>.........................................................................................................51

Appedix B <System Resources>...........................................52

Appedix C <Flash BIOS>.........................................................56

C.1 BIOS Auto Flash Tool..............................................................................56

C.2 Flash Method ...........................................................................................56

Appendix D <Programming GPIO’s>....................................57

Appendix E <Watch Dog timer Setting >..............................58

FS-97BUser’sManual

(This Page is Left for Blank)

FS-97B User’s Manual Introduction

Product Overview 7

Chapter1 <Introduction>

1.1 <Product Overview>

FS-97B is the Full-size single board computer with last Intel desktop technology with

PICMG form factor. Based on Intel®Q965 and ICH8DO, the board integrates a new Core 2

Duo /Quad processor 775-pin socket, DDR2 memory socket, Intel®Graphic Media

Accelerator 3000 technology, Serial ATA II with RAID function for a powerful desktop

system.

Intel®LGA775 processor

The Intel®Core 2 Duo /Quad processor now comes with a new form factor with 775-pin

PLGA package, for 533/800/1066MHz front-side-bus, 4MB L2 cache, and for 65nm

manufacturing technology, the PLGA processor without pin header on solder side can make

user installing the processor on the socket easier.

Intel®Q965 and ICH8DO chipset

The Intel Q965 integrates DDR2 533/667/800MHz for memory, and Graphic Media

Accelerator (GMA) 3000 technology for new graphic engine. It can provide up to 256MB of

frame buffer when you install over 1GB of system memory. The ICH8DO integrates with up

to 6 USB2.0 interfaces , and serial ATA II interface with RAID function.

Flexible Extension Interface

The board provides one mini-PCI socket.

FS-97B User’s Manual Introduction

Product Specification8

1.2 <Product Specification>

General Specification

Form Factor Full-size PICMG CPU card

CPU Intel® Core 2 Duo /Quad/ Pentium 4 / Pentium D / Celeron D

processor with LGA775 socket

Package type: PLGA 775

Front side bus: 533/800/1066MT/s (133/200/266MHz x 4)

Intel®Hyper-Threading Technology and Dual/Quad core

supported

Memory 2 x 240-pin DDR2 533/667/800MHz SDRAM up to 3GB

Unbufferred, none-ECC memory supported only

Chipset Intel® Q965 (Northbridge) and ICH8DO (Southbridge)

BIOS Phoenix-Award v6.00PG 8Mb SPI flash BIOS

Green Function Power saving mode includes doze, standby and suspend modes.

ACPI version 1.0 and APM version 1.2 compliant

Watchdog Timer System reset programmable watchdog timer with 1 ~ 255

sec./min. of timeout value

Real Time Clock Intel® ICH8DO built-in RTC with lithium battery

Serial ATAII Intel® ICH8DO integrates 6 Serial ATA II interface

RAID 0, 1,5,10 Intel Matrix Storage Technology supported

Multi-I/O Port

Chipset Intel® 82801HDO( ICH8DO) with Winbond® W83627DHG

controller

Serial Port One RS-232 and one RS232/422/485 serial ports

USB Port Six Hi-Speed USB 2.0 ports with 480Mbps of transfer rate

Parallel Port One internal bi-direction parallel port with SPP/ECP/EPP mode

Floppy Port One internal Floppy port

IrDA Port One IrDA compliant Infrared interface supports SIR

K/B & Mouse External PS/2 keyboard and mouse port on bracket

GPIO One 12-pin Digital I/O connector with 8-bit programmable I/O

interface

Smart Fan One CPU fan connector for fan speed controllable

VGA Display Interface

Chipset Intel® Q965 GMA3000 (Graphic Memory Controller Hub)

Frame Buffer Up to 256MB shared with system memory

Display Type CRT, LCD monitor with analog display

Onboard 18/24-bit dual channel LVDS interface (FS-97BXG/ XG2

Only)

Onboard DVI interface (FS-97BDG / DG2 Only)

Connector External DB15 female connector on bracket

Onboard 40-pin LVDS connector(FS-97BXG/ XG2 Only)

FS-97B User’s Manual Introduction

Product Overview 9

Onboard 26-pin DVI Connector (FS-97BDG / DG2 Only)

FS-97B User’s Manual Introduction

Product Specification10

Ethernet Interface

Controller One or two Intel 82573L Gigabit Ethernet controller

Type Triple speed 10/100/1000Base-T

Auto-switching Fast Ethernet

Full duplex, IEEE802.3U compliant

Connector Two External RJ45 connectors with LED on bracket

Audio Interface

Chipset Intel® ICH8DO with Realtek ALC260 HD Audio

Intel High Definition Audio compliance

Interface 2 channels sound output

Connector Internal 10-pin header for line-in/-out, MIC-in, 4-pin header for CD-IN

Expansive Interface

Mini PCI One Mini-PCI socket TYPE III A (32-bit, 33MHz)

Power supply: +3.3V, +5V, 3VSB

Power and Environment

Power

Requirement +5V, +12 DC input & 5VSB Requirement

Dimension 338 (L) x 122 (H) mm

Temperature Operating within 0 ~ 60℃(32 ~ 140℉)

Storage within -20 ~ 85℃(-4 ~ 185℉)

Ordering Code

FS-97BDG Onboard VGA, Gigabit LAN, Mini-PCI, 6 x SATA, HD Audio, 1 X

IrDA, DVI, 3 x USB, Serial port, LPT, GPIO, FDD

FS-97BXG Onboard VGA, Gigabit LAN, Mini-PCI, 6 x SATA, HD Audio, 1 X

IrDA, LVDS, 3 x USB, Serial port, LPT, GPIO, FDD

FS-97BDG2 Onboard VGA, 2 x Gigabit LAN, Mini-PCI, 6 x SATA, HD Audio, 1

X IrDA, DVI, 3 x USB, 2 x Serial port, LPT, GPIO, FDD

FS-97BXG2 Onboard VGA, 2 x Gigabit LAN, Mini-PCI, 6 x SATA, HD Audio, 1

X IrDA, LVDS, 3 x USB, 2 x Serial port, LPT, GPIO, FDD
