Commell LE-370 Bedienungsanleitung

LE-370/LE-370Z

3.5 Inches Embedded Miniboard

User’s Manual

Edition: 1.0

2005/6/13

LE-370 User’s Manual

reserved. The information in this document is subject to change without prior notice to

make improvements to the products.

This document contains proprietary information and protected by copyright. No part of this

document may be reproduced, copied, or translated in any form or any means without

prior written permission of the manufacturer.

All trademarks and/or registered trademarks contains in this document are property of

their respective owners. Disclaimer

The company shall not be liable for any incidental or consequential damages resulting

from the performance or use of this product.

The company does not issue a warranty of any kind, express or implied, including without

limitation implied warranties of merchantability or fitness for a particular purpose.

The company has the right to revise the manual or include changes in the specifications

of the product described within it at any time without notice and without obligation to notify

any person of such revision or changes.

Trademark

All trademarks are the property of their respective holders.

Any questions please visit our website at TUhttp://www.commell.com.twUT

LE-370 User’s Manual

Packing List 3

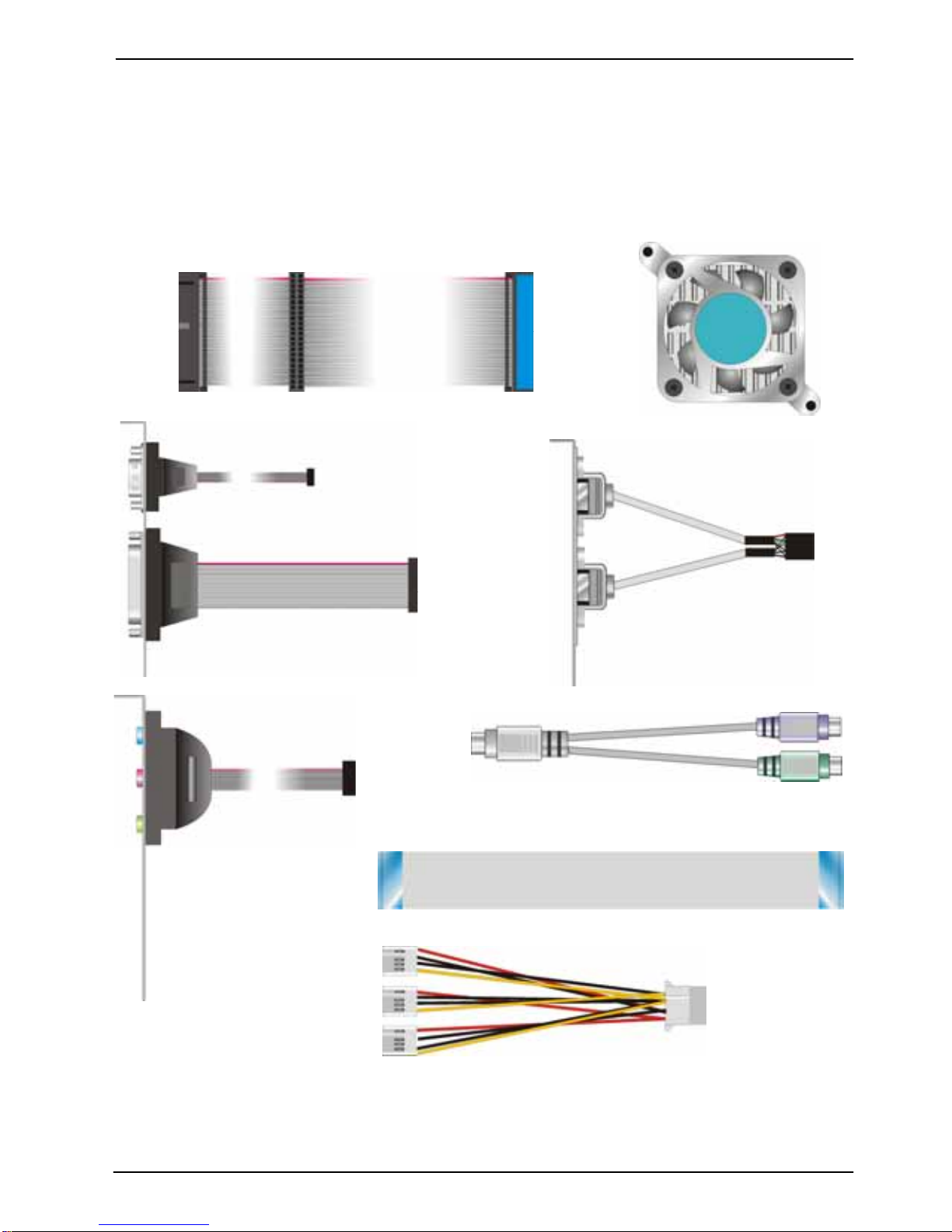

Packing List:

Please check the package before you starting setup the system

Hardware:

LE-370/LE-370Z motherboard x 1

Cable Kit:

44-pin

44-pin ATA33 IDE Cable x 1

40-pin

COM port & Printer Port Cable x 1 USB Cable x 1

Audio Cable x 1

PS/2 keyboard & mouse cable x 1

Floppy Cable x 1

1 to 3 power

output cable

Other Accessories:

Divers CD (including User’s Manual) x 1

Printed User’s Manual x 1

CPU Cooler (LE-370 only)

LE-370 User’s Manual

Index

Chapter 1 <Introduction>..................................................................................7

1.1 <Product Overview>..............................................................................7

1.2 <Product Specification>........................................................................8

1.3 <Mechanical Drawing>........................................................................10

1.4 <Block Diagram>.................................................................................11

Chapter 2 <Hardware Setup>..........................................................................13

2.1 <Connector Location>.........................................................................13

2.2 <Jumper Location & Reference> ........................................................14

2.3 <Connector Reference>......................................................................15

2.3.1 <Internal Connector>...............................................................15

2.3.2 <External Connector>..............................................................15

2.4 <CPU & Memory Setup>.....................................................................16

2.4.1 <CPU>.....................................................................................16

2.4.2 <Memory> ...............................................................................17

2.4.3 <CPU Cooler Installation>.......................................................18

2.5 <CMOS Setup>...................................................................................19

2.6 <Enhanced IDE & CF interface>.........................................................20

2.7 <Floppy Port>......................................................................................21

2.8 <Ethernet Interface> ...........................................................................22

2.9 <Onboard Display Interface>..............................................................23

2.9.1 <Analog Display Interface> .....................................................23

2.9.2 <Digital Display Interface>.......................................................24

2.10 <Onboard Audio Interface>...............................................................28

2.11 <GPIO Interface>..............................................................................29

2.12 <Power Supply & Fan>.....................................................................30

2.12.1 <Power Input>.......................................................................30

2.12.2 <Power Output> ....................................................................30

2.12.3 <Fan connectors>..................................................................30

LE-370 User’s Manual

Packing List 5

2.13 <Switch & Indicator>.........................................................................31

Chapter 3 <System Setup> .............................................................................33

3.1 <Display Configuration>......................................................................33

Chapter 4 <BIOS Setup> .................................................................................35

Appendix A <I/O Port Pin Assignment>.........................................................37

A.1 <IDE Port>..........................................................................................37

A.2 <Floppy Port> .....................................................................................38

A.3 <IrDA Port>.........................................................................................38

A.4 < VGA Port >.......................................................................................38

A.5 <Serial Port>.......................................................................................39

A.6 <LAN Port>.........................................................................................39

A.7 <PS/2 Keyboard & Mouse Port> ........................................................39

Appendix B <Flash BIOS> ..............................................................................41

B.1 BIOS Auto Flash Tool...................................................................41

B.2 Flash Method ...............................................................................41

Appendix C <Hardware Test>.........................................................................43

C.1 <Power Consumption Test>...............................................................43

Contact Information.........................................................................................44

LE-370 User’s Manual

(This Page is Left For Blank)

LE-370 User’s Manual Introduction

Product Overview 7

Chapter 1 <Introduction>

1.1 <Product Overview>

LE-370/LE-370Z are the 3.5 inches embedded miniboards based on Intel 852GME/GM of

platform, with Intel Pentium M/Celeron M processors supported, onboard VGA, LAN,

Audio, USB2.0, CF, LVDS, and mini-PCI to meet the variable applications of users.

LE-370Z with onboard Intel Celeron M processor for ultra low power can offer the fanless

solution for such as medical applications.

Intel 852GME/GM & ICH4 Chipset

The board integrates Intel 852GME/GM and ICH4 chipset, to provide built-in Intel

Extreme Graphics Technology, and supports DDR200/266/333 memory up to 1G of

capacity.

18/24-bit LVDS LCD interface

The board provides onboard 18/24-bit LVDS LCD interface, supports up to 1600 x 1200

of UXGA high resolution for LE-370, and up to 1400 x 1050 for LE-370Z.

Flexible Extension Interfaces

The board provides one Mini-PCI socket for wireless LAN module, video capture card and

IEEE1394 add-on card. The board also provide optional PCI interface with a riser card to

have up to 2 PCI devices.

LE-370 User’s Manual Introduction

Product Specification

1.2 <Product Specification>

General Specification

LE-370 LE-370Z

Form Factor 3.5 inches Embedded Miniboard

CPU Intel Pentium M/Celeron M

Package: FC-PGA478

FSB: 400/533MHz

Embedded Intel Celeron M

Ratio: 600MHz

FSB: 400MHz

Memory 1 x 184-pin DDR 266/333

SDRAM up to 1GB

ECC memory supported

1 x 184-pin DDR 200/266

SDRAM up to 1GB

Non-ECC supported

Chipset Intel 852GME and ICH4 Intel 852GM and ICH4

BIOS Phoenix-Award v6.00PG 4Mb PnP flash BIOS

Green Function Power saving mode includes doze, standby and suspend modes.

ACPI version 1.0 and APM version 1.2 compliant

Watchdog Timer System reset programmable watchdog timer with 1 ~ 255

sec./min. of timeout value

Real Time Clock Intel ICH4 built-in RTC with lithium battery

Enhanced IDE Enhanced UltraDMA100 IDE interface supports dual channels

and up to 2 ATAPI devices

One 44-pin IDE connector onboard

Multi-I/O Port

Chipset Winbond W83627HF-AW controller

Serial Port One external & one internal RS-232 serial ports

USB Port Two Hi-Speed USB 2.0 ports with 480Mbps of transfer rate

Parallel Port One bi-direction parallel port with SPP/ECP/EPP mode

Floppy Port One slim type Floppy port

IrDA Port One IrDA compliant Infrared interface supports SIR

K/B & Mouse External PS/2 keyboard and mouse ports on rear I/O panel

GPIO One 8-bit programmable GPIO interface

Hardware

Monitor Fan speed, CPU temperature and voltage monitoring

VGA Display Interface

Chipset Intel 852GME/GM built-in Intel Extreme graphics

Frame Buffer Intel DVMT with up to 64MB of frame buffer size

Display Type CRT, LCD monitor with analog display

Connector External DB15 female connector on rear I/O panel

LCD Interface

Chipset Intel 852GME/GM built-in LVDS interface

Interface 18/24-bit LVDS interface

12V backlight inverter connector

LE-370 User’s Manual Introduction

Product Specification 9

Ethernet Interface

Controller Intel 82562ET PHY

Type 10Base-T / 100Base-TX

auto-switching Fast Ethernet

Full duplex, IEEE802.3U compliant

Connector External RJ45 connectors with LED on rear I/O panel

Audio Interface

Chipset REALTEK ALC201A

Interface 2 channel 3D audio with Line-in, Line-out and MIC-in

Connector External Audio phone jack for Line-out

Onboard audio connector with pin header

Onboard CD-IN connector

Expansive Interface

Mini-PCI 1 x 32-bit 5V/3.3V Mini-PCI socket

PCI 1 x optional PCI interface supports up to two PCI devices through

riser card

Solid State Disk

DOM IDE1 supports 44-pin DOM (DiskOnModule)

CompactFlash 1 x CompactFlash Type 1 socket on solder side

Power and Environment

Power

Requirement DC 12V input

1 x DC jack on I/O panel or 1 x 4-pin DC connector onboard

Dimension 154 (L) x 101 (H) mm

Temperature Operating within 0 ~ 60P

PC (32 ~ 140P

PF)

Storage within -20 ~ 85P

PC (-4 ~ 185P

PF)

Software support

Operation

System Windows 98SE/ME, Windows 2000, Windows XP

Linux (Fedora Core 1, Mandrake 9.2 and Red Hat 9.0)

Linux Kernel version 2.4 or later

Ordering Code

LE-370 Intel Pentium M/Celeron M with socket479, VGA, AC97 Audio,

LVDS, CF, PCI, Mini-PCI, 2 x RS232, LAN,

LE-370Z Same with above but with onboard Intel Celeron M 600 processor

1. The specifications may be different as the actual production.

For further product information please visit the website at TUhttp://www.commell.com.twUT

LE-370 User’s Manual Introduction

Mechanical Drawing

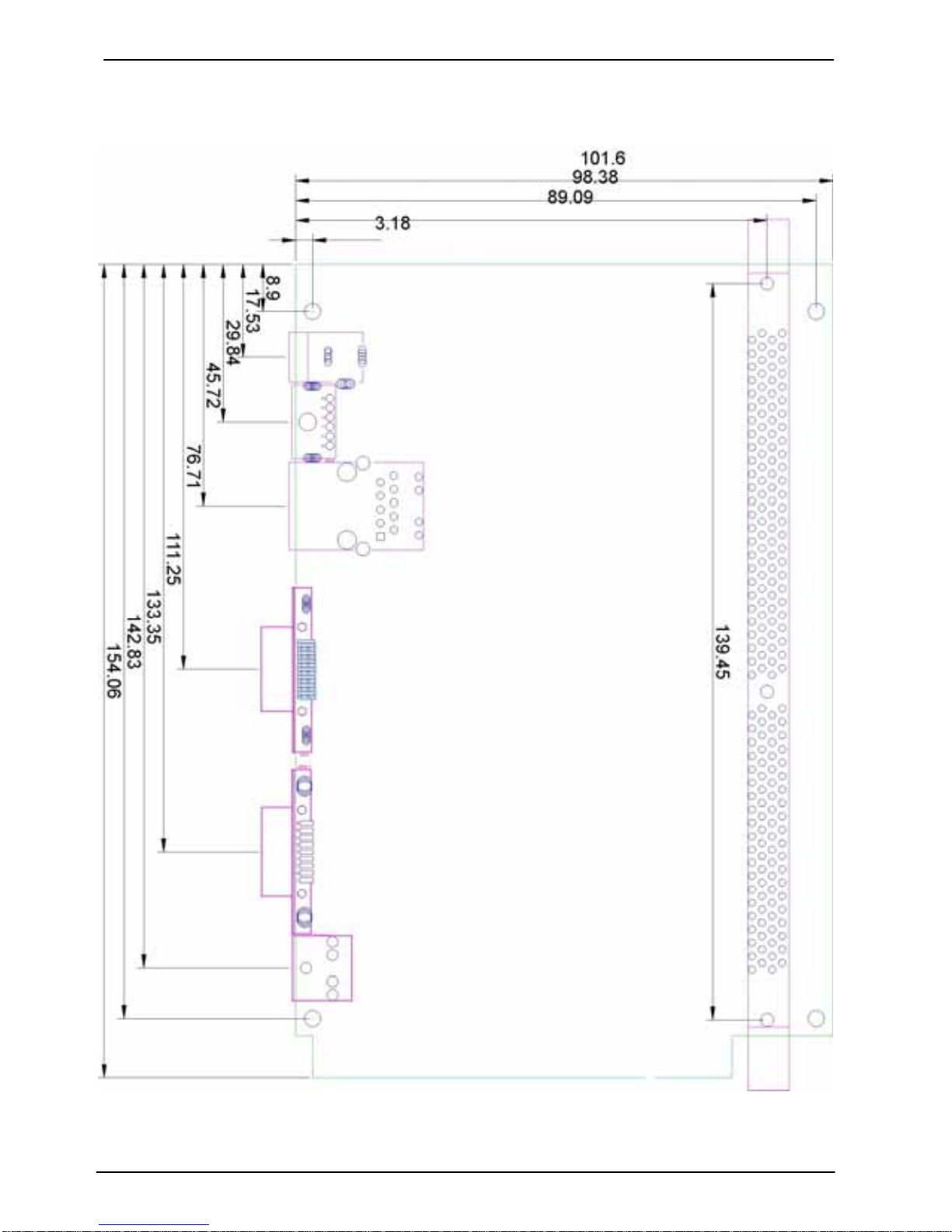

1.3 <Mechanical Drawing>
