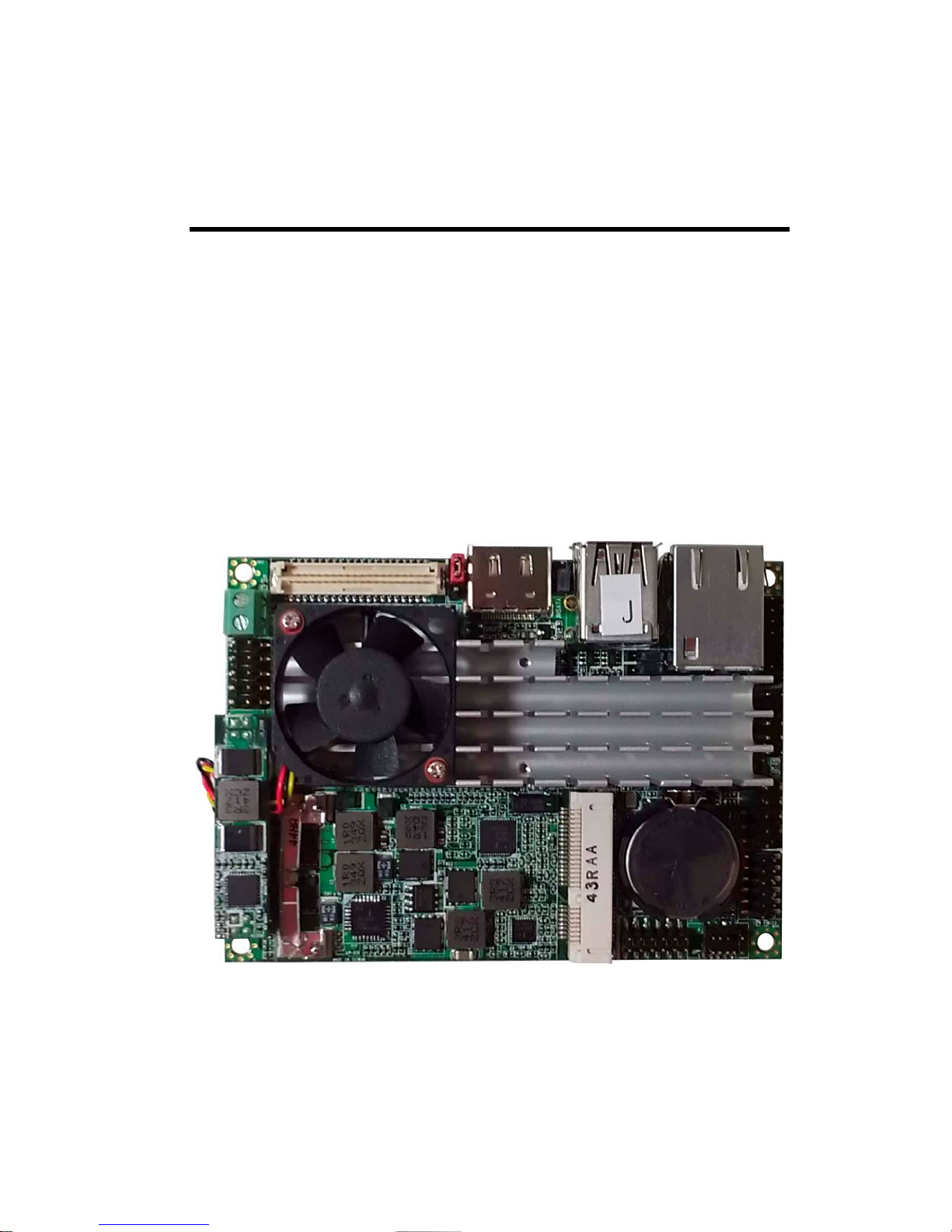

Commell LP-173 Bedienungsanleitung

LP-173

Pico-ITX

User’s Manual

2014/09/02

Version:1.1

LP-173 User’s Manual

-2-

reserved. The information in this document is subject to change without prior notice to

make improvements to the products.

This document contains proprietary information and protected by copyright. No part of

this document may be reproduced, copied, or translated in any form or any means

without prior written permission of the manufacturer.

All trademarks and/or registered trademarks contains in this document are property of

their respective owners. Disclaimer

The company shall not be liable for any incidental or consequential damages resulting

from the performance or use of this product.

The company does not issue a warranty of any kind, express or implied, including

without limitation implied warranties of merchantability or fitness for a particular purpose.

The company has the right to revise the manual or include changes in the specifications

of the product described within it at any time without notice and without obligation to

notify any person of such revision or changes.

Trademark

All trademarks are the property of their respective holders.

Any questions please visit our website at TUhttp://www.commell.com.twUT

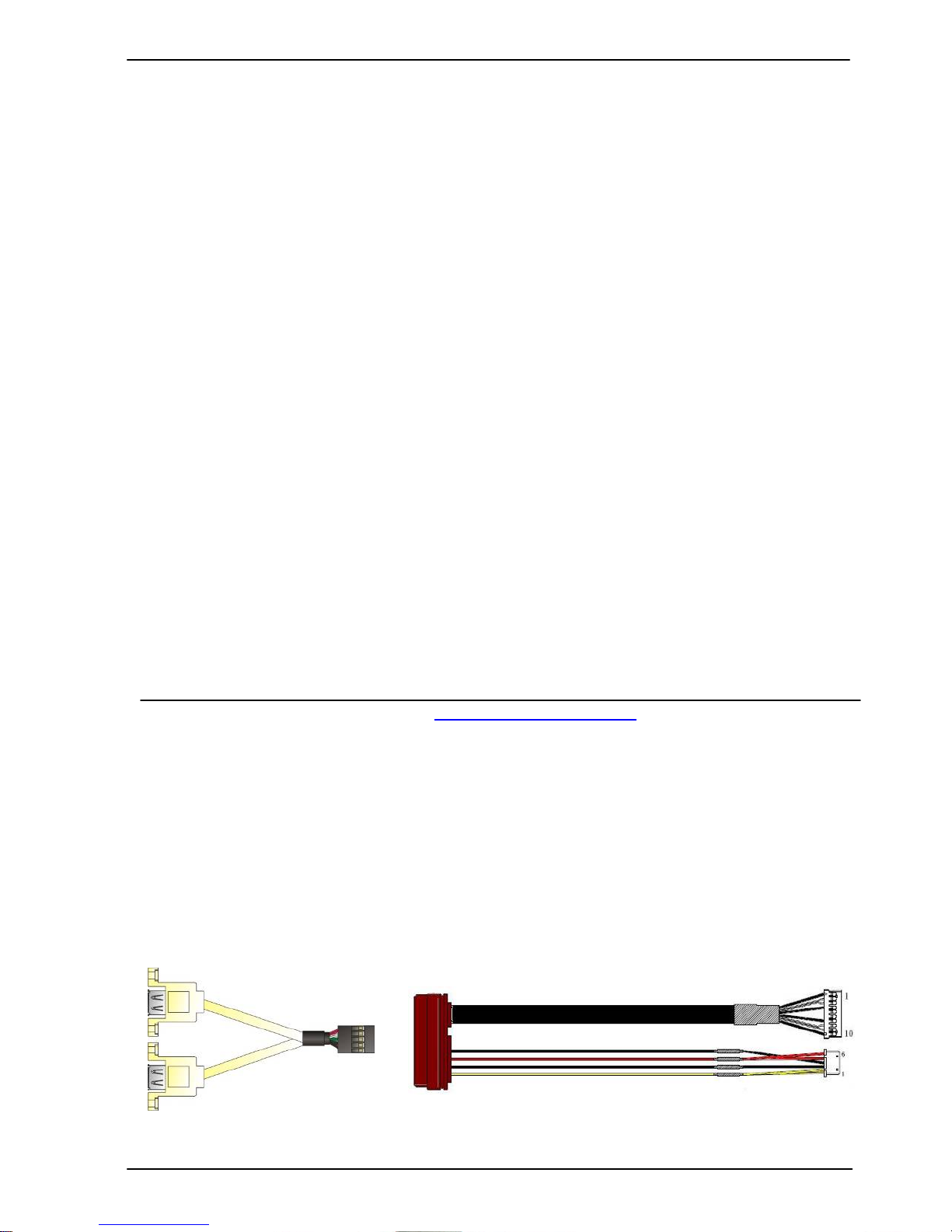

Packing List:

Please check the package content before you starting using the board.

Hardware:

LP-173 Pico-ITX Miniboard x 1

Cable Kit:

USB Cable x 1

(OALUSBA-3) / (1040173) SATA Cable x 1

(OALSATA22B-PM15SH15) / (1040512)

LP-173 User’s Manual

-3-

Index

Chapter 1 <Introduction>.................................................................................... 5

1.1 <Product Overview>..............................................................................................5

1.2 <Product Specification> ........................................................................................6

1.3 <Mechanical Drawing>.........................................................................................7

1.4 <Block Diagram> ..................................................................................................8

Chapter 2 <Hardware Setup>.............................................................................. 9

2.1 <Connector Location>...........................................................................................9

2.2 <Jumper Reference>............................................................................................10

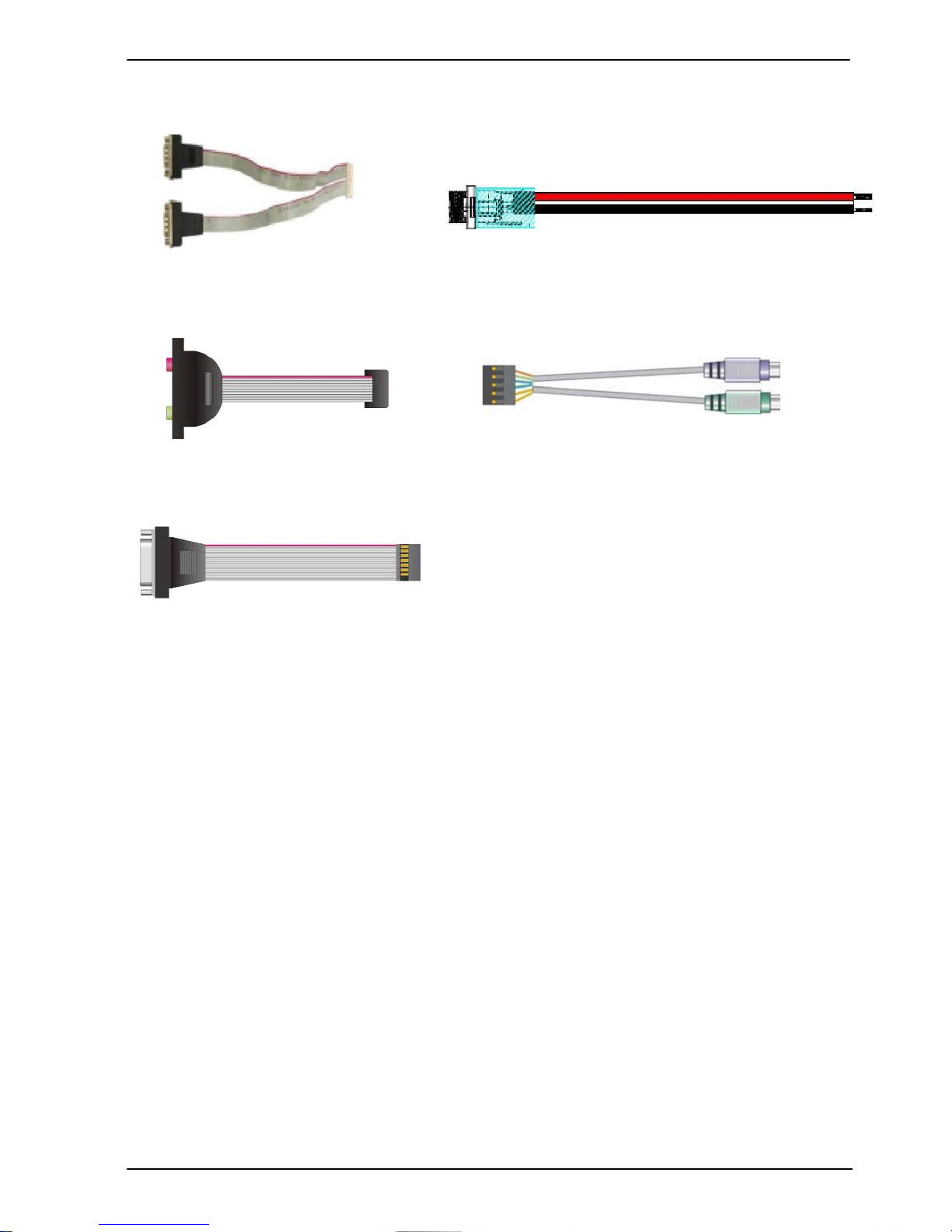

Printed Matters:

Driver CD x 1 (Including User’s Manual)

Audio Cable x 1

(OALPJ-HDUNB) / (1040123)

DC_IN Power Cable x 1

(OALDC-B) / (1040513)

PS/2 Keyboard & Mouse Cable x 1

(OALPS2/KM) / (1040131)

CRT cable without bracket x 1

(OALVGA-SNB-7) / (1040557)

RS232 Cable x 1

(OALES-BKU2-H14NB) / (1040379)

LP-173 User’s Manual

-4-

2.3 <Connector Reference>.......................................................................................10

2.3.1 <Internal Connector> ........................................................................10

2.3.2 <External Connector>.......................................................................10

2.4 <Memory Setup>.................................................................................................11

2.5 <CMOS & ATX Setup>......................................................................................11

2.6 <SATA Interface>...............................................................................................12

2.7 <LAN Interface> .................................................................................................12

2.8 <Onboard Display Interface> ..............................................................................12

2.8.1 <Analog VGA Interface>..................................................................12

2.8.2 <CN_LVDS>.....................................................................................13

2.9 <Onboard Audio Interface>.................................................................................16

2.10 <USB 3.0 and USB 2.0Interface> .....................................................................17

2.11 <Serial Port Jumper Setting >............................................................................19

2.12 <Power & FAN Connector >.............................................................................20

2.12.1 <Power Input>.................................................................................20

2.12.2 <Power Output>..............................................................................21

2.12.3 <Fan Connector>.............................................................................21

2.13 <Indicator and Switch>......................................................................................22

2.14 < PCIE Mini Card >...........................................................................................23

Chapter 3 <BIOS Setup>................................................................................... 24

Appendix A <I/O Port Pin Assignment> .......................................................... 25

A.1 <SATA Port>......................................................................................................25

A.2 <LAN Port>........................................................................................................25

A.3 <LPC Port>.........................................................................................................26

A.4 <GPIO Port>.......................................................................................................26

Appendix B <Flash BIOS> ................................................................................ 27

B.1 BIOS Auto Flash Tool.........................................................................................27

B.2 Flash Method.......................................................................................................27

Appendix C <Programming GPIO’s> ............................................................... 28

LP-173 User’s Manual

-5-

Appendix D <Programming Watchdog Timer >.............................................. 29

Contact Information........................................................................................... 31

Chapter 1 <Introduction>

1.1 <Product Overview>

The LP-173 motherboard is design based on Intel® Celeron® Processor J1900 / N2930

and Intel® Atom Processor E3845, delivering outstanding compute, graphical, and

media performance while operating in an extended range of thermal conditions. The

SoC bases on the Silvermont microarchitecture, utilizing Intel’s industry-leading 22nm

process technology with 3-D Tri-Gate transistors, which deliver significant improvements

in computational performance and energy efficiency.

New features for Intel® Celeron® and Atom Processor

The Intel® Celeron® Processor J1900 / N2930 and Intel® Atom E3845 Processor

supports graphics, media performance, flexibility and more enhanced security that is

suitable for a variety of intelligent systems the ideal choice.

Outstanding integration of I/O interfaces

Supports display interfaces with graphics processing, camera interfaces with image

processing, audio with digital signal processing, multiple storage types, and legacy

embedded I/O. Provides interface expansion capabilities through industry-standard

high-bandwidth interfaces such as PCI Express* Gen 2.0, Hi-speed USB 2.0, and USB

3.0 connectivity.

All in One multimedia solution

Based on Intel® J1900 / N2920 /E3845 SoC, the board provides high performance

onboard graphics, CRT, 24-bit dual channel LVDS interface, DVI and 2 channels High

Definition Audio, to meet the very requirement of the multimedia application.

LP-173 User’s Manual

-6-

Flexible Extension Interface

The board provides one PCIe mini slot

1.2 <Product Specification>

General Specification

Form Factor PICO-ITX miniboard

CPU Intel® Processor J1900/N2930/E3845, package type

FCBGA1170

Memory 1 x DDR3L (support 1.35V) 1066/1333 SO-DIMM up to 8GB

Watchdog Timer System reset programmable watchdog timer with 1 ~ 255

sec./min. of timeout value

Real Time Clock Chipset integrated RTC with onboard lithium battery

Serial ATA 1 x serial ATA interface with 300MB/s(3Gb/s) transfer rate

VGA Interface Intel® Clear Video integrated HD Graphics Technology

LVDS Interface 1 x Onboard 24-bit dual channel LVDS connector with +3.3V/+5V

supply

Audio Interface Realtek ALC262 High Definition Audio Codec

LAN Interface 1 x Intel® I210 Gigabit LAN

GPIO interface Onboard programmable 8-bit Digital I/O interface.

Extended Interface 1 x PCIE Mini card or mSATA

Internal I/O Port 2 x RS232, 1 x GPIO, 1 x Audio connector, 1 x CRT, 1 x LVDS, 1

x LPC, 2 x USB 2.0(EHCI) and 1 x SATAII

External I/O Port 1 x DVI port, 1 x RJ45 LAN port, 1 x USB 3.0(XHCI)/2.0(EHCI)

port,1 x USB 2.0(EHCI) port.

Power Requirement 6~27V DC Input

Dimension 100mm x 72mm

Temperature Operating within 0~60 ℃(for LP-173J and LP-173N serial)

Operating within -40~75 ℃(for LP-173E serial)

Ordering Code

LP-173J Intel Celeron Processor J1900 (2M Cache, 2.42GHz), DVI,

LVDS, CRT, Gigabit LAN, USB3.0 & 2.0, Serial Port, SATAII,

Audio, PCIE Mini card or mSATA, GPIO, LPC

LP-173N Intel Celeron Processor N2930 (2M Cache, 2.16GHz), DVI,

LVDS, CRT, Gigabit LAN, USB3.0 & 2.0, Serial Port, SATAII,

Audio, PCIE Mini card or mSATA, GPIO, LPC

LP-173E Intel Atom Processor E3845 (2M Cache, 1.91GHz), DVI, LVDS,

CRT, Gigabit LAN, USB3.0 & 2.0, Serial Port, SATAII, Audio,

PCIE Mini card or mSATA, GPIO, LPC

The specifications may be different as the actual production.

For further product information please visit the website at

TUhttp://www.commell.com.twUT

LP-173 User’s Manual

-7-

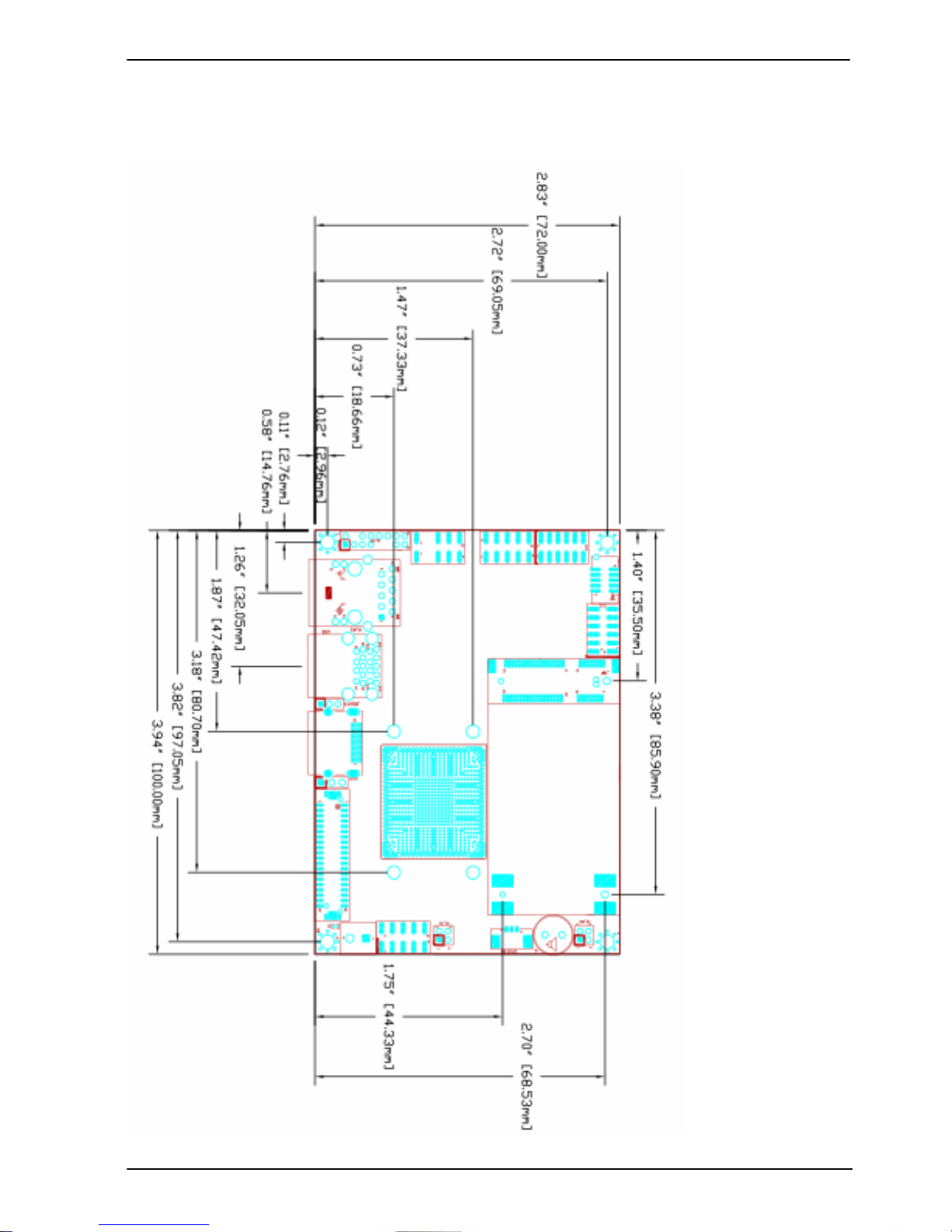

1.3 <Mechanical Drawing>

LP-173 User’s Manual

-8-

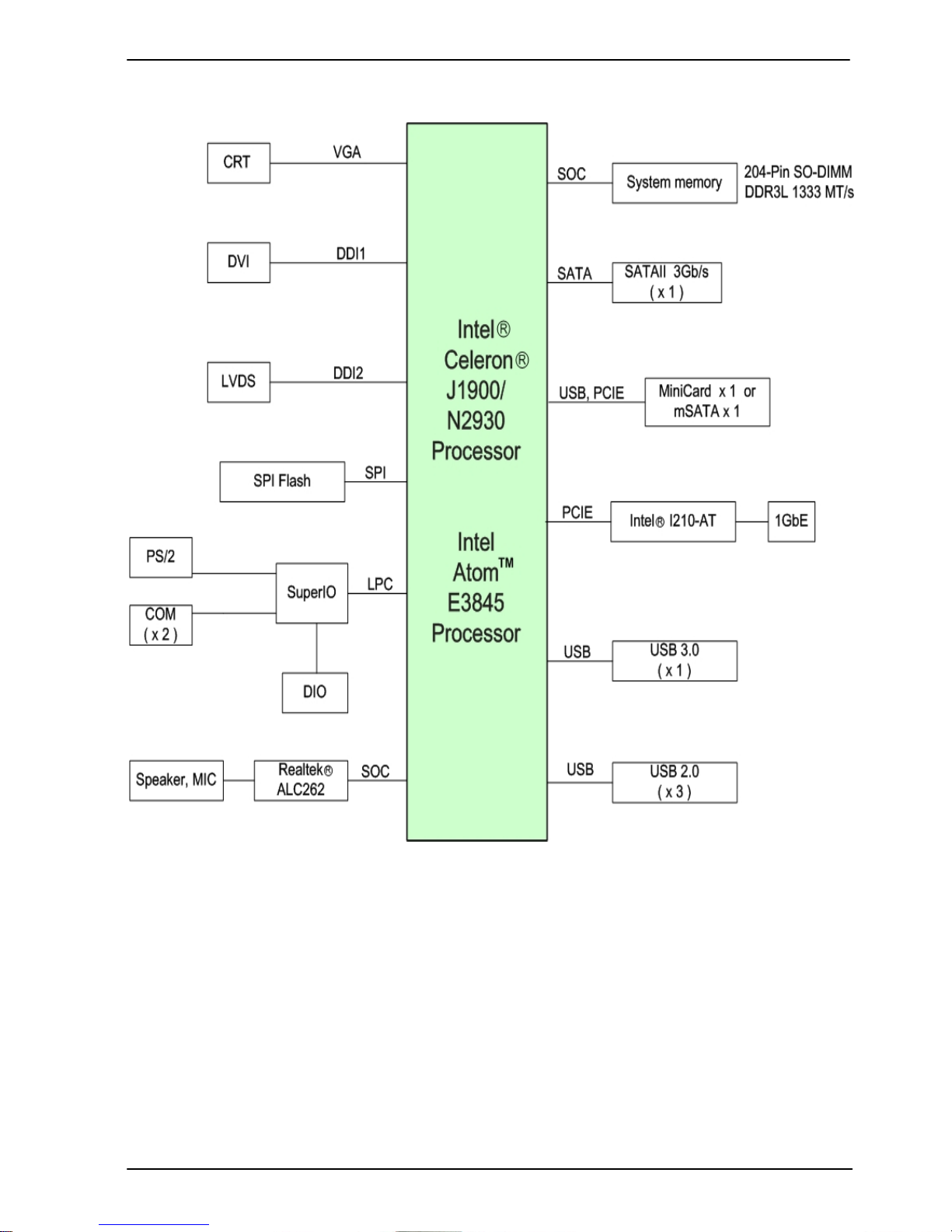

1.4 <Block Diagram>

LP-173 User’s Manual

-9-

Chapter 2 <Hardware Setup>

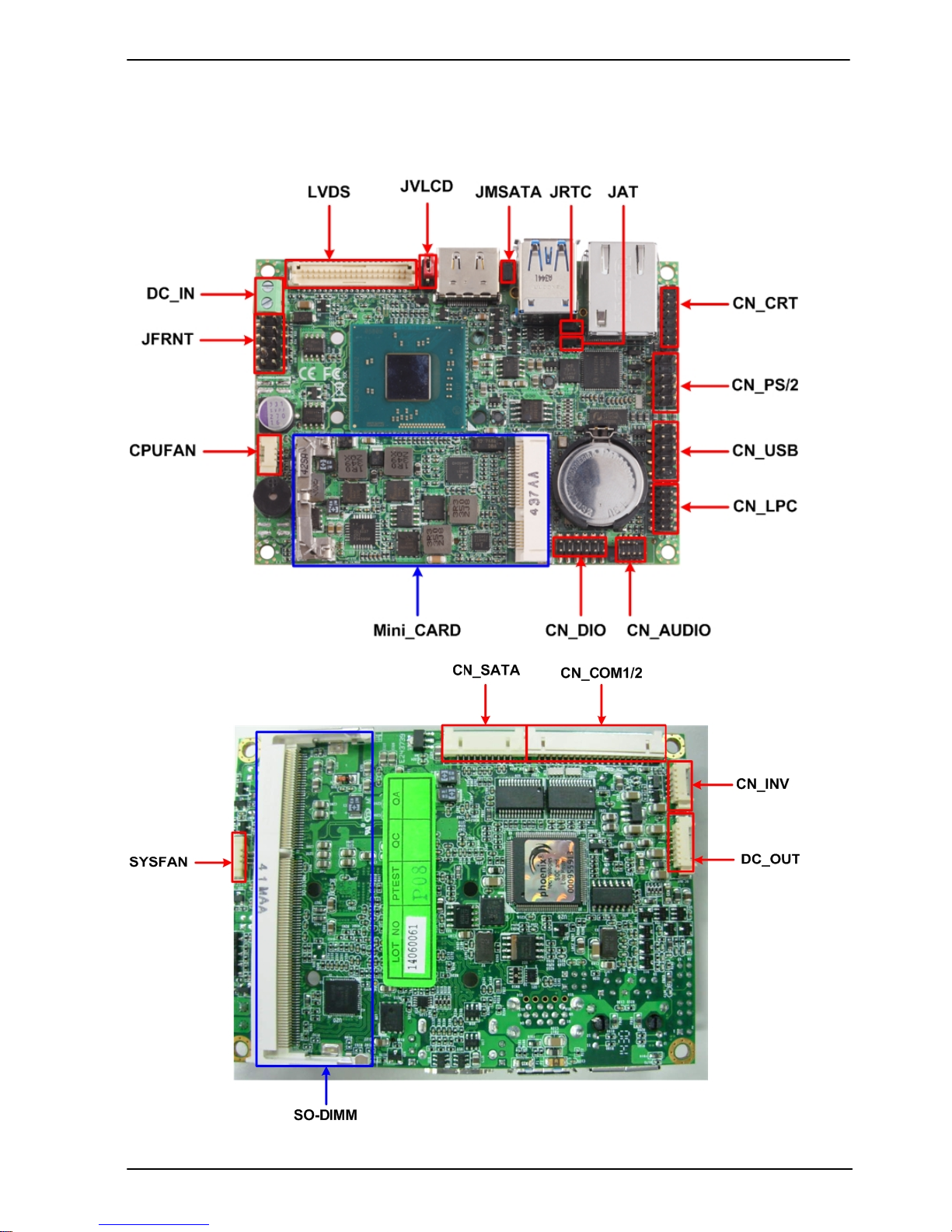

2.1 <Connector Location>

LP-173 User’s Manual

-10-

2.2 <Jumper Reference>

Jumper Function

JRTC CMOS Operating/Clear Setting

JAT AT/ATX Mode Setting

JVLCD LCD Panel Voltage Setting

JMSATA Mini Card1 mSATA Setting

2.3 <Connector Reference>

2.3.1 <Internal Connector>

Connector Function Remark

SO-DIMM 204 -pin DDR3L SO-DIMM SDRAM slot

CN_SATA 10-pin SATA Cable connector

MINI_CARD PCIE mini card socket

CN_INV 5-pin LCD inverter connector

CN_USB1/2 5 x 2-pin USB connector

CN_AUDIO 5 x 2-pin audio connector

CN_LPC 5 x 2-pin header for LPC Port

CN_COM1/2 10 x 2-pin com connector

JFRNT 10-pin switch/indicator connector

CPUFAN 3-pin CPU cooler fan connector

SYSFAN 3-pin system cooler fan connector

DC_OUT 6-pin power output connector

DC_IN DC input connector

2.3.2 <External Connector>

Connector Function Remark

DVI 19-pin HDMI connector

USB 1/2 USB 2.0 and USB 3.0 connector

RJ45 RJ45 LAN connector
