Commell LV-6713 Bedienungsanleitung

LV-6713

Mini-ITX Mobile Motherboard

User’s Manual

Edition 1.1

2021/11/18

LV-6713 User’s Manual

-1-

The information in this document is subject to change without prior notice to make

improvements to the products.

This document contains proprietary information and protected by copyright. No part of this

document may be reproduced, copied, or translated in any form or any means without prior

written permission of the manufacturer.

All trademarks and/or registered trademarks contains in this document are property of their

respective owners. Disclaimer

The company shall not be liable for any incidental or consequential damages resulting from

the performance or use of this product.

The company does not issue a warranty of any kind, express or implied, including without

limitation implied warranties of merchantability or fitness for a particular purpose.

The company has the right to revise the manual or include changes in the specifications of

the product described within it at any time without notice and without obligation to notify any

person of such revision or changes.

Trademark

All trademarks are the property of their respective holders.

Any questions please visit our website at TU http://www.commell.com.twUT

LV-6713 User’s Manual

-2-

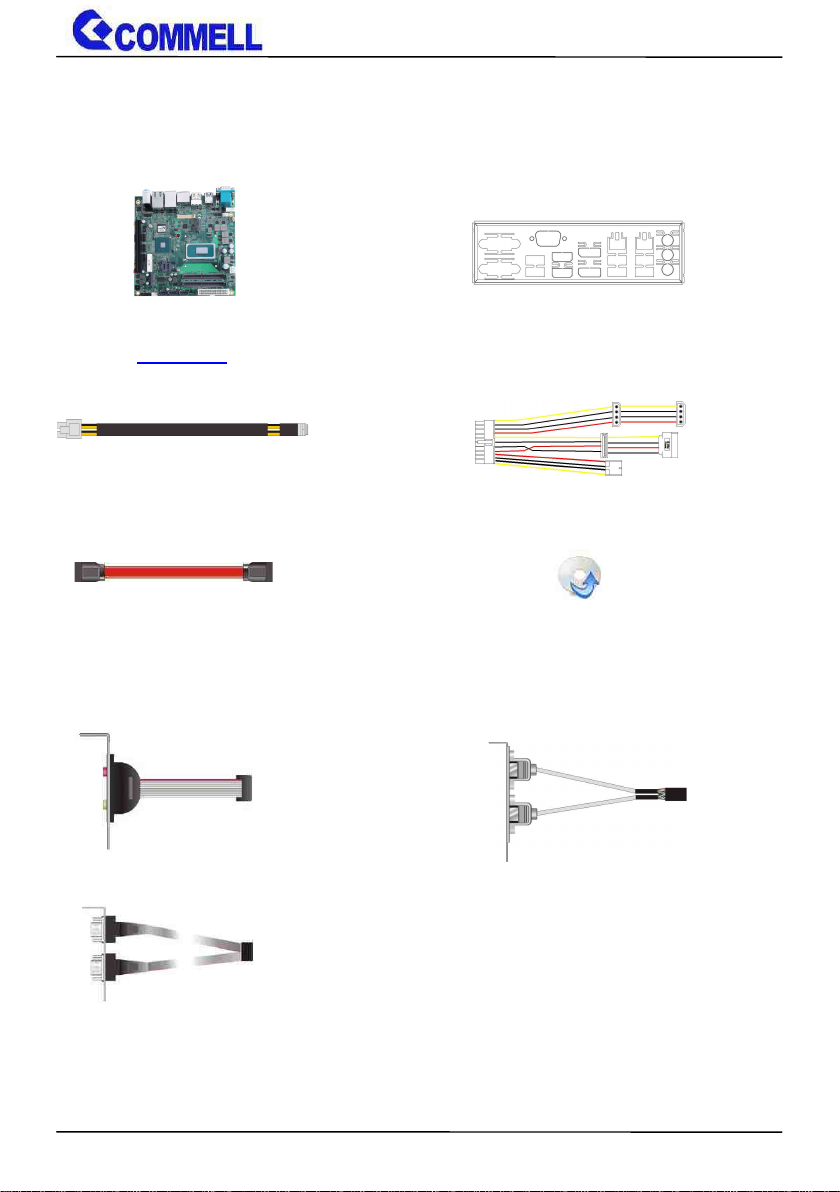

Packing List:

Please check the package content before you starting using the board.

Appendix G

OPTIONAL:

1 x LV-6713 Mini-ITX Motherboard

(include Cooler Fan)

1 x I/O Shield

(OPLATE-CUHDLAT) / (1270077)

1 x Power Cable

(OALATX-P3S2 / 1040058)

2 x SATA Cable

(OALSATA3-L) / (1040529)

1 x DC Power Cable

(OALDC-A) / (1040433)

1 x Audio cable

(OALPJ-HD) / (1040120)

1 x Dual COM PORT Cable

(OALES-BKU2) / (1040087)

1 x USB 2.0 Cable

(OALUSBA-1) / (1040172)

1 x Driver CD

(Including User’s Manual)

LV-6713 User’s Manual
-3-
Index
Chapter 1 <Introduction>..................................................................4
1.1 <Product Overview>............................................................4
1.2 <Product Specification> ......................................................5
1.3 <Block Diagram>.................................................................6
Chapter 2 <Hardware setup>...........................................................7
2.1 <Connector Location and Reference> ................................7
2.1.1 <Internal connectors list>..........................................8
2.1.2 <External connectors list>.........................................8
2.2 <Memory Setup>.................................................................9
2.3 <Jumper Location and Reference>...................................10
2.3.1 <Jumper list> ..........................................................10
2.3.2 <Clear CMOS and Power on type selection>..........11
2.4 <I/O interface> ..................................................................11
2.4.1 <Serial ATA interface>.............................................11
2.4.2 <Ethernet interface>................................................12
2.4.3 <Display interface> .................................................12
2.4.4 <Serial Port interface> ............................................14
2.4.5 <USB interface>......................................................17
2.4.6 <Audio interface>....................................................18
2.4.7 <Expansion slot>.....................................................19
2.4.8 <Front panel switch and indicator> .........................20
2.4.9 <GPIO and Other interface>...................................21
2.5 <Power supply> ................................................................23
2.5.1 <Power input>.........................................................23
2.5.2 <Power Output>......................................................24
Appendix A <Flash BIOS>..............................................................25
Appendix B <LCD Panel Type select> ...........................................26
Appendix C <Programmable Watch Dog Timer>............................27
Appendix D <Hardware Monitor>...................................................29
Appendix E <Programmable GPIO>..............................................30
Appendix F <RAID Setting>...........................................................31
Appendix G <Cooler fan>...............................................................32
Contact information........................................................................33

LV-6713 User’s Manual

-4-

Chapter 1 <Introduction>

1.1 <Product Overview>

LV-6713 is a Mini-ITX Motherboard which supports Tiger Lake/11th Gen H Processors,

integrated UHD Graphics, DDR4 memory, Realtek High Definition Audio, Intel Gigabit LAN,

USB3.2 Gen2, SATA3 with AHCI function for a system.

New feature for Tiger Lake H

Tiger Lake/11th Gen H Processors are based on the 10nm SuperFin process, and offer

long-life availability. They have Intel UHD Graphics up to 32 EUs.

All in One multimedia solution

The board provides one MiniPCIe slot (support mSATA), one M.2 2230 slot, one M.2 2280

slot (PCIe Gen4), and one PCIe x16 slot (PCIe Gen4).

Tiger Lake support Windows10 version 20H2 64bit and Linux kernel 5.8

Intel recommends using Windows 10 version 20H2 64bit. It may lose some drivers if you

use other Windows version.

LV-6713 User’s Manual

-5-

1.2 <Product Specification>

System

Processor

Tiger Lake/11th Gen H Processor

FCBGA1787 package

Chipset

Intel® QM580E / RM590E (TGL-H Xeon CPUs have to use RM590E)

Memory

2 x DDR4 SO-DIMM 3200 MHz up to 64GB,

Support Non-ECC, unbuffered memory

(TGL-H Xeon CPUs can support ECC memory)

Watchdog Timer

Generates a system reset with internal timer for 1min/s ~ 255min/s

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Expansion

1 x MiniPCIe with SIM slot (support mSATA)

1 x M.2 2280 Key M support PCIe Gen4 for NVMe

1 x M.2 2230 Key E for Wi-Fi and Bluetooth

1 x PCIE X16 slot support PCIe Gen4

Graphics

Chipset

Intel® 11th Gen integrated UHD Graphics

Display Interface

1 x LVDS (Note1), 2 x HDMI, 2 x DisplayPort(Note2)

LAN

Chip

1 x Intel® I219-LM Gigabit PHY LAN (Support iAMT 15.0)

1 x Intel® I225-LM Gigabit LAN (up to 2.5GbE)

I/O

Serial ATA

3 x SATA3

Audio

RealtekALC888S HDAudio

Internal I/O

3 x SATA3, 4 x RS232, 2 x USB2.0, 1 x LVDS,

1 x LCD inverter connector , 1 x GPIO , 1 xAudio, 1 x SMBus

Rear I/O

2 x HDMI, 2 x DisplayPort, 2 x LAN, 6 x USB3.2 Gen2

2 x RS232/RS422/RS485, 1 xAudio

Mechanical & Environmental

Power Requirement

Standard 24-pinATX power supply, or 4-pin DC 9~35V

Size

170mm x 170mm (L x W)

Temperature

Operating within 0°C~60°C (32°F~140°F) (Note3)

Storage within -20°C~80°C (-4°F~176°F)

Relative Humidity

10%~90%, non-condensing

Note1: Onboard 18/24-bit single/dual channel +3.3V/ +5V/ +12V LVDS

Note2: AddADP-3355 supports VGAor AddADP-3460 supports 2nd LVDS.

Note3: W-11865MRE, W-11555MRE, W-11155MRE can operate within -40°C~85°C

Note4: Please don’t remove cooler fan, it will destroy thermal paste on CPU.

LV-6713 User’s Manual

-6-

1.3 <Block Diagram>

PTN3460

LVDS

HDMI

I219-LM

I225-LM

6 x USB3.2 Gen2

2 x USB2.0

DDR4 SODIMM 3200

3 x SATA

1 x PCIe / mSATA

1 x M.2 2230

1 x M.2 KEY M 2280

1 xALC888S

1 x SYSFAN

1 x CPUFAN

1 x GPIO

2 x RS232/422/485

4 x RS232

ESPI

Tiger Lake H

Processor

Super I/O

NCT6126D

HDMI

1 x PCIe X16 Slot

DMI x8

QM580E

RM590E

LV-6713 User’s Manual

-7-

Chapter 2 <Hardware setup>

2.1 <Connector Location and Reference>

COM2 i219-LM i225-LM

M.2 KEY E

M.2 KEY M

MINI_CARD

COM1 USB3.2 Gen2 HDMI DP USB3.2 Gen2 Audio

DDR4_B DDR4_A SATA3-1 SATA3-2 SATA3-3 JFRNT

ATX

DC_IN

CN_BAT

CPUFAN

CN_INV

CN_LVDS

SYSFAN

CN_DIO

CN_COM5/6

CN_SMBUS

CN_COM3/4

PCI_E16X

CN_USB

CN_ AUDIO

LV-6713 User’s Manual

-8-

2.1.1 <Internal connectors list>

Connector

Function

DDR4_A/B

260-pin DDR4 SO-DIMM slot

SATA3-1/2/3

7-pin SATA3 connector

CN_AUDIO

5 x 2-pin audio pin header

CN_LVDS

20 x 2-pin LVDS connector

CN_INV

5-pin LCD inverter connector

CN_SMBUS

5-pin SMBus connector

CN_COM 3/4/5/6

20-pin RS232 connector

CN_USB

5 x 2-pin USB2.0 pin header

CN_DIO

6 x 2-pin digital I/O connector

CPUFAN

4-pin CPU fan connector

SYSFAN

4-pin system fan connector

JFRNT

14-pin front panel switch/indicator connector

PCI_E16X

164-pin x16 PCIE slot

MINI_CARD

52-pin MiniPCIe card slot

75-pin M.2 Key E slot

M2_M_GEN4

75-pin M.2 Key M slot (Supoort PCIe Gen4)

ATX

24-pin power supply connector

DC_IN

4-pin power input Terminal Block

2.1.2 <External connectors list>

Connector

Function

DDP

Dual DisplayPort connector

DHDMI

Dual HDMI connector

USB_RJ45_1

USB3.2 Gen2 and RJ45 connector (i219-LM)

USB_RJ45_2

USB3.2 Gen2 and RJ45 connector (i225-LM)

USB

USB3.2 Gen2 connector

AUDIO

Audio connector

COM12

DB9 Serial port connector

LV-6713 User’s Manual

-9-

2.2 <Memory Setup>

In the process, the board must be powered off.

1. Put the memory tilt into the slot. Note the Memory notch key aligned slot key.

2. Then press down till lock into the mounting notch.

3. To remove the memory, push outward on both sides of the latch.

Key

Seated the RAM in the slot

Latch
