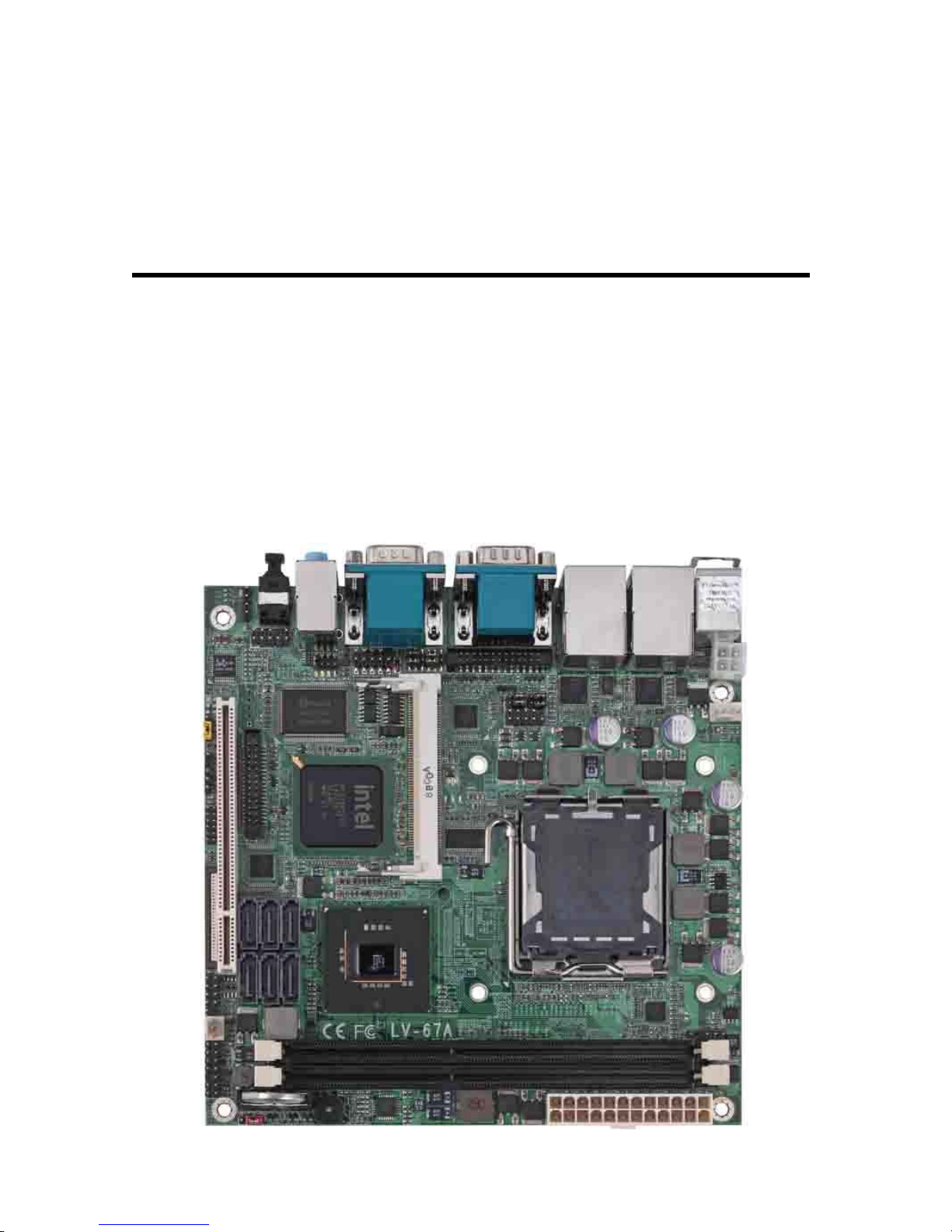

Commell LV-67A Bedienungsanleitung

LV-67A

Mini-ITX motherboard

User’s Manual

Edition: 1.2

2009/06/11

LV-67AUser’sManual

reserved. The information in this document is subject to change without prior notice to make

improvements to the products.

This document contains proprietary information and protected by copyright. No part of this

document may be reproduced, copied, or translated in any form or any means without prior

written permission of the manufacturer.

All trademarks and/or registered trademarks contains in this document are property of their

respective owners. Disclaimer

The company shall not be liable for any incidental or consequential damages resulting from

the performance or use of this product.

The company does not issue a warranty of any kind, express or implied, including without

limitation implied warranties of merchantability or fitness for a particular purpose.

The company has the right to revise the manual or include changes in the specifications of

the product described within it at any time without notice and without obligation to notify any

person of such revision or changes.

Trademark

All trademarks are the property of their respective holders.

Any questions please visit our website at TUhttp://www.commell.com.twUT.

LV-67AUser’sManual

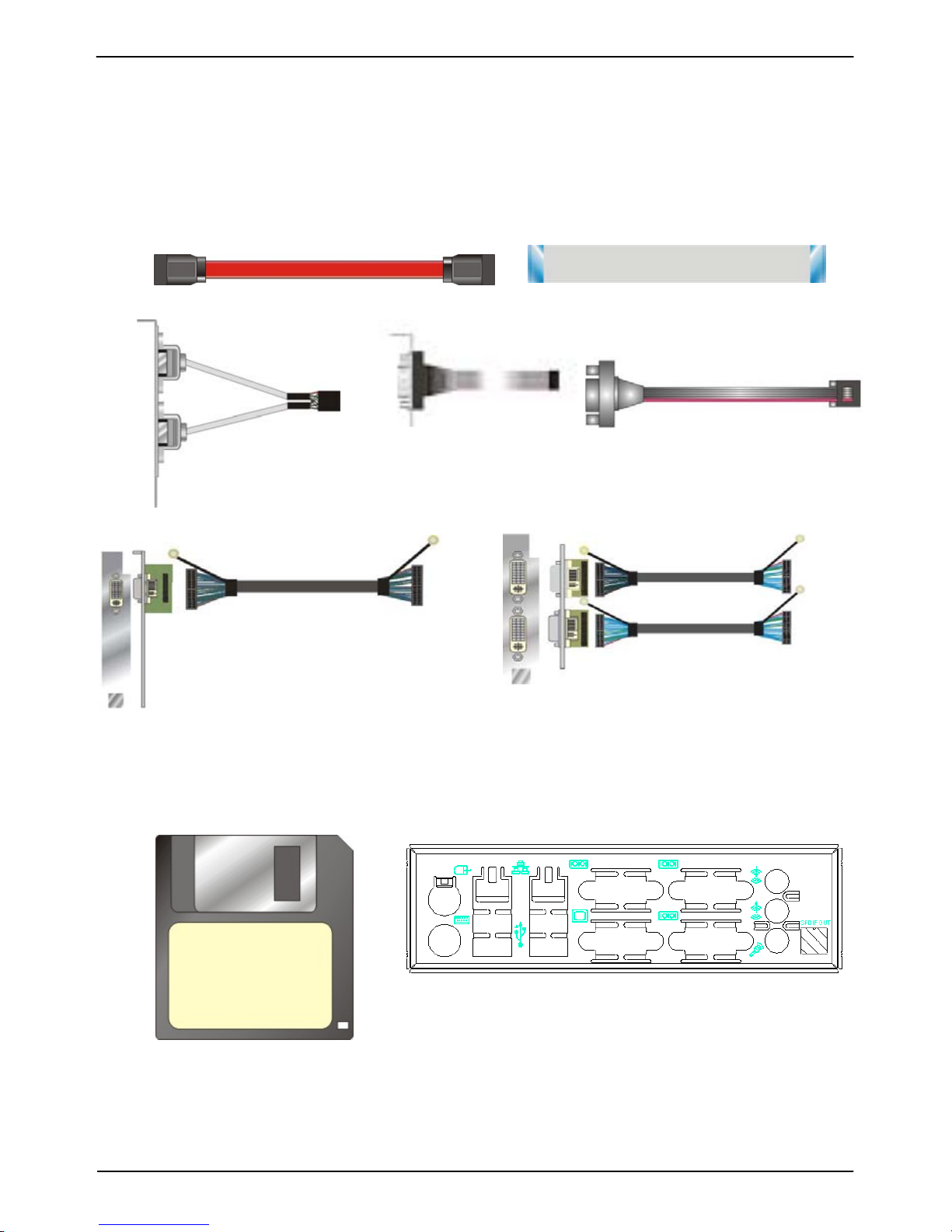

Packing List

Please check package component before you use our products.

Hardware:

LV-67A Mini-ITX motherboard x 1

Cable Kit:

Other Accessories:

Divers CD (including User’s Manual) x 1

RAID drivers Disc for Windows XP

SATA Cable x 2 26-pin Slim Type Floppy Cable x 1

DVI module with bracket x 1

(LV-67AD Only)

I/O Shield x 1

USB Cable x 1 COM Port Cable x 1 VGA Cable x 1

(LV-67AT only)

DVI module with bracket x 1

(LV-67AD2 Only)

LV-67AUser’sManual

Index

Chapter1 <Introduction>............................................................7

1.1 <Product Overview> .............................................................................................7

1.2 <Product Specification> ........................................................................................8

1.3 <Block Diagram> ................................................................................................10

1.4 <Mechanical Drawing > ......................................................................................11

Chapter 2 <Hardware Setup>.................................................12

2.1 <Connector Location>.........................................................................................12

2.2 <Jumper Reference>..........................................................................................13

2.3 <Connector Reference>......................................................................................14

2.3.1 <Internal Connectors> ..............................................................14

2.3.2 <External Connectors> .............................................................14

2.4 <CPU and Memory Setup>.................................................................................15

2.4.1 <CPU installation>...................................................................15

2.4.2 <Memory installation>..............................................................16

2.5 <CMOS Setup>...................................................................................................17

2.6 <Serial ATA installation>......................................................................................18

2.7 <Floppy Installation>...........................................................................................19

2.8 <LAN installation>...............................................................................................20

2.9 <Onboard Display Interface>..............................................................................21

2.9.1 <Analog Display>....................................................................21

2.9.2 <LVDS Display LV-67AX Only >...............................................22

2.9.3 <DVI Display LV-67AD and LV-67AD2> ....................................25

2.10 <Audio Installation> ..........................................................................................26

2.11 <GPIO and SMBUS interface>..........................................................................28

2.12 <USB Installation> ............................................................................................29

2.13 <Power and Fan Installation> ...........................................................................31

2.14 <Serial Port>.....................................................................................................33

2.15 <Switch and Indicator> .....................................................................................36

LV-67AUser’sManual

Chapter 3 <System Configuration>.......................................38

3.1 <SATA configuration>..........................................................................................38

3.2 <SATA RAID Configuration>...............................................................................39

3.3 <Audio Configuration> ........................................................................................43

3.4 <Video Memory Setup> ......................................................................................44

3.5 <Display Properties Setting>...............................................................................46

Chapter 4 <BIOS Setup>.........................................................48

Appendix A <I/O Port Pin Assignment>................................50

A.1 <Serial ATA Port>................................................................................................50

A.2<Floppy Port>......................................................................................................50

A.3 <IrDA Port>.........................................................................................................51

A.5 <VGA Port> ........................................................................................................52

A.6 <LAN Port>.........................................................................................................52

Appedix B <System Resources>...........................................53

B.1 <I/O Port Address Map>.....................................................................................53

B.2 <Memory Address Map> ....................................................................................55

B.3 <System IRQ Resources>..................................................................................56

Appedix C <Flash BIOS>.........................................................57

C.1 <BIOS Auto Flash Tool>................................................................................57

C.2 <Flash Method>..............................................................................................57

Appendix D <Programming GPIO’s>....................................58

Appendix E <Watch Dog timer Setting >..............................59

Contact Information...................................................................60

LV-67AUser’sManual

(This Page is Left for Blank)

LV-67AUser’sManual

Chapter1 <Introduction>

1.1 <Product Overview>

LV-67A is the motherboard with last Intel desktop technology with Mini-ITX form factor.

Based on Intel®Q45 and ICH10DO, the board integrates a new Core 2 Quad / Core 2 Duo

Celeron processor 775-pin socket, DDR3 memory socket, Intel®Graphic Media Accelerator

4500 technology, Serial ATA II with RAID function for a powerful desktop system.

Intel®LGA775 processor

The Intel® Core 2 Quad / Core 2 Duo / Celeron processor now comes with a new form

factor with 775-pin PLGA package, for 800/1066/1333MHz front-side-bus, 12MB L2 cache,

for 65nm and 45nm manufacturing technology, the PLGA processor without pin header on

solder side can make user installing the processor on the socket easier.

Intel®Q45 and ICH10DO chipset

The Intel Q45 integrates DDR3 800/1066MHz for memory, and Graphic Media Accelerator

(GMA) 4500 technology for new graphic engine. It can provide up to 1024MB of frame

buffer when you install over 1GB of system memory. The ICH10DO integrates with up to 8

USB2.0 interfaces, and serial ATA II interface with RAID function.

Flexible Extension Interface

The board provides one PCI-slot for graphics card, it also can support PCI-slot for LAN card

or other devices. The board also provides mini-PCI socket.

LV-67AUser’sManual

1.2 <Product Specification>

General Specification

Form Factor Mini-ITX motherboard

CPU Intel® Core 2 Quad / Core 2 Duo / Celeron processor

With LGA775 socket

Package type: PLGA 775

Front side bus: 800/1066/1333MHZ (200/266/333MHz x 4)

Memory 2 x 240-pin DDR3 800/1066MHz SDRAM up to 4GB

Unbufferred, none-ECC memory supported only

Chipset Intel® Q45 (Northbridge) and ICH10DO (Southbridge)

BIOS Phoenix-Award v6.00PG 8Mb SPI flash BIOS

Green Function Power saving mode includes doze, standby and suspend modes.

ACPI version 1.0 and APM version 1.2 compliant

Watchdog Timer System reset programmable watchdog timer with 1 ~ 255 sec./min.

of timeout value

Real Time Clock Intel® ICH10DO built-in RTC with lithium battery

Serial ATAII Intel® ICH10DO integrates 6 Serial ATA II interface

RAID 0, 1,5,10 Intel Matrix Storage Technology supported

Multi-I/O Port

Chipset Intel® 82801HDO( ICH10DO) with Winbond® W83627DHG

Controller

Serial Port Three RS-232 and one RS232/422/485 serial ports

USB Port Eight Hi-Speed USB 2.0 ports with 480Mbps of transfer rate

Floppy Port One slim type Floppy port

IrDA Port One IrDA compliant Infrared interface supports SIR

K/B & Mouse External PS/2 keyboard and mouse ports on rear I/O panel

GPIO One 12-pin Digital I/O connector with 8-bit programmable I/O

Interface

Smart Fan One CPU fan connectors for fan speed controllable

VGA Display Interface

Chipset Intel® Q45 GMA4500 (Graphic Memory Controller Hub)

Frame Buffer Up to 1024MB shared with system memory

Display Type CRT, LCD monitor with analog display

Onboard 18/24-bit dual channel LVDS interface (LV-67AX)

Onboard DVI interface (LV-67AD/LV-67AD2)

Optional Secondary CRT Connector (LV-67AT)

Connector External DB15 female connector on rear I/O panel

Onboard 40-pin LVDS connector (LV-67AX)

Onboard 26-pin DVI Connector (LV-67AD/L-67AD2)

Onboard 10-pin CRT2 Connector (LV-67AT)

LV-67AUser’sManual

Ethernet Interface

Controller Two Intel 82574L Gigabit Ethernet controller

Type Triple speed 10/100/1000Base-T

Auto-switching Fast Ethernet

Full duplex, IEEE802.3U compliant

Connector Two External RJ45 connectors with LED on rear I/O panel

Audio Interface

Chipset Intel® ICH10DO with Realtek ALC888HD Audio

Intel High Definition Audio compliance

Interface 2 channels sound output

Connector External 3 phone jack for 2 channel audio on rear I/O panel

External SPDIF connector on rear I/O panel

Internal 10-pin header for line-out, MIC-in, 4-pin header for CD-IN

Expansive Interface

Mini PCI One Mini-PCI socket TYPE III A (32-bit, 33MHz)

Power supply: +3.3V, +5V

Power and Environment

Power

Requirement Standard ATX 24-pin (20-pin is compatible) power supply

Additional +12V 4-pin power connector

Dimension 170 (L) x 170 (H) mm

Temperature Operating within 0 ~ 60P

C (32 ~ 140P

Storage within –20 ~ 85P

C (-4 ~ 185P

Ordering Code

LV-67AD Onboard VGA, 2 x Intel® Gigabit LAN, 8 x USB2.0, Mini-PCI PCI,

4 x serial Port, 1 x FDD, Realtek ALC888 HD Audio

6 x SATA, 1 x IrDA, 1x DVI Interface

LV-67AD2 Same as LV-67AD with secondary DVI Interface

LV-67AX Same as LV-67AD with 18/24-bits LVDS instead of DVI

LV-67AT Same as LV-67AD with secondary CRT instead of DVI

The specifications may be different as the actual production.

LV-67AUser’sManual

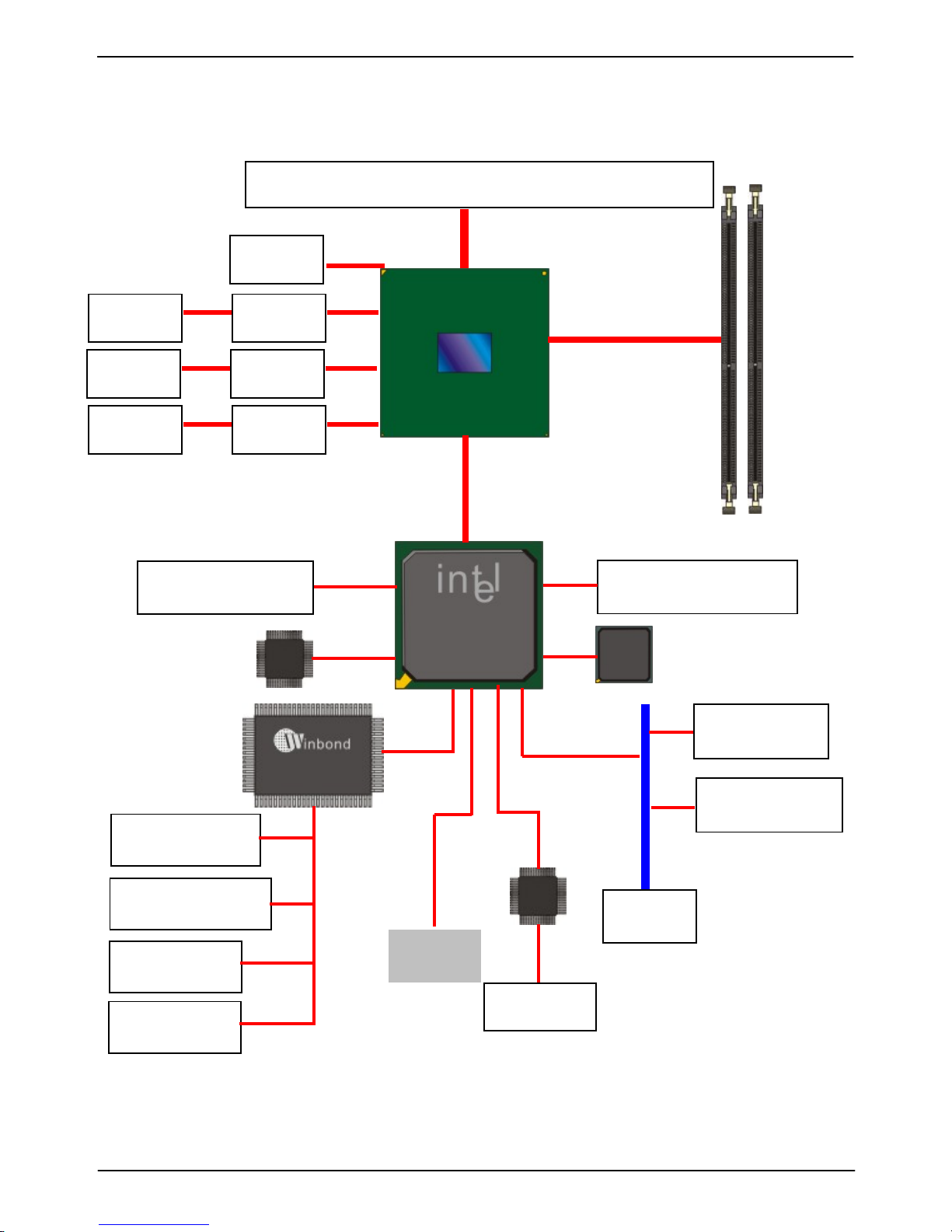

1.3 <Block Diagram>

Intel Core 2 Quad / Core Due with 775 Pin PLGA

Intel Q965 2 x 240-pin DDR3

800/1066MHz up

to 4GB

PCI bus

Mini-PCI slot

2 x Serial ports

1 x Floppy port

8-bit GPIO

8 x USB2.0 ports

PCI Slot

HD Audio ICH8DO

LVDS

DVI

6 x Serial ATAII ports

Intel 82574L

2 x GLAN

IrDA

CH7308

CH7318

BIOS

SPI

CRT2 CH7317

COM3/4

CRT1

Andere Handbücher für LV-67A

Inhaltsverzeichnis

Andere Commell Hauptplatine Handbücher

Commell

Commell HE-B72 Bedienungsanleitung

Commell

Commell HS-873P Bedienungsanleitung

Commell

Commell LV-67H Bedienungsanleitung

Commell

Commell Mini-ITX Motherboard LV-671 Bedienungsanleitung

Commell

Commell LV-67J Bedienungsanleitung

Commell

Commell LV-602 Bedienungsanleitung

Commell

Commell LE-37R Bedienungsanleitung

Commell

Commell LV-67N Bedienungsanleitung

Commell

Commell LS-371 Bedienungsanleitung

Commell

Commell MS-C72 Bedienungsanleitung

Commell

Commell LP-170 Bedienungsanleitung

Commell

Commell FS-A71 Bedienungsanleitung

Commell

Commell FS-A70 Bedienungsanleitung

Commell

Commell LV-67D Bedienungsanleitung

Commell

Commell LE-370 Bedienungsanleitung

Commell

Commell AS-C7A Bedienungsanleitung

Commell

Commell LV-682 Bedienungsanleitung

Commell

Commell LV-67X Bedienungsanleitung

Commell

Commell LV-675 Bedienungsanleitung

Commell

Commell LP-174 Bedienungsanleitung

Commell

Commell LP-180 Bedienungsanleitung

Commell

Commell LP-172D Bedienungsanleitung

Commell

Commell LE-575 Bedienungsanleitung

Commell

Commell MS-C71 Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
