Compaq 315eu - Microtower PC Bedienungsanleitung

Upgrading and Servicing Guide

The only warranties for Hewlett-Packard products and services are set forth in the express

statements accompanying such products and services. Nothing herein should be construed as

constituting an additional warranty. HP shall not be liable for technical or editorial errors or

omissions contained herein.

HP assumes no responsibility for the use or reliability of its software on equipment that is not

furnished by HP.

This document contains proprietary information that is protected by copyright. No part of this

document may be photocopied, reproduced, or translated to another language without the prior

written consent of HP.

Hewlett-Packard Company

P.O. Box 4010

Cupertino, CA 95015-4010

USA

This product incorporates copyright protection technology that is protected by U.S. patents and

other intellectual property rights. Use of this copyright protection technology must be authorized by

Macrovision, and is intended for home and other limited pay-per-view viewing uses only unless

otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

Microsoft and Windows Vista are U.S. registered trademarks of Microsoft Corporation.

The Windows logo and Windows Vista are trademarks or registered trademarks of Microsoft

Corporation in the United States and/or other countries/regions.

HP supports lawful use of technology and does not endorse or encourage the use of our products

for purposes other than those permitted by copyright law.

The information in this document is subject to change without notice.

Table of Contents iii

Table of Contents

Upgrading and Servicing Guide ...............................................................1

Safety Information ..................................................................................................1

Opening and Closing the Computer .........................................................................1

Preparing the Computer .....................................................................................2

Before Opening the Computer.............................................................................2

After Closing the Computer.................................................................................3

Removing the Side Panel ....................................................................................3

Replacing the Side Panel ....................................................................................4

Removing the Front Panel....................................................................................4

Replacing the Front Panel ...................................................................................5

Locating Components Inside the Computer.................................................................6

Removing and Replacing Drives ...............................................................................7

Removing an Optical Drive.................................................................................7

Adding or Replacing an Optical Drive .................................................................8

Removing the Primary Hard Disk Drive ...............................................................10

Adding or Replacing the Primary Hard Disk Drive................................................11

Removing the Memory Card Reader ..................................................................13

Adding or Replacing a Memory Card Reader .....................................................14

Adding or Replacing a Second Hard Disk Drive ..................................................15

Removing a Second Hard Disk Drive..................................................................16

Adding Memory...................................................................................................18

Removing a Memory Module ............................................................................18

Installing a Memory Module .............................................................................19

Removing or Installing an Add-In Card ....................................................................20

Removing an Add-in Card ................................................................................20

Installing an Add-in Card..................................................................................22

Replacing the Battery ............................................................................................23

iv Upgrading and Servicing Guide

Upgrading and Servicing Guide 1

Upgrading and Servicing Guide

Safety Information

This product has not been evaluated for connection to an “IT” power system (an AC

distribution system with no direct connection to the earth, according to IEC 60950).

This Upgrading and Servicing Guide provides instructions for removing and replacing

hardware components of your computer.

Opening and Closing the Computer

WARNING: Before installing and connecting your system to the electrical

power system, please read “Safety Information” in the Limited Warranty and

Support Guide.

2Upgrading and Servicing Guide

Preparing the Computer

Before you can upgrade any component in your computer, you must prepare the computer

so that you can safely handle it and the components.

Before attempting to upgrade or service the computer, read the following items:

1These procedures assume familiarity with the general terminology associated with

personal computers, and with the safety practices and regulatory compliance required

for using and modifying electronic equipment.

2Write down and save the computer model and serial numbers, all installed options,

and other information about the computer. It is easier to consult this information than

to open and examine the computer.

3It is recommended that you use an antistatic wrist strap and a conductive foam pad

when working on the computer.

Before Opening the Computer

To avoid injury and equipment damage, always complete the following steps in this order,

before opening the computer:

1Remove any device, memory card, or optical disc (CD or DVD) from the computer.

2Shut down the computer.

3Disconnect the modem/telephone cable, if it is present.

4Disconnect the power cord from the electrical outlet and then from the computer.

5Disconnect all other attached cables (such as the keyboard, mouse, and monitor

cables).

6Disconnect all external devices.

WARNING: Before removing the front and side panels of the computer, always

disconnect the modem cord from the telephone system, and then disconnect

the computer from the power source. Failure to do so can result in personal

injury or equipment damage.

CAUTION: To reduce the risk of personal injury from electrical shock or hot

surfaces, disconnect the power cord from the electrical outlet, and allow the

internal system components to cool before touching them.

CAUTION: Static electricity can damage the electronic components of the

computer or optional equipment. Ensure that you are discharged of static

electricity by briefly touching a grounded metal object.

Upgrading and Servicing Guide 3

After Closing the Computer

To avoid injury and equipment damage, always complete the following steps in this order

after closing the computer:

1Reconnect the power cord.

2Reconnect the modem/telephone cable and all other cables (such as the keyboard,

mouse, and monitor cables).

3Reconnect the external devices.

4Turn on the computer and all peripherals (such as the monitor).

5If you installed an add-in card, install any software drivers supplied by the card

manufacturer.

Removing the Side Panel

1See “Before Opening the Computer” on page 2.

2Use a screwdriver to loosen the screw (A) that secures the side panel to the computer

chassis.

3Use the handle to slide the panel back about 2.5 centimeters (1 inch), and then lift it

off the chassis.

WARNING: To reduce the risk of electrical shock, fire, or damage to the

equipment, do not plug telecommunications or telephone cables into the

network interface card (NIC) (labeled as an Ethernet connector).

WARNING: Beware of sharp edges inside the chassis.

4Upgrading and Servicing Guide

Replacing the Side Panel

1Align the tabs at the bottom of the side panel with the ridge on the bottom of the

chassis. Place the side panel in the proper position on the chassis, and then slide it

toward the front of the chassis.

2Ensure that the hole for the screw is aligned with the hole in the chassis, and then

replace the screw (A).

3See “After Closing the Computer” on page 3.

Removing the Front Panel

This procedure is necessary only when you are removing or replacing an optical drive,

memory card reader, HP Media Drive bay, or the primary and secondary hard disk drives.

1Pull the three tabs away from the outside edge of the chassis.

2Swing the front panel (to the left) away from the chassis to remove it.

NOTE: There is a 3 millimeter gap between the top of the side panel and the top of

the chassis when the side panel is attached properly.

Upgrading and Servicing Guide 5

Replacing the Front Panel

1Align the three hooks on the left side of the front panel with the holes on the left side of

the chassis, and then insert them.

2Swing the front panel to the right (toward the chassis), and then press the three hooks

on the right side of the front panel into the three holes on the right side of the chassis

until the panel snaps into place.

6Upgrading and Servicing Guide

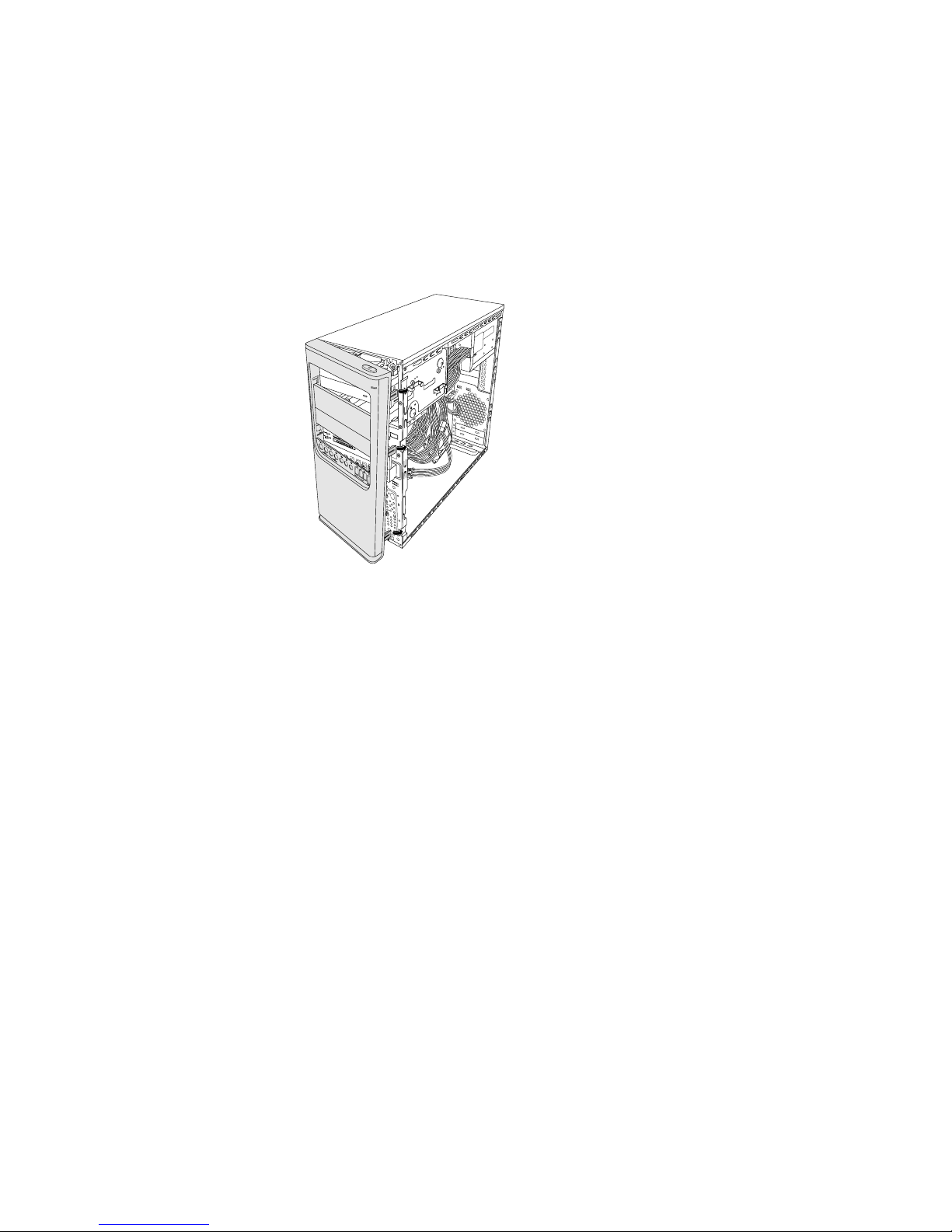

Locating Components Inside the Computer

AUpper 5.25-inch (13.34-centimeter) optical drive bay, which may be a CD-ROM,

CD-RW, DVD-ROM, DVD+RW/+R, or combination drive

BLower 5.25-inch (13.34-centimeter) optical drive bay, which may be empty (knockout

plate), or a CD-ROM, CD-RW, DVD-ROM, DVD+RW/+R, combination drive, or

HP Personal Media Drive bay (select models only)

CPrimary hard disk drive

DMemory card reader (select models only)

EFront connector panel (no replacement instructions)

FSpace for a second hard disk drive (a second hard drive must be purchased

separately)

NOTE: The connectors and components of your chassis model may vary from the

illustration.
