Compaq Evo D500 - Convertible Minitower Bedienungs- und Wartungshandbuch

Hardware Reference Guide

Evo D500 Ultra-Slim Desktop

Document Part Number: 250853-001

November 2001

This book provides more detailed information on the features and use

of the Compaq Evo D500 Ultra-Slim Desktop personal computer, and

includes instructions for removing and replacing internal

components.

sp-hrg.book Page i Thursday, December 13, 2001 9:14 AM

Compaq, the Compaq logo, and Evo are trademarks of Compaq Information

Technologies Group, L.P. in the U.S. and other countries.

Microsoft, MS-DOS, Windows, Windows NT are trademarks of Microsoft

Corporation in the U.S. and other countries.

All other product names mentioned herein may be trademarks of their respective

companies.

Compaq shall not be liable for technical or editorial errors or omissions

contained herein. The information in this document is provided “as is” without

warranty of any kind and is subject to change without notice. The warranties for

Compaq products are set forth in the express limited warranty statements

accompanying such products. Nothing herein should be construed as

constituting an additional warranty.

ÅWARNING: Text set off in this manner indicates that failure to follow

directions could result in bodily harm or loss of life.

ÄCAUTION: Text set off in this manner indicates that failure to follow

directions could result in damage to equipment or loss of information.

Printed in the U.S.A.

Hardware Reference Guide

First Edition (November 2001)

Document Part Number: 250853-001

sp-hrg.book Page ii Thursday, December 13, 2001 9:14 AM

Hardware Reference Guide iii

Contents

1 Working with the Keyboard and Mouse

Compaq Easy Access Keyboard 1–1

Programming the Easy Access Buttons 1–1

Windows Logo Key 1–2

Special Mouse Functions 1–2

2 Working with the MultiBay

“Hot-Plugging” or “Hot-Swapping” MultiBay Drives 2–2

Partitioning and Formatting a MultiBay Hard Drive 2–3

Windows 2000 Professional or Windows XP Professional 2–3

Uninstalling the MultiBay Security Screw 2–4

Inserting a Drive into the MultiBay 2–5

Removing a Drive from the MultiBay 2–6

3 Adding System Memory and

Upgrading the Internal Hard Drive

General Precautions 3–1

Removing and Replacing the Access Panel 3–1

Adding System Memory 3–3

Adding or Removing a Memory Module 3–4

Upgrading the Primary Hard Drive 3–7

4 Using the Legacy Module

Removing the Rear Panel Cover 4–2

Connecting the Legacy Module 4–3

Removing the Legacy Module 4–4

5 Using the MultiPort

What is a Wireless LAN? 5–1

What is the Compaq Evo MultiPort? 5–1

Installing and Using a MultiPort Module 5–1

sp-hrg.book Page iii Thursday, December 13, 2001 9:14 AM

Hardware Reference Guide iv

A Specifications

B Battery Replacement

C Electrostatic Discharge

Preventing Electrostatic Damage C–1

Grounding Methods C–1

D Routine Care & Shipping Information

Routine Care D–1

CD-ROM Drive Precautions D–2

Operation D–2

Cleaning D–2

Safety D–2

Shipping Preparation D–2

Index

sp-hrg.book Page iv Thursday, December 13, 2001 9:14 AM

Hardware Reference Guide 1–1

Working with the Keyboard and Mouse

Compaq Easy Access Keyboard

In addition to the standard keyboard keys, the Compaq Easy Access

Keyboard offers eight Easy Access Buttons that make accessing your

favorite Web sites, services, and applications easier and faster.

Programming the Easy Access Buttons

All Easy Access Buttons can be reprogrammed to open any software

application or data file on your hard drive, or any Internet address.

An Internet address, also referred to as a Uniform Resource Locator

(URL), is simply a pointer to a Web page, file, image, newsgroup, or

other resource available on the Internet. It is very similar to the path

and file name used to point to a file on the Personal Computer’s hard

drive. For example, the URL that points to the Compaq Web site is

http://www.compaq.com.

To reprogram your Easy Access Buttons, complete the following

steps:

1. Double-click the keyboard icon located in the status area (lower

right corner) of the Windows taskbar.

The Keyboard Properties dialog is displayed.

2. Click the Help button for instructions.

sp-hrg.book Page 1 Thursday, December 13, 2001 9:14 AM

1–2 Hardware Reference Guide

Working with the Keyboard and Mouse

Windows Logo Key

Use the Windows Logo Key in combination with other keys to

perform certain functions available in the Windows operating

systems.

Special Mouse Functions

Most software applications support the use of a mouse. Some

software applications assign special functions to each mouse button.

To assign different functions to the mouse buttons, complete the

following steps:

1. Double-click the Mouse icon located in the status area (lower

right corner) of the Windows taskbar.

The Mouse Properties dialog is displayed.

2. Click the Help button for instructions.

Windows Logo Key + F1 Displays a pop-up menu for the selected

object

Windows Logo Key + Tab Activates the next Taskbar button

Windows Logo Key + eLaunches Explore My Computer

Windows Logo Key + f Launches Find Document

Windows Logo Key + Ctrl + fLaunches Find Computer

Windows Logo Key + mMinimizes all open applications

Shift + Windows Logo Key + mUndoes Minimize All

Windows Logo Key + rDisplays the Run dialog box

sp-hrg.book Page 2 Thursday, December 13, 2001 9:14 AM

Hardware Reference Guide 2–1

Working with the MultiBay

The MultiBay is located on the left side of the Evo D500 Ultra-Slim

Desktop personal computer. It is a special drive bay that supports a

variety of optional 12.7-mm removable drives, including:

■MultiBay 24X Max CD-ROM Drive

■MultiBay 8X DVD-ROM Drive with Software MPEG-2

■MultiBay SuperDisk LS-240 Drive

■MultiBay 1.44-MB Diskette Drive

■MultiBay CD-RW Drive

■MultiBay SMART Hard Drive

ÄCAUTION: To prevent loss of work and damage to the personal computer or

a drive:

■If you are inserting or removing a hard drive, exit all software

applications, shut down the operating system software, and turn off

the personal computer. Do not remove a hard drive while the

personal computer is on or in standby mode.

■Before handling a drive, ensure that you are discharged of static

electricity. While handling a drive, avoid touching the connector.

■Before traveling with, shipping, storing, or removing a drive other

than a hard drive, make sure that no media, such as a diskette,

CD-ROM, or DVD-ROM, is in the drive and that the media tray is

closed.

■Handle a drive carefully; do not drop it.

■Do not use excessive force when inserting a drive.

■Avoid exposing a hard drive to liquids, temperature extremes, or

products that have magnetic fields such as monitors or speakers.

■If a drive must be mailed, place the drive in a bubble-pack mailer or

other suitable protective packaging and label the package “Fragile:

Handle with Care.”

sp-hrg.book Page 1 Thursday, December 13, 2001 9:14 AM

2–2 Hardware Reference Guide

Working with the MultiBay

“Hot-Plugging” or “Hot-Swapping” MultiBay Drives

ÄCAUTION: To prevent damage to the personal computer, the drive, and any

data stored on the drive:

■If you are inserting or removing a hard drive, shut down the personal

computer. Never remove a hard drive while the personal computer is

on or in Standby. To ensure that the personal computer is not in

Standby, turn the personal computer on, then shut it down.

■If the personal computer is running a retail version of Windows 98 or

Windows NT 4.0 without software enhancements from Compaq,

shut down the Internet Device before inserting or removing any

drive.

If the personal computer is running a preinstalled operating system

supplied by Compaq, you can insert or remove any drive except a

hard drive while the personal computer is on, off, or in Standby.

sp-hrg.book Page 2 Thursday, December 13, 2001 9:14 AM

Hardware Reference Guide 2–3

Working with the MultiBay

Partitioning and Formatting a MultiBay Hard Drive

1. Exit all software applications, shut down the operating system

software, and turn off the personal computer.

2. Insert the hard drive into the MultiBay as shown in “Inserting a

Drive into the MultiBay” on page 2-5.

3. Turn on the personal computer. Follow directions for your

operating system, below:

Windows 2000 Professional or Windows XP Professional

1. Right-click the My Computer icon, then click Manage > Disk

Management.

2. Select the MultiBay hard drive.

3. On the Partition menu, click Create. Carefully read and respond

to any prompts that appear on the screen.

Refer to the Microsoft Management Console online Help (click

Action > Help, while running Management Console) for additional

information.

sp-hrg.book Page 3 Thursday, December 13, 2001 9:14 AM

2–4 Hardware Reference Guide

Working with the MultiBay

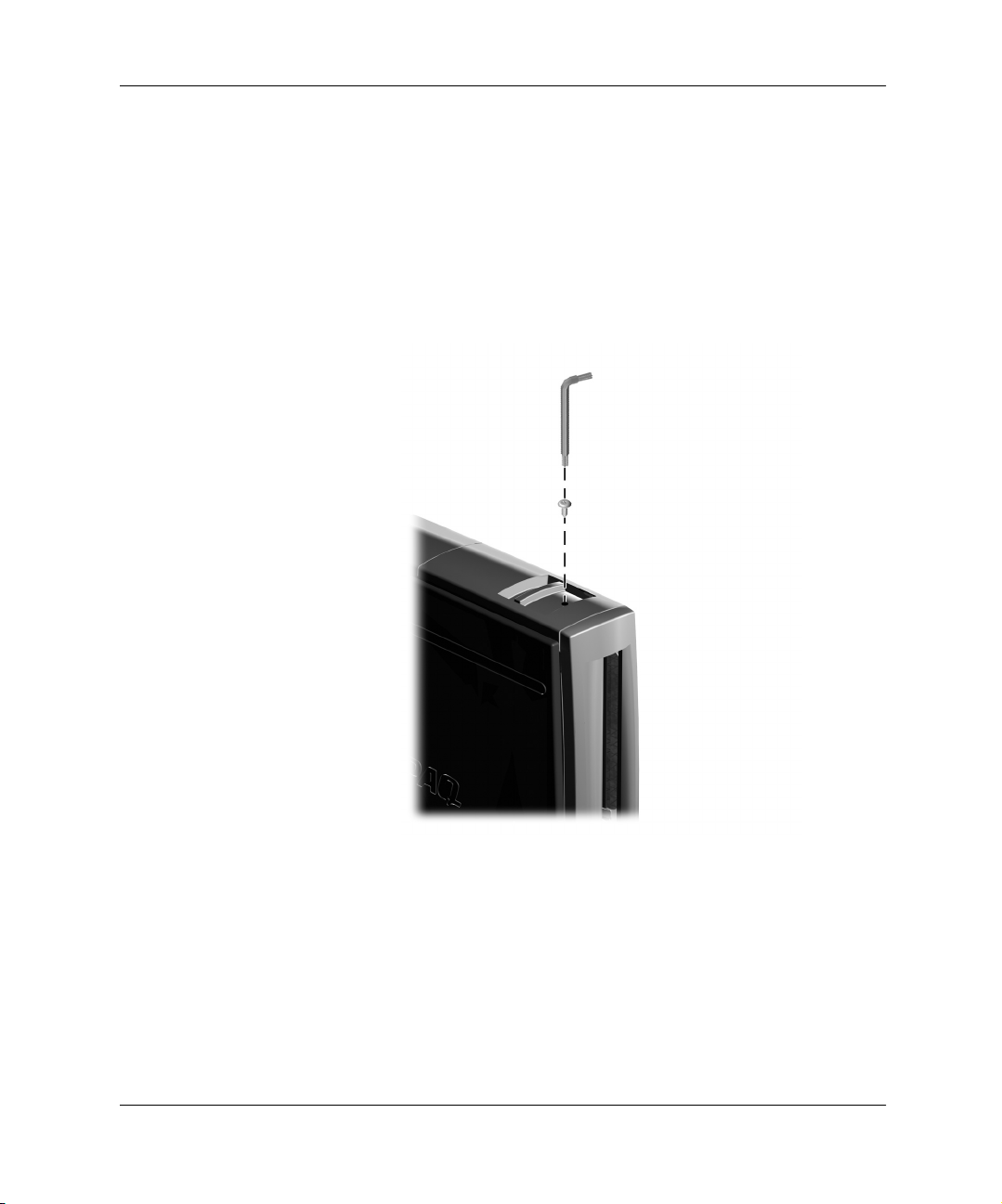

Uninstalling the MultiBay Security Screw

When installed, the MultiBay security screw disables the MultiBay

eject lever, so that a drive installed in the MultiBay cannot be

removed.

To remove a drive installed in the MultiBay, you must first remove the

security screw, if installed, using the special Torx screwdriver

(provided).

Uninstalling the MultiBay Security Screw

sp-hrg.book Page 4 Thursday, December 13, 2001 9:14 AM
