QUICKSPECS

Overview

12Q 1999 Division – SMB - CTO

Compaq Prosignia

Desktop 320

Configured to Order

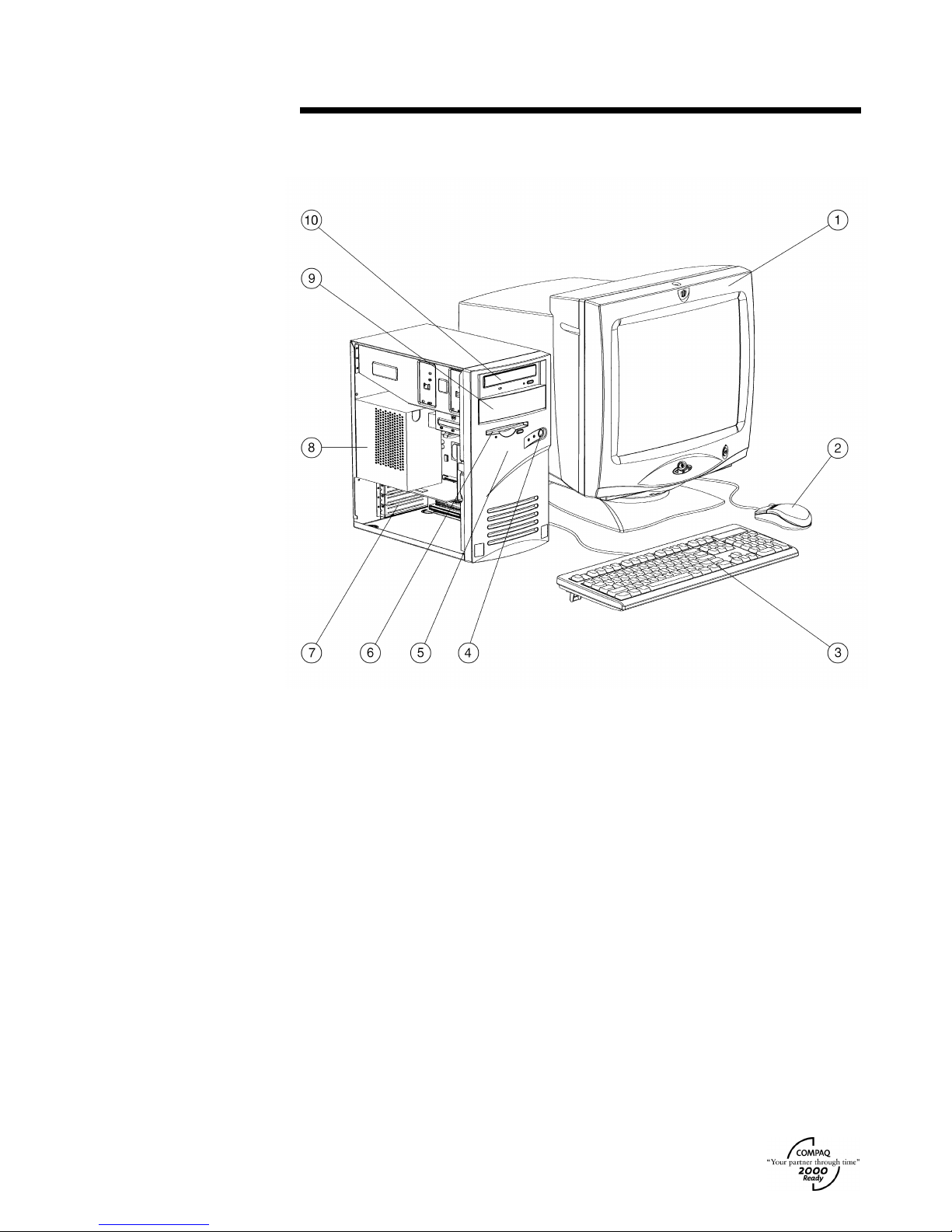

Color Monitor (optional)

2. Compaq Microsoft IntelliMouse

3. Enhanced Keyboard (pictured)

4. Dual-State Power Button

5. High-Capacity Ultra ATA Hard Drive

6. Diskette Drive Bay – 1.44-MB Diskette Drive, or

SuperDisk LS-120

Expansion Slots

8. 145-Watt Power Supply

9. Expansion Bay – Optional Iomega 100 or 250-

MB ZIP Drive

10. Optical Bays – 32X Max3, 52X TrueX4CD-ROM

or DVD-ROM Gen35(6X/32X) Drive

A G

LANCE

•Flexible solutions configured to

your specifications available

direct from Compaq or an

Authorized Agent

•Immediate out-of-box productivity

with pre-installed software like

Microsoft Office 97 Small

Business Edition, or Office 2000

Small Business, and access to

convenient Compaq Online

Services

• ATX MicroTower chassis

• 66-MHz Front Side Bus

• Fully network tested

• Protected by Compaq Services,

including a three-year1, limited

warranty

• Best in class, industry-standard

technology at very competitive

prices

• Enhanced or Prosignia Internet

Keyboard, depending on model

• Compaq Online Internet Services

• DMI 2.0 Compliant

• Energy Star compliant

CONFIGURABLE

COMPONENTS

• Intel Celeron™ processor

(66 MHz) at 466, 433, or 400 MHz

with 32KB of L1 cache and 128-

KB integrated level 2 cache

• Up to 256 MB SDRAM

• 1.44 Diskette Drive or SuperDisk

LS-120

• High-capacity 7200 rpm Ultra ATA

Hard Drives - 9.1-, 13.5-,

18- GB2

• 32X Max3or 52X TrueX4CD-

ROM Drive and DVD-ROM Gen35

(6X/32X) Drive

• STB/nVidia TNT 3D AGP with 16

MB SDRAM, STB/nVidia TNTv

3D AGP with 16 MB SDRAM, or

Diamond/nVidia Vanta with 16 MG

SDRAM, or Diamond/nVidia TNT2

with 16 MB SGRAM

• Creative SoundBlaster Live Value

PCI 512v (SWT)

• Creative SBS 50, Altec Lansing

ACS 46 , or ACS 233 speakers

• Optional, Iomega 100 or 250

Internal ZIP drive

• Optional Compaq 56K V.906PCI

Fax Modem Compaq Fast

Ethernet NIC NC3121 PCI 10/100

Intel/WOL (Wake on LAN), or

3Com Fast EtherLink XL 10/100

TX PCI with remote wakeup

QUICKSPECS

Standard Features

22Q 1999 Division – SMB - CTO

Compaq Prosignia

Desktop 320

Configured to Order

Flexible Solutions Configured to Order

Order the Prosignia Desktop the way the customer wants it by selecting the processor, hard drive, memory,

graphics controller, and more. Purchase directly from Compaq or a Compaq Authorized Agent.

Processors

Intel Celeron processor at 466, 433, or 400 MHz

Cache Memory

32KB L1 and 128-KB integrated level 2 cache

Memory

Minimum 64 MB

Maximum 256 MB

Expansion Slots

I/O (Total) 4

Shared PCI/ISA 1

PCI 2

ISA 0

AGP 1

Storage Controller

Embedded Ultra ATA

Storage

Diskette Drives 1.44 MB or SuperDisk LS-120

CD-ROM DVD-ROM Gen35(6X/32X), 52X TrueX4, or 32X Max3 CD-ROM,

Hard Drives 18-, 13.5-, or 9.1-GB2 UltraATA

Interfaces

Parallel 1

Serial 2

Pointing Device (mouse) 1

Graphics 1

Keyboard 1

USB 2

Graphics

STB/nVidia TNT 3D AGP (16 MB SDRAM)

STB/nVidia TNTv 3D AGP (16 MB SDRAM)

Diamond/nVidia TNT2 (16 MB SDRAM)

Diamond/nVidiaVanta (16 MB SDRAM)

Sound Multimedia Audio Cards

Creative SoundBlaster Live Value PCI 512V

Sound Multimedia Speakers

Creative SBS 50

Altec Lansing ACS 233

Altec Lansing ACS 46

ODELS

Configured to Order

Prosignia Desktop 320

(66-MHz FSB)

Select the following to configure

your own Prosignia Desktop:

Processor

Memory

Hard Drive

Removable Storage

Optical Storage

Graphics Card

Audio Card

Software

Modem

Network Interface

Controller

QUICKSPECS

Standard Features

32Q 1999 Division – SMB - CTO

Compaq Prosignia

Desktop 320

Configured to Order

Communication

Compaq 56K V.906PCI Fax Modem

Compaq Fast Ethernet NIC NC3121 PCI 10/100 Intel/WOL (Wake on LAN)

3Com Fast EtherLink XL 10/100 TX PCI with remote wakeup

Software

Windows 98 or Windows NT

Microsoft Office 97 Small Business Edition, or Microsoft Office 2000 Small Business, or

Microsoft Office 97 Professional Edition, or Microsoft Office 2000 Professional

Microsoft Internet Explorer

Compaq Online Services

Compaq/GTE Internet Access

Norton AntiVirus Ver 5.0

Safety and Comfort Guide

Diagnostics for Windows,

CompuServe and AOL

Microsoft NetMeeting

OS Support

Windows 98 or Windows NT 4

Manageability

Support for DMI to ensure complete inter-operability with a large number of PC LAN management tools including

Compaq Intelligent Manageability

Security

SetupPassword

Power-On Password

Removable Media Boot Control

Online Services

Suite of Internet-based solutions designed to create growth opportunities and reduce operating costs for small and

growing businesses

online.connectivity

online.commerce

online.delivery

online.briefcase

online.backup

online.auction

online.message center

Power Supply

145-Watt Power Supply

Keyboard

The Compaq Internet Keyboard offers numerous Easy Access buttons that make accessing and using the

Internet easier and faster. It will be available on models introduced in June 1999. All other models come with the

Compaq Enhanced Keyboard.

Service and Support

Compaq Backup media is provided for ease of reinstallation of software if necessary. Protected by Compaq

Services, including a three-year, limited warranty1with first year, on-site, toll-free 7 x 24 hardware technical

phone support service line at 1-877-456-7878 and online support through CompuServe, Prodigy, America Online,

and the Internet.

QUICKSPECS

Configurable Components

42Q 1999 Division – SMB - CTO

Compaq Prosignia

Desktop 320

Configured to Order

Flexible Solutions Configured to Order

Configurable components are available directly from

Compaq or through a Compaq Agent and are for

first time configurations only.

Form Factor

ATX MicroTower Chassis

Processor (Choose one of the following)

Celeron 466/66MHz

Celeron 433/66MHz

Celeron 400/66MHz

Memory (Choose one of the following)

256-MB Memory Kit (2 x 128-MB SDRAM DIMM)

128-MB Memory Kit (1 x 128-MB SDRAM DIMM)

96-MB Memory Kit (1 x 64-MB and 1 x 32-MB

SDRAM DIMM)

64-MB Memory Kit (1 x 64-MB SDRAM DIMM)

Hard Drives (Choose one of the following)

18-GB2Ultra ATA Hard Drive (7200 rpm)

13.5-GB2Ultra ATA Hard Drive (7200 rpm)

9.1-GB2Ultra ATA Hard Drive (7200 rpm)

Removable Storage (Choose one of the

following)

SuperDisk LS-120

1.44-Megabyte Diskette Drive

Removable Storage (Optional)

Internal Iomega 250-MB ZIP Drive

Internal Iomega 100-MB ZIP Drive

Optical Storage (Choose one of the

following)

Internal DVD-ROM Gen35 (6X/32X) Drive

Internal 52X TrueX4 CD-ROM Drive

Internal 32X Max3CD-ROM Drive

Graphics Card (Choose one of the following)

STB/nVidia TNTv 3D AGP (16 MB SDRAM)

STB/nVidia TNT 3D AGP (16 MB SDRAM)

Diamond/nVidia TNT2 16 (16-MB SDRAM)

Diamond/nVidiaVanta (16-MB SDRAM)

Multimedia Audio Card

Creative SoundBlaster Live Value PCI 512v

Multimedia Speakers (Choose one of the

following)

Creative SBS 52

Creative SBS 50

Altec Lansing ACS 46

Operating System

Microsoft Windows NT 4

Microsoft Windows 98

Office Suite (Choose one of the following)

Microsoft Office 2000 Small Business

Microsoft Office 97 Small Business Edition

Microsoft Office 2000 Professional

Microsoft Office 97 Professional Edition

Software (Optional)

Norton Utilities for Windows

Norton Utilities for Windows NT

Symantec Act

Symantec WinFax PRO

Carbon Copy (complete version)

Modems (Optional)

Compaq 56K V.906PCI Fax Modem

Network Interface Controllers (Optional)

Compaq Fast Ethernet NIC NC3121 PCI 10/100

Intel/WOL (Wake on LAN)

3Com Fast EtherLink XL 10/100 TX PCI with remote

wakeup

QUICKSPECS

Options

52Q 1999 Division – SMB - CTO

Compaq Prosignia

Desktop 320

Configured to Order

Enhancements

Enhancements are available through Compaq

Authorized Resellers for first time configurations or

upgrades, or directly from Compaq or a Compaq

Agent for upgrades.

Memory7

128-MB Memory Kit (1 x 128-MB

SDRAM 100 MHz DIMM) 166614-B21

64-MB Memory Kit (1 x 64-MB SDRAM

100 MHz DIMM) 166613-B21

Removeable Storage

52X TrueX4CD-ROM 120192-B21

40X Max3 CD-ROM Drive 388116-B21

32X Max2CD-ROM Drive 294240-B21

SuperDisk LS-120 Drive 185061-B25

Internal Iomega 100 MB ZIP Drive 294402-B21

Monitors

P1610 Color 305708-001

P110 Color 325600-001

P75 Color 307806-001

V1000 Color 320756-001

V900 Color 303500-001

S900 Color 360562-001

S700 Color 360512-001

Storage Controllers/Cables

Ultra ATA Cable Kit (80-pin) 294162-B21

Multimedia

Creative SBS 50 (speakers) 402546-B21

Modem

Compaq 56K6ISA Fax Modem

(upgradable to v.908)294900-001

Network Interface Controllers

Compaq Fast Ethernet NIC NC3121

PCI 10/100 Intel/WOL (Wake on

LAN)

323551-B21

Compaq Fast Ethernet NC3122 Dual

Port PCI 10/100 317450-B21

Fast

EtherLink XL PCI 10/100 Base-TX

387993-001

Compaq 10/100 TX PCI Intel UTP

Controller 317600-B21

Compaq 10 T PCI Intel UTP NIC 317356-B21

3Com Fast

EtherLink XL 10/100 TX PCI

with remote wakeup 400722-B21

Other

Serial/ECP Parallel Interface Board 294293-B21

QUICKSPECS

Memory

62Q 1999 Division – SMB - CTO

Compaq Prosignia

Desktop 320

Configured to Order

Compaq Prosignia Desktop 320

STANDARD MEMORY

0 MB installed

Standard Slot

1 2

0 MB Empty Empty

OPTIONAL MEMORY

Up To Slot

1 2

64 MB Empty

128 MB Empty

128 MB

192 MB

256 MB

It is not necessary to add memory in like pairs of memory modules. Memory upgrades are accomplished

by adding single or multiple DIMMs of the same or varied sizes.

Following are the memory options available from Compaq Prosignia Desktop 320:

•128-MB Memory (1 x 128-MB SDRAM DIMM, 100MHZ)

•64-MB Memory (1 x 64-MB SDRAM DIMM, 100MHZ)

QUICKSPECS

Storage

72Q 1999 Division – SMB - CTO

Compaq Prosignia

Desktop 320

Configured to Order

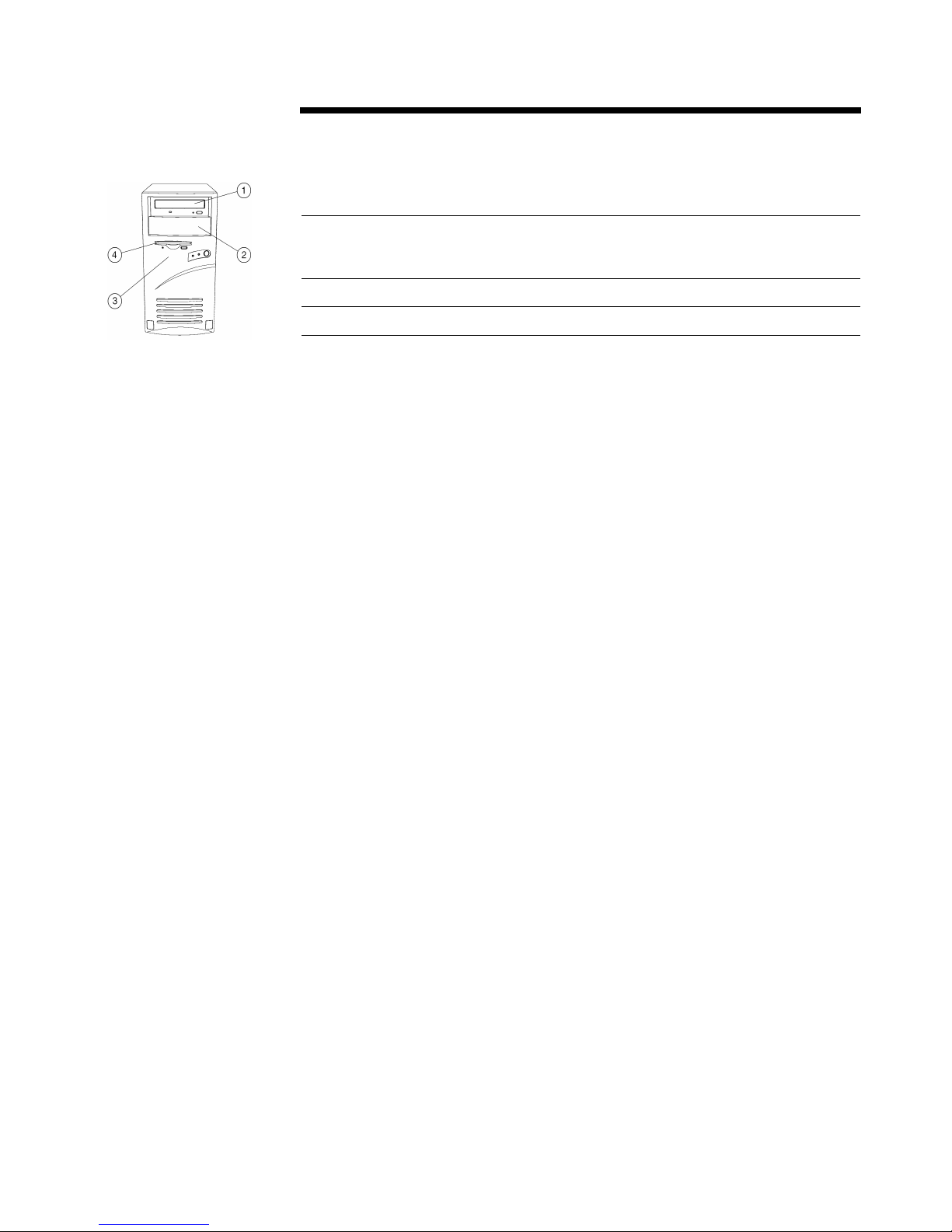

PROSIGNIA DESKTOP 320 DRIVE SUPPORT

Quantity

Supported Position

Supported Controller

Removable Media

DVD-ROM Gen35(6X/32X) Drive

52X TrueX4 CD-ROM

32X Max3CD-ROM

Up to 1 1IDE (embedded)

Internal Iomega 250-MB ZIP Drive

Internal Iomega 100-MB ZIP Drive Up to 1 2IDE (embedded)

1.44-Megabyte Diskette Drive

SuperDisk LS-120 Drive Up to 1 4IDE (embedded)

Hard Drives

18-GB2Ultra ATA Hard Drive

13.5-GB2 Ultra ATA Hard Drive

9.1-GB2 Ultra ATA Hard Drive

Up to 1 3Ultra ATA (embedded)

QUICKSPECS

Technical Specification

82Q 1999 Division – SMB - CTO

Compaq Prosignia

Desktop 320

Configured to Order

System Unit

Dimensions

(HxWxD)

7.7 x 14.2 x 13.6 in/19.6 x 36.2 x 34.5 cm

Weight

(standard configuration)

18.3 lbs/8.3 kg

Power Supply

Operating Voltage Range

90 to131 VAC/180 to 255 VAC

Rated Voltage Range

100 to127 VAC/200 to 240 VAC

Rated Line Frequency

47 to 63 HZ

Rated Input Current

4A/2A

Maximum Rated Power

145 W

Temperature

Operating 50

to 93

F/10

to 35

Non-operating -40

to 140

F/-40

to 60

Humidity

(non-condensing)

Operating

N/A

Non-operating 95% relative humidity @ 86

F/30

Maximum Altitude

(

unpressurized)

Operating

N/A

Non-operating

N/A

Enhanced Keyboard Dimensions (HxWxL) 1.5 x 18 x 6.5 in/3.81 x 45.72 x 16.51 cm

Weight 3.5 lbs/1.59 kg

Internet Keyboard Dimensions (HxWxL) 1.25 x 18 x 7.5 in/3.18 x 45.72 x 19.05 cm

Weight 2.65 lbs/1.29 kg

Diskette Size

3.5 in

1.44-MB Diskette

Drive LED Indicators (front panel)

Green

Read/Write Capacity per Diskette (high/low density)

1.44 MB/720 KB

Drive Height

One-third

Drive Rotation

300 rpm

Transfer Rate (high/low)

500/250 Kb/s

Bytes/Sector

512

Sectors/Track (high/low)

18/9

Tracks/Side (high/low)

80/80

Access Times

Track-to-Track (high/low) 3/6 ms

Average (high/low) 94/173 ms

Settling Time 15 ms

Latency Average 100 ms

Cylinders (high/low)

80/80

Read/Write Heads

Two

QUICKSPECS

Technical Specifications

92Q 1999 Division – SMB - CTO

Compaq Prosignia

Desktop 320

Configured to Order

18 GB2Capacity 18000.0 MB Seek Time (typical reads, including settling)

Height 1 in/25.4 mm Single Track 1.7 ms

Width 3.5 in/88.9 mm Average 8.5 ms

Interface Ultra ATA Full-Stroke 15.0 ms

Transfer Rate Physical Configuration

Media 139 to 224 MB/s Cylinders 15,011

Interface 66.6 MB/s Data Heads 10

Ultra ATA Hard Drives9

(7200 rpm)

Sectors per Track 214 to 312

13.5 GB2Capacity 13500.0 MB Seek Time (typical reads, including settling)

Height 1 in/25.4 mm Single Track 1.7 ms

Width 3.5 in/88.9 mm Average 8.5 ms

Interface Ultra ATA Full-Stroke 15.0 ms

Transfer Rate Physical Configuration

Media 139 to 224 MB/s Cylinders 15,011

Interface 16.6 MB/s Data Heads 6

Sectors per Track 214 to 312

9.1 GB2Capacity 9100.0 MB Seek Time (typical reads, including settling)

Height 1 in/25.4 mm Single Track 1.7 ms

Width 3.5 in/88.9 mm Average 8.5 ms

Interface Ultra ATA Full-Stroke 15.0 ms

Transfer Rate Physical Configuration

Media 139 to 224 MB/s Cylinders 15,011

Interface 16.6 MB/s Data Heads 4

Sectors per Track 214 to 312

QUICKSPECS

Technical Specification

10 2Q 1999 Division – SMB - CTO

Compaq Prosignia

Desktop 320

Configured to Order

32X Max3CD-ROM

Drive IDE Disk

Applicable Disk CD-ROM (Mode 1 and 2)

CD-DA, CD-XA, CD-RW (Mode 2, Form 1 and 2)

Photo CD (Single and Multi-session)

Mixed Mode (Audio and Data combined)

CDi Ready

Capacity 650 MB (Mode 1, 12 cm)

Diameter

RotationalSpeed

Center Hole

Thickness

Track Pitch

4.7 in, 3.15 in/12 cm, 8 cm

4200 rpm maximum

0.6 in/15 mm diameter

0.05 in/1.2 mm

1.6 µm

Block Size

Mode 1

Mode 2

CD-DA

CD-XA

2,048, 1,024 bytes

2,340, 2,336, 1,024 bytes

2,352 bytes

2,328 bytes

Interface IDE

Access Times (typical)

Random < 100 ms

Full-Stroke < 150 ms

Audio Output Level

Line-Out 0.7 VRMS at 47 kOhms

Headphone 0.6 VRMS at 32 Ohms (maximum volume)

Data Transfer Rate

Sustained 150 KB/s (single)

Burst 1500 to 4800 KB/s (variable)

Cache Buffer 128 KB

Start-up Time (typical) < 7 seconds

Stop Time < 4 seconds

Laser Parameters

Type Semiconductor Laser GaA1As

Wave Length 780 ±25 nm

Divergence Angle 53.5° ±1.5°

OutputPower 0.14 mW

Operating Conditions

Temperature 41° to 113°F/5° to 45°C

Humidity 10% to 80%

Dimensions

(HxWxD, maximum) 11.69 x 5.91 x 8.2 in/4.29 x 15.01 x 20.8 cm

Weight 2.65 lbs/1.2 kg

Andere Handbücher für ProSignia 320 - Desktop PC

Inhaltsverzeichnis

Andere Compaq Desktop Handbücher

Compaq

Compaq CQ1100 Anleitung zur Verwendung

Compaq

Compaq Presario SG3100 - Desktop PC Anleitung zur Verwendung

Compaq

Compaq Presarion S7300CL Bedienungsanleitung

Compaq

Compaq Presario SR1300 - Desktop PC Bedienungsanleitung

Compaq

Compaq 3052 - LaserJet All-in-One B/W Laser Anleitung zur Verwendung

Compaq

Compaq DA-10832 Gebrauchsanweisung

Compaq

Compaq 141536-002 - Deskpro EN - MT RAMBUS Bedienungs- und Wartungshandbuch

Compaq

Compaq dc7800 - Convertible Minitower PC Einrichtungshandbuch

Compaq

Compaq Presario SR1500 - Desktop PC Montageanleitung

Compaq

Compaq Compaq Presario 7400 Series Handbuch

Compaq

Compaq Evo D300 - Convertible Minitower Bedienungs- und Wartungshandbuch

Compaq

Compaq 6005 - Pro Microtower PC Leitfaden

Compaq

Compaq AP750 - Professional - 256 MB RAM Kurzanleitung

Compaq

Compaq Presario SR1617CL-B Bedienungsanleitung

Compaq

Compaq BL10e - HP ProLiant - 512 MB RAM Betriebsanleitung

Compaq

Compaq Presario S7000 - Desktop PC Montageanleitung

Compaq

Compaq Microcom 6000 Bedienungs- und Wartungshandbuch

Compaq

Compaq Presario Presario PC Bedienungsanleitung

Compaq

Compaq SR5250NX - Presario - 1 GB RAM Anleitung zur Verwendung

Compaq

Compaq Compaq Evo D310 MT Bedienungs- und Wartungshandbuch

Compaq

Compaq CQ5110F - Presario - 3 GB RAM Bedienungsanleitung

Compaq

Compaq Presario 6500 - Desktop PC Montageanleitung

Compaq

Compaq Presario SR1400 - Desktop PC Bedienungsanleitung

Compaq

Compaq SR5250NX - Presario - 1 GB RAM Anleitung zur Verwendung

Beliebte Desktop Handbücher anderer Marken

HP m9060n - Pavilion - Elite Technisches Datenblatt

Asus

Asus E210 Series Bedienungsanleitung

Dell

Dell Inspiron 600m Bedienungsanleitung

Dell

Dell Inspiron 3662 Bedienungsanleitung

TotalFlow

TotalFlow uFLO Bedienungsanleitung

HP Presario SV7000 - Desktop PC Bedienungsanleitung

HP ProDesk 400 G5 Handbuch

Logitech

Logitech MK320 Bedienungsanleitung

Dell

Dell XPS 730 H2C Bedienungsanleitung

Sony

Sony Vaio Series Bedienungsanleitung

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Bedienungsanleitung

Alto

Alto MD 250 Bedienungsanleitung

Lenovo

Lenovo ThinkCentre Edge 72 Handbuch

Lenovo

Lenovo ThinkStation D20 Handbuch

Arbor Technology

Arbor Technology FPC-7800 Series Bedienungsanleitung

Sony

Sony VAIO VGX-TP1 Series Bedienungsanleitung

Asus

Asus Eee Box B204 Bedienungsanleitung

Dell

Dell Optiplex 9010 All In One Bedienungsanleitung
