QuickSpecs Compaq Evo Notebook N1005v

DA-11388 World Wide —Version 2 — September 16,2002 1

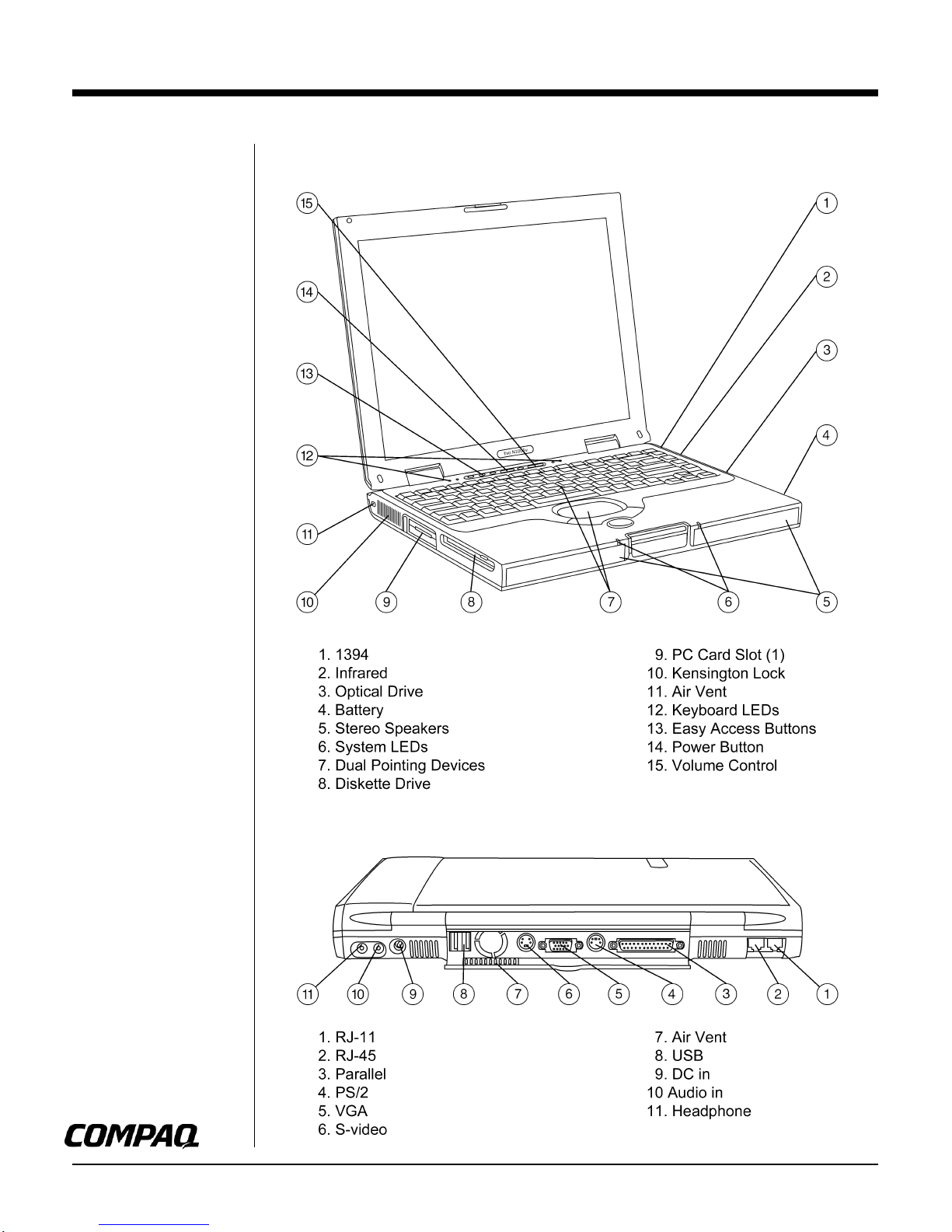

Overview

What's New

•Mobile AMDAthlon XP

Processor – up to 1700+

•266-MHzbus

•4X AGP Graphics

•MultiPort wireless communication

options

•Sophisticated design elements

•1394 Digital interface

At A Glance

•Mobile AMDAthlon XP

Processor – up to 1800+

•15-inch XGA, SXGA+ and

14.1-inch XGA display

•Magnesium enclosure for the

15-inch panels

•Configurations as light as

6.6 lb/2.99 kg weight

(14-inch panel)

•1.55 in/3.95 cm thin

•256-MB DDR SDRAM

(266 MHz), Upgradeable to

1024 MB

•Up to 40-GB/5400 rpm SMART

hard drives

•Mini PCI modem and integrated

NIC

•Full-size keyboard

•MicrosoftWindowsXP Pro or

Home preinstalled and support

for Windows 2000

•Includes a One-year, Worldwide

Warranty—Certain restrictions

and exclusions apply. Consult

the Compaq Customer Support

Center for details.

What’s Special

•All-in-one convenientdesign

•High-end ATI Radeon graphics

and large panel

•1394 DigitalInterface

•Large hard drives

•Wirelessfeaturesthrough

Award-Winning MultiPort

QuickSpecs Compaq Evo Notebook N1005v

DA-11388 World Wide —Version 2 — September 16,2002 2

Standard Features

Processor and Panel 15-inch color TFT SXGA+ with 1400 x 1050 resolution (up to 16.7M colors internal)

15-inch color TFT XGA with 1024 x 768 resolution (up to 16.7M colors internal)

14.1-inch color TFT XGA with 1024 x 768 resolution (up to 16.7M colors internal)

One of the following: AMD Athlon XP 1800+ (Quanti speed architecture running at 1.53 GHz) with 256-KB L2 cache

AMD Athlon XP 1700+ (Quanti speed architecture running at 1.47 GHz) with 256-KB L2 cache

AMD Athlon XP 1600+ (Quanti speed architecture running at 1.40 GHz) with 256-KB L2 cache

AMD Athlon XP 1500+ (Quanti speed architecture running at 1.30 GHz) with 256-KB L2 cache

NOTE: Mobile AMD Athlon XP supports enhanced AMD’s PowerNow™ technology.

Memory

Standard/Maximum 128 MB (266 MHz) DDR SDRAM

256 MB (266 MHz) DDR SDRAM

512 MB (266 MHz) DDR SDRAM

1024 MB (266 MHz) DDR SDRAM

NOTE:Due to the non-industry standard nature of some third-party memory modules, we recommend Compaq

branded memory to ensure compatibility.

Communications 10/100 NICis integrated on the system board (LOM)

Type III Mini PCI 56K (V.92) modem

NOTE: Designed only to allow faster downloads from V.92 compliant sources. Maximum achievable download

transmission rates currently do not reach 56 KB/s, and will vary with line conditions.

NOTE: Modem availability is subject to country regulatory approval

Keyboard 102-key compatible keyboard with isolated, inverted-T cursor control keys, and right-control key, special feature

hotkeys for instant access to power conservation, toggle between internal and external, or simultaneous displays,

and control brightness and contrast.

Easy Access Internet

Buttons The EvoNotebook N1005v features three Easy Access Buttons (EAB) designed to increase customer

productivity by providing one-touch access to helpful Compaq information, favorite Internet destinations, or default

e-mail application. The EAB portion of the keyboard deck also includes dedicated hardware volume control and a

quick-launch button for CD/DVD play.

Pointing Device TouchPad with 4-way scroll

PC Card Slots One Type II PC Card Slot which supports both 32-bit CardBusand 16-bit PC Cards

Storage Primary Hard Dive 40-GB 4200 RPM

30-GB 4200 RPM

20-GB 4200 RPM

Diskette Drives 1.44 MB Floppy Drive

Optical Drives DVD/CD-RW Combo Drive

8X DVD-ROM Drive or

24X CD-ROM Drive

QuickSpecs Compaq Evo Notebook N1005v

DA-11388 World Wide —Version 2 — September 16,2002 3

Standard Features

Multimedia JBL Pro Speakers with bass reflex and 16-bit stereo sound

Dedicated Hardware volume controls

Headphone-out port

Microphone in port

Software MPEG1 support, MPEG2 and DVD

8X DVD/CD-RW Combination Drive (on select models)

8X DVD-ROM Drive with movie playback software (on select models)

24X CD-ROM Drive (on select models)

S-video Port

IEEE 1394 Port

4X AGP graphics

Interfaces PC Card One Type II

Enhanced Parallel EPP/ECP 1

S-Video 1

VGA 1

1394 1

Headphone/Line-out 1

Microphone in 1

DC Power 1

RJ-11 (modem) 1

RJ-45 (NIC) 1

Infrared Port 1 (4 Mb/s support)

(IrDA 4 MB compliant. IR performance will vary depending on performance of IR

peripherals and application used.)

USB Port 2

LED status indicators 6

Graphics ATI Radeon IGP video graphics with user configurable 16-, 32- or 64-MB VRAM video memory for increased

color depth and graphics performance

Display (External) Up to 32-bit per pixel color depth

Supports 640 x 480, 800 x 600, 1024 x 768, 1280 x 1024, 1400 x 1050, 1600 x 1200 resolutions up to 160-Hz

refresh rate, dependent upon monitor capability, resolution and color depth settings

Display (Internal) 15-inch color TFT SXGA+ with 1400 x 1050 resolution (up to 16.7M colors internal)

15-inch color TFT XGA with 1024 x 768 resolution (up to 16.7M colors internal)

14.1-inch color TFT XGA with 1024 x 768 resolution (up to 16.7M colors internal)

Operating System Microsoft Windows XP Pro or Home preinstalled with support for Windows

Software Diagnostics for Microsoft Windows

DVD Playback Software

Compaq Power Management

Compaq Security Management

Safety and Comfort Guide

AcrobatReader

Reference Guide

Norton Internet Security

Compaq Easy Access Button Software

QuickSpecs Compaq Evo Notebook N1005v

DA-11388 World Wide —Version 2 — September 16,2002 4

Standard Features

System Recovery Each unit is shipped with a series of CD’s kit for quick OS recovery (erases hard disk and restores manufacturer

installed image) and software recovery (installs only selected standard software).

Security Configuration Control Hardware

Memory Change Alert

Ownership Tag

Set-up Password

Power-On Password

Enabled for PC SmartCard options

Kensington Lock

Power Supply External AC adapter, 6-foot/1.8-meter power cord included. Total length including External AC adapter is 12

feet/3.66 meter

Battery The Evo Notebook N1005v provides up to three hours of battery life using the standard 8-cell Lithium-Ion battery.

NOTE:Actual results may vary with product model, configuration, and individual usage. Compaq results of 3:01

(hr:min) were achieved running the Business Winstone 2001 Battery Mark1.0.1 on a N1005v with a

AMD Athlon XP 1600+ CPU, 15-inch XGA panel, 128-MB RAM, 20-GB HDD, 8X DVD, 8-cell Lithium-Ion

battery, and NIC/modem. System parameters were set according to eTesting Labs’ recommendations:

panel brightness 50%, power management timers turned off.

NOTE: This test was performed without independent verification by eTesting Labs Inc. eTesting Labs Inc. makes

no representations or warranties as to the result of the test. BatteryMark is a trademark of Ziff Davis

Publishing Holdings Inc., and affiliate of eTesting Labs Inc., in the U.S. and other countries.

Power Conservation Hibernation

Instant-on via Standby

Pop-ups with three presets

One custom level of power conservation

ACPI compliant

MultiPort

MultiPort is a flexible, innovative solution providing customers the ability to connect to their choice of wireless

standards such as 802.11b or Bluetooth™. This can be achieved by simply changing out the high-performance

wireless module, which is integrated in the top of the notebook. The award-winning MultiPort offers a cost

effective means to migrate to future wireless standards as they become available.

Service and Support Compaq Services includes a one-year, Worldwide Limited Warranty, pick-up or carry in; upgraded warranty and

toll-free 7 x 24 hardware technical phone support is available.

NOTE: Certain restrictions and exclusions apply. Consult the Compaq Customer Support Center for details.

QuickSpecs Compaq Evo Notebook N1005v

DA-11388 World Wide —Version 2 — September 16,2002 5

Standard Features

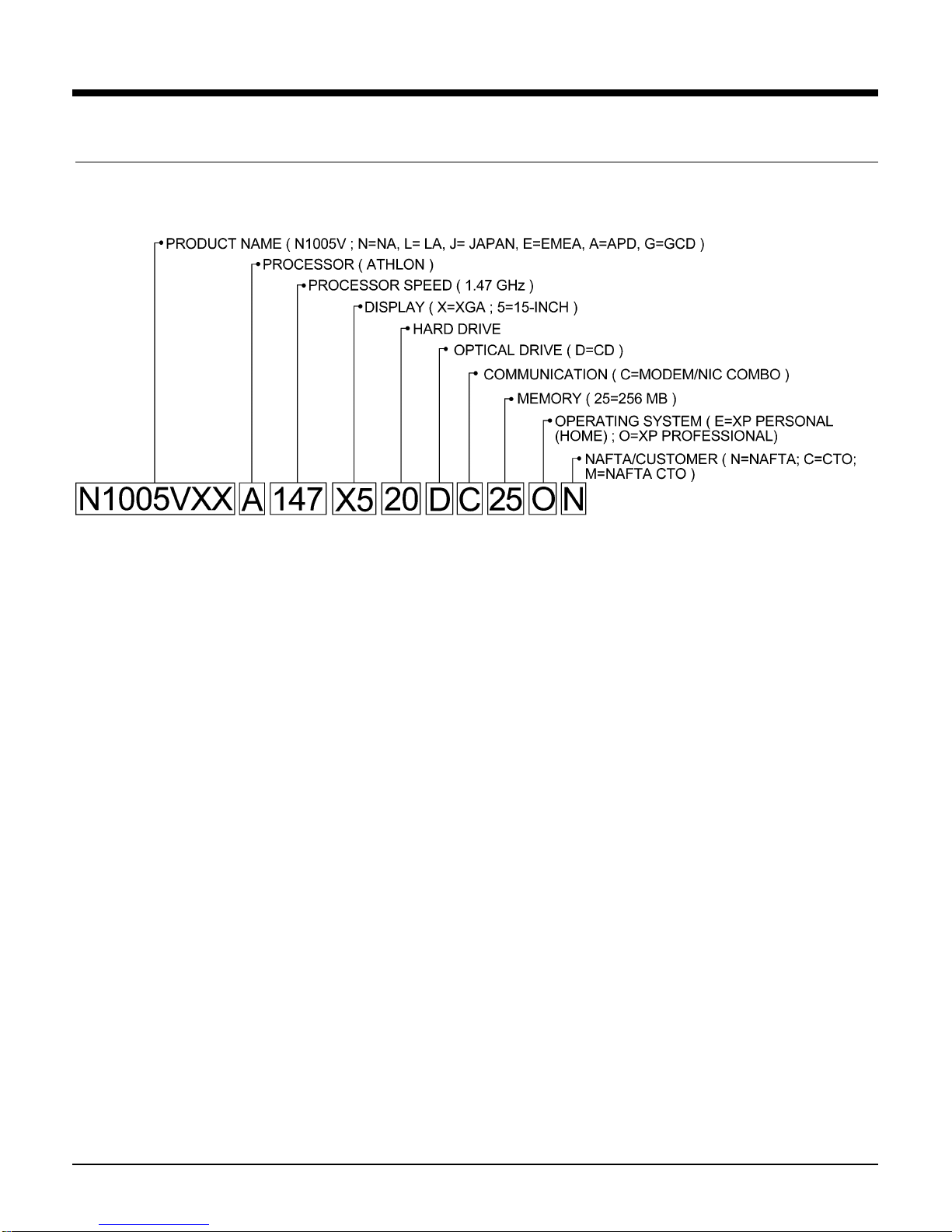

Naming Convention The Etymology of a Model name:

QuickSpecs Compaq Evo Notebook N1005v

DA-11388 World Wide —Version 2 — September 16,2002 6

Standard Features

MODELS

Display 15-inch color TFT XGA

Processor Athlon XP 1700+ (1.4 GHz)

Cache Memory 256-KB L2 Cache

N1005VA147X520DC25E0

Memory Standard 256 MB (133 MHz) DDR SDRAM

Maximum 1024 MB (133 MHz) DDR SDRAM

Optical Drive DVD

Hard Drive 20-GB SMART

Communications Type III Mini PCI 56K (V.92) modem, (LOM) integrated 10/100 NIC

Graphics ATI Mobility Radeon

Video Memory 16-MB shared VRAM memory

Audio JBL Pro Speakers with bass reflex and 16-bit stereo sound

Operating System Microsoft Windows XP PRO

Pointing Device Touchpad

Display 15-inch color TFT SXGA+

Processor Athlon XP 1800+ (1.53 GHz)

N1005VA147X530DC250

Cache Memory 256-KB L2 Cache

Memory Standard 256 MB (133 MHz) DDR SDRAM

Maximum 1024 MB (133 MHz) DDR SDRAM

Optical Drive DVD/CD-RW

Hard Drive 30-GB SMART

Communications Type III Mini PCI 56K (V.92) modem, (LOM) integrated 10/100 NIC

Graphics ATI Mobility Radeon

Video Memory 16-MB shared VRAM memory

Audio JBL Pro Speakers with bass reflex and 16-bit stereo sound

Operating System Microsoft Windows XP PRO

Pointing Device Touchpad

QuickSpecs Compaq Evo Notebook N1005v

DA-11388 World Wide —Version 2 — September 16,2002 7

Options

Memory 512-MB (266 MHz) DDR SDRAM Memory Upgrade 269087-B25

256-MB (266 MHz) DDR SDRAM Memory Upgrade 269086-B25

128-MB (266 MHz) DDR SDRAM Memory Upgrade 269085-B25

Monitors TFT8030 Flat Panel Color 18-inch (carbon/silver) 234362-xxx

TFT7020 Flat Panel Color 17-inch with integrated speakers (carbon/silver) 253217-xxx

TFT5015 Flat Panel Color 15-inch (carbon/silver) 234044-xxx

TFT5030 Flat Panel Color 15-inch (carbon/silver) 228134-xxx

V720 17-inch CRT (carbon/silver) 232944-xxx

S720 17-inch CRT (carbon/silver) 239287-xxx

V570 15-inch CRT (carbon/silver) 228113-xxx

Other Storage Devices IBM1-GB Microdrive(PC card Device) 217390-B25

USB Disk-on-Key – 8 MB 249552-B25

USB Diskette Drive 230330-B25

Connectivity Compaq Type III Mini PCI 56K (V.90) Modem 225640-B31

Compaq Type III Mini PCI 56K (V.90) Modem plus 10/100 NIC Combo 225642-B31

100BaseTX Ethernet Upgrade 225435-001

1394 PC Card 177593-B25

NOTE: Designed only to allow faster downloads from V.90 compliant sources. Maximum achievable download

transmission rates currently do not reach 56 KB/s, and will vary with line conditions.

Wireless Connectivity 802.11b MultiPort Wireless LAN module 233412-001

Bluetooth MultiPort module 228057-B21

Compaq WL110 Wireless LAN PC Card 191808-B21

Compaq WL510 Wireless Enterprise Access Point 216709-001

Compaq WL410 Wireless SMB Access Point 191811-001

Compaq WL310 Home Office Access Point 191813-001

Compaq Range Extender Antenna 230268-B21

CDPD WWAN PC Card (U.S. Only) 238111-001

Expansion Bases Targus USB Port Replicator 239172-001

Power Evo Notebook N1005v 8-cell primary battery (4 Ah) 291369-B21

Common Power Solutions External Battery Charger 265603-xxx

AC Adapter 65W 265602-xxx

Auto Power Adapter/Charger 65W 265649-B25

Aircraft Power Adapter 386504-B21

AC Line Cord (10-ft/3.1 m) 217932-xx2

Input Devices External Enhanced III Keyboard (carbon) 118003-008

Compaq 2 Button Mouse (carbon) 103180-B21

USB 2 Button Scroll Mouse (carbon) 195255-B25

External 10-Key Numeric Keypad (carbon) 294317-B21

USB EZ Access Keyboard 222726-xxx

Wireless Keyboard and Mouse 251385-xx8

QuickSpecs Compaq Evo Notebook N1005v

DA-11388 World Wide —Version 2 — September 16,2002 8

Options

Security Biometric PC Card 146805-B25

Security Cable Lock 294316-B21

Compaq Smart Card PC Card Reader 135646-B25

Useful Accessories Compaq iPAQ Microportable Projector MP1200 261966-xxx

Compaq iPAQ Microportable Projector MP3800 262839-xxx

Compaq iPAQ Microportable Projector MP4800 257524-xxx

Lamp Module L20 for MP1200 266631-B24

Lamp Module L30 for MP3800 266633-B24

Home Theatre Kit HT150 for MP3800 292187-B24

Carrying Case for MP1200 295731-B24

Lamp Replacement Kit for MP1600 118052-001

Lamp Module for MP1800, MP1400 189789-001

Lamp Module for MP2800, MP2810 215464-001

Home Theater Kit HT110 for MP1410 246161-001

Multimedia Adapter & Remote Control Kit MMA110 for MP1410 246162-001

Multimedia Adapter & Remote Control Kit for MP1400, MP1800 174963-001

Deluxe Carrying Case for MP Series projectors 253364-001

Lamp Module for MP1410, MP1810 253365-001

Lamp Module L90 for MP4800 257892-001

Home Theater Kit HT180 for MP1200, MP4800 281729-001

CeilingMount Kit CM10 for MP1200, MP4800 281730-001

hp digital projector sb21 L1510A

hp digital projector xb31 L1511A

Ceiling Mount Kit for xb31 L1513A

M1-A to component/USB video cable for sb21, xb31 L1523A

M1-D to DVI/USB cable for sb21, xb31 L1529A

Lamp Module for sb21 L1515A

Lamp Module for xb31 L1516A

QuickSpecs Compaq Evo Notebook N1005v

DA-11388 World Wide —Version 2 — September 16,2002 9

Memory

Compaq Evo N1005v

STANDARD MEMORY PLUS OPTIONAL MEMORY

Support for up to 1024 MB of DDR SDRAM memory is available with the installation of optional DDR SDRAM Memory Kits.

Memory Slot 1 Slot 2

256 MB 256 MB --

384 MB 256 MB 128 MB

512 MB 512 MB --

768 MB 512 MB 256 MB

1024 MB 512 MB 512 MB

NOTE:This chart does not represent all possible memory configurations. Due to the non-industry standard nature of some third-party memory

modules, we strongly recommend using only Compaq branded memory modules to ensure compatibility.

Following are memory options available from Compaq:

•512-MB (266 MHz) DDR SDRAM Memory Upgrade 269087-B25

•256-MB (266 MHz) DDR SDRAM Memory Upgrade 269086-B25

•128-MB (266 MHz) DDR SDRAM Memory Upgrade 269085-B25

QuickSpecs Compaq Evo Notebook N1005v

DA-11388 World Wide —Version 2 — September 16,2002 10

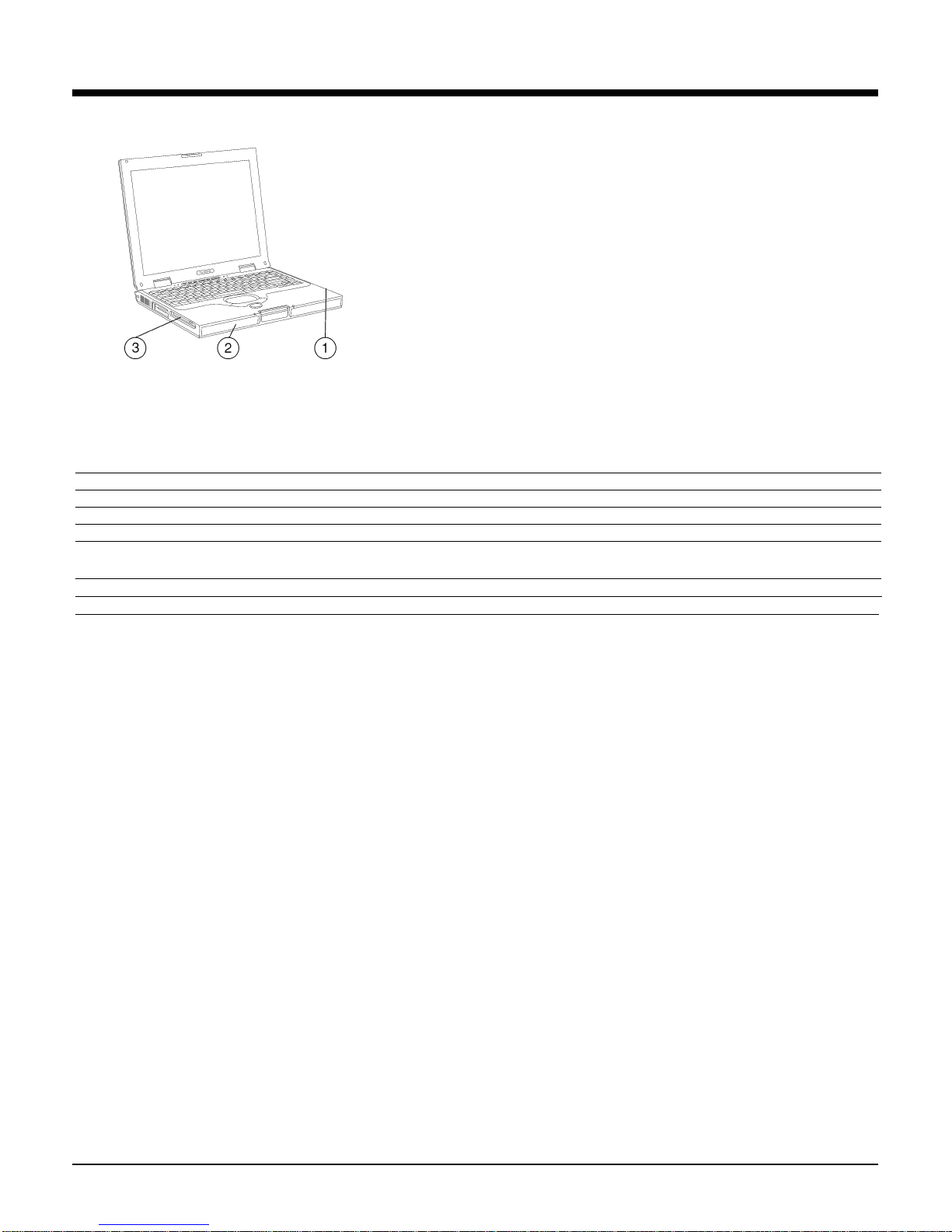

Storage

1. Dedicated Optical Drive

2. Primary Hard Drive

3. Dedicated Disk Drive

DRIVE SUPPORT

System Drive Support Quantity

Supported Drive Bay

Supported

1.44-MB Diskette Drive 1 Dedicated Disk Drive

DVD/CD-RW Combo Drive 1 Dedicated O

tical Drive

DVD-ROM Drive 1 Dedicated O

tical Drive

CD-ROM Drive 1 Dedicated O

tical Drive

Hard Drives

40-GB SMART Hard Drive 1 Dedicated Hard Drive Bay

30-GB SMART Hard Drive 1 Dedicated Hard Drive Bay

20-GB SMART Hard Drive 1 Dedicated Hard Drive Bay

Andere Handbücher für Evo n1005v - Notebook PC

Inhaltsverzeichnis

Andere Compaq Laptop Handbücher

Compaq

Compaq Presario,Presario 1234 Bedienungsanleitung

Compaq

Compaq 6520s - Notebook PC Bedienungsanleitung

Compaq

Compaq Presario F700 - Notebook PC Bedienungsanleitung

Compaq

Compaq Presario R3000 - Notebook PC Leitfaden

Compaq

Compaq Presario CQ20-100 - Notebook PC Handbuch

Compaq

Compaq Presario 1246 Bedienungsanleitung

Compaq

Compaq Compaq Presario Handbuch

Compaq

Compaq Armada 1100 Referenzhandbuch

Compaq

Compaq Armada 7800 Gebrauchsanweisung

Compaq

Compaq Armada E500 Series Kurzanleitung

Compaq

Compaq N115 Handbuch

Compaq

Compaq Presario X1000 - Notebook PC Bedienungsanleitung

Compaq

Compaq Armada 1500C series Bedienungsanleitung

Compaq

Compaq Presario X1000 - Notebook PC Betriebsanleitung

Compaq

Compaq Armada 110 Montageanleitung

Compaq

Compaq Armada 1700 Bedienungsanleitung

Compaq

Compaq 1700 - Armada - PII 266 MHz Bedienungsanleitung

Compaq

Compaq Armada M300 Series Gebrauchsanweisung

Compaq

Compaq Armada 1500 Bedienungsanleitung

Compaq

Compaq Armada M300 Series Gebrauchsanweisung

Compaq

Compaq Armada E500 Series Installationsanleitung

Compaq

Compaq 2710p - Notebook PC Bedienungsanleitung

Compaq

Compaq Armada 6500 Bedienungsanleitung

Compaq

Compaq Compaq Presario Bedienungsanleitung

Beliebte Laptop Handbücher anderer Marken

HP ze2401xt - Pavilion Notebook PC Bedienungsanleitung

Velocity

Velocity NoteMagix M10 Bedienungsanleitung

Dell

Dell Alienware 17 R2 Bedienungsanleitung

Toshiba

Toshiba A105-S2236 Bedienungsanleitung

HP ENVY 17 Handbuch

Winbook

Winbook LM Bedienungsanleitung

Dell

Dell Inspiron 1464 Bedienungsanleitung

Dell

Dell Inspiron 15R 5537 Bedienungsanleitung

HP PROBOOK 4520S Handbuch

Dell

Dell Latitude ATG D620 Bedienungsanleitung

Sony

Sony VAIO PCG-FX270 Bedienungsanleitung

Dell

Dell Latitude 7310 Bedienungsanleitung

Dell

Dell Precision GU806 Bedienungsanleitung

Sony

Sony VAIO PCG-R505JLK Bedienungsanleitung

Lenovo

Lenovo THINKPAD X32 Bedienungsanleitung

HP Compaq tc4200 Kurzanleitung

Toshiba

Toshiba mini NB300 Bedienungsanleitung

Lenovo

Lenovo ThinkPad X201 Tablet Handbuch
