USER’S GUIDE

COMPAQ TFT5000 FLAT PANEL MONITOR

Part Number: 325703-001 - Writer: Marianne Silvetti - Saved by: MSilvetti

Saved date: 03/15/99 4:01 PM

File Path: P:\Docs\Monitors\Aoki\325705U1

Notice

The information in this guide is subject to change without notice.

COMPAQ COMPUTER CORPORATION SHALL NOT BE

LIABLE FOR TECHNICAL OR EDITORIAL ERRORS OR

OMISSIONS CONTAINED HEREIN; NOR FOR INCIDENTAL

OR CONSEQUENTIAL DAMAGES RESULTING FROM THE

FURNISHING, PERFORMANCE, OR USE OF THIS MATERIAL.

This guide contains information protected by copyright. No part of

this guide may be photocopied or reproduced in any form without

prior written consent from Compaq Computer Corporation.

1999 Compaq Computer Corporation.

Compaq and Deskpro are registered in the U. S. Patent and

Trademark Office.

Microsoft, MS-DOS, Windows, Windows NT, and other names of

Microsoft products referenced herein are trademarks or registered

trademarks of Microsoft Corporation.

ENERGY STAR is a U.S. registered mark.

Product names mentioned herein such as Pivot Software may be

trademarks and/or registered trademarks of their respective

companies.

The software described in this guide is furnished under a license

agreement or nondisclosure agreement. The software may be used or

copied only in accordance with the terms of the agreement.

Third Edition (March 1999)

Compaq Computer Corporation

User’s Guide

Compaq TFT5000 Flat Panel Monitor

English 1-1

ttttt

Part Number: 325703-002 Writer: Marianne Silvetti - Saved by: MSilvetti

Saved date: 03/15/99 4:03 PM

File Path: P:\Docs\Monitors\Aoki

English

Product Features

The Compaq TFT5000 Flat Panel Monitor has an active matrix, thin-

film transistor (TFT), liquid crystal display (LCD). The monitor

features include:

 15-inch (38.1-cm) viewable area display

 1024 × 768 resolution, plus full-screen support for lower

resolutions

 Wide viewing angle to allow viewing from a sitting or standing

position, or when moving side-to-side

 Tilt, swivel, and height adjustment capabilities

 Monitor panel rotates 90 degrees to display portrait mode

 Pivot 90-degree rotation software included on CD-ROM

 Removable base for flexible mounting solutions

 Plugs into a standard VGA connector; does not require a special

graphics adapter card

 Plug and Play capability if supported by your system

 On-Screen Display (OSD) adjustments in six different

languages: English, Dutch, French, German, Italian, and Spanish

for ease of set-up and screen optimization

 Programmable Sleep Timer

 CD-ROM includes an information file (INF), Image Color

Matching file (ICM), the Compaq LCD Display Assistant setup

and configuration utility, the Compaq Display LiteSaver utility,

Pivot software, and product documentation

 Model with additional protective panel available

 Security lock slot

 AssetControl

 Energy Saver feature for Energy Star compliance

1-2 English

Part Number: 325703-002- Writer: Marianne Silvetti - Saved by: MSilvetti

Saved date: 03/15/99 4:03 PM

File Path: P:\Docs\Monitors\Aoki

Compliance with the following regulated specifications:

Swedish MPR II 1990

EPA ENERGY STAR

European Union CE Directives

Swedish TCO 1995

Universal Driver Manager

This monitor may require a graphics driver (and/or .INF file) that is

compatible with your computer’s graphics adapter. The CD-ROM

included with this monitor contains an .INF file (see the section on

Information Files). Compaq has also created a Universal Driver

Manager (UDM) release that supports all graphics adapters found on

Compaq Deskpro and Compaq Workstation products. The UDM eases

graphics driver deployment across Compaq platforms ensuring cross-

compatibility and backward-compatibility. The resulting solution

enables customers to manage and control ongoing software

maintenance costs. The UDM is available on the Compaq Support

Software CD for Compaq Desktop, Portable, and Workstation

Products and the Compaq World Wide Web site (www.compaq.com).

Information Files

This monitor includes a CD-ROM with two information files that

should be installed onto your computer—an .INF file and an .ICM file.

The .INF file defines monitor resources and provides specifications

used by Microsoft Windows 95 and Windows 98 to install support

software for certain hardware devices. The .INF file ensures monitor

compatibility and optimization with your computer’s graphics adapter.

The .ICM file provides color matching consistency from monitor

screen to printer and is activated from within the graphics programs

that have this feature. To install these files on your computer, follow

the instructions on the “Configuring Your Compaq LCD Monitor”

card located in the Program License Agreement packet along with the

CD-ROM. INF file updates are downloadable by clicking on:

www.compaq.com/products/monitors/index.html

English 1-3

Part Number: 325703-001- Writer: Marianne Silvetti - Saved by: MSilvetti

Saved date: 03/15/99 4:03 PM

File Path: P:\Docs\Monitors\Aoki

Setting Up the Monitor

To set up the monitor, ensure that the power is turned off to the

monitor, computer system, and other attached devices, then follow

these steps:

1. Place the monitor in a convenient, well-ventilated location near

your computer.

2. Connect the monitor signal cable 1on the rear panel of the

monitor to the 15-pin connector on the rear panel of the

computer and tighten the screws.

Be sure the signal cable aligns with the 15-pin connector.

Do not force the cable onto the connector or you may

damage the signal cable.

3. Connect one end of the AC power cord 2to the AC adapter and

the other end to an electrical outlet that is easily accessible and

close to the monitor.

CAUTION: When connecting the monitor, be sure to use the

AC adapter supplied with the monitor. Failure to use this

AC adapter may result in damage to the monitor.

1-4 English

Part Number: 325703-002- Writer: Marianne Silvetti - Saved by: MSilvetti

Saved date: 03/15/99 4:03 PM

File Path: P:\Docs\Monitors\Aoki

!WARNING: To reduce the risk of electric shock or damage

to your equipment:



Do not disable the power cord grounding plug. The

grounding plug is an important safety feature.



Plug the power cord into a grounded (earthed)

electrical outlet that is easily accessible at all times.



Disconnect power from the monitor by unplugging

the power cord from the electrical outlet.

 For security purposes, this monitor has been fitted with a

slot 3for use with a security cable lock that can be

purchased separately at most computer stores.

 After you turn on the monitor, install the Compaq LCD

Display Assistant utility included on the CD-ROM. Use

the on-screen instructions to adjust the picture quality of

your monitor. To install this utility onto your computer,

follow the instructions on the “Configuring Your Compaq

LCD Monitor” card located in the Program License

Agreement packet.

IMPORTANT: Always activate a screen saver program, the program-

mable sleep timer, the Compaq Display LiteSaver utility, or turn off

the monitor when it is not in use for a prolonged period of time. All

LCD monitors that display the same static image on the screen for a

prolonged period of time may exhibit screen image retention. Please

note that image retention is not a permanent condition and will fade

over a period of time. Image retention is a condition that may occur on

all LCD screens.

English 1-5

Part Number: 325703-001- Writer: Marianne Silvetti - Saved by: MSilvetti

Saved date: 03/15/99 4:03 PM

File Path: P:\Docs\Monitors\Aoki

Adjusting the Monitor Height

 To raise the monitor to the desired height:

Place one hand on the side of the monitor panel, press the

adjustment button located on the neck, and lift the monitor panel

to the correct height.

 To lower the monitor to the desired height:

Position your hand to support the bottom of the monitor panel,

press the adjustment button located on the neck, and lower the

monitor panel.

CAUTION: ALWAYS support the bottom of the monitor

panel with one hand when lowering the monitor panel.

1-6 English

Part Number: 325703-002- Writer: Marianne Silvetti - Saved by: MSilvetti

Saved date: 03/15/99 4:03 PM

File Path: P:\Docs\Monitors\Aoki

Rotating the Monitor Panel

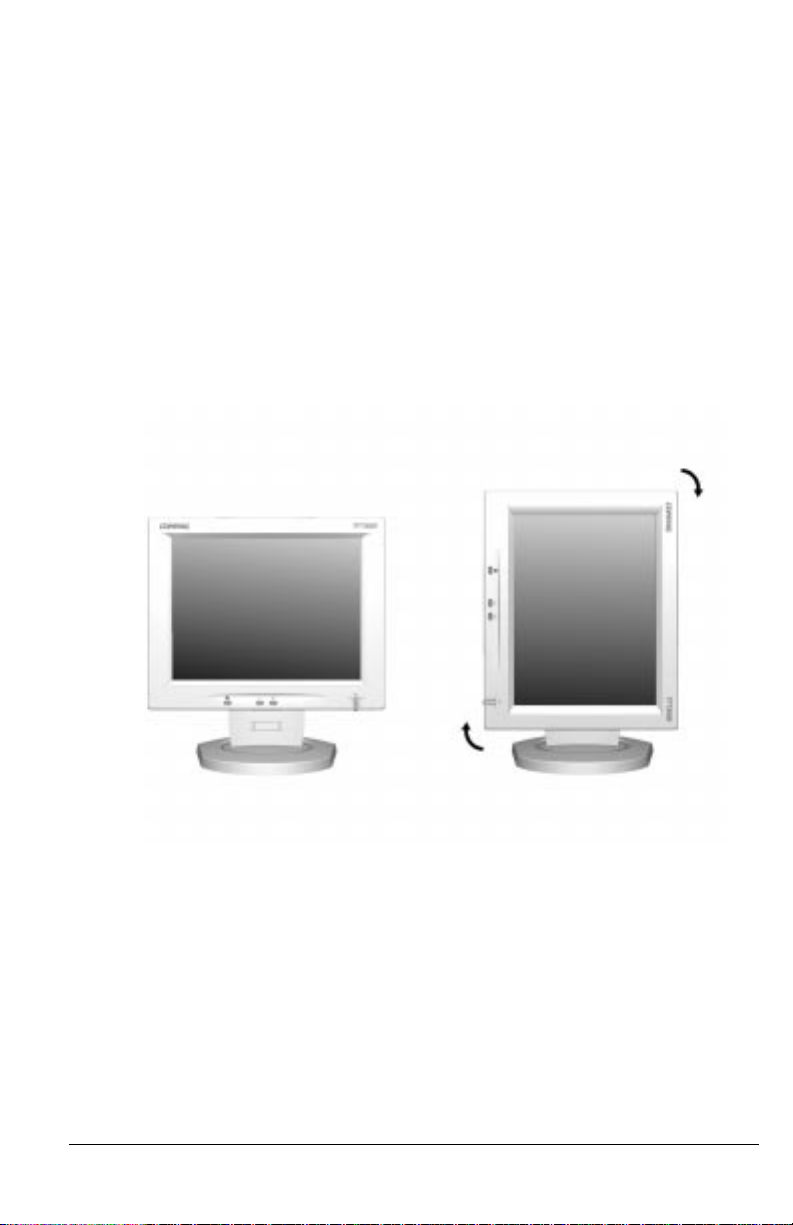

The monitor panel can be rotated 90 degrees as shown below. This is

an added feature for use with software that displays portrait

dimensions on-screen instead of landscape dimensions. The Pivot

software package included on the Compaq CD-ROM should be

installed on the computer to accommodate matching screen rotation.

To rotate the monitor panel to portrait mode:

1. Raise the monitor panel to its highest height to avoid bumping the

panel on the desk.

2. Place your hand on the side of the monitor panel and turn the panel

clockwise.

To rotate the monitor panel back to landscape mode, rotate the monitor

panel counter-clockwise.

Installing the Pivot Software

To install the Pivot rotation software:

1. Insert the Compaq CD-ROM into the CD drive on your computer.

2. Using Microsoft Windows as your operating system, go to

StartRunand type x:\Pivot\Setup.exe (where x is the letter

designating the CD-ROM drive) in the Open box and click OK.

English 1-7

Part Number: 325703-001- Writer: Marianne Silvetti - Saved by: MSilvetti

Saved date: 03/15/99 4:03 PM

File Path: P:\Docs\Monitors\Aoki

After installing the Pivot rotation software on your computer, a

monitor icon will appear on the right side of the Microsoft Windows

Taskbar at the bottom of your screen.

To rotate the screen contents:

1. Click on the monitor icon appearing in the Windows Taskbar.

2. Click on Rotate.

To return the screen to its original dimensions, repeat this procedure.

The monitor icon also activates the monitor Display

Properties dialog box.

1-8 English

Part Number: 325703-002- Writer: Marianne Silvetti - Saved by: MSilvetti

Saved date: 03/15/99 4:03 PM

File Path: P:\Docs\Monitors\Aoki

Operating the Monitor

Front Panel Controls

No./Icon Control Function

1Menu button 1. Launches first and second-level on-screen menus.

2. Exits menus and on-screen display.

2Minus button Selects and adjusts the functions.

3Plus button Selects and adjusts the functions.

4Power switch Turns the monitor on and off.

5Power LED 1. Green indicates monitor is turned on.

2. Yellow indicates Suspend mode.

3. Amber indicates Sleep mode.

4. Blinking Amber indicates Sleep Timer*.

*Sleep Timer enables you to set a time for the monitor to

power on and power off at the same time every day. It

eliminates the need to turn off the monitor at the end of the

day and conserves energy. To set this mode, refer to the

Sleep Timer in the on-screen display.

Inhaltsverzeichnis

Andere Compaq Monitor Handbücher

Compaq

Compaq P700 Bedienungsanleitung

Compaq

Compaq CRT Monitor s7500 Bedienungsanleitung

Compaq

Compaq P1220 Gebrauchsanweisung

Compaq

Compaq Compaq P1610 Bedienungsanleitung

Compaq

Compaq S900 Gebrauchsanweisung

Compaq

Compaq MV 540 Bedienungsanleitung

Compaq

Compaq Compaq S720 Bedienungsanleitung

Compaq

Compaq P1220 Bedienungsanleitung

Compaq

Compaq V710 Bedienungsanleitung

Compaq

Compaq COMPAQ Q1859 Bedienungsanleitung

Compaq

Compaq 378901-008 - FP 700 - 15" LCD Monitor Montageanleitung

Compaq

Compaq TFT5030 Bedienungsanleitung

Compaq

Compaq Compaq LE1902 Bedienungsanleitung

Compaq

Compaq V900 Gebrauchsanweisung

Compaq

Compaq 1825 Bedienungsanleitung

Compaq

Compaq 8000 - Elite Convertible Minitower PC Bedienungsanleitung

Compaq

Compaq P 110 Bedienungsanleitung

Compaq

Compaq FP745A Bedienungsanleitung

Compaq

Compaq TFT 1501 Bedienungsanleitung

Compaq

Compaq MV 740 Bedienungsanleitung

Compaq

Compaq TFT500 Bedienungsanleitung

Compaq

Compaq S500 Bedienungsanleitung

Compaq

Compaq 2025 Bedienungsanleitung

Compaq

Compaq W19Q Bedienungsanleitung

Beliebte Monitor Handbücher anderer Marken

Linear Acoustic

Linear Acoustic LQ-1000 Bedienungsanleitung

AOC

AOC I2579V Bedienungsanleitung

Gateway

Gateway FPD1520 Bedienungsanleitung

Furuno

Furuno Mu 120c Bedienungsanleitung

Asus

Asus VB171D - 17" LCD Monitor Bedienungsanleitung

Dell

Dell S2230MX Gebrauchsanweisung

Philips

Philips 107C64 Bedienungsanleitung

Dell

Dell S2409WFP Bedienungsanleitung

EverFocus

EverFocus EN-7517E Bedienungsanleitung

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Bedienungsanleitung

Dell

Dell Precision 7680 Bedienungsanleitung

LG 50PM1M - - 50" Plasma Panel Bedienungsanleitung

Bosch

Bosch DDU 9 Bedienungsanleitung

Acer

Acer A231HL Bedienungsanleitung

Philips

Philips 86BDL4152T Bedienungsanleitung

NEC

NEC AccuSync LCD5V Bedienungsanleitung

Emay

Emay SleepO2 Bedienungsanleitung

IBM

IBM 6360 Montageanleitung
