White Paper

November 2000

13NS-1000A-WWEN

Prepared by:

Storage Products Division

Compaq Computer Corporation

Contents

Introduction .................................3

Rack Warnings ............................4

Telco Rack Option Kit.................5

Compaq ProLiant DL320...........5

Compaq ProLiant DL360...........5

Kit Contents...............................5

Cantilever Design........................6

Server Specifications for

Deployment..................................7

Weight .......................................7

Dimensions..............................10

Power Consumption ................11

Thermal Dissipation.................11

Installation Procedures for

Telco Racks ...............................13

Installing the Compaq Telco

Rack Option Kit Rack Rails......13

Installing Compaq ProLiant

Servers in the Rack .................14

Console Management for

Ultra-Dense 1U Servers ............15

Remote Insight Lights-Out

Edition......................................15

Console Switches, Monitors

and Keyboards ........................16

Cabling ....................................16

Appendix A ................................18

Unit Identification.....................18

Appendix B ................................19

Compaq Rack Builder Pro.......19

Appendix C ................................20

Monitors, Keyboards, and

Console Switches....................20

Part Numbers ..........................20

Appendix D ................................21

Deploying ProLiant DL320 and

DL360 Servers into

Telecommunication (Telco)

Racks

Abstract: Compaq ProLiant DL320 and ProLiant DL360 servers

were developed with high volume deployment in mind. As a result,

Compaq addresses environmental, thermal, mechanical, power,

installation and service considerations for the server and rack

specific options.

While Compaq 9000 and 7000 series racks are ideal for this

ultra-dense server, Compaq recognizes that customers may want to

plan and implement deployments using telecommunications (telco)

racks. This document describes deployments involving the Compaq

ProLiant DL360 server and the Compaq Telco Rack Option Kit.

Compaq provides hardware, specifications, and guidelines for

ultra-dense deployment schemes using telco racks as a service to its

customers.

Deploying ProLiant DL320 and DL360 Servers into Telecommunication (Telco) Racks 2

13NS-1000A-WWEN

Notice

COMPAQ, the Compaq logo, ProLiant, Rack Builder Pro, and Compaq Rack 9000 Series are

registered with the U.S. Patent and Trademark Office. Microsoft and Windows NT are trademarks

of Microsoft Corporation. All other product names mentioned herein may be trademarks of their

respective companies.

Compaq shall not be liable for technical or editorial errors or omissions contained herein. The

information in this document is provided “as is” without warranty of any kind and is subject to

change without notice. The warranties for Compaq products are set forth in the express limited

warranty statements accompanying such products. Nothing herein should be construed as

constituting an additional warranty.

Deploying ProLiant DL320 and DL360 Servers into Telecommunication (Telco) Racks 3

13NS-1000A-WWEN

Introduction

Compaq designed the ProLiantDL320 and ProLiant DL360 ultra-dense servers with

maximally configured deployments in mind. The Compaq ProLiant DL320 and ProLiant DL360

servers require only 1U (1.75 inches) of rack height.

This document discusses installation and service issues that arise when working with ultra-dense

server deployment, including:

•Mounting options for varying rack environments

•Weight

•Power distribution

•Thermal and environmental considerations

•Console management choices

•Cable management

•Unit identification

This paper provides guidelines for deploying multiple Compaq ProLiant DL360 servers in a telco

rack environment using the Compaq Telco Rack Option Kit (P/N: 174576-B21), and provides

information on Compaq rack products and related options. For information regarding third-party

racks, see the white paper, “Compaq Ultra-Dense Server Deployment in Third-Party Racks,”

Compaq Document Number 13NT-1000A-WWEN available at

www.compaq.com

Figure 1: Compaq ProLiant DL320 ultra-dense server

Figure 2: Compaq ProLiant DL360 ultra-dense server

Deploying ProLiant DL320 and DL360 Servers into Telecommunication (Telco) Racks 4

13NS-1000A-WWEN

Following the guidelines in this document will minimize planning and installation time; however,

do not use this document as your sole source of information for the rack installation. Other rack

installation references include:

•Compaq Third-Party Rack Option Kit installation guide (poster included with each kit).

•“Compaq Ultra-Dense Server Deployment Solutions Overview,” white paper available at

www.compaq.com

•Compaq Rack Builder Pro design and planning software utility, available for download from

the Compaq website at

www.compaq.com/racks

•Product-specific user guides and manuals

Rack Warnings

This document should be used only as an information source for planning your deployment.

Avoid personal injury and equipment damage by following accepted safety practices.

WARNING: Ensure proper floor support. Deployment of ultra-dense servers, related equipment,

and cables exceeds 1,800 pounds for a Compaq ProLiant DL360 single 42U rack and 1,700

pounds for a ProLiant DL320 single 42U rack.

WARNING: Be aware of the center of gravity and tip hazard. Compaq recommends that the

rack footings extend 10 inches from the front and back of any Compaq rack 22U or higher.

Adequate stabilization measures are required. Ensure that the entire rack assembly is properly

secured and that all personnel are trained in proper maintenance and operation procedures. Tip

hazards include personal injury and death.

CAUTION: Ensure your installation has adequate power supply and branch circuit protection.

CAUTION: Thermal dissipation requirements of an ultra-dense server deployment mandate

minimum unrestricted airspace of 3 inches in both the front and the rear of each Compaq

ProLiant DL320 and ProLiant DL360 server.

Deploying ProLiant DL320 and DL360 Servers into Telecommunication (Telco) Racks 5

13NS-1000A-WWEN

Telco Rack Option Kit

Compaq ProLiant DL320

The Compaq Telco Rack Option Kit for Compaq ProLiant DL320 servers provides a complete

mounting solution that adapts to a variety of telco racks. The telco rack rails adjust to

accommodate telco rack frame thickness from 3 to 5 inches (7.62 to 12.7 cm).

Compaq ProLiant DL360

The Compaq Telco Rack Option Kit for Compaq ProLiant DL360 servers provides a complete

mounting solution that adapts to a variety of telco racks. The telco rack rails adjust to

accommodate telco rack frame thickness from 3 to 5 inches (7.62 to 12.7 cm).

Kit Contents

The installation kit includes a set of adjustable rack rails that attach to telco racks using fasteners

included in the kit. The rack rails mate to optional server rails that replace the standard rails

preinstalled on the Compaq ProLiant DL320 and ProLiant DL360 server.

The Compaq Telco Rack Option Kit comes with a detailed installation guide. Consult the

installation guide for details on adapting the option kit to your telco rack.

Figure 3: The Telco Rack Option Kit

Table 1. Telco Rack Option Kit

Item Description

1Rack Rails

2Fasteners

3Optional Server Rails

4Installation Guide

Note: The Compaq Telco Rack Option Kit is for fixed rail installation. Although the Compaq

ProLiant DL320 and ProLiant DL360 servers slide in for installation, remove the servers from the

rack for service.

Deploying ProLiant DL320 and DL360 Servers into Telecommunication (Telco) Racks 6

13NS-1000A-WWEN

Cantilever Design

The Compaq Telco Rack Option Kit rack rails support the server, distributing the load in the front

1and to the rear 2. This balanced cantilever design balances the installation much better than a

full cantilever design. The balanced cantilever installation is robust, without blocking access to

other front panel mount equipment in the rack.

Figure 4: Cantilever specifications for Telco Rack Option Kit (Compaq ProLiant DL360 shown)

WARNING: The center of gravity of fully configured Compaq ProLiant DL320 and ProLiant

DL360 servers installed using the Compaq Telco Rack Option Kit is slightly behind the telco

rails. The telco rack must be fully secured to adequate support structures for deployments of ultra-

dense 1U Compaq ProLiant DL360 servers.

Deploying ProLiant DL320 and DL360 Servers into Telecommunication (Telco) Racks 7

13NS-1000A-WWEN

Server Specifications for Deployment

Compaq ProLiant DL320 and ProLiant DL360 server specifications include:

•Weight

•Minimum and maximum dimensions for kit installation

•Power consumption

•Thermal dissipation

Weight

A fully configured Compaq ProLiant DL320 server weighs 25 pounds. The ProLiant DL320

Server includes:

•Two Wide Ultra3 hard disk drives.

•A Remote Insight Lights-Out Edition option.

•Standard server rails attached to the server chassis.

A fully configured Compaq ProLiant DL360 server weighs 29 pounds. The ProLiant DL360

Server includes:

•Two Wide Ultra3 hard disk drives.

•A Remote Insight Lights-Out Edition option.

•Standard server rails attached to the server chassis.

Deploying ProLiant DL320 and DL360 Servers into Telecommunication (Telco) Racks 8

13NS-1000A-WWEN

Table 2 lists the weights of individual components used in deployments of Compaq ProLiant

DL320 and ProLiant DL360 servers in telco racks.

Table 2. Component Weights for Calculation

Item Weight (ProLiant DL320) Weight (ProLiant DL360)

Configured (1 server) 25.00 lb 29.00 lb

Fully configured (42 servers) 1,030 lb (approx) 1,200 lb (approx)

Wide Ultra3 hard disk drive 1.90 lb 1.90 lb

Remote Insight Lights-Out Edition option 0.50 lb 0.50 lb

Telco Rack Option Kit rack rails (set) 2.50 lb 2.50 lb

KVM cable bundle 1.42 lb 1.42 lb

High voltage Y power cable 1.00 lb 1.00 lb

Server console switch 5.25 lb 5.25 lb

WARNING: External cable weight contributes to the overall weight of the rack installation.

Because cable installation and load-bearing designs vary greatly, carefully consider cable weight

in all designs.

WARNING: Do not exceed the specified weight limit for the telco rack or the floor. When

creating deployments of Compaq ProLiant DL320 or ProLiant DL360 ultra-dense servers in a

telco rack, include in the weight calculations the weight of the rack rails, cable management trays,

and cables whose load is bearing on the rack.

CAUTION: Ensure that the cabling design provides both adequate airspace for thermal

dissipation and strain relief for the cable connections on the Compaq ProLiant DL360 or ProLiant

DL320 server if the cable management tray is not used. The cable management tray design

reduces cable congestion and relieves strain on connectors.

Deploying ProLiant DL320 and DL360 Servers into Telecommunication (Telco) Racks 9

13NS-1000A-WWEN

If the Compaq ProLiant DL360 and ProLiant DL360 servers do not include Wide Ultra3 hard

disk drives 1, or a Remote Insight Lights-Out Edition option 2, subtract those component

weights from the weight total.

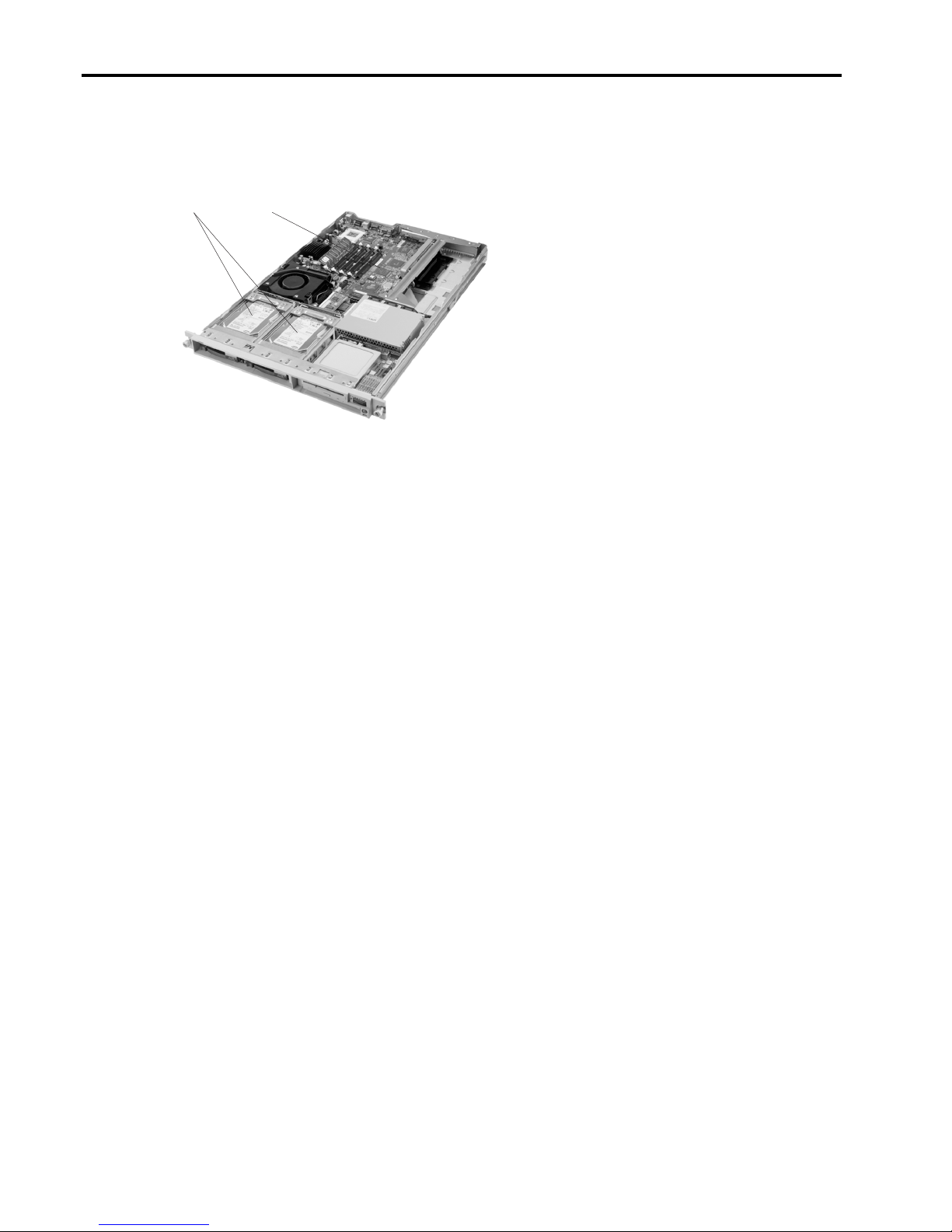

Figure 5: Hard drive and Remote Insight locations (DL360 shown)

Floor Loading

All buildings and raised computer room floors are engineered to provide a specific floor loading.

The floor area beneath the rack must be designed to provide proper support for a fully populated

rack. When configuring a system, ensure that the floor loading specifications are adhered to.

Failure to do so may result in physical injury or damage to the equipment and the facility.

Deploying ProLiant DL320 and DL360 Servers into Telecommunication (Telco) Racks 10

13NS-1000A-WWEN

Dimensions

Compaq designed the Compaq Telco Rack Option Kit to comply with EIA 310-D specifications

for rack width.

Table 3 lists the minimum dimensions for installing Compaq ProLiant DL320 and

ProLiant DL360 servers using the Compaq Telco Rack Option Kit. When designing deployments

of ultra-dense servers in telco racks, include the minimum airspace requirements for the server.

IMPORTANT: Any installation of Compaq ProLiant DL360 servers will require 3 inches

airspace front and back.

Table 3. Minimum space requirements for ProLiant DL320 and ProLiant DL360 servers installed

using Compaq Telco Rack Option Kit

ProLiant DL320 ProLiant DL360

1Height 1.75 in (1U) 1.75 in (1U)

2Width 17.72 in 17.72 in

3Unrestricted airspace measured forward from front

of telco rack18.65 in (5.65 in cantilever space, plus 3 in of airspace for

thermal dissipation)

4Unrestricted airspace measured rearward from front

of telco rack 222 in (19 in cantilever space, plus 3 in of airspace for

thermal dissipation)

Note 1: The minimum space requirements above do not include the spatial requirements for sliding the ProLiant DL360

server onto the rack rails. This installation procedure requires at least 27 inches, measured forward from the front of the

telco rack.

Note 2: The minimum space requirements above do not include the recommended spatial requirements for cable

installation and service procedures. Compaq recommends at least 8 inches for cable attachment and service

procedures, measured from the back of the installed server.

IMPORTANT: Compaq products are designed to provide airflow from the front of the rack to

the rear. It is recommended that rack components only be installed on the front rails for many

reasons, including proper airflow.

Figure 6: ProLiant server minimum space requirements (DL360 shown)

Andere Handbücher für 231027-002 - ProLiant - DL320R01

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Compaq Server Handbücher

Compaq

Compaq 2500 - ProLiant - 64 MB RAM Bedienungsanleitung

Compaq

Compaq AlphaServer 4100 s Bedienungsanleitung

Compaq

Compaq DL590 - HP ProLiant - 1 GB RAM Bedienungsanleitung

Compaq

Compaq ML370 - ProLiant - G3 Bedienungsanleitung

Compaq

Compaq DS20E - AlphaStation - 1 GB RAM Kurzanleitung

Compaq

Compaq ML350 - ProLiant - G2 Bedienungsanleitung

Compaq

Compaq DL760 - ProLiant - 1 GB RAM Installations- und Betriebshandbuch

Compaq

Compaq 234664-002 - ProLiant - ML330T02 Handbuch

Compaq

Compaq 108164-003 - ProLiant - 800 Kurzanleitung

Compaq

Compaq 108164-003 - ProLiant - 800 Kurzanleitung

Compaq

Compaq 108164-003 - ProLiant - 800 Kurzanleitung

Compaq

Compaq DH-64BAA-AA - AlphaServer - ES40 Bedienungsanleitung

Compaq

Compaq DL320 - ProLiant - G3 Bedienungs- und Sicherheitshinweise

Compaq

Compaq BL20p - HP ProLiant - 512 MB RAM Bedienungs- und Sicherheitshinweise

Compaq

Compaq ProLiant 8500 Bedienungs- und Sicherheitshinweise

Compaq

Compaq 222863-001 - TaskSmart W2200 Model 10 Bedienungsanleitung

Compaq

Compaq 1850R - ProLiant - 128 MB RAM Kurzanleitung

Compaq

Compaq AlphaServer DS20E Bedienungsanleitung

Compaq

Compaq BL10e - HP ProLiant - 512 MB RAM Technisches Dokument

Compaq

Compaq DL760 - ProLiant - 1 GB RAM Bedienungsanleitung

Compaq

Compaq DL320 - ProLiant - G3 Handbuch

Compaq

Compaq ProLiant DL380 G2 Technisches Handbuch

Compaq

Compaq TruCluster Server AA-RHGWC-TE Bedienungsanleitung

Compaq

Compaq 6400R - ProLiant - 1 GB RAM Handbuch

Beliebte Server Handbücher anderer Marken

HP AlphaServer ES47 Bedienungsanleitung

Dell

Dell PowerEdge R410 Bedienungsanleitung

PowerNAS

PowerNAS CMA Bedienungsanleitung

Supero

Supero FatTwin F617R3-FT Bedienungsanleitung

MSI

MSI P1-109N-L70 Bedienungsanleitung

Dell

Dell PowerEdge XE9640 Handbuch

Dell

Dell PS4100 Montageanleitung

EtroVISION

EtroVISION EV3151 Bedienungsanleitung

NEC

NEC Express5800/T110j Bedienungsanleitung

HP ProLiant Gen9 Bedienungsanleitung

Dell

Dell PowerEdge 3YPMN Bedienungsanleitung

iRobo

iRobo IPC2U Bedienungsanleitung

Nortel

Nortel 1000 Con?guration guide Bedienungsanleitung

Asus

Asus AP7500 Bedienungs- und Wartungshandbuch

Avid Technology

Avid Technology AirSpeed 5000 Bedienungsanleitung

HP Integrity rx2600 Installationsanleitung

Milestone

Milestone Husky IVO 350T Bedienungsanleitung

Planet

Planet NAS-7410 Bedienungsanleitung
