Compaq DL320 - ProLiant - G3 Technisches Handbuch

White Paper

Help us improve our technical communication. Let us know what you think

about the technical information in this document. Your feedback is

valuable and will help us structure future communications. Please send

your comments to: customerserv[email protected].

January 2002

Prepared by Customer Service

Training and Development

Compaq Computer Corporation

Contents

Product Description ....................3

Features.....................................3

System and Mechanical

Spare Parts List ...........................4

Servicing Procedures..................8

Processor...................................8

DVD-ROM/Diskette

Combination Drive ...................13

Service Considerations.............16

References .................................17

Compaq ProLiant DL320

Service Update

Abstract: This service update white paper describes updates to the

Compaq ProLiant DL320 Server. It provides option part numbers for

the DVD/diskette combination assembly, spares part numbers for the

1.13 Ghz processor and service procedures for removing or replacing

the DVD/diskette combination assembly and processor.

Compaq ProLiant DL320 Service Update 2

Rev. 1.0 Page 2 of 17

Compaq and the Compaq logo are registered in the U.S. Patent and Trademark Office. Microsoft and

Windows are trademarks of Microsoft Corporation in the United States and other countries. All other

product names mentioned herein may be trademarks of their respective companies.

Compaq shall not be liable for technical or editorial errors or omissions contained herein. The information

in this document is provided “as is” without warranty of any kind and is subject to change without notice.

The warranties for Compaq products are set forth in the express limited warranty statements accompanying

such products. Nothing herein should be construed as constituting an additional warranty.

Compaq ProLiant DL320 Service Update 3

Rev. 1.0 Page 3 of 17

Product Description

The ProLiant DL320 Server has a new option, a DVD/diskette combination drive and a new

processor speed, 1.13Ghz. This document lists the new option and spares part numbers and

reviews the corresponding procedures to service.

Features

This is a review of the features pertinent to this update.

■New, faster processor speed: 1.13Ghz

■New DVD-ROM/diskette drive assembly

ProLiant DL320 Server– Internal View

Compaq ProLiant DL320 Service Update 4

Rev. 1.0 Page 4 of 17

System and Mechanical Spare Parts List

As a review, Figure 1 and 2 illustrate an exploded views of the mechanical and system spare

component parts. Table 1 lists the option and spare part numbers. Part numbers for new processor

and DVD/diskette combination assembly are highlighted in yellow.

Figure 1. Mechanical parts exploded view

Compaq ProLiant DL320 Service Update 5

Rev. 1.0 Page 5 of 17

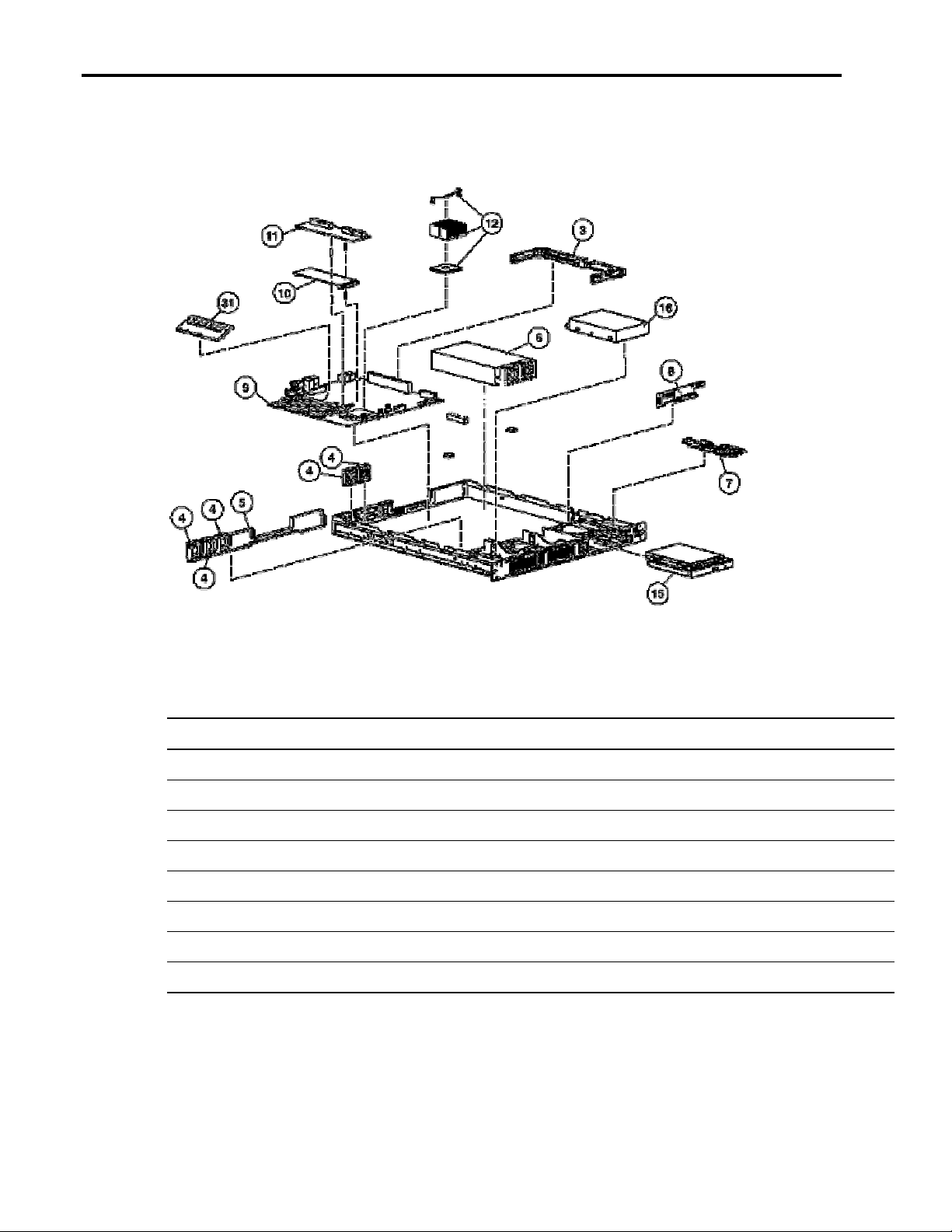

Figure 2. System components exploded view

Table 1: System and Mechanical Spare Parts List

Item Description Spare Parts List

Mechanical Components

1a Chassis 207735-001

1b Access panel

2 Fixed cable tray 173839-001

3 PCI riser board assembly 207727-001

4 Fan 207729-001

5 Center wall and bracket with fans 213288-001

6 Power supply, 180 W 207728-001

Compaq ProLiant DL320 Service Update 6

Rev. 1.0 Page 6 of 17

Item Description Spare Parts List

Boards

7 User interface board 207725-001

8 CD-ROM (DVD-ROM)/diskette drive assembly

backplane

207726-001

9a System board 207723-001

9b System board for 1.13-Ghz processors or greater 260142-001

10 Single Channel Wide Ultra2 SCSI controller module

and support posts (SCSI models only)

207724-001

11 Ultra ATA/100 controller module with support posts

(ATA models only) )

207738-001

Processors

12a 800-MHz Intel Pentium III processor with heat sink 207720-001

12b 866-MHz Intel Pentium III processor with heat sink 207721-001

12c 933-MHz Intel Pentium III processor with heat sink 207722-001

12d 1-GHz Intel Pentium III processor with heat sink 235446-001

12e 1.13-GHz Intel Pentium III processor with heat sink 260141-001

Mass Storage Devices

13a CD-ROM/diskette drive assembly 173834-001

Low-profile 1.44-MB diskette drive

Low-profile IDE CD-ROM drive

13b DVD-ROM/diskette drive assembly 269046-001

Low-profile 1.44-MB diskette drive

Low-profile IDE DVD-ROM drive

14 ATA hard drive, 10 GB 207737-001

15 ATA hard drive, 20 GB * 207736-001

16 SCSI hard drive, 9 GB * 152189-001

17 SCSI hard drive, 18 GB * 152191-001

Miscellaneous

18 IEC power cord * 142258-004

Item Description Spare Parts List

19 Hard drive cable kit * 207731-001

Compaq ProLiant DL320 Service Update 7

Rev. 1.0 Page 7 of 17

CD-ROM (DVD-ROM)/diskette drive assembly

cable *

ATA hard drive cables (2) *

20 Two-device terminated SCSI cable (Ultra3) * 207730-001

Note: * Not shown

Refer to the QuickSpecs for a more complete list of options. (See References.)

Compaq ProLiant DL320 Service Update 8

Rev. 1.0 Page 8 of 17

Servicing Procedures

Processor

Power down the server

Step Action

1. Press the server Power On/Off switch to power down the server. When the server is

off, the power LED deactivates.

2. Verify that the fan is off by listening for the fan noise to stop.

3. Disconnect the power cord first from the AC outlet and then from the server.

4. Disconnect all remaining cables on the server rear panel, including cables extending

from external connectors on expansion boards.

5. For stability and safety, position the server securely on a workbench or other solid

surface.

Compaq ProLiant DL320 Service Update 9

Rev. 1.0 Page 9 of 17

Remove and replace the access panel

Step Action

1. Press and hold down the locking latches .

2. Slide the access panel approximately 1.25 cm (0.5 inch) toward the rear of the unit

and lift the panel to remove it .

Reverse steps 1 through 2 to replace the access panel. When the locking latches snap

into place, the access panel is secure.

Compaq ProLiant DL320 Service Update 10

Rev. 1.0 Page 10 of 17
