Compaq T5720 - Thin Client Installationsanleitung

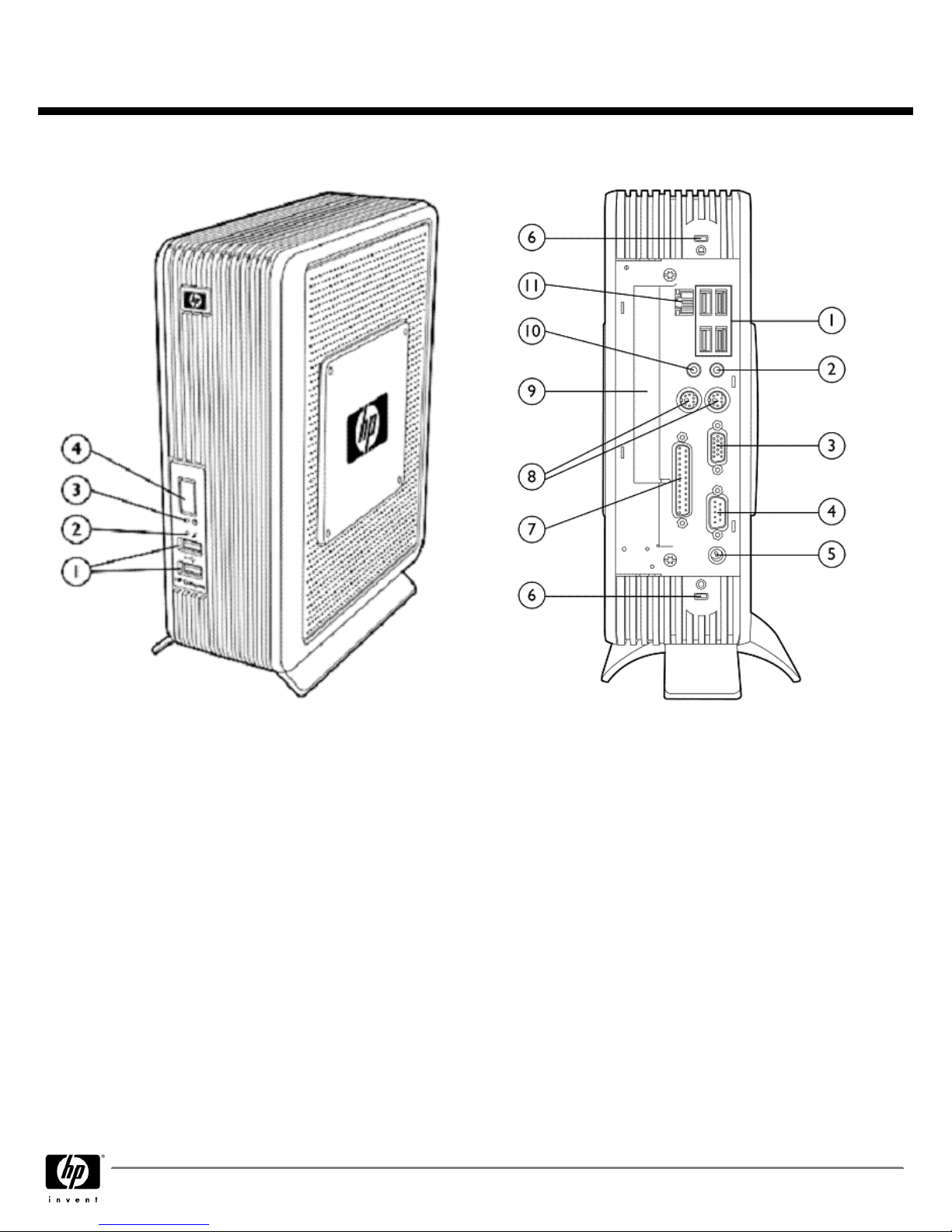

without PCI Expansion Module

without PCI Expansion Modulewithout PCI Expansion Module

without PCI Expansion Module

USB connectors, 2 front

USB connectors, 4 rear

Cable lock slots

Flash activity LED

Line-in audio connector

(microphone)

Parallel connector

Power LED

PS/2 connectors (2)

Power button

Monitor connector

Line-out audio (headphone)

connector

Serial connector

Power connector

10.

Ethernet RJ-45 connector

QuickSpecs

HP Compaq t5720 Thin Client

HP Compaq t5720 Thin ClientHP Compaq t5720 Thin Client

HP Compaq t5720 Thin Client

Overview

DA - 12388 North America — Version 21 — March 18, 2009

Page 1

with PCI Expansion Module

with PCI Expansion Modulewith PCI Expansion Module

with PCI Expansion Module

USB connectors, 2 front

USB connectors, 4 rear

Parallel connector

Flash activity LED

Line-in audio connector

(microphone)

PS/2 connectors (2)

Power LED

PCI access slot

Power button

Monitor connector

10.

Line-out audio (headphone)

connector

Serial connector

Power connector

11.

Ethernet RJ-45 connector

Cable lock slots

QuickSpecs

HP Compaq t5720 Thin Client

HP Compaq t5720 Thin ClientHP Compaq t5720 Thin Client

HP Compaq t5720 Thin Client

Overview

DA - 12388 North America — Version 21 — March 18, 2009

Page 2

At A Glance

At A GlanceAt A Glance

At A Glance

Simplified IT management for the enterprise and SMB

HP's "Anywhere Thin Client" with the innovative HP Quick Release

Microsoft® Windows® XP Embedded operating system SP2

Desktop-like features at compelling prices

Lower ownership costs and increased resource efficiency for each end-user

Now with HP's innovative ThinState Capture and Deploy for easy USB Flash key image capture and redeploy

AMD Geode NX 1500 processor

SiS741GX Integrated/UMA graphics with 16 MB shared graphics memory

Support for up to 1 GB MB of Flash and up to 512 MB DDR SDRAM memory

Optional PCI Expansion Module

Protected by Hewlett-Packard Services, including a limited three-year mail-in warranty (certain restrictions and exclusions

apply)

HP Sygate Security Agent pre-installed

QuickSpecs

HP Compaq t5720 Thin Client

HP Compaq t5720 Thin ClientHP Compaq t5720 Thin Client

HP Compaq t5720 Thin Client

Overview

DA - 12388 North America — Version 21 — March 18, 2009

Page 3

HP Compaq t5720 with cover removed

PCI Expansion Module Riser card being inserted into the

t5720 thin client unit

HP Compaq t5720 PCI Expansion Module cover with audio

cable

Diagram of audio cable being inserted into t5720 system

board

Models

ModelsModels

Models

Part Number: EK530AA

Introduction

IntroductionIntroduction

Introduction

The PCI Expansion Module for the HP Compaq t5720 allows for optional PCI devices including wireless networking cards (802.11

b/g), dial up modems, additional graphics, network, and input/output options.

Compatibility

CompatibilityCompatibility

Compatibility

HP Compaq t5720 PCI Expansion Module is designed to integrate with HP Compaq t5720 Thin Client to accommodate full-height,

½ length PCI card. Refer to the HP t5720 QuickSpecs for HP supported devices.

QuickSpecs

HP Compaq t5720 Thin Client

HP Compaq t5720 Thin ClientHP Compaq t5720 Thin Client

HP Compaq t5720 Thin Client

Overview - PCI Expansion Module Kit

DA - 12388 North America — Version 21 — March 18, 2009

Page 4

Restrictions

RestrictionsRestrictions

Restrictions

Do not orient the HP Compaq t5720 Thin Client with the PCI Expansion Module in the horizontal, upside down mode (see figure

below) as the unit may overheat. All other orientations are acceptable.

Service and Support

Service and SupportService and Support

Service and Support

The HP Compaq PCI Expansion Module has a one-year limited warranty. Technical support is available seven days a week, 24

hours a day, by phone, as well as online support forums. Certain restrictions and exclusions apply.

QuickSpecs

HP Compaq t5720 Thin Client

HP Compaq t5720 Thin ClientHP Compaq t5720 Thin Client

HP Compaq t5720 Thin Client

Overview - PCI Expansion Module Kit

DA - 12388 North America — Version 21 — March 18, 2009

Page 5

EG840AA#ABA

EG840AA#ABAEG840AA#ABA

EG840AA#ABA

EG840AT#ABA

EG840AT#ABAEG840AT#ABA

EG840AT#ABA

Processor

ProcessorProcessor

Processor

AMD Geode NX 1500 processor (1.0 GHz)

Operating System

Operating SystemOperating System

Operating System

Microsoft Windows XP Embedded, Service Pack 2

Flash Memory

Flash MemoryFlash Memory

Flash Memory

512 MB

Memory

MemoryMemory

Memory

512 MB DDR SDRAM

NOTE:

NOTE:NOTE:

NOTE:

16 MB of system RAM is reserved for graphics memory.

Graphics

GraphicsGraphics

Graphics

SiS741GX Integrated/UMA graphics with 16 MB shared graphics memory

PCI Expansion

PCI ExpansionPCI Expansion

PCI Expansion

Yes

Browser

BrowserBrowser

Browser

Microsoft Internet Explorer 6.0

Client Management

Client ManagementClient Management

Client Management

Software

SoftwareSoftware

Software

Altiris Deployment Solution license and ThinState Capture and Deploy at no

additional charge with each client. HP OpenView Client Configuration

Manager support available.

Terminal Personalities

Terminal PersonalitiesTerminal Personalities

Terminal Personalities

Standard

StandardStandard

Standard

Yes

Keyboard

KeyboardKeyboard

Keyboard

USB or PS/2 (both supported)

Keyboard included with every thin client. Type of included keyboard (USB or

PS/2) varies by region.

Mouse

MouseMouse

Mouse

USB or PS/2 (both supported)

Mouse included with every thin client. Type of included mouse (USB or PS/2)

varies by region.

AH462AA#ABA

AH462AA#ABAAH462AA#ABA

AH462AA#ABA

(TAA compliant)

Processor

ProcessorProcessor

Processor

AMD Geode NX 1500

Operating System

Operating SystemOperating System

Operating System

Microsoft Windows XP Embedded, Service Pack 2

Flash Memory

Flash MemoryFlash Memory

Flash Memory

1 GB

Memory

MemoryMemory

Memory

1 GB DDR SDRAM

NOTE:

NOTE:NOTE:

NOTE:

16 MB of system RAM is reserved for graphics memory.

Graphics

GraphicsGraphics

Graphics

SiS741GX Integrated/UMA graphics with 16 MB shared graphics memory

PCI Expansion

PCI ExpansionPCI Expansion

PCI Expansion

Yes

Browser

BrowserBrowser

Browser

Microsoft Internet Explorer 6.0

Client Management

Client ManagementClient Management

Client Management

Software

SoftwareSoftware

Software

Altiris Deployment Solution license and ThinState Capture and Deploy at no

additional charge with each client. HP OpenView Client Configuration

Manager support available.

Terminal Personalities

Terminal PersonalitiesTerminal Personalities

Terminal Personalities

Standard

StandardStandard

Standard

Yes

Keyboard

KeyboardKeyboard

Keyboard

USB or PS/2 (both supported)

Keyboard included with every thin client. Type of included keyboard (USB or

PS/2) varies by region.

Mouse

MouseMouse

Mouse

USB or PS/2 (both supported)

Mouse included with every thin client. Type of included mouse (USB or PS/2)

varies by region.

Product complies with U.S. Trade Agreement Act (TAA). Available in U.S only.

QuickSpecs

HP Compaq t5720 Thin Client

HP Compaq t5720 Thin ClientHP Compaq t5720 Thin Client

HP Compaq t5720 Thin Client

Standard Features - Models

DA - 12388 North America — Version 21 — March 18, 2009

Page 6

Part Number

Part NumberPart Number

Part Number

Accessories

AccessoriesAccessories

Accessories

HP t5720/t5725 PCI Expansion Module

EK530AA

HP Quick Release Kit

EM870AA

HP/Kensington Cable Lock

PC766A

50 Watt External Power Supply

FJ851AA

Communications

CommunicationsCommunications

Communications

Ethernet Bridge – Linksys Wireless-G Ethernet Bridge

WET54G

Ethernet Bridge – Linksys Wireless-G Ethernet Bridge

WET54GS5

Modem Serial – Zoom 3049 56K v.92 Ext. Modem - Serial

3049-00-00

Modem USB – Zoom 2985C USB 56K v.90 External Modem

2985-00-00C

Modem PCI – Agere 2006 PCI Hi-Speed 56K Sof

EK694AA

Wireless PCI – Cisco Aironet PCI

AIR-PI21AG-A-K9

Wireless PCI – HP Wireless A+G PCI Adapter (North America Only)

EA118AA

Wireless PCI – HP Wireless A+G PCI Adapter (Worldwide - except North America)

PZ928AA

Connectivity

ConnectivityConnectivity

Connectivity

HP PS/2 Standard Keyboard

DT527A#ABA

HP USB Standard Keyboard

DT528A#ABA

HP USB Smartcard Keyboard

ED707AA#ABA

HP PS/2 2-Button Scroll Mouse

DD440B

HP PS/2 2-Button Optical Mouse

EY703AA

HP USB 2-Button Optical Scroll Mouse

DC172B

HP Belkin USB To Serial Adapter

EM449AA

Monitors

MonitorsMonitors

Monitors

ELO Touch 1529L Flat Panel – USB /serial combo

E926109

ELO Touch 1515L Flat Panel – USB/serial combo

E849124

ELO Touch 1725C CRT – USB/serial combo

E248189

ELO Touch 1526C CRT – USB/serial combo

E833965

Graphics

GraphicsGraphics

Graphics

NVIDIA Quadro 280nvs 64 MB PCI Dual Head

DY599A

Matrox EpicA TC4

EPI-

TC4P128LPAF

Matrox EpicA TC2

EPI-TC2P64LPAF

Memory

MemoryMemory

Memory

512 MB DDR SDRAM (333 MHz) Memory

EK692AA

1024 MB 333 MHz DDR

DC890B

1 GB Flash Module

AH430AA

QuickSpecs

HP Compaq t5720 Thin Client

HP Compaq t5720 Thin ClientHP Compaq t5720 Thin Client

HP Compaq t5720 Thin Client

Options

DA - 12388 North America — Version 21 — March 18, 2009

Page 7

Security

SecuritySecurity

Security

HP USB Smartcard Keyboard

ED707AA

Digital Privacy SCR331 USB Smart Card Reader

1904054

Envoy Data SCR331 USB Smart Card Reader

1904054

TxSystems SCR331 USB Smart Card Reader

1904054

HP/Kensington Cable Lock

PC766A

Storage

StorageStorage

Storage

Apacer 1 GB Disk on Key (DOK)

AP-HHR100HD2

Apacer 512 MB Disk on Key (DOK)

AP-HHR512HD2

HP Driverless USB Diskette Drive

F5101B

External USB 2.0 Multibay II Cradle

PA509A

HDD Multibay II 80 GB 5400rpm

PH357A

Multibay II DVD Drive (Does not support DVD play back)

PA849A

Care Packs

Care PacksCare Packs

Care Packs

9x5 Next-Business-Day

Advanced Exchange - 3 Years

331653-001;

U4847E

9x5 Next-Business-Day

On-Site Coverage - 3 Years

331655-001;

U4849E

Hardware Installation

331686-001;

U4865E

Option available directly from third party.

Service levels and response times for HP Care Packs may vary depending on your geographic location. Restrictions and limitations

apply. For details, visit www.hp.com/go/carepack.

U4847E is available in all regions; U4849E is available in Americas and Asia-Pacific/Japan.

QuickSpecs

HP Compaq t5720 Thin Client

HP Compaq t5720 Thin ClientHP Compaq t5720 Thin Client

HP Compaq t5720 Thin Client

Options

DA - 12388 North America — Version 21 — March 18, 2009

Page 8

Possible Memory Configurations

Possible Memory ConfigurationsPossible Memory Configurations

Possible Memory Configurations

Flash Memory

Flash MemoryFlash Memory

Flash Memory

Memory Slot

Memory SlotMemory Slot

Memory Slot

(DDR SDRAM)

512 MB 256 MB

512 MB 512 MB

1 GB

512 MB

1 GB 1 GB

QuickSpecs

HP Compaq t5720 Thin Client

HP Compaq t5720 Thin ClientHP Compaq t5720 Thin Client

HP Compaq t5720 Thin Client

Memory

DA - 12388 North America — Version 21 — March 18, 2009

Page 9

System Unit

System UnitSystem Unit

System Unit

Processor

ProcessorProcessor

Processor

AMD Geode NX 1500 (1.0 GHz)

Memory

MemoryMemory

Memory

Flash Memory

Flash MemoryFlash Memory

Flash Memory

512 MB, 1 GB

System Memory

System MemorySystem Memory

System Memory

256 MB, 512 MB, or 1 GB DDR SDRAM

NOTE:

NOTE:NOTE:

NOTE:

16 MB of system RAM is reserved for

graphics memory

Graphics

GraphicsGraphics

Graphics

SiS741 GX Integrated/UMA graphics with 16 MB of shared graphics

memory

Mode

ModeMode

Mode

Refresh Rates

Refresh RatesRefresh Rates

Refresh Rates

Color Depth

Color DepthColor Depth

Color Depth

640 x 480

60–200 Hz

8/16/32-bit

800 x 600

60–160 Hz

8/16/32-bit

1024 x 768

60–120 Hz

8/16/32-bit

1152 X 864

60–85 Hz

8/16/32-bit

1280 x 1024

60–85 Hz

8/16/32-bit

1600 x 1200

60–85 Hz

8/16/32-bit

1920 x 1200

60 Hz

8/16/32-bit

1920 x 1440

60–85 Hz

8/16/32-bit

2048 x 1536

60–75 Hz

8/16/32-bit

Input/Output/

Input/Output/Input/Output/

Input/Output/

Peripheral Support

Peripheral SupportPeripheral Support

Peripheral Support

Keyboard

KeyboardKeyboard

Keyboard

HP PS/2 Standard Keyboard

Mouse

MouseMouse

Mouse

Two button scroll, PS/2

Printer

PrinterPrinter

Printer

Local and/or network printers (RDP, ICA, LPD) as

per the printer support statement

Video

VideoVideo

Video

SiS74iGX Integrated/UMA graphics with 16 MB

shared graphics memory

Audio

AudioAudio

Audio

Output

OutputOutput

Output

Internal amplified speaker, 1/8-inch mini, full

16-bit stereo, 44-kHz sample rate

Input

InputInput

Input

1/8-inch mini microphone

Security

SecuritySecurity

Security

Two security lock slots (cable lock sold separately)

HP Sygate Security Agent

Terminal Server Protocols

Terminal Server ProtocolsTerminal Server Protocols

Terminal Server Protocols

Integrated Microsoft RDP 5.2 and Citrix ICA 9.15. Terminal personalities

standard

Networking

NetworkingNetworking

Networking

10/100 BaseT Fast Ethernet, twisted pair (RJ-45)

TCP/IP with DNS and DHCP

Point-to-Point Protocol (PPP), Direct Connection through RS-232, Point-to-

Point over Ethernet (PPPoE),

Point-to-Point Tunneling Protocol (PPTP), Layer-2 Tunneling Protocol (L2TP),

Wake on LAN (WOL), PXE

Server Network Time Protocol (SNTP)

Simple Network Management Protocol (SNMP)

I/O ports and connectors

I/O ports and connectorsI/O ports and connectors

I/O ports and connectors

Six USB ports (2 front/4 rear), 1 serial, 1 parallel, RJ-45, 1 PCI expansion, 2

PS/2

Resident Operating

Resident OperatingResident Operating

Resident Operating

System

SystemSystem

System

Microsoft Windows XP Embedded, Service Pack 2

QuickSpecs

HP Compaq t5720 Thin Client

HP Compaq t5720 Thin ClientHP Compaq t5720 Thin Client

HP Compaq t5720 Thin Client

Technical Specifications

DA - 12388 North America — Version 21 — March 18, 2009

Page 10

Andere Handbücher für T5720 - Thin Client

Inhaltsverzeichnis

Andere Compaq Server Handbücher

Compaq

Compaq BL10e - HP ProLiant - 512 MB RAM Bedienungsanleitung

Compaq

Compaq ProLiant DL580 Bedienungs- und Sicherheitshinweise

Compaq

Compaq 108164-003 - ProLiant - 800 Kurzanleitung

Compaq

Compaq 234664-002 - ProLiant - ML330T02 Bedienungs- und Sicherheitshinweise

Compaq

Compaq BL10e - HP ProLiant - 512 MB RAM Bedienungsanleitung

Compaq

Compaq ML350 - ProLiant - G2 Handbuch

Compaq

Compaq AlphaServer DS20E Bedienungsanleitung

Compaq

Compaq 219700-001 - ProLiant - 1500 Kurzanleitung

Compaq

Compaq ProLiant 6000 Series Bedienungs- und Sicherheitshinweise

Compaq

Compaq DS20E - AlphaStation - 1 GB RAM Bedienungsanleitung

Compaq

Compaq ML350 - ProLiant - G2 Bedienungsanleitung

Compaq

Compaq ProLiant 4500 Servers Handbuch

Compaq

Compaq 195294-001 - ProLiant - ML370R Installationsanleitung

Compaq

Compaq AlphaServer GS60E Bedienungsanleitung

Compaq

Compaq t1000 - Terminal Thin Client PC Bedienungsanleitung

Compaq

Compaq ProLiant 8500 Installations- und Betriebshandbuch

Compaq

Compaq DS20E - AlphaStation - 1 GB RAM Kurzanleitung

Compaq

Compaq AlphaServer 800 Bedienungsanleitung

Compaq

Compaq AlphaServer GS140 Bedienungsanleitung

Compaq

Compaq Evo Thin Client t20 Service-Handbuch

Compaq

Compaq DS10L - AlphaServer - 256 MB RAM Bedienungsanleitung

Compaq

Compaq AlphaServer ES45 Bedienungsanleitung

Compaq

Compaq 1850R - ProLiant - 128 MB RAM Bedienungs- und Sicherheitshinweise

Compaq

Compaq N2400 - TaskSmart - 1 GB RAM Bedienungsanleitung

Beliebte Server Handbücher anderer Marken

HP AlphaServer ES47 Bedienungsanleitung

Dell

Dell PowerEdge R410 Bedienungsanleitung

PowerNAS

PowerNAS CMA Bedienungsanleitung

Supero

Supero FatTwin F617R3-FT Bedienungsanleitung

MSI

MSI P1-109N-L70 Bedienungsanleitung

Dell

Dell PowerEdge XE9640 Handbuch

Dell

Dell PS4100 Montageanleitung

EtroVISION

EtroVISION EV3151 Bedienungsanleitung

NEC

NEC Express5800/T110j Bedienungsanleitung

HP ProLiant Gen9 Bedienungsanleitung

Dell

Dell PowerEdge 3YPMN Bedienungsanleitung

iRobo

iRobo IPC2U Bedienungsanleitung

Nortel

Nortel 1000 Con?guration guide Bedienungsanleitung

Asus

Asus AP7500 Bedienungs- und Wartungshandbuch

Avid Technology

Avid Technology AirSpeed 5000 Bedienungsanleitung

HP Integrity rx2600 Installationsanleitung

Milestone

Milestone Husky IVO 350T Bedienungsanleitung

Planet

Planet NAS-7410 Bedienungsanleitung
