Instruction Manual
DH16A-30DT-B DH16A-50DT-B
DH16A-52DT-B DH16A-62DT-BDH16A-12DT-B
DH16A-10DT-B
DH16A-83DT-B

-1-
Working conditions:
o o
temperature: -20 C ~ +50 C
RH:≤95%
Current and voltage requirements:
DC input: +12V - +24V
AC input: ~ 12V - 24V
standby current:≤80mA
working current: ≤110mA
Applicable card mode:
EM ID card(Default)
T5557/T5567 card(Setting required)
Effective distance: 2-3cm
Capacity:
ZONE 1: up to 1000 passwords & card holders
ZONE 2: up to 10 passwords OR card holders
1. With internal EM reader.
2. Frequency: 125KHz.
3. Effective distance: 5cm.
4. ZONE 1: up to 1000 passwords & card holders.
ZONE 2: up to 10 passwords OR card holders.
5. Card access, code access and combined access.
6. Digital keypad operation.
7. Built-in pickproof function.
8. Watchdog timer, powerful reboot and self-recovery watchdog can connect with
the external unlock button.
9. Dual relay outputs.
10. Unlock output delay time: 0~99s.
11. IP rating: 65.
12. Dimension: 120*76*22mm.
13. Dual relay outputs for door opening, door status detecting, open door by button.
The function of door status detecting is for ZONE 1 only.

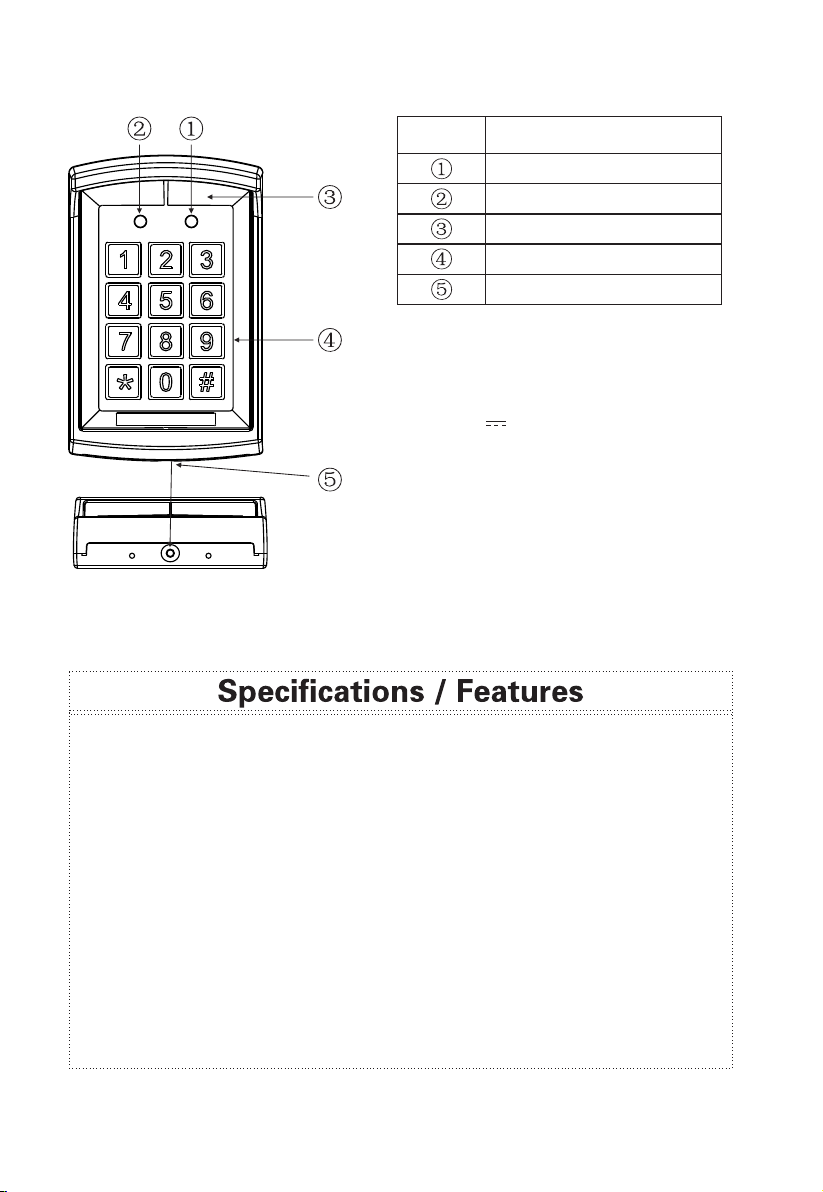

DH16A-10DT-B
Mode indicator
Door indicator
Antenna
Matrix keypads
Case screw
NO. Description

-2-
1. With internal EM reader.
2. Frequency: 125KHz.
3. Effective distance: 5cm.
4. ZONE 1: up to 1000 passwords & card holders.
ZONE 2: up to 10 passwords OR card holders..
5. Card access, code access and combined access.
6. Digital keypad operation.
7. Built-in pickproof function.
8. Watchdog timer, powerful reboot and self-recovery watchdog can connect with
the external unlock button.
9. Dual relay outputs.
10. Unlock output delay time: 0~99s.
11. IP rating: 65.
12. Dimension: 120*76*28mm.
13. Dual relay outputs for door opening, door status detecting, open door by button.
The function of door status detecting is for ZONE 1 only.
DH16A-30DT-B
Working conditions:
o o
temperature: -20 C ~ +50 C
RH:≤95%
Current and voltage requirements:
DC input: +12V - +24V
AC input: ~ 12V - 24V
standby current: ≤80mA
working current: ≤110mA
Applicable card mode:
EM ID card(Default)
T5557/T5567 card(Setting required)
Effective distance: 2-3cm
Capacity:
ZONE 1: up to 1000 passwords & card holders
ZONE 2: up to 10 passwords OR card holders
Mode indicator
Door indicator
Antenna
Matrix keypads
Case screw
NO. Description

-3-
1. With internal EM reader.
2. Frequency: 125KHz.
3. Effective distance: 5cm.
4. ZONE 1: up to 1000 passwords & card holders.
ZONE 2: up to 10 passwords OR card holders..
5. Card access, code access and combined access.
6. Digital keypad operation.
7. Built-in pickproof function.
8. Watchdog timer, powerful reboot and self-recovery watchdog can connect with
the external unlock button.
9. Dual relay outputs.
10. Unlock output delay time: 0~99s.
11. IP rating: 65.
12. Dimension: 123*79*21mm.
13. Dual relay outputs for door opening, door status detecting, open door by button.
The function of door status detecting is for ZONE 1 only.
DH16A-50DT-B
Working conditions:
o o
temperature: -20 C ~ +50 C
RH: ≤95%
Current and voltage requirements:
DC input: +12V - +24V
AC input: ~ 12V - 24V
standby current: ≤80mA
working current: ≤110mA
Applicable card mode:
EM ID card(Default)
T5557/T5567 card(Setting required)
Effective distance: 2-3cm
Capacity:
ZONE 1: up to 1000 passwords & card holders
ZONE 2: up to 10 passwords OR card holders
Mode indicator
Matrix keypads
Antenna
Case screw
NO. Description

-4-
1. With internal EM reader.
2. Frequency: 125KHz.
3. Effective distance: 5cm.
4. ZONE 1: up to 1000 passwords & card holders.
ZONE 2: up to 10 passwords OR card holders..
5. Card access, code access and combined access.
6. Digital keypad operation.
7. Built-in pickproof function.
8. Watchdog timer, powerful reboot and self-recovery watchdog can connect with
the external unlock button.
9. Dual relay outputs.
10. Unlock output delay time: 0~99s.
11. IP rating: 65.
12. Dimension: 152*44*23.5mm.
13. Dual relay outputs for door opening, door status detecting, open door by button.
The function of door status detecting is for ZONE 1 only.
DH16A-12DT-B
Working conditions:
o o
temperature: -20 C ~ +50 C
RH: ≤95%
Current and voltage requirements:
DC input: +12V - +24V
AC input: ~ 12V - 24V
standby current: ≤80mA
working current: ≤110mA
Applicable card mode:
EM ID card(Default)
T5557/T5567 card(Setting required)
Effective distance: 2-3cm
Capacity:
ZONE 1: up to 1000 passwords & card holders
ZONE 2: up to 10 passwords OR card holders
Mode indicator
Door indicator
Antenna
Matrix keypads
Case screw
NO. Description

-5-
1. With internal EM reader.
2. Frequency: 125KHz.
3. Effective distance: 5cm.
4. ZONE 1: up to 1000 passwords & card holders.
ZONE 2: up to 10 passwords OR card holders..
5. Card access, code access and combined access.
6. Digital keypad operation.
7. Built-in pickproof function.
8. Watchdog timer, powerful reboot and self-recovery watchdog can connect with
the external unlock button.
9. Dual relay outputs.
10. Unlock output delay time: 0~99s.
11. IP rating: 65.
12. Dimension: 152*45*25mm.
13. Dual relay outputs for door opening, door status detecting, open door by button.
The function of door status detecting is for ZONE 1 only.
DH16A-52DT-B
Working conditions:
o o
temperature: -20 C ~ +50 C
RH: ≤95%
Current and voltage requirements:
DC input: +12V - +24V
AC input: ~ 12V - 24V
standby current: ≤80mA
working current: ≤110mA
Applicable card mode:
EM ID card(Default)
T5557/T5567 card(Setting required)
Effective distance: 2-3cm
Capacity:
ZONE 1: up to 1000 passwords & card holders
ZONE 2: up to 10 passwords OR card holders
Mode indicator
Door indicator
Antenna
Matrix keypads
Case screw
NO. Description

-6-
1. With internal EM reader.
2. Frequency: 125KHz.
3. Effective distance: 5cm.
4. ZONE 1: up to 1000 passwords & card holders.
ZONE 2: up to 10 passwords OR card holders..
5. Card access, code access and combined access.
6. Digital keypad operation.
7. Built-in pickproof function.
8. Watchdog timer, powerful reboot and self-recovery watchdog can connect with
the external unlock button.
9. Dual relay outputs.
10. Unlock output delay time: 0~99s.
11. IP rating: 65.
12. Dimension: 165*45*23.5mm.
13. Dual relay outputs for door opening, door status detecting, open door by button.
The function of door status detecting is for ZONE 1 only.
DH16A-62DT-B
Working conditions:
o o
temperature: -20 C ~ +50 C
RH: ≤95%
Current and voltage requirements:
DC input: +12V - +24V
AC input: ~ 12V - 24V
standby current: ≤80mA
working current: ≤110mA
Applicable card mode:
EM ID card(Default)
T5557/T5567 card(Setting required)
Effective distance: 2-3cm
Capacity:
ZONE 1: up to 1000 passwords & card holders
ZONE 2: up to 10 passwords OR card holders
Mode indicator
Door indicator
Antenna
Matrix keypads
Case screw
NO. Description

-7-
1. With internal EM reader.
2. Frequency: 125KHz.
3. Effective distance: 5cm.
4. ZONE 1: up to 1000 passwords & card holders.
ZONE 2: up to 10 passwords OR card holders..
5. Card access, code access and combined access.
6. Digital keypad operation.
7. Built-in pickproof function.
8. Watchdog timer, powerful reboot and self-recovery watchdog can connect with
the external unlock button.
9. Dual relay outputs.
10. Unlock output delay time: 0~99s.
11. IP rating: 65.
12. Dimension: 150*44*24mm.
13. Dual relay outputs for door opening, door status detecting, open door by button.
The function of door status detecting is for ZONE 1 only.
DH16A-83DT-B
Working conditions:
o o
temperature: -20 C ~ +50 C
RH: ≤95%
Current and voltage requirements:
DC input: +12V - +24V
AC input: ~ 12V - 24V
standby current:≤80mA
working current: ≤110mA
Applicable card mode:
EM ID card(Default)
T5557/T5567 card(Setting required)
Effective distance: 2-3cm
Capacity:
ZONE 1: up to 1000 passwords & card holders
ZONE 2: up to 10 passwords OR card holders
Mode indicator
Door indicator
Antenna
Matrix keypads
Case screw
NO. Description

-8-
o
20
Picture 1 Picture 2 Picture 3
Attention items of disassembly
Shift the
front cover up
1. Please remove the cover carefully following the manual. Not
permitted to remove with sudden force.
2. Before remove the cover, push up the front cover a few
millimeters, then follow Picture 3, lift the lower cover for less
0
than 20 and remove the front cover gently.
Notice

-9-
Before installation, position the location where the controller unit is
mounted. Please operate it according to the following steps:
Applicable model: DH16A-10/30/50DT-B
1. Open the controller and remove the back case at the bottom
with the special tool.
2. Use the provided drilling template to accurately locate and drill
the required holes. The four drilling holes are marked "B".
Then insert the screw anchors in the holes.
3. Use the screws provided to mount the back case on the wall. Be
sure to draw the wiring through the large centre hole in back
case, and keep level.
4. Connected accurately the system wiring following the label
enclosed on the rear.
5. Put the unit back and fasten it by using the special tool.
