Component Playgrounds PH52 Bedienungsanleitung

NAME: __________________________________

INV #: __________________________________

DATE: ___________________________________

BOX PULLED BY: __________________________

STAGED BY: ______________________________

SHIPPING WEIGHT: 1,175 lbs

PIECES: 32

MODEL PH52

_____ 2-13’11” top rail, one drill

_____ 1-13’11” top rail with insert

_____ 2-triple ends with socket

_____ 1-4’ x 4’ Deck package

_____ 4-10’6” PH Legs FOR PLASTIC ROOF

_____ 1-Entrance Barrier

_____ 2-Exit Barrier

_____ 1-Side Barrier

_____ 2-8’ 4 rung ladder, adj. sleeves

_____ 1-8’ 4 rung ladder

_____ 1-12’6” horizontal ladder

_____ 4-8’ A-frame legs

_____ 1-MT re pole

_____ 1-Turning Bar w/2 3/8” clamp

_____ 1-CH/PH Loop Climber

_____ 1-Buoy Ball _______________

_____ 1-10’ Plastic Rave Slide ___________

_____ 1-Molded plastic tire _______________

_____ 1-PH Platic Roof__________________

■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■

_____ 3-5” strap seats __________________

_____ 1-Pair of rings ___________________

_____ 1-trapeze bar ____________________

_____ 12-2 ⅜” Brass Bushing Hangers

_____ 2-5½’ chains conected with s-hook ______________

_____ 9-5½’ chains ________________

_____ 4-3½’ chains ________________

_____ 1-trapeze bar ________________

■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■

_____ 1 - Steering wheel _________________

_____ 1 - Steering wheel hardware pkg

_____ 1 - Telescope _______________

_____ 1 - Telescope hardware pkg

■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■

_____ 1- 2⅜” tire swing clamp

_____ 1-2⅜” clamp

_____ 1- 2 3/8” clamp rounded

_____ 2- MT Bolt Packs

_____ 2 -Spring Clip 12 Packs

_____ 1- Playhouse bolt Pack

_____ 1- HL Bolt Pack

_____ 1- Tire Swing Bolt Pack

_____ 4-Panel clamps (2 pair)

_____ 2-⅜” x 2” Carriage bolts

_____ 2-⅜” Hex nuts

_____ 8-⅜” x 1½” hex bolts

_____ 4-⅜” nyloc nuts

_____ 4-⅜” x ⅜” set screws

_____ 4-brackets for roof

_____ 8-Zip toggles

_____ 8-1/4” x 2” tap bolts

_____ 8-⅜” at washer

_____ 4-⅜” x 1 1/2” self tap bolts

_____ 1 - Can of ____________ touch up paint

■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■

_____ Instructions

_____ Include CH/PH Fire Pole install sheet

■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■

Modications for Shipping

_____ Shipping letter sent

_____ Parts Labeled

_____ Packing list attached to box

_____ Remove turning bar

_____ 1 - 6’ toprail

_____ 1 - Turning bar cross piece

_____ 1 - 2 ⅜” plastic plugs

_____ 3 - 3/8” x 3/8” Set Screws

Last Modied: 6/1/2009

INSTALL INSTRUCTIONS

MODEL PH52

GROUND SPACE 37’ X 32’

RESIDENTIAL

PLAY SPACE 41’ X 41’

15” 1”

20” 20” 20” 20” 20” 24” 21” 24” 20” 20” 20” 24” 21” 24” 20”

27’10”

80” 66”

12’9” 10’

4’9’

5’

5’ CLEARANCE AT END OF

SLIDE

13’11”

10’ swing

clearance

41’

37’

32’

PH52 Install Instructions

1.a. Place the 13’11” top rail, 12’ 6” horizontal ladder, and 27’10” top rail in the play space as shown below.

Mark where the ladder holes will need to be dug. Remove the top rails and horizontal ladder and dig the ladder

holes to the measurements specied below.

41’

12’

12’ 6”

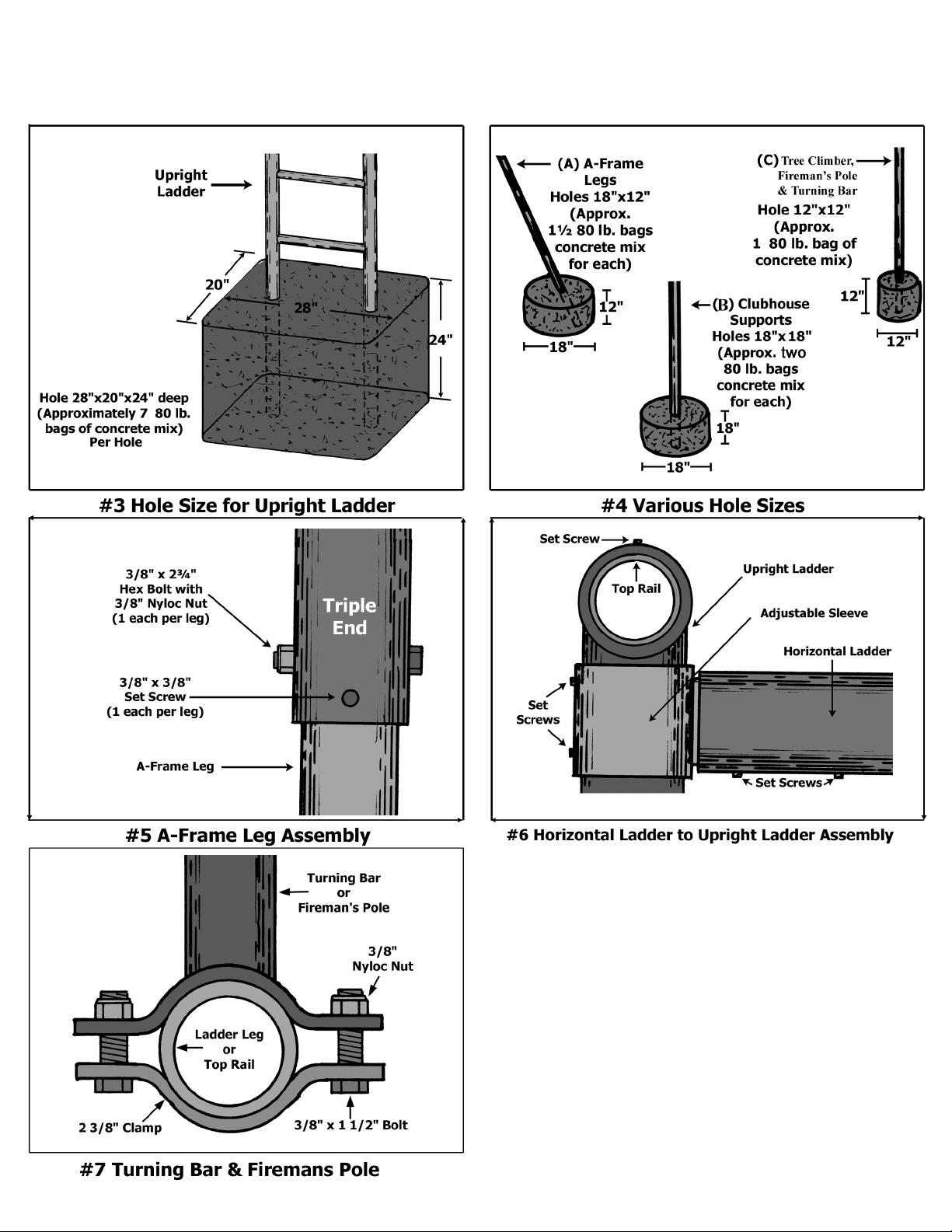

Hole size is 28”

wide by 20”

long by 24”

deep.

20”

28”

13’11”

Top Rail

27’10”

Top Rail

24’

9’

13’11” Toprail 13’11”” Toprail with insert

1/2” hole for

triple end

Sleeve the insert into 13’11” toprail.

1.b. To assemble 27’10” toprail take the 13’11” topail and the 13’11” toprail with insert. Sleeve the insert of 1

7/8” into the 13’11” toprail. Now that you have it sleeved all the way in, secure it by using 2- 3/8” set screws

and securing them tight (with allen wrentch provided) in the 2 holes drilled and tapped at the top of the 13’11”

toprail.

13’11” Toprail 13’11” Toprail w/ insert

Insert 3/8” set screws

and secure them tight.

Holes for set screws

drilled and tapped.

Assembling and standing the Swing Structure

2.a. Assemble the triple end to the top rail as shown below.

1. Slide the end of the drilled top rail into the triple end.

2. Align the hole in the top rail with the hole in the sleeve

of the triple end and join together using a 7/16” x 3 ¼” hex

bolt and 7/16” nylock nut.

3. Insert and tighten set screws into triple end socket with

allen wrench provided.

2.b. Assemble the legs into the triple end and top rail as shown below.

1. Slide the end of the drilled legs into the triple end.

2. Align the holes in the legs with the holes in the triple end and

join together using a 9/16” x 2 ¾” hex bolts and 9/16” nylock nuts.

3. Insert and tighten set screws into triple end with allen wrench

provided.

Assembling ladders and attaching to deck support structure (please read through all instructions before

continueing)

Install will be easier by completing 4.a. before continueing. (The rest of step 4 will be shown later)

4.a. Make a mark 108” up from the bottom of the ladder onto each ladder rail. Move the adjustable sleeves to

these marks and position them to receive the horizontal ladder by turning them to point at a 90 degree angle (to-

wards what will become the inside of the Horizontal ladder section of the structure.) Secure the set screws. The

sleeves should sit 18” apart on center in order to line up with horizontal ladder.

Notice the direction of the rungs on the ladders:

The ladder with the

holes drilled has the

rungs facing up.

The ladder without

the holes drilled

has the rungs facing

down.

108”

18” 18”

3.a. Position parts as shown below and insert assembly into ladders. Use the mark previously made on the top

rail to show you how far the assembly needs to be inserted. Insert set screws into the ladder top sleeve and

tighten until barely snug. Do not secure them at this point.

3.b. Using two strong adults lift the ladders and the A Frame end and allow the ladders to fall into the holes. You

can allow the structure to stand it will not be level at this time.

Situate the ladder and “A” frame legs as desired in the space. Be certain that the top rail has not slid away

from its correct position. If it has moved, hold onto the ladder and adjust its position on the top rail by pulling

or pushing as necessary. When you are content with the position of the top rail within the top sleeve, secure the

set screws in the top sleeve.

Notice. Ladder rungs are

facing down.

Slide through top sleeve

8’ ladder with sleeves

8’ ladder without sleeves

27’ Toprail
