Comprehensive CUE-104FE Bedienungsanleitung

CUE-104FE

4-Port USB 2.0 Over Extender Cat5/6 up

to 165ft

User Manual

Version: V1.0.1

Overview

Comprehensive’s CUE-104FE is a low-cost and high-performance 4-Port

Plug-and-Play USB 2.0 over Cat5e/Cat6 Extender Hub Kit that transmits

data from a computer to as many as four USB 2.0 peripherals up to 165ft

(50m) away.

This extender kit can work with all major operating systems including

Windows®, MacOS® and Linux with no need of driver installation. It can

achieve data rates up to 480Mbps and is also compatible with USB 1.1 and

USB 3.0 peripherals. The 4-Port Hub receiver allows the connections of up

to four USB devices, providing access to a keyboard, mouse, printers,

scanners, cameras, speaker, external storage media, digital signage or

automated control systems.

Features



Supports high-speed USB 2.0 (Up to 480Mbps) over a Cat 5e/6 cable

up to 50m/165ft

Up to 4 USB device connections supported by the Hub

Hot-Swap compatible

Plug-and-play, with no driver installation required

Supports all major operating systems: Windows, Mac OS and Linux

Compatible with USB 1.1 and USB 1.0 peripherals

3 Year Warranty

Package Contents

1 x CUE-104FE USB Extender Set

1 x Power Adapter (DC 12V 0.5A)

1 x USB-A to USB-B Cable

4 x Mounting Brackets (with Screws)

Application Diagram

1. Video conference system

USB-A to USB-B Cable

USB-A USB-A USB-A USB-A

Transmitter

Receiver

Display

HDMI

Cat X cable

MIC USB CameraKeyboard & Mouse

2. Personal entertainment system

USB-A to USB-B Cable

Transmitter

HDMI

PS3

Receiver

USB-A Cable

USB Controller

Cat X cable

Specifications

Video

I/O Connections

TX: 1 x USB Type-B

1 x UTP Out

RX:1 x UTP IN

1 x DC 12V IN

4 x USB 2.0

Input/Output Signal Type

USB 2.0 and backward compatible with

USB 1.1 and USB 1.0

Maximum Data Rate

Up to 480Mbps

General

Operating Temperature

0°C to 45°C (32°F to 113°F)

Storage Temperature

-20°C to 70°C (-4°F to 158°F)

Humidity

10% to 90%, non-condensing

ESD Protection

Human-body Model:

±8kV (Air-gap discharge)/

±4kV (Contact discharge)

Power Supply

DC 12V 0.5A

Power Consumption

(Maximum)

4.5W

Device Dimension

(W x H x D)

90 mm × 25 mm × 71 mm/

3.54'' x 0.98'' x 2.79'' each for TX/RX

Product Weight

0.35kg/0.77lb each for TX/RX

Transmission Distance:

Note: T568B straight-through Category cable is recommended.

Cable Type

Range

Cat 5e/6

Up to 50m/164ft

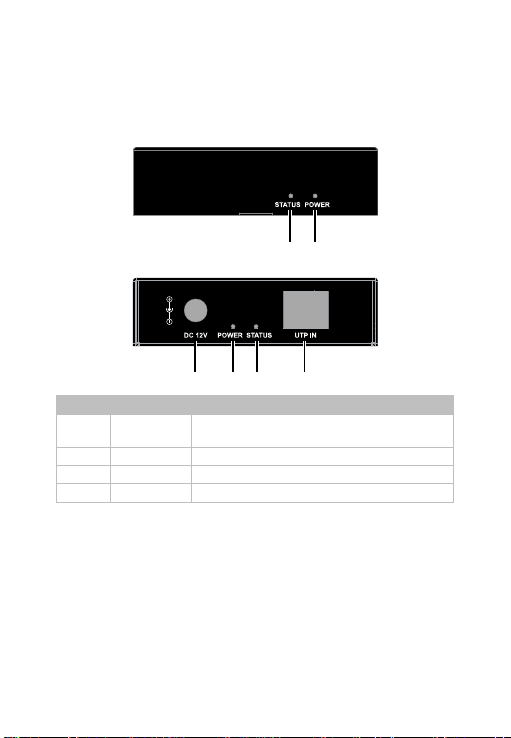

Panel Description

Front Panel

4321

No.

Name

Description

a & 3

Status LED

Blinking: The device is working properly.

Off: The device is not working properly.

b & 2

Power LED

On/Off: The device is powered on/off.

DC 12V

12V DC power input

UTP IN

Connect TX and RX with a Cat 5e/6 cable.

Rear Panel

No.

Name

Description

USB Host

Connect to the PC with a USB-A to USB-B

cable.

UTP OUT

Connect TX and RX with a Cat 5e/6 cable.

USB 1-4

Connect to USB devices such as keyboard,

mouse, MIC, USB camera.

Troubleshooting

1. No Power

Ensure the power is on.

Ensure you use the power adapter provided in the package.

If the transmitter is powered by the USB host, the receiver can

be powered by transmitter through PoE.

If connect to high power USB device(s), using external power

supply to power the receiver is recommended.

2. USB Not Detected

Ensure all devices are powered on, and all cables are qualified

and connected properly. Ensure all the cables’ length are within

the maximum transmission distance (refer to Specification

table).

80 Little Falls Road, Fairfield, NJ 07004

sales@comprehensiveco.com l 800.526.0242 l www.ComprehensiveCo.com
