Comprehensive CHE-HDBTWP110K Bedienungsanleitung

CHE-HDBTWP110K

Pro AV/IT HDBaseT 4K60 18G Single Gang Wall Plate

Extender Kit with HDMI, VGA, Audio up to 230ft

Operation Manual

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, installor

operate this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install

this equipment:

•

Always follow basic safety precautions to reduce the risk of fire,

electrical shock and injury to persons.

•

To prevent fire or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

•

Never spill liquid of any kind on or into this product.

•

Never push an object of any kind into this product through

any openings or empty slots in the unit, as you may damage

parts inside the unit.

•

Do not attach the power supply cabling to buildingsurfaces.

•

Use only the supplied power supply unit (PSU). Do not use the

PSU if it is damaged.

•

Do not allow anything to rest on the power cabling or allow

any weight to be placed upon it or any person walk on it.

•

To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow

for sufficient space for air to circulate around the unit.

•

Please completely disconnect the power when the unit is not

in use to avoid wasting electricity.



CONTENTS
Introduction................................................... 1
Applications .................................................. 1
Package Contents........................................ 2
System Requirements................................... 2
Features ......................................................... 2
Operation Controls and Functions ................ 4
1 Front Panel............................................. 4
2 Rear Panel ............................................. 5
3 WebGUI Control ................................... 6
3.1 Switch Tab .......................................... 8
3.2 Automation Tab............................... 10
3.3 EDID Settings Tab............................. 12
3.4 System Settings Tab......................... 14
4 RS-232 Control..................................... 15
5 Telnet Control...................................... 16
6 RS-232 and Telnet Commands ............... 17
Connection Diagram ................................. 31
Specifications.............................................. 32
1

Technical Specifications ................... 32
2

Video Specifications.......................... 33
3

Audio Specifications.......................... 34
4

Cable Specifications ......................... 34
5 HDBaseT Features ..................................... 35
Acronyms ...................................................... 36

1. INTRODUCTION

The CHE-HDBTWP110K Wallplate Extender is an HDMI and VGA switch

with audio embedding and HDBaseT output. The wallplate is designed

for use with US single-gang sized enclosures. This Transmitter can send

uncompressed high-definition video/audio over a single cable up

to a distance of 100 meters at 1080p@60Hz. The HDMI input supports

resolutions up to 4K@60Hz (4:4:4, 8-bit) and the VGA input supports

resolutions up to WUXGA (RB). With the use of the 3.5mm audio input,

stereo audio may be embedded with VGA or DVI sources as well.

Despite HDBaseT’s 10.2Gbps bandwidth limitation, high bandwidth 4K UHD

HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit),

can be

supported and will be automatically converted to 8-bitcolor, or the 4:2:0

color space when necessary.

Signal management features such as automatic switching based on input

signal and hot plug detection enable convenient hands- free operation. A

multi-function button on the face of the unit provides access to an

information OSD as well as allowingmanual

input selection. When paired with a compatible Receiver,additional

functionality such as EDID management, HDCP management and basic

event automation (which can send customized RS-232 or

CEC commands to external devices automatically) also becomes

accessible.

This Transmitter (PD) may be powered locally or via 48V PoH from a

compatible HDBaseT Receiver (PSE), which allows for greater flexibility

installations. The unit can be controlled via the front panel button with OSD.

When paired with a compatible Receiver it may also be controlled via Web

GUI, Telnet, and RS-232 making it exceptionally versatile.

2. APPLICATIONS

•

Household entertainment sharing and control

•

Lecture halls, auditoriums and classroom

•

Houses of worship

•

Conference rooms and boardrooms

•

Hotel event spaces

3. PACKAGE CONTENTS

•

1×HDMI/VGA over HDBaseT Transmitter

•

1×2-pin Terminal Block

•

1×US 1-Gang Faceplate

•

1×HDMI over HDBaseT Receiver (PSE)

•

1×48V/0.83A DC Power Adaptor

•

1×Power Cord

•

1×Operation Manual

4. SYSTEM REQUIREMENTS

•

HDMI or VGA source equipment such as a media player, video

game console or set-top box.

•

A compatible HDBaseT Receiver is required. An HDBaseT Receiver

capable of suppling 48V PoH is recommended.

•

The use of industry standard Cat.6, Cat.6a or Cat.7 cable is highly

recommended.

•

The use of “Premium High Speed HDMI” cable is highly

recommended.

5. FEATURES

•

HDMI 2.0 and DVI 1.0 compliant

•

HDCP 2.2 and HDCP 1.x compliant

•

1 HDMI input

•

1 VGA input with 3.5mm mini-jack audio input

•

Wall plate is designed for US one-gang sized enclosures

•

Supports HDMI input resolutions up to 4K@60Hz (4:4:4, 8-bit)

•

Supports VGA input resolutions up to WUXGA (RB)

•

Analog stereo audio may be embedded with VGA or DVI/HDMI

sources

•

HDBaseT output supports resolutions up to 4K@60Hz (4:2:0, 8-bit) with

automatic color space conversion of 4K@50/60Hz (4:4:4, 8-bit) or

4K@any (10/12-bit) sources

•

Simultaneous transmission of uncompressed video, audio and

data over a single 100m/328ft Cat.5e/6/7 cable at 1080p60 and

70m/230ft at 4K

•

HDBaseT feature support: HD Video and Audio, 100BaseTEthernet,

48V PoH, and Control (bidirectional IR/RS-232 pass-through)

•

Supports standard 48V PoH from Receiver (PSE) to Transmitter (PD)

(compatible Transmitters only)

Notes:

•The 48V PoH function is designed to power compatible Transmitter

units only. Non-PoH Transmitters will need their own power supply.

Other brands of Transmitter may not be compatible.

•The use of “Premium High Speed HDMI” cables is highly

recommended for displaying 3D and 4K content and compatible

display equipment is required.

•Supports CEC bypass

•

User activated information OSD

•

Unit may be powered locally or via 48V PoH from a compatible

HDBaseT Receiver (PSE)

•

Supports manual input selection or automatic input selection with

hot plug detection

•

Basic signal event automation (via RS-232 or CEC w/ compatible

Receiver)

•

USB port supports firmware update and powering of 5V/500mA

devices

•

Front panel LEDs indicate HDCP mode, input source, andpower

•

Controllable via a multi-function front panel button with OSD, or via

WebGUI, Telnet, and RS-232 (w/ compatible Receiver only)

6. OPERATION CONTROLS AND FUNCTIONS

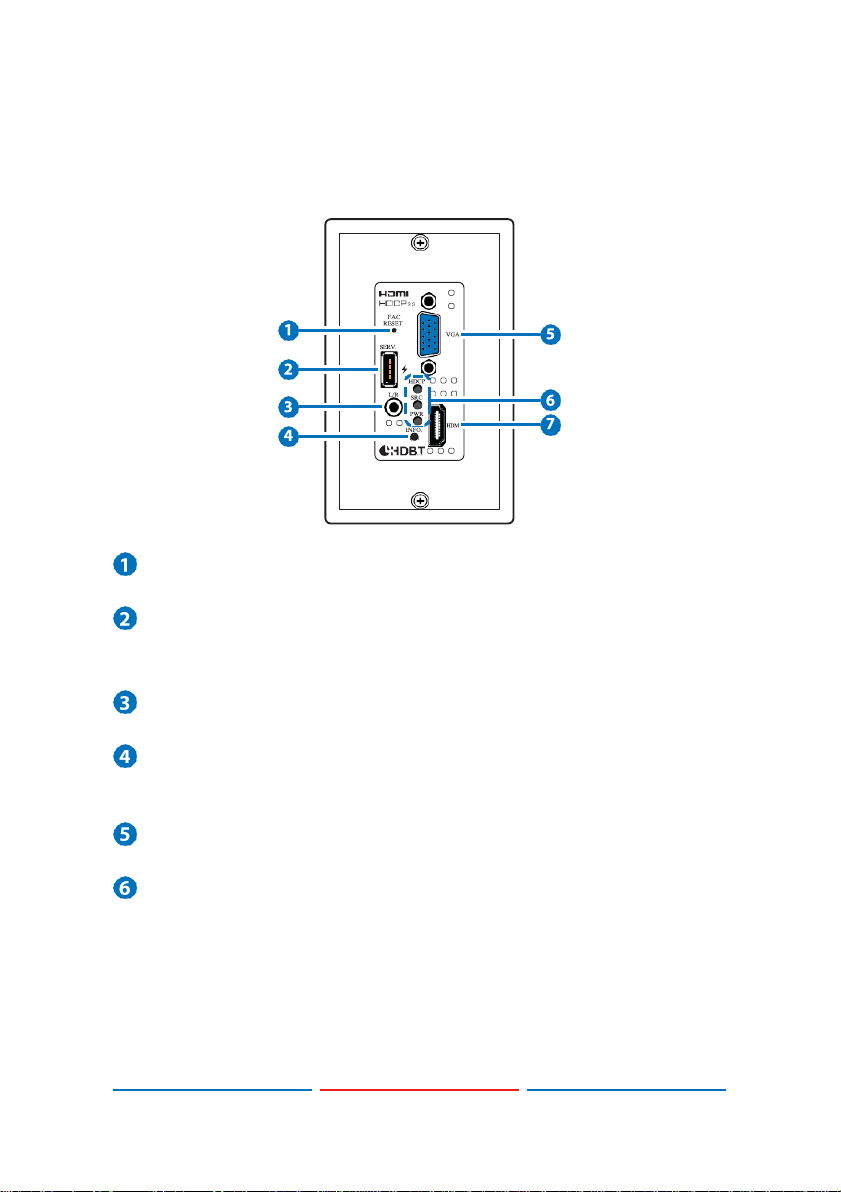

6.1 Front Panel

FAC RESET Button: Press and hold for 5 seconds to reset the unit to

its factory defaults.

SERV.: This slot is reserved for firmware update use only.

Note: This USB port can provide up to 500mA to connected

devices.

L/R IN: Connect to the stereo analog output of a device such as

an audio player or PC for embedding into the HDBaseT output.

INFO Button: A short press of this button will switch between the

available inputs. Pressing and holding this button for 2 secondswill

activate the information OSD.

VGA IN: Connect to VGA source equipment such as a PC or

laptop.

HDCP LED: This LED indicates the HDCP mode of the current input.

Green indicates Follow Display mode, orange indicates Follow

Source mode, off indicates HDCP is disabled.

SRC LED: This LED indicates which source is currently selected.

Green indicates the HDMI input, orange indicates the VGA input.

PWR LED: This LED will illuminate to indicate the unit's power andlink

status. Orange indicates the unit is on and receiving power, green

indicates the unit is on, receiving power, and has successfully

linked to a compatible Receiver.

HDMI IN: Connect to HDMI source equipment such as a media

player, game console or set-top box.

6.2 Rear Panel

CAT5e/6/7 OUT: Connect to a compatible HDBaseT Receiver with

a single Cat.5e/6/7 cable for transmission of all data signals.

DC 12V: Connect a 12V DC power adapter to the twin terminal

block and connect it to an AC wall outlet for power. (Optional, not

required when powered by PoH from the Receiver.)

Receiver's Front and Rear Panels

STD/UPDATE: This switch is reserved for factory use only.

RS-232 OUT: Connect to a serial controllable device for the

extension of RS-232 signals.

LAN: Connect to an Ethernet device or to your local network as

appropriate.

POWER LED: This LED will illuminate to indicate the unit is on and

receiving power.

LINK LED: This LED will illuminate solid when both Transmitter and

Receiver are connected and communicating with each other

properly.

DC 48V: Plug the 48V DC power adapter into this port and connect

it to an AC wall outlet for power.

IR1: Not functioanl

IR2 : Not functioanl

CAT5e/6/7 IN: Connect to a compatible HDBaseT Transmitter with

a single Cat.5e/6/7 cable for transmission of all data signals.

HDMI OUT: Connect to an HDMI TV, monitor or amplifier for digital

video and audio output.
