QUICK START GUIDE

This Quick Start Guide provides a quick reference for operating your

new digital camera. Refer to the User’s Guide, which can be found on

the CD-ROM and a hard copy in your Concord Camera box, for detailed

instructions on how to use all of your camera’s features. Before using

the camera, make sure to read all safety instructions and precautions

outlined in the User’s Guide.

DZ QSG(515653-00)-E 1 2004.7.10, 10:13:42 AM

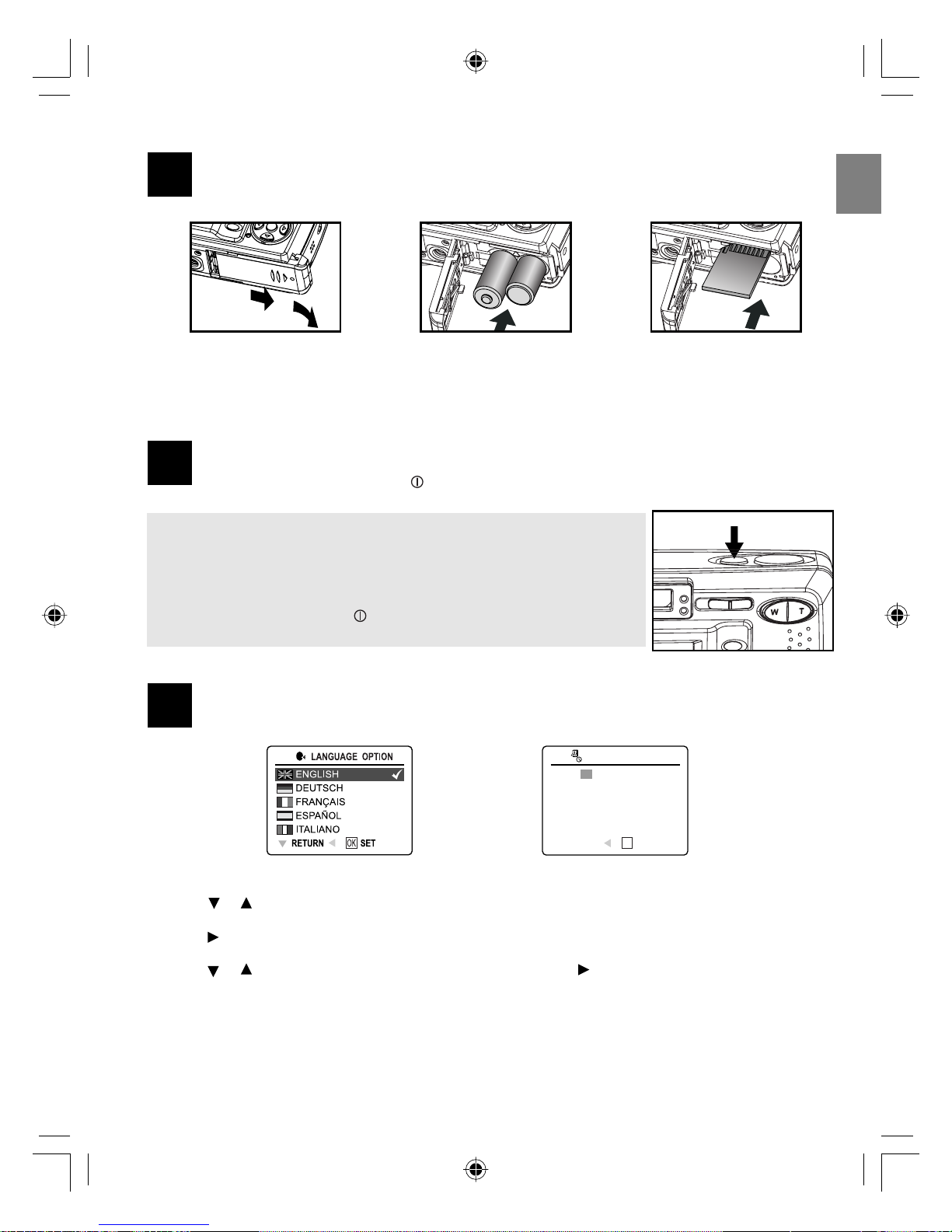

LOADING THE BATTERIES AND THE SD MEMORY CARD

1. Open the Battery/Memory Card door. (fig.1.1)

2. Insert the batteries and the SD memory card (sold separately). (fig.1.2-1.3)

3. Close the door.

TURNING THE CAMERA ON

Press and hold the Power Button ( ) for more than 1 second to turn the camera on.

Note: To extend battery life:

• The LCD will turn off after 1 minute of inactivity. After the LCD is

automatically turned off, the Flash Ready LED blinks. Press any buttons

to reactivate the LCD.

• The camera will automatically power off after 2 minutes of inactivity.

Press and hold the Power ( ) Button for more than 1 second to turn the

camera back on.

SETTING THE LANGUAGE, DATE AND TIME

When the camera is powered on for the first time, the Language, Date and Time menus will appear.

1. Press or to highlight the desired language. (fig. 1.1)

2. Press the OK button to select. The next screen will show the DATE/TIME SETUP page. (fig. 1.2)

3. Press to highlight the Date field, the Time fields, the Date Format field or the Time Format field. The

selected segment will blink.

4. Press or to change the number in the blinking position. Press to go to the next field.

5. Press the OK button to exit the DATE/TIME setting. The next screen will display live view.

fig.1.1 fig.1.2 fig.1.3

AWB

⁄ ⁄

AWB

⁄ ⁄

AWB

DATE/TIME SETUP

01 - 01 - 2004

01 : 01 AM

MM - DD - YYYY

12 - HOUR

RETURN SET

fig. 1.1 fig. 1.2

DZ QSG(515653-00)-E 2 2004.7.10, 10:13:42 AM

SETTING THE CAMERA MODE

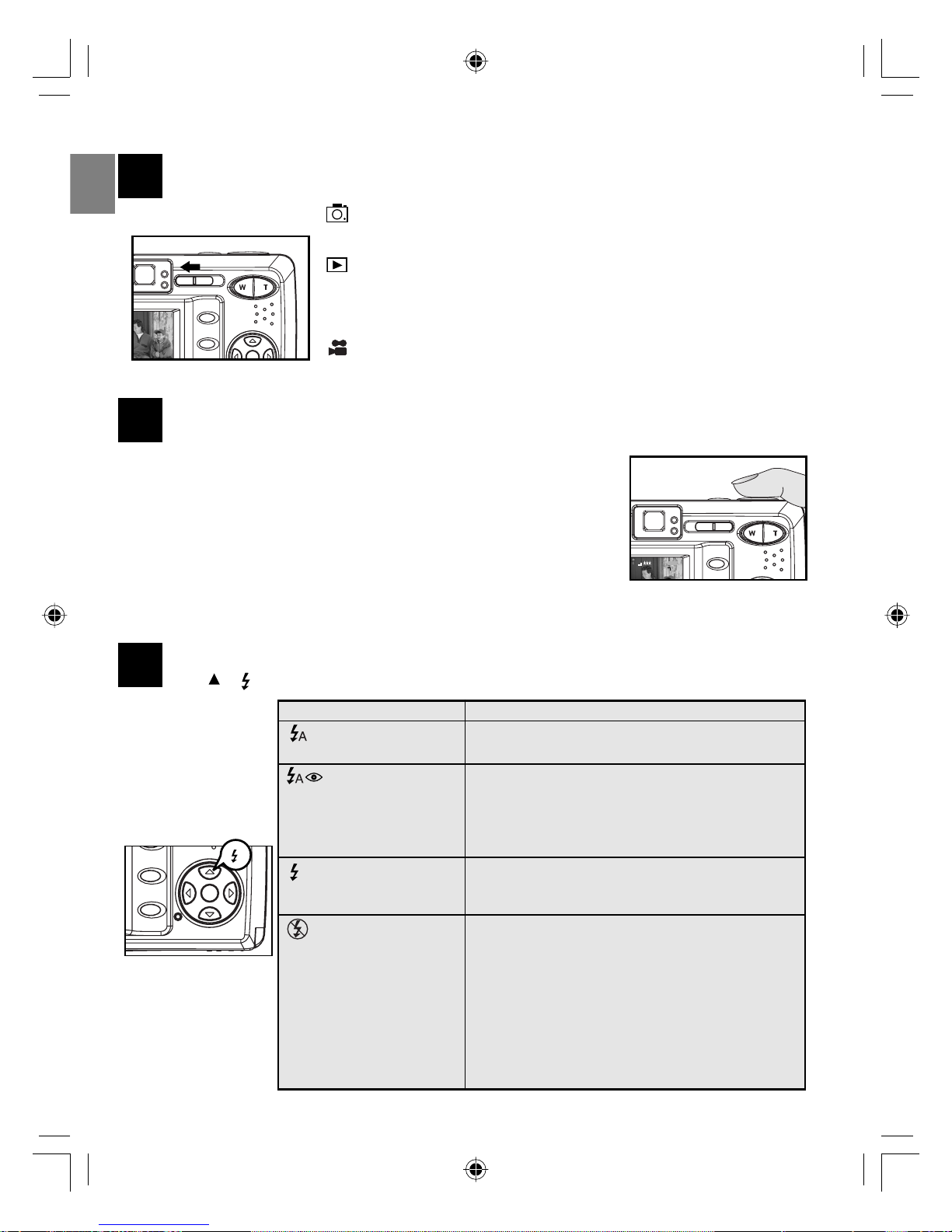

To change the camera operational mode, slide the mode switch horizontally to the corresponding

position.

TAKING PICTURES

1. Aim the camera at the subject, then look at the LCD to frame the desired

object(s) to be included in the photo.

2. Press the Shutter button halfway down to activate the Auto-Focus function

until the green AF LED stops blinking and the AF frame on the LCD changes

to green.

3. Hold the camera steady with both hands, then press and hold the Shutter

button down fully to capture the image.

• When the image is captured, a beep can be heard.

• After an image has been captured, the Flash Ready LED next to the

Viewfinder will blink to indicate that the image is being stored.

SETTING THE FLASH

Press / repeatedly until the desired indicator appears on the LCD.

Flash Mode Description

Auto Flash (Default) The camera judges if a flash is required. If the

environment is too dark, the flash will fire.

Auto + Red-Eye Use this mode to reduce the occurrence of “red

eyes” when taking pictures with a flash. The

camera will automatically detect when the flash is

needed and the flash will fire after a short

delay.

Flash ON Flash will fire in any lighting condition. The “red-

eye” reduction function is also included in this

mode .

Flash Off In this mode, the flash will not fire, regardless of

the lighting condition. Use this mode to capture

the mood of ambient lighting. This mode is also

useful for places that prohibit flash photography,

such as museums, aquarium, archeological

exhibitions, etc.

• To prevent blurry pictures in dim-lighting

environment, hold the camera steady when

pressing the Shutter button or mount the camera

on a tripod.

AWB

⁄ ⁄

AWB

⁄ ⁄

AWB

Camera Mode

For taking pictures or customizing your camera settings for picture taking.

Review Mode

For browsing images and video clips, deleting images and video clips, playing

a slide show, transferring images and/or video clips from the internal memory

to the SD card, or rotating images.

Video Clip Mode

For recording video clips or customizing camera settings for video-clip

recording.

AWB

28/45

AWB

⁄ ⁄

AWB

⁄ ⁄

AWB

⁄ ⁄

AWB

⁄ ⁄

AWB

DZ QSG(515653-00)-E 3 2004.7.10, 10:13:50 AM

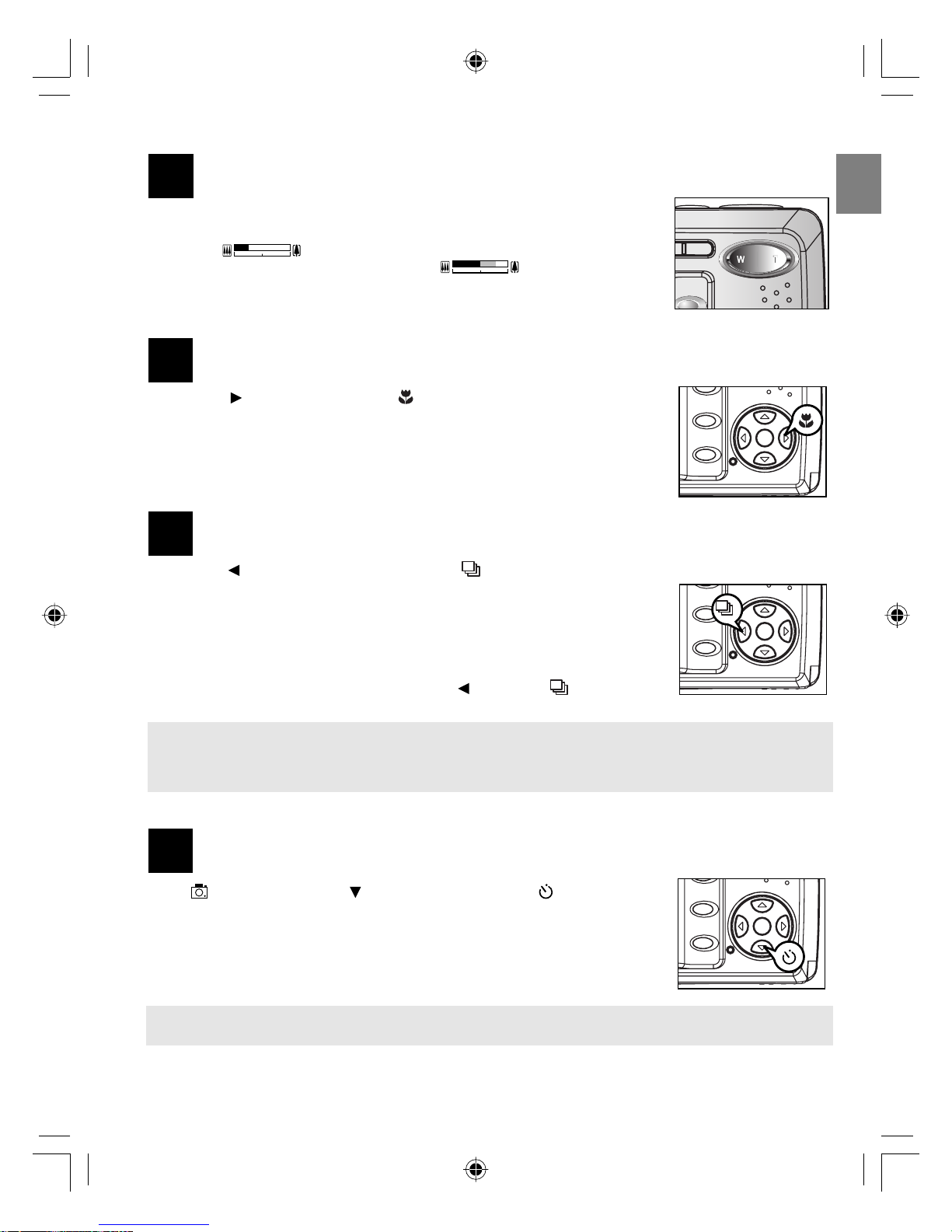

USING THE ZOOM

1. Press T(Tele) to zoom in to your subject.

• The optical zoom status is displayed in white color in the zoom bar on the

LCD ( ).

• The digital zoom status is shown in blue ( ).

2. Press W(Wide) to zoom out.

Note: The image quality may degrade slightly with digital zoom.

CLOSE-UP SHOOTING

1. Press the button. The Macro icon ( ) will be displayed on the LCD.

2. Frame the subject in the LCD.

• The best shooting range is between 15 cm to 60 cm. (5.9 in. – 23.6 in.)

3. Press and hold the Shutter button halfway to activate the Auto-Focus function

until the green AF LED stops blinking and the AF frame changes to green.

4. Press the Shutter button down fully to take the picture.

SHOOTING CONTINUOUS PICTURES

1. Press the button. The Continuous Shot icon ( ) will be displayed on the LCD.

2. Frame the subject in the LCD screen, press and hold the Shutter button halfway

down to activate the Auto-Focus function until the green AF LED stops blinking

and the AF frame changes to green.

3. Press and hold the Shutter button down fully to capture the pictures.

• The camera will automatically and continuously capture 7 consecutive images

at approximately 3 images per second in 640 x 480 resolution.

4. To exit the Continuous Shot function, press the button until disappears

from the LCD.

Note:

• In Continuous Shooting Mode, the flash is disabled, as the recharging time will slow it down.

• The LCD will be blank when the images are taken in the Continuous Shooting Mode.

TAKING PICTURES WITH SELF-TIMER

1. In ( ) Camera Mode, press button, the Self-Timer icon ( ) will appear on

the LCD.

2. Place the camera on a flat surface or tripod.

3. Use the LCD to compose the picture, then press the Shutter button to activate

the Self-Timer.

The Self-Timer LED will blink slowly for 7 seconds, faster for the remaining 3

seconds, then the image will be captured.

Note: The Self-Timer is automatically deactivated once the image is taken.

AWB

⁄ ⁄

AWB

⁄ ⁄

AWB

⁄ ⁄

AWB

⁄ ⁄

AWB

⁄ ⁄

AWB

⁄ ⁄

AWB

DZ QSG(515653-00)-E 4 2004.7.10, 10:14:02 AM

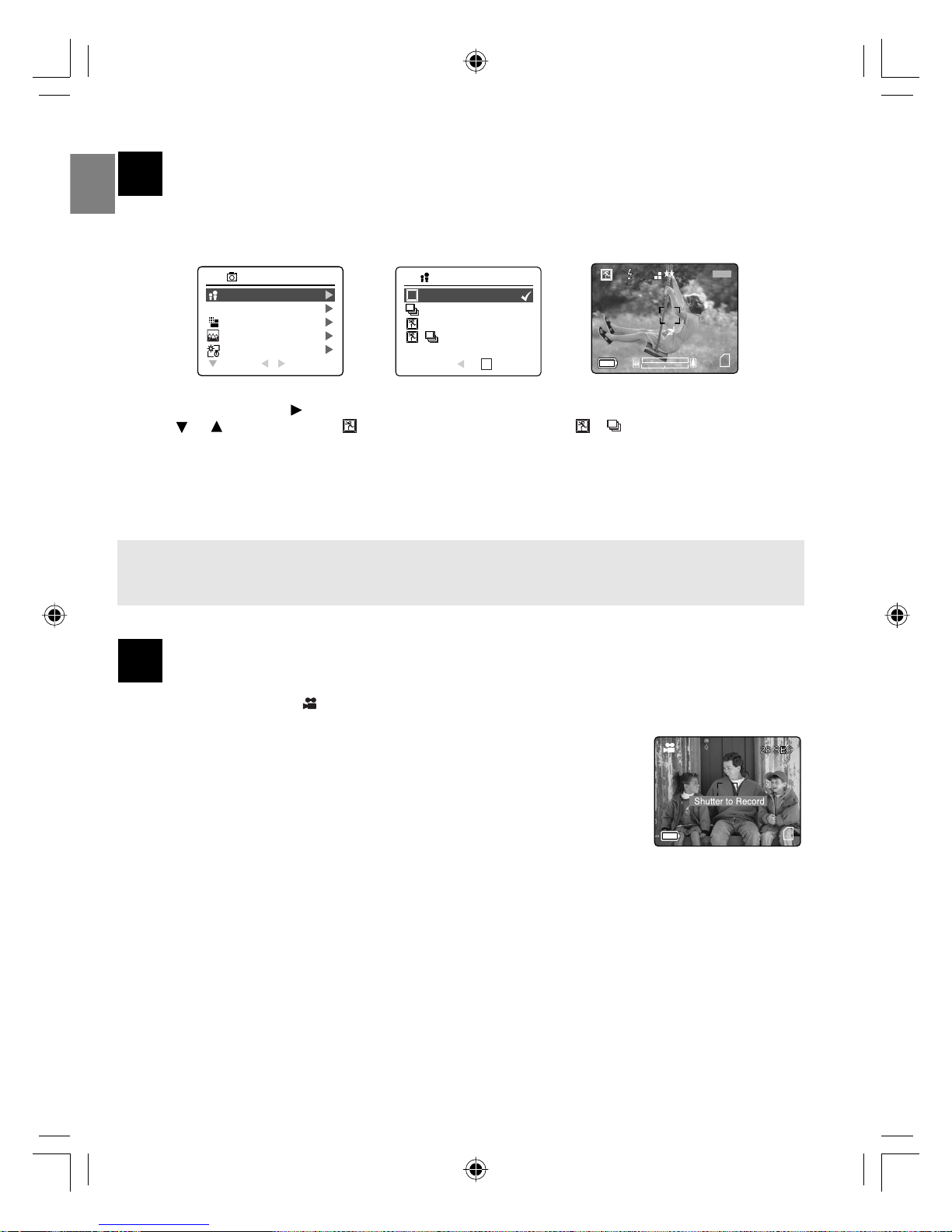

TAKING PICTURES IN SPORT MODE

This mode is used for taking pictures of sports and other high-speed activities. The camera will automatically

choose a higher shutter speed and wider aperture to capture fast-moving action to avoid blurriness.

1. In the main menu, press to enter the Capture Mode submenu.

2. Press or to highlight Sport ( ) or Sport + Continuous Shooting ( + ).

3. Press OK to enter the mode.

4. Frame the subject in the LCD.

5. Press and hold the Shutter button halfway to activate the focus until the green AF LED stops blinking and the

AF frame changes to green.

6. Press the Shutter button down fully to take the picture.

Note:

• Hold your camera steady to prevent blurriness. It is recommended to either place your camera on a flat,

steady surface or mount it on a tripod.

TAKING VIDEO CLIPS

1. Slide the Mode Switch to ( ) Video Clip Mode.

• The time limit is shown on the upper-right corner of the screen.

2. Position the subject in the LCD.

3. Press the Shutter button down fully to start recording a video clip. The time

recorded will be shown on LCD. The camera records a video clip until the

memory is full.

To stop recording:

1. Press the Shutter button again to stop recording.

2. The camera will stop recording only after the memory is full.

AWB

CAPTURE MODE

QUALITY SETUP

IMAGE SIZE

SCENE SELECTION

WHITE BALANCE

RETURN SELECT

CAMERA MODE

AWB

28/45

AWB

CAPTURE MODE

+

RETURN SET

DZ QSG(515653-00)-E 5 2004.7.10, 10:14:11 AM

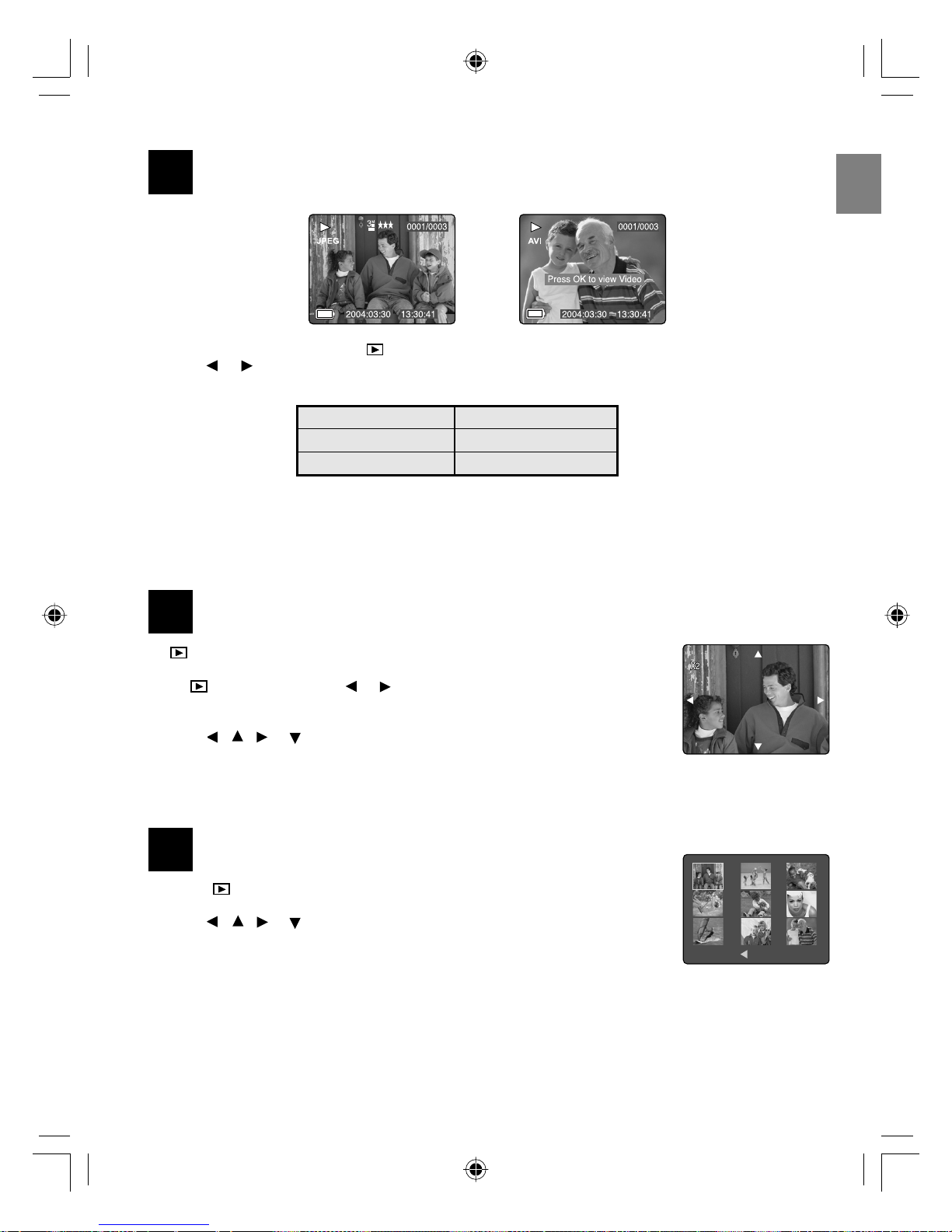

REVIEWING THE PICTURES/VIDEO CLIPS

1. Slide the Mode Switch towards ( ) .

2. Press or repeatedly to scroll through each file.

• The file type and frame counter will be displayed on the LCD.

File Indication File Type

JPEG Still Picture

AVI Video Clip

3. When a video clip icon (AVI) is displayed on the LCD, press the OK button to play the video clip.

Press the OK button to pause or resume playing video clip.

To stop playing the video clip, press the Shutter button.

ENLARGING THE PICTURES

In ( ) Review Mode, you can enlarge your pictures to take a closer look at the

subject on the LCD.

1. In ( ) Review Mode, press or repeatedly to scroll through the stored

pictures and video clips.

2. While viewing a stored still picture, press the Tbutton for different magnifications.

3. Press , , or to navigate around the picture. When the picture can pan

no farther in one direction, the directional arrow will disappear.

4. Press Wbutton to zoom out.

REVIEWING YOUR FILES IN THUMBNAIL

1. In the ( ) Review Mode, press Wbutton, nine thumbnail images or video clips

will appear on the LCD display in a few seconds.

2. Press , , or repeatedly to look through all the pictures and video clips.

3. Press the OK button to view the picture or video clip in full screen.

AWB

MENU0012/0012

AWB

DZ QSG(515653-00)-E 6 2004.7.10, 10:14:26 AM

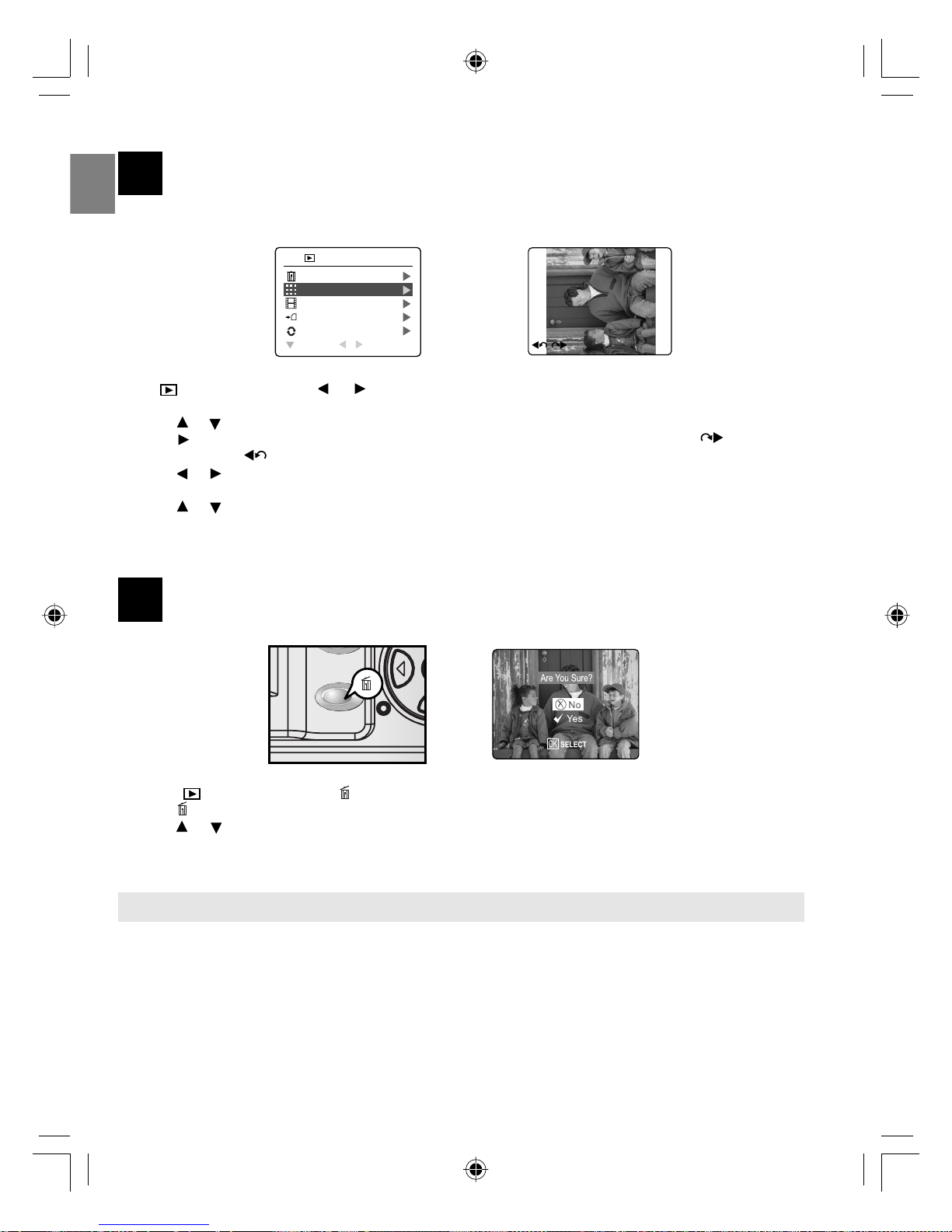

ROTATING THE IMAGES

The stored images can be rotated by 90 degrees clockwise (CW) or counter-clockwise (CCW) and replace the

original image with the rotated image.

1. In ( ) Review Mode, press or repeatedly to select the desired image to be rotated.

2. Press MENU to enter review menu.

3. Press or to select and highlight ROTATE.

4. Press . The selected image will be shown in full size on the LCD display. The rotate icon“ ”(to rotate

clock wise) and “ ” (to rotate counter clock wise) will also appear on the LCD.

5. Press or repeatedly to rotate the image 90 degrees clockwise or counter-clockwise.

6. Press OK to confirm selection. The LCD asks “Save?”

7. Press or to highlight “Yes” or “No”, and then press OK to confirm.

• If No is selected, no change will be made. The LCD will restore the original image.

• If Yes is selected, the image will be rotated and saved over the original image. The LCD shows the rotated

image.

DELETING YOUR FILES

You can delete one of your files in Review mode by simply pressing the Delete button.

1. In the ( ) Review Mode, press button once, the screen will display the message “Are you sure?”

Press button again, the screen will display the message “Delete All, Are you sure?”

2. Press or to highlight No or Yes.

3. Press the OK button to confirm selection.

• If No is selected, no change will be made.

• If Yes is selected, the selected file will be deleted.

Note: Once a file is deleted, it cannot be recovered.

AWB

DELETE FILE

THUMBNAIL

SLIDE SHOW

FILE TRANSFER

ROTATE

RETURN SELECT

REVIEW

AWB

DZ QSG(515653-00)-E 7 2004.7.10, 10:14:44 AM

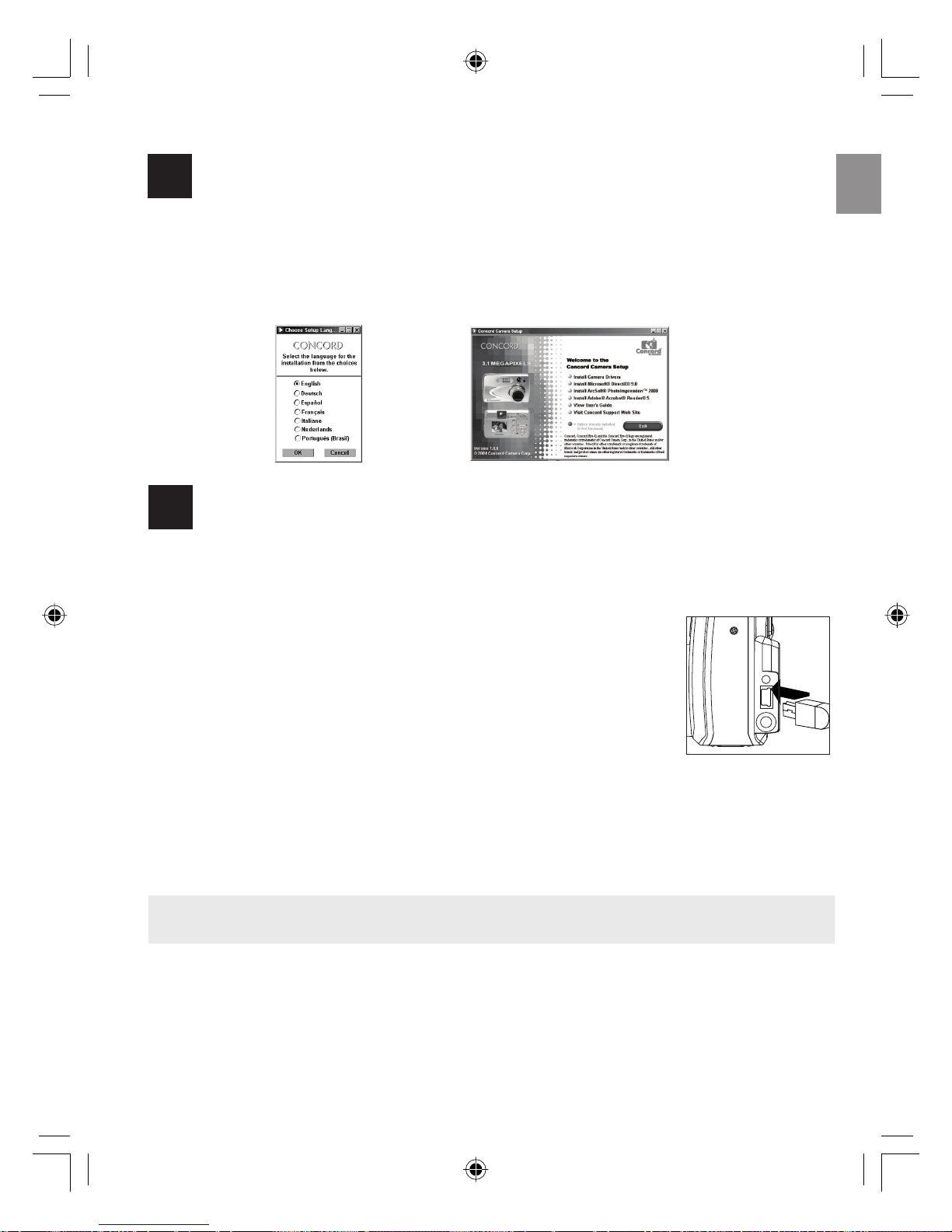

SOFTWARE INSTALLATIONS (WINDOWS)

1. Insert the supplied CD-ROM into your computer’s CD-ROM drive. The language selection screen props up.

Note: If the installer does not start automatically within 30 seconds after the CD-ROM has been inserted,

click on “My Computer” either on the Desktop or in the Start Menu and locate the CD-ROM Drive, then

double click on the CD-ROM Drive icon.

2. Select the language. Click [OK]. The installation screen will appear.

3. Click on the items to be installed and proceed to the installation by following the splash screen.

DOWNLOADING PICTURES/VIDEO CLIPS ONTO YOUR COMPUTER

Windows 98/98SE users must install the Camera Driver and DirectX 9 first.

Windows 2000 users must install DirectX 9 to view video clips on the computer.

FOR WINDOWS USERS

1. Connect the camera to the computer.

2. Double-click on My Computer.

3. Double-click Removable Disk.

4. Double-click DCIM.

5. Double-click the folder that contains the desired images to view.

• The stored pictures (JPG) and video clips (AVI) stored in the memory card will

be displayed

6. Click and drag the files into a directory in your computer to save them.

• To select all files, click Edit > Select all

FOR MACINTOSH USERS

1. Connect the camera to the computer.

• After a few moments, the external hard drive will appear on the desktop.

2. Double-click the “Concord” removable drive that is on your desktop.

3. Double-click DCIM.

4. Double-click the folder that contains the desired images to view.

• The pictures (JPEG) and video clips (AVI) stored in the memory card will be displayed.

5. Drag and drop the image you want to save in the computer.

• To select all files, click Edit > Select all.

Note: You may also transfer the stored pictures and video clips on your memory card onto your computer by

using a memory card reader. (Sold separately)

Concord and the Concord logo are registered trademarks or trademarks of Concord Camera Corp., in the United States and/or

other countries. Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United

States and/or other countries. Mac and Macintosh are registered trademarks or trademarks of Apple Computer, Inc. in the U.S.

and other countries. All other brands and product names are either registered trademarks or trademarks of their respective

owners.

DZ QSG(515653-00)-E 8 7/26/04, 2:20:02 PM

Andere Handbücher für Eye-Q 3345z

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Concord Camera Digitalkamera Handbücher

Concord Camera

Concord Camera Concord Eye-Q Eye-Q 3042AF Bedienungsanleitung

Concord Camera

Concord Camera 4340z Bedienungsanleitung

Concord Camera

Concord Camera Eye-Q 2133z Bedienungsanleitung

Concord Camera

Concord Camera Eye-Q Duo LCD Bedienungsanleitung

Concord Camera

Concord Camera 3047 Bedienungsanleitung

Concord Camera

Concord Camera Eye-Q 3132z Bedienungsanleitung

Concord Camera

Concord Camera 3043 Bedienungsanleitung

Concord Camera

Concord Camera Eye-Q 4363z Bedienungsanleitung

Concord Camera

Concord Camera 5345z Bedienungsanleitung

Concord Camera

Concord Camera 1500 Bedienungsanleitung

Concord Camera

Concord Camera Eye-Q 2100 Bedienungsanleitung

Concord Camera

Concord Camera 3341Z Questio Bedienungsanleitung

Concord Camera

Concord Camera 4060 AF Bedienungsanleitung

Concord Camera

Concord Camera 4360Z Questio Bedienungsanleitung

Concord Camera

Concord Camera 3.1 Megapixels Digital Camera Bedienungsanleitung

Concord Camera

Concord Camera 6340z Bedienungsanleitung

Concord Camera

Concord Camera 5345z Bedienungsanleitung

Concord Camera

Concord Camera 5345z Bedienungsanleitung

Concord Camera

Concord Camera 252BV Bedienungsanleitung

Concord Camera

Concord Camera 3103 Bedienungsanleitung

Concord Camera

Concord Camera Eye-Q 4062AF Bedienungsanleitung

Concord Camera

Concord Camera Eye-Q 3103 Bedienungsanleitung

Concord Camera

Concord Camera 2040 - Bedienungsanleitung

Concord Camera

Concord Camera PZ3300 Bedienungsanleitung

Beliebte Digitalkamera Handbücher anderer Marken

Mercury

Mercury 350K Bedienungsanleitung

Pentax

Pentax Optio LS 465 Bedienungsanleitung

Sanyo

Sanyo VPC-S1085 Bedienungsanleitung

GE SMART A1255 Bedienungsanleitung

Point Grey

Point Grey Gazelle Bedienungsanleitung

Nikon

Nikon COOLPIX A Bedienungsanleitung

Pentax

Pentax P-5 Bedienungsanleitung

BlazeVideo

BlazeVideo A280 Bedienungsanleitung

Sony

Sony MCA-20 Bedienungsanleitung

Sony

Sony Alpha DSLR-A290 Bedienungsanleitung

ATIK Cameras

ATIK Cameras One Bedienungsanleitung

CohuHD Costar

CohuHD Costar 3930 Series Bedienungsanleitung

Leica

Leica M10-R Bedienungsanleitung

FujiFilm

FujiFilm FinePix A700 Bedienungsanleitung

Lorex

Lorex LNZ81P25 Series Bedienungsanleitung

GE J1470S Bedienungsanleitung

Sony

Sony A6700 Benutzerhandbuch

Canon

Canon EOS ELAN7 Bedienungsanleitung
