CONEN SCETA Bedienungsanleitung

INSTALLATION GUIDE

FOR WALLMOUNTED AND MOBILE ELECTRICAL

HEIGHT ADJUSTABLE „LITE“ SYSTEMS FOR

USE WITH 42 – 84"DISPLAYS

CONTENT

Important hazard and safety notes 5

EC-Declaration of conformity 6 – 7

Assembly instructions 10 – 11

Systems with ﬂoor panel 10

Wall mounted systems 10

Mobile systems 10

„Lite“ frame installation 11

Operating unit for height adjustment 11

Thank you for purchasing our electrical height

adjustable units. Please carefully read all provided

informations before assembling and usage.

Assembly is uncomplicated but should be done by

trained personal only.

General hints for startup

Before connecting the unit to the power supply

please check that up/down movement of the unit will

not be blocked by any table, chair, other furniture etc.

Please also read attached hazard and safety notes.

Limitation of usage

This unit must not be equipped / used with other

components (I.e. trolley, frame unit for interactive

components, etc.

) but those, which are certiﬁed by us.

We cannot take over any warranty for safety and proper

function for third party components.

Hint

Changes made to components, which serve to technical

progress, can be put into effect without prior notice.

Stirling Communications Supply Co| 29 Poplar Drive, Stirling NJ 07980 | 908-604-9360|

[email protected] | www.stirlingcomm.com

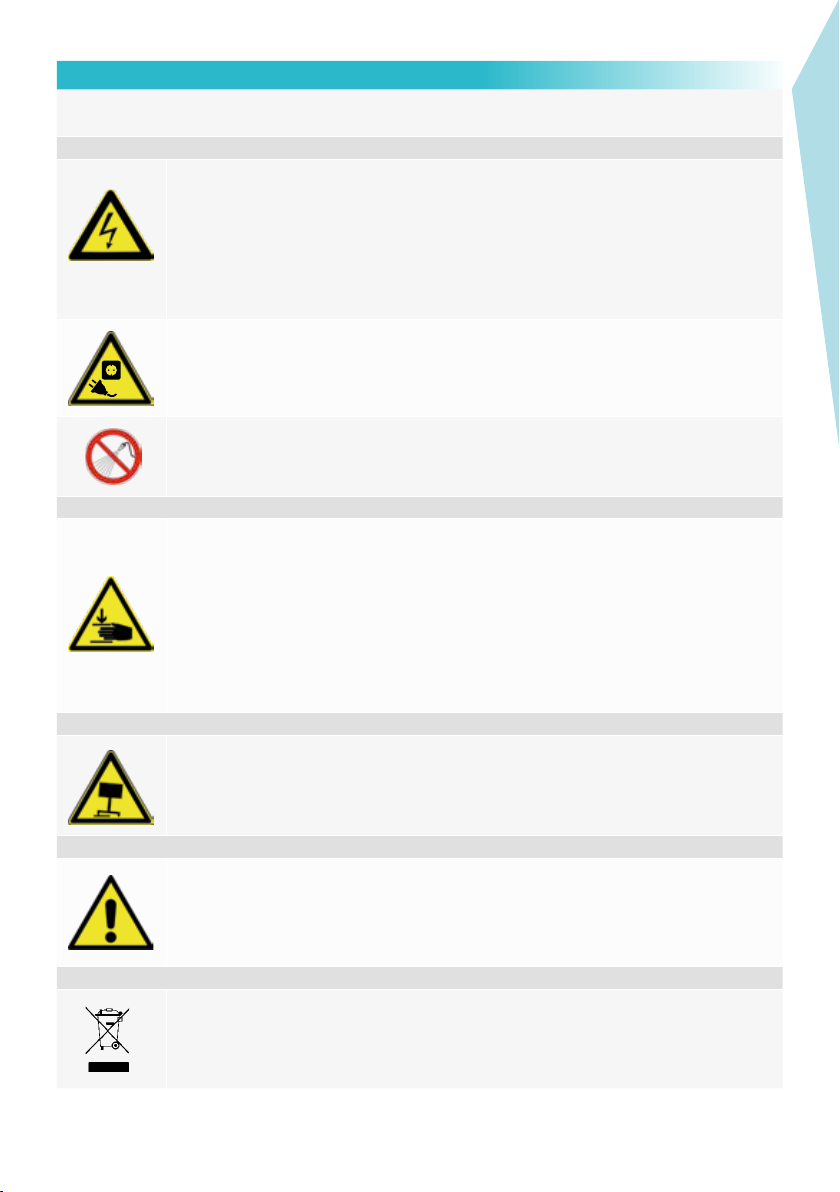

Please carefully read the below hazard and safety notes before using the height adjustment unit.

This adds to make the unit work failure-free and avoids accidents.

Electrical safety

Connect unit to a free accessible 110 – 230 V / 50 Hz grounded power outlet only. Make sure, the unit

can be immediately separated from the power outlet.

Only use unit in dry rooms, protect unit from water and other liquids. Only wipe unit with dry cloth.

Do not open lift unit. RISK OF ELECTRIC SHOCK. There are no serviceable parts inside.

In case of disfunction unplug unit from power outlet and call an authorised technical service person.

Do not overrun line cord or damage in any other way. Replace damaged line cords immediately with

new one from same type.

The socket connections of the unit and the wall socket must be easily accessible.

The device is not dripping or splash water protected.

Do not place objects ﬁlled with liquids on or spray the device.

General hints for mechanical safety

Do not improperly load unit. Do not mount other than original parts (whiteboard, wings, interactive board,

interactive monitor, projector) in conjunction with original mounting parts. Do not hang on unit.

VERY HEAVY UNIT.

Severe risk of injury when unit falls over due to improper usage. Only use original mounting parts

provided with the system. Max load of lift unit is 150 kg/ 330 lbs. Do not exceed.

Assure installation of unit by authorized service person only.

Before moving the unit up or down ashure at least a safety distance of 20 cm/ 7.9 from any part of

the unit to any other ﬁtment in order to avoid shear traps or squeezing points.

In case of accident please release operating panel. Movement of unit will stop immediately.

Special hints for moveable und free standing units

Only operate unit on plane and stable ﬂoors. Move unit on plane ﬂoors only.

Risk of tilting when overrunning ﬂoorunevennesses, door sills and similar.

VERY HEAVY UNIT.

Severe risk of injury when unit falls over. Lock brakes of front wheels when operating unit.

Special hints for wall mounted units

Use appropriate wall mounting material only. Choose douwels and screws according to the wall type

and material. Using improper mounting material may result in tilting of the unit and severe risk of injury.

Wall mounting must be done by experienced personal only.

Instructions for disposal

Do not dispose to consumer waste.

Important hazard & safety notes

Stirling Communications Supply Co| 29 Poplar Drive, Stirling NJ 07980 | 908-604-9360|

[email protected] | www.stirlingcomm.com

EC-DECLARATION OF CONFORMITY in accordance with European directive 2006/42/EG, part II A

We hereby certify that the machine described hereafter, in its design and construction and in the model put into circulation,

complies with all relevant health and safety requirements of the EC machinery directive 2006/42/EG. Any modiﬁcation to our

product, without our written consent, will result in this declaration to become void.

Manufactors name or of his representative Conen Produkte GmbH, D - 54497 Morbach-Gonzerath

Description of the machine Motorized lift system for displays and (interactive) boards

Part-No. SCETA (-L) / SCETA-W(L) / SCETTA/ SCETAVLI / CCELW-AF

European directive(s)

EC-machinery directive (2006/42/EG)

EMC directive (2014/30/EU)

WEEE-Directive 2012/19/EU

WEEE-Registration-Nr 12204025

European standards

EN 14434:2010-04 / EN 60335-1:2012 / EN 62233:2008

EN 61000-3-2:2006+A1:2009

EN 61000-3-3:2008

EN 61000-6-1:2007

EN 61000-6-3:2007

EN 55024:2010 / 55014-1:2006+A1:2009+A2:2011

National standards and speciﬁcations

ROHS Directive 2011/65/EU

IEC 61558-1 und 2:2009

C/US Authorisation to Mark „ETL“

Person in charge for document collection Jürgen Heesen

Declaration signed by Marcus Staudt

Position Product developement

Date and signature 10.08.2018,

Stirling Communications Supply Co| 29 Poplar Drive, Stirling NJ 07980 | 908-604-9360|

[email protected] | www.stirlingcomm.com

2.1.

WALL MOUNTED SYSTEM

Fix 2 x Z-bracket to the wall.

Wallmounting material is not

included.

1Put 2 sliding blocks into the rail

2Connect it to the Z-bracket

3Screw the ﬂoor leveling feet against the ﬂoor

2 x selﬂocking nut M8

2 x washer 8 mm

≈ 10 cm/ 4"

FOR FLOOR PANEL

Connect the ﬂoor panel to the column.

4 x countersunk Allen head screw

M8 x 40 mm

SYSTEMS WITH FLOOR PANEL

MOBILE SYSTEMS

FOR V-STAND

Connect the trolley to the column.

4 x lens head Allen screw with ﬂange

M8 x 40 mm

≈ 10 cm/ 4"

Stirling Communications Supply Co| 29 Poplar Drive, Stirling NJ 07980 | 908-604-9360|

[email protected] | www.stirlingcomm.com

Stirling Communications Supply Co| 29 Poplar Drive, Stirling NJ 07980 | 908-604-9360|

[email protected] | www.stirlingcomm.com

Connect the

5-pole plug

of the cable

remote control

to the column.

Connect the power

cable to the

column.

For moving the unit up or down just press and hold the buttons

on the control unit. Releasing the button will immediately stop the

movement. So in case of emergency just unhand the control unit

(watchdog switch).

Height adjustable

AUp

BDown

A B

1Attach upper bar using 2 x lens head Allen screw with ﬂange

M8 x 85 (long) and ensure the slotted holes facing upwards

and towards the screen.

2Attach lower bar using 2 x M6 x 30 (short) screws and ensure

the slotted holes facing ﬂoor and towards the screen.

„LITE“ FRAME INSTALLATION

OPERATING UNIT FOR HEIGHT ADJUSTMENT

Secure “lift & lock”-brackets

to the display, before

attaching to mount.

To attach the display to the

mount use the included

4 x M8 x 16 mm or

4 x M6 x 16 mm lens head

Allen screw with ﬂange.

Stirling Communications Supply Co| 29 Poplar Drive, Stirling NJ 07980 | 908-604-9360|

[email protected] | www.stirlingcomm.com
