Contec PO-32B(PCI)H Bedienungsanleitung

Ver.1.12

PO-32B(PCI)H 1

Isolated Digital Output Board

for PCI (Internal power supply)

PO-32B(PCI)H

*Specifications, color and design of the products are subject to

change without notice.

This board is a PCI-compliant interface board for output of

digital signals.

The PC can be used to input the on/off state of a switch and to

control a relay.

This product can output up to 32 channels.

Using the bundled driver library package [API-PAC(W32)], you

can create Windows application software for this board in your

favorite programming language supporting Win32 API functions,

such as Visual Basic or Visual C/C++.

* The contents in this document are subject to change

without notice.

* Visit the CONTEC website to check the latest details in the

document.

* The information in the data sheets is as of April, 2018.

A different external power supply can be used for each

common pin as it is shared by 16 channels.

The PCI bus (personal computer) and the output interface are

isolated from each other by an Optocoupler, offering good

noise immunity.

Up to 35VDC, 100mA per signal, max. output.

Zener diode connected to output transistors for protection from

surge voltage. Overcurrent protective device provided for

every eight channels of output transistors.

The board carries an Optocoupler driving power supply. You

can select whether to use the internal power supply or an

external power supply.

Item

Specification

Output section

Output format Optocoupler isolated input (Compatible with current sink

output)(Negative logic *1)

Number of output signal

channels

32 channels(One common power supply per 16 channels)

Output

rating

Output voltage

35VDC (Max.)

Output current

100mA (par channel) (Max. )

Residual voltage with

output on

0.5V or less (Output current≤50mA), 1.0V or less (Output

current≤100mA)

Surge protector

Zener diode RD47FM(NEC) or equivalent

Response time

200µsec within

Common section

I/O address

Any 32-byte boundary

Interruption level

Not used

Max. board count for

connection

16 boards including the master board

External circuit power

supply

12 - 24VDC(±10%)

Internal power

12VDC 240mA *2

Power consumption

5VDC 1200mA (Max.) (Using the internal power)

5VDC 300mA (Max.) (Using the External power)

Operating condition

0 - 50°C, 10 - 90%RH (No condensation)

Allowable distance of

signal extension

Approx. 50m (depending on wiring environment)

PCI bus specification

32bit, 33MHz, Universal key shapes supported *3

Dimension (mm)

176.41(L) x 105.68(H)

Weight

150g

Standard

VCCI Class A, CE Marking (EMC Directive Class A, RoHS

Directive)

*1 Data “0” and “1” correspond to the High and Low levels, respectively.

*2 When the internal power supply is used, the switch section of output channel consumes a

maximum of 40 mA and thus the output current to be supplied from the board is 200 mA.

*3 This board requires +5V power supply from expansion slots (it does not operate in the

environment of only +3.3V power supply).

Board Dimensions

[mm]

The standard outside dimension (L) is

the distance from the end of the board

to the outer surface of the slot cover.

176.41(L)

105.68(H)

Specification

Features

PLUG-IN Electronic GmbH • Am Sonnenlicht 5 • 82239 Alling • Tel.: +49 (0) 8141 3697-0 • [email protected] • www.plug-in.de

Ver.1.12

PO-32B(PCI)H 2

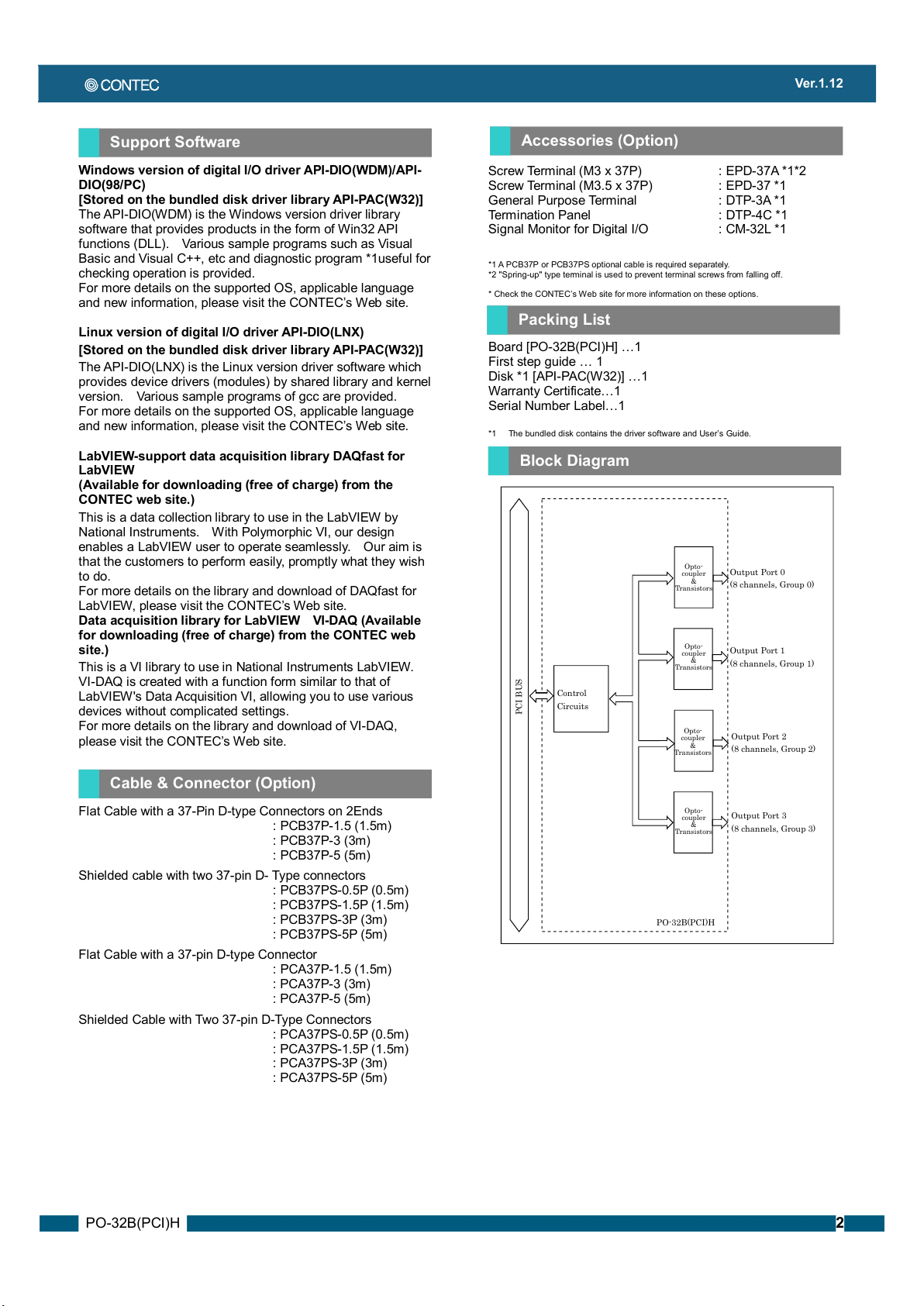

Windows version of digital I/O driver API-DIO(WDM)/API-

DIO(98/PC)

[Stored on the bundled disk driver library API-PAC(W32)]

The API-DIO(WDM) is the Windows version driver library

software that provides products in the form of Win32 API

functions (DLL). Various sample programs such as Visual

Basic and Visual C++, etc and diagnostic program *1useful for

checking operation is provided.

For more details on the supported OS, applicable language

and new information, please visit the CONTEC’s Web site.

Linux version of digital I/O driver API-DIO(LNX)

[Stored on the bundled disk driver library API-PAC(W32)]

The API-DIO(LNX) is the Linux version driver software which

provides device drivers (modules) by shared library and kernel

version. Various sample programs of gcc are provided.

For more details on the supported OS, applicable language

and new information, please visit the CONTEC’s Web site.

LabVIEW-support data acquisition library DAQfast for

LabVIEW

(Available for downloading (free of charge) from the

CONTEC web site.)

This is a data collection library to use in the LabVIEW by

National Instruments. With Polymorphic VI, our design

enables a LabVIEW user to operate seamlessly. Our aim is

that the customers to perform easily, promptly what they wish

to do.

For more details on the library and download of DAQfast for

LabVIEW, please visit the CONTEC’s Web site.

Data acquisition library for LabVIEW VI-DAQ (Available

for downloading (free of charge) from the CONTEC web

site.)

This is a VI library to use in National Instruments LabVIEW.

VI-DAQ is created with a function form similar to that of

LabVIEW's Data Acquisition VI, allowing you to use various

devices without complicated settings.

For more details on the library and download of VI-DAQ,

please visit the CONTEC’s Web site.

Flat Cable with a 37-Pin D-type Connectors on 2Ends

: PCB37P-1.5 (1.5m)

: PCB37P-3 (3m)

: PCB37P-5 (5m)

Shielded cable with two 37-pin D- Type connectors

: PCB37PS-0.5P (0.5m)

: PCB37PS-1.5P (1.5m)

: PCB37PS-3P (3m)

: PCB37PS-5P (5m)

Flat Cable with a 37-pin D-type Connector

: PCA37P-1.5 (1.5m)

: PCA37P-3 (3m)

: PCA37P-5 (5m)

Shielded Cable with Two 37-pin D-Type Connectors

: PCA37PS-0.5P (0.5m)

: PCA37PS-1.5P (1.5m)

: PCA37PS-3P (3m)

: PCA37PS-5P (5m)

Screw Terminal (M3 x 37P) : EPD-37A *1*2

Screw Terminal (M3.5 x 37P) : EPD-37 *1

General Purpose Terminal : DTP-3A *1

Termination Panel : DTP-4C *1

Signal Monitor for Digital I/O : CM-32L *1

*1 A PCB37P or PCB37PS optional cable is required separately.

*2 "Spring-up" type terminal is used to prevent terminal screws from falling off.

* Check the CONTEC’s Web site for more information on these options.

Board [PO-32B(PCI)H] …1

First step guide … 1

Disk *1 [API-PAC(W32)] …1

Warranty Certificate…1

Serial Number Label…1

*1 The bundled disk contains the driver software and User’s Guide.

Output Port 0

(8 channels, Group 0)

Output Port 1

(8 channels, Group 1)

Output Port 2

(8 channels, Group 2)

Output Port 3

(8 channels, Group 3)

Control

Circuits

PO-32B(PCI)H

PCI BUS

Opto-

coupler

Transistors

Opto-

coupler

Transistors

Opto-

coupler

Transistors

Opto-

coupler

Transistors

Cable & Connector (Option)

Block Diagram

Support Software

Accessories (Option)

Packing List

PLUG-IN Electronic GmbH • Am Sonnenlicht 5 • 82239 Alling • Tel.: +49 (0) 8141 3697-0 • [email protected] • www.plug-in.de

Ver.1.12

PO-32B(PCI)H 3

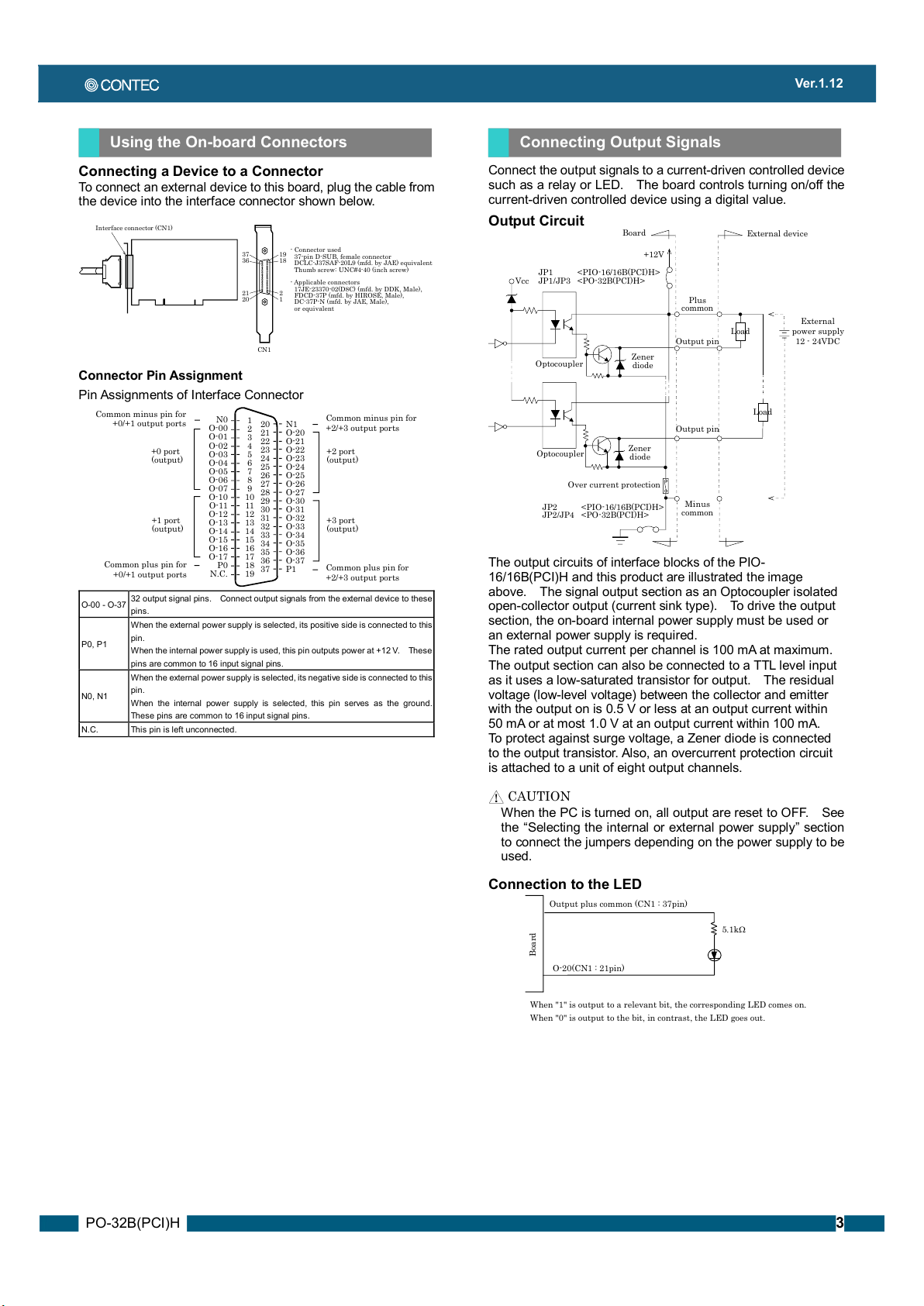

Connecting a Device to a Connector

To connect an external device to this board, plug the cable from

the device into the interface connector shown below.

Connector Pin Assignment

Pin Assignments of Interface Connector

O-00 - O-37

32 output signal pins. Connect output signals from the external device to these

pins.

P0, P1

When the external power supply is selected, its positive side is connected to this

pin.

When the internal power supply is used, this pin outputs power at +12 V. These

pins are common to 16 input signal pins.

N0, N1

When the external power supply is selected, its negative side is connected to this

pin.

When the internal power supply is

selected, this pin serves as the ground.

These pins are common to 16 input signal pins.

N.C.

This pin is left unconnected.

Connect the output signals to a current-driven controlled device

such as a relay or LED. The board controls turning on/off the

current-driven controlled device using a digital value.

Output Circuit

The output circuits of interface blocks of the PIO-

16/16B(PCI)H and this product are illustrated the image

above. The signal output section as an Optocoupler isolated

open-collector output (current sink type). To drive the output

section, the on-board internal power supply must be used or

an external power supply is required.

The rated output current per channel is 100 mA at maximum.

The output section can also be connected to a TTL level input

as it uses a low-saturated transistor for output. The residual

voltage (low-level voltage) between the collector and emitter

with the output on is 0.5 V or less at an output current within

50 mA or at most 1.0 V at an output current within 100 mA.

To protect against surge voltage, a Zener diode is connected

to the output transistor. Also, an overcurrent protection circuit

is attached to a unit of eight output channels.

When the PC is turned on, all output are reset to OFF. See

the “Selecting the internal or external power supply” section

to connect the jumpers depending on the power supply to be

used.

Connection to the LED

CN1

36 18

21 2

Interface connector (CN1)

- Connector used

37-pin D-SUB, female connector

DCLC-J37SAF-20L9 (mfd. by JAE) equivalent

Thumb screw: UNC#4-40 (inch screw)

-Applicable connectors

17JE-23370-02(D8C) (mfd. by DDK, Male),

FDCD-37P(mfd. by HIROSE, Male),

DC-37P-N (mfd. by JAE, Male),

or equivalent

O-00

O-01

O-02

O-03

O-04

O-05

O-06

O-07

O-10

O-11

O-12

O-13

O-14

O-15

O-16

O-17

N.C.

O-20

O-21

O-22

O-23

O-24

O-25

O-26

O-27

O-30

O-31

O-32

O-33

O-34

O-35

O-36

O-37

+0 port

(output)

+1 port

(output)

+2 port

(output)

+3 port

(output)

Common plus pin for

+0/+1 output ports Common plus pin for

+2/+3 output ports

Common minus pin for

+2/+3 output ports

Common minus pin for

+0/+1 output ports

Vcc

JP2 <PIO-16/16B(PCI)H>

JP2/JP4 <PO-32B(PCI)H>

JP1 <PIO-16/16B(PCI)H>

JP1/JP3 <PO-32B(PCI)H>

+12V

Board External device

Plus

common

Minus

common

Output pin

Load

External

power supply

12 - 24VDC

Zener

diode

Zener

diode

Over current protection

Optocoupler

CAUTION

Output plus common (CN1 : 37pin)

Board

When "1" is output to a relevant bit, the corresponding LED comes on.

When "0" is output to the bit, in contrast, the LED goes out.

O-20(CN1 : 21pin)

5.1kΩ

Using the On-board Connectors

Connecting Output Signals

PLUG-IN Electronic GmbH • Am Sonnenlicht 5 • 82239 Alling • Tel.: +49 (0) 8141 3697-0 • [email protected] • www.plug-in.de

Ver.1.12

PO-32B(PCI)H 4

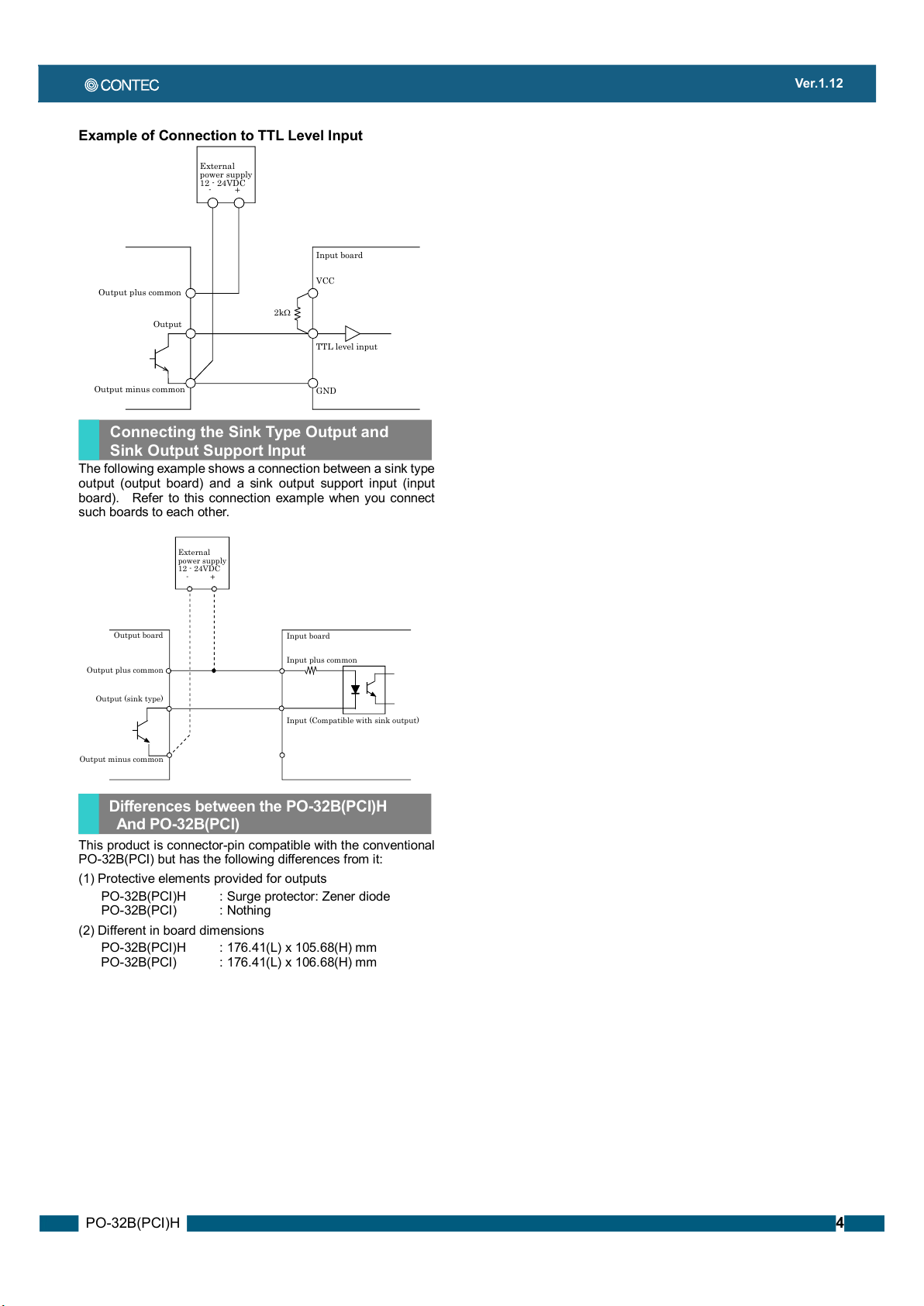

Example of Connection to TTL Level Input

The following example shows a connection between a sink type

output (output board) and a sink output support input (input

board). Refer to this connection example when you connect

such boards to each other.

This product is connector-pin compatible with the conventional

PO-32B(PCI) but has the following differences from it:

(1) Protective elements provided for outputs

PO-32B(PCI)H : Surge protector: Zener diode

PO-32B(PCI) : Nothing

(2) Different in board dimensions

PO-32B(PCI)H : 176.41(L) x 105.68(H) mm

PO-32B(PCI) : 176.41(L) x 106.68(H) mm

Output plus common

Output

Output minus common

TTL level input

VCC

Input board

GND

2kΩ

External

power supply

12 - 24VDC

External

power supply

12 - 24VDC

Output board

Output plus common

Output (sink type)

Output minus common

Input (Compatible with sink output)

Input plus common

Input board

Connecting the Sink Type Output and

Sink Output Support Input

Differences between the PO-32B(PCI)H

And PO-32B(PCI)

PLUG-IN Electronic GmbH • Am Sonnenlicht 5 • 82239 Alling • Tel.: +49 (0) 8141 3697-0 • [email protected] • www.plug-in.de

Andere Contec E/A-System Handbücher

Contec

Contec F&eIT Series Bedienungsanleitung

Contec

Contec DAI12-4(USB)GY Bedienungsanleitung

Contec

Contec F&eIT Series Bedienungsanleitung

Contec

Contec CONPROSYS nano CPSN-COM-1PD Bedienungsanleitung

Contec

Contec PIO-64 Bedienungsanleitung

Contec

Contec COM-4CX-USB Bedienungsanleitung

Contec

Contec PIO-32H(PCI)H Bedienungsanleitung

Contec

Contec PIO-16/16L(PCI)H Bedienungsanleitung

Contec

Contec CPS-MC341-DS1 -111 Bedienungsanleitung

Contec

Contec DA12-16PCI Bedienungsanleitung

Contec

Contec COM-4CX-USB Bedienungsanleitung

Contec

Contec AIO-160802GY-USB Bedienungsanleitung

Contec

Contec PIO-16/16L(PC)V Bedienungsanleitung

Contec

Contec PIO-32/32F(PCI)H Bedienungsanleitung

Contec

Contec PO-32L(PCI)H Bedienungsanleitung

Contec

Contec AI-1664LAX-USB Bedienungsanleitung

Contec

Contec PIO-32/32B(PCI)V Bedienungsanleitung

Contec

Contec PCI-bus Analog Input Multi-Function Board... Bedienungsanleitung

Contec

Contec FA-UNIT-M11BE Bedienungsanleitung

Contec

Contec DIO-128SLX-USB Bedienungsanleitung

Contec

Contec POW150X Bedienungsanleitung

Contec

Contec DIO-8D(FIT)GY Bedienungsanleitung

Contec

Contec N Series Bedienungsanleitung

Contec

Contec DIO-48D2-PCI Bedienungsanleitung

Beliebte E/A-System Handbücher anderer Marken

WAGO

WAGO 750-344 Bedienungsanleitung

Teknim

Teknim TWM-1887 Bedienungsanleitung

Intelligent Appliance

Intelligent Appliance IA-2662-E Bedienungsanleitung

BERGHOF

BERGHOF ECC DIO 16/16 Bedienungsanleitung

Advantech

Advantech PCM-27J3AU Installations- und Betriebshandbuch

Festo

Festo CP-E08-M12-CL Bedienungsanleitung

Measurement Computing

Measurement Computing PCI-DAS64/M1/16 Bedienungsanleitung

Hitachi

Hitachi HX-RIO3 Series Bedienungsanleitung

NUUO

NUUO SCB-A08 Bedienungsanleitung

M-system

M-system R3Y-RS8 Bedienungsanleitung

jablotron

jablotron JB-110N Bedienungsanleitung

Omron

Omron SYSMAC C200H Bedienungsanleitung

DOLD

DOLD SAFEMASTER M Bedienungsanleitung

ABB

ABB OPT-MF-001 Bedienungsanleitung

Omron

Omron SYSMAC C2000H Bedienungsanleitung

Helmholz

Helmholz TB20 Bedienungsanleitung

ICP DAS USA

ICP DAS USA tM-AD2 Bedienungsanleitung

Automationdirect.com

Automationdirect.com DL305 Bedienungsanleitung
