Converters.TV 15421 Bedienungsanleitung

HDMI 6G Audio Bridge with Pattern

Generator - # 15421

Operation Manual

Introdu tion

The 4K2K HDMI 6G Pattern Generator with Audio Bridge is an advanced

and convenient tool for generating HDMI 6G signals for testing HDMI

devices With 6 built-in settings covering Ultra HD and Full HD resolutions,

4 test patterns, HDCP (1 4, 2 2 and non-HDCP) and 2 audio types each

providing a large array of test patterns, and incorporates both digital and

analog audio inputs for embedding into an HDMI output The colorful LED

design allows fast and easy selection of patterns and quick viewing of the

current status

Appli ations

• Production testing

• R&D design and testing

Features

• HDMI with 4K2K 6G supported and HDCP 2 2 compliant

• Generate HDMI timings up to 6Gbps 4K2K@60

• Generate HDCP v1 4/v2 2 and non-HDCP signal

• Supports external analog stereo and optical digital audio inputs

System

Requirements

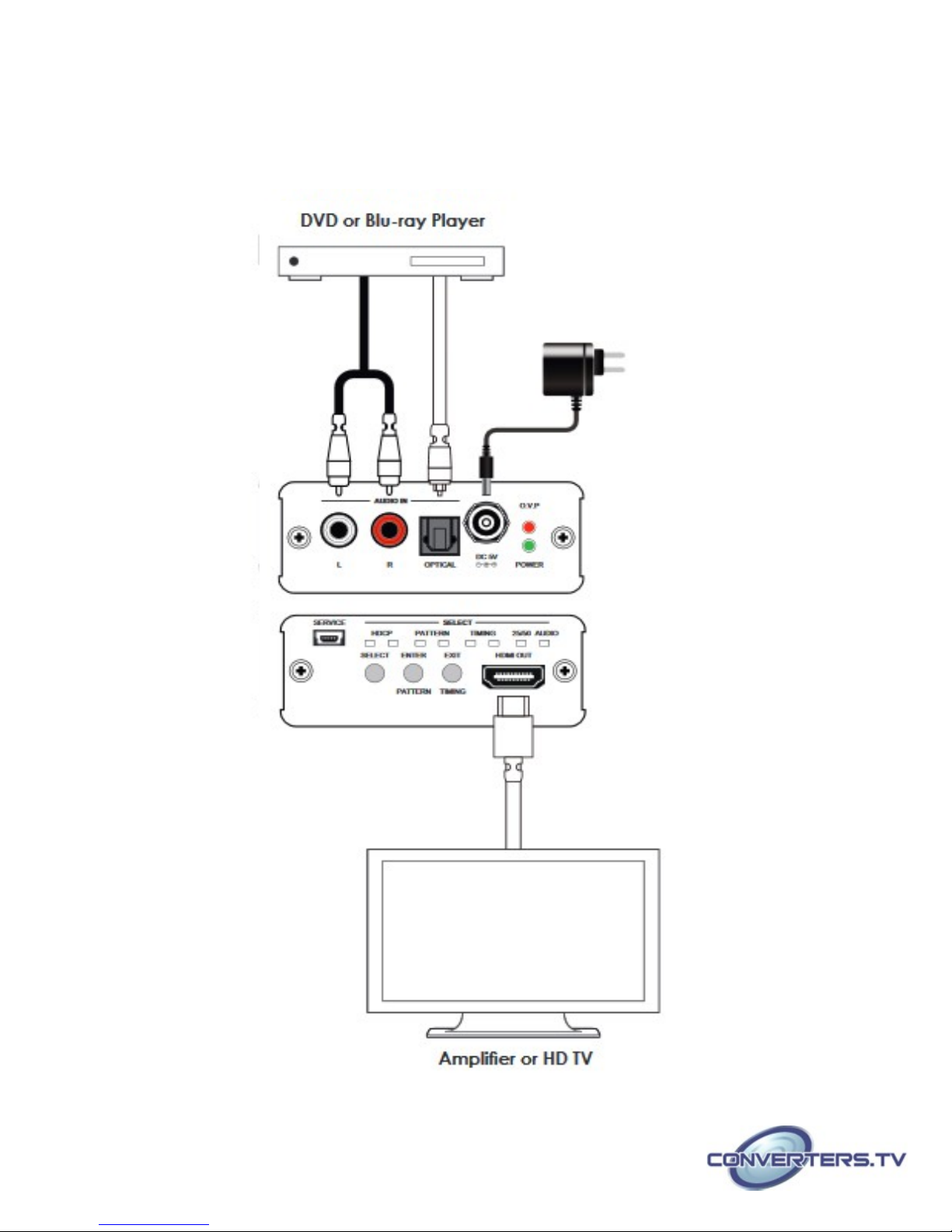

Input audio source signals with output HDMI display/monitor and

connection cables

Operation

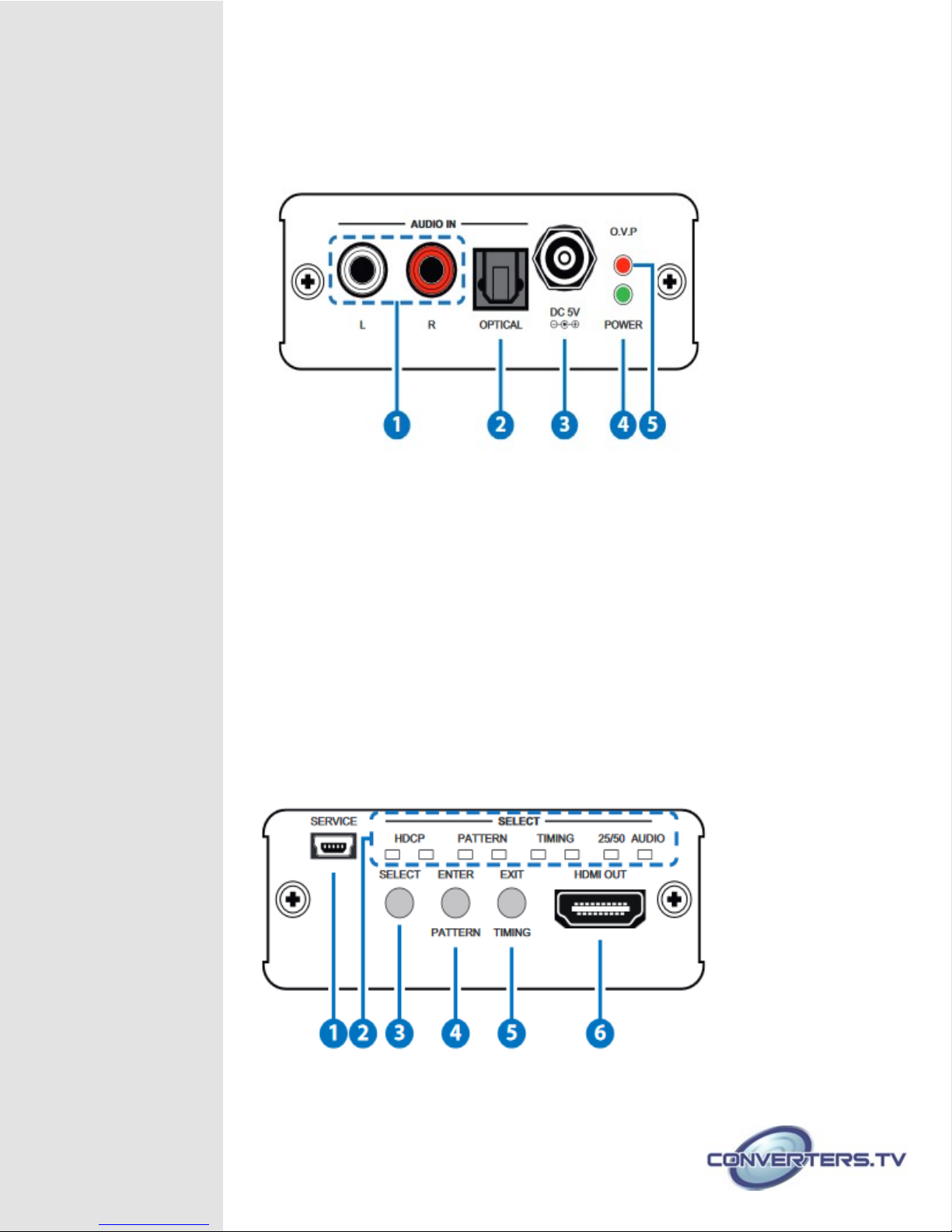

Controls and Front Panel

Fun tions

1. AUDIO IN L/R:

Connect from audio source equipment with L/R cables

2. AUDIO IN OPTICAL:

Connect from audio source equipment with optical cable

3. POWER:

Plug the 5V DC power supply into the unit and connect the adaptor to an

AC outlet

4. POWER:

This LED will illuminate when the device is connected with power supply

5. O.V.P.(Over Voltage Protection :

This LED will illuminate when the input power supply exceed from 5V to

28V and the device will be terminated

Rear Panel

1. SERVICE:

This slot is reserved for factory use only

2. SELECT LED:

These LEDs will illuminate according to the selection

Each selection with 2 LEDs of 3 colors, left LED is blue and right LED are

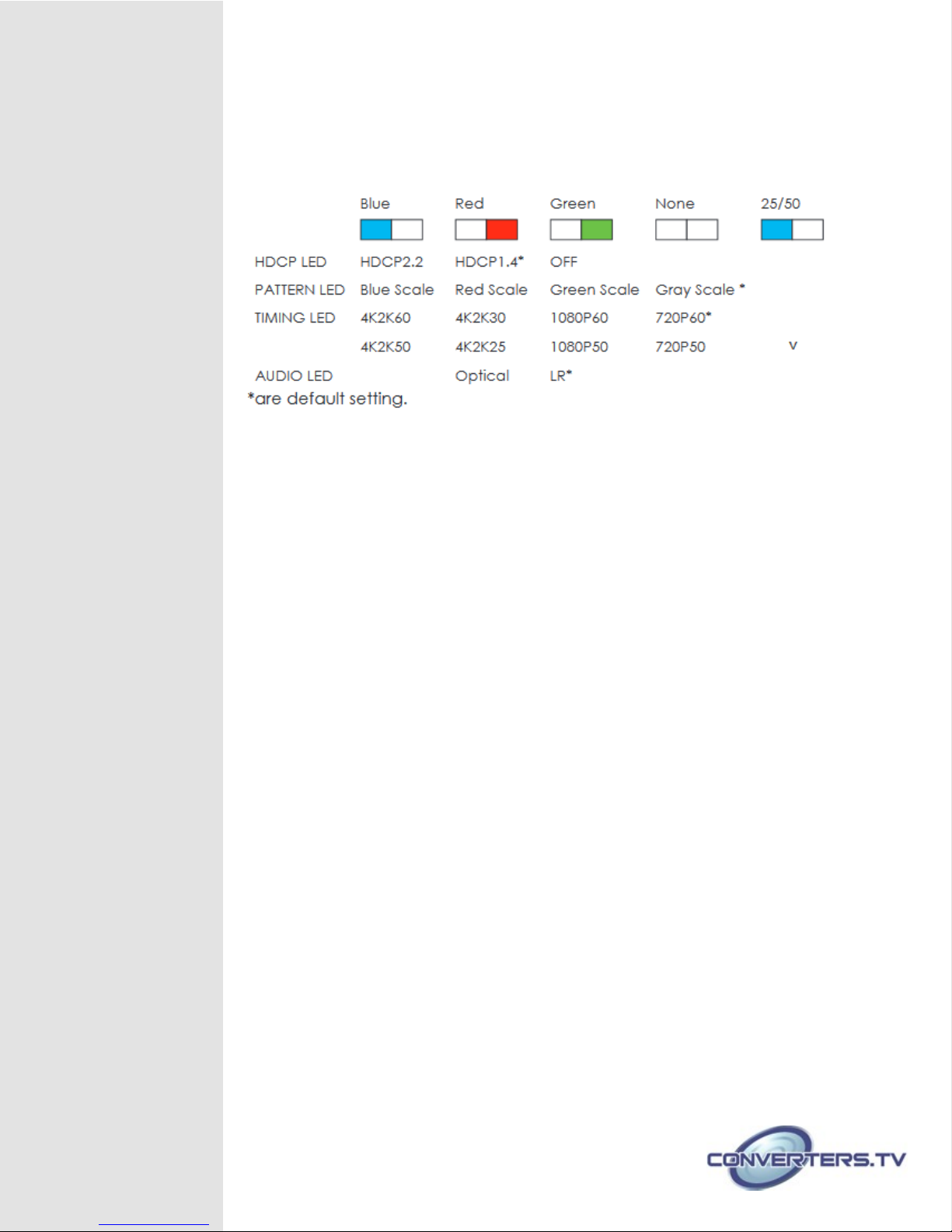

red or green Each LED color represent a pattern/timing as below:

3. SELECT Button:

Press this button to enter into selection mode and both LEDs will be

flashing in blue and green Press again to enter into another selection

4. ENTER/PATTERN Button:

Press this button to enter into the selection then press the SELECT button

to select and the LED will illuminate in sequence from the default setting,

press ENTER again to confirm the selection When exit selection mode

press this button to select pattern directly

For example, to select HDCP 2 2 with blue scale and 4K2K60 timing

from the default setting, press SELECT (to enter into selection)→press

ENTER (to select HDCP) → press SELECT 2 times (to select

HDCP2 2/Blue LED) → press ENTER (to confirm HDCP selection) →

press SELECT again (to enter into PATTERN selection)→ press ENTER

(to select Patter) → press SELECT twice (to select Blue Scale/Blue

LED) → press ENTER (to confirm Pattern selection) → press SELECT

again(to enter into Timing selection) → press ENTER(to select Timing) →

press SELECT 5 times(to select 4K2k60/Blue LED)) → and press ENTER

(to confirm Timing selection)

Press ENTER together with EXIT to reset the setting back to default

Note:

If the ENTER button is not pressed after the selection is made the setting

will not be established and will remain under the selection mode.

5. EXIT/TIMING Button:

Press this button to exit/cancel the selection

When exit selection mode press this button to select timing directly

6. HDMI OUT:

Connect with display/monitor with HDMI cable

Spe ifi ations

Video Bandwidth 600MHz/18Gbps

Input Port 1 x L/ ( CA)

1 x Optical

1 x USB(Service)

Output Ports 1 x HDMI

Supported esolutions 720p@50/60, 1080p@50/60,

4K2K@25/30/50/60

HDMI Cable Length 5M/4K2K@25/30/50/60

5M/1080p@50/60

Support Digital Audio 48kHz Output Sampling ate

Support Analog Audio 2Vrms

Power Supply 5V/2.6A DC (US/EU standards,

CE/FCC/UL certified)

Chassis Material Aluminum

Chassis color Black

Weight 202g

Dimensions 78.5mm(W) x 95.25mm(D) x 30mm(H)

Power Consumption 2.5 W

Supported Resolutions

Resolutions EMBEDDED OUTPUT

1280×720p@50/60 √ √

1920×1080p@50/60 √ √

3840×2160@25/30/50/60 √ √
