CoolGear USB-COM-Si-M Bedienungsanleitung

Single Port RS-232 USB

Serial Adapter – Optical-

ISO – Surge Protection

Product Manual

Coolgear, Inc.

Version 1.1

March 2018

Model Number: USB-COM-Si-M

www.coolgear.com

2 USB-COM-Si-M – Product Manual

www.coolgear.com

Revision History

Revision Date Author Comments

1.1 03/26/2018 Coolgear New Manual

About this document

This product manual outlines installation and features of the USB-COM-SI-M Single Port

RS-232 USB Serial Adapter – Optical-ISO – Surge Protection.

Scope

The scope of this manual is to give the user of the product an understanding of its use

with detailed diagrams and verbiage. The manual allows the users to apply the product

to their application.

Intended Audience

This product is intended for use in numerous industries including but not limited to

applications such as; connectivity with modems, ISDN TAs, PDAs, handheld & pocket

PCs, digital cameras, POS, serial printers, remote access and other RS-232 Serial

communications.

Product Support

[email protected]

USB-COM-Si-M – Product Manual 3

www.coolgear.com

Table of Contents

1. Introduction.........................................................................................................4

1.1 Features .................................................................................................................. 4

1.2 Optical Isolation and Surge Protection................................................................... 4

1.3 Power Requirement................................................................................................ 5

2. Windows 7 / Vista / 2003 / XP / 2000 Driver Installation.......................................6

3. Check Installation.................................................................................................7

3.1 Change COM Port Properties & COM Port Number............................................... 7

3.2 Uninstalling Windows 2003 / XP / 2000 Drivers..................................................... 7

4. Uninstalling Windows 7 or Vista Drivers .............................................................10

5. RS-232 Signal Pin-outs of DB-9 Male ...................................................................13

6. Notes, Tips, and Warnings ..................................................................................14

7. Supporting References .......................................................................................16

Table of Figures

Figure 1 – Driver Installation………….…..…….……………………………………………………………….…..6

Figure 2, 3, 4, 5 – Uninstalling 2003/XP/2000 Windows Drivers..….……………………..….….…8

Figure 6, 7 – Uninstall 2003 / XP / 2000 Drivers...……………….…………..…………………..………..9

Figure 8, 9 – Uninstall Win7 or Vista Drivers……………………….……………………..…………..……10

Figure 10, 11, 12 – Uninstall Win7 or Vista Drivers.…………………………………………………11-12

Figure 13 – DB-9 Pin-out Diagram..………………………………………………………………………………13

4 USB-COM-Si-M – Product Manual

www.coolgear.com

1. Introduction

The USB-COM-SI-M USB to Serial Adapter is designed to make serial port expansion

quick and simple. The USB Serial Adapter provides instant connectivity to RS-232

communication device for factory automation equipment, multi-drop data collection

devices, barcode readers, time clocks, scales, data entry terminal and serial

communication in harsh environment. The USB to Serial Adapter is suitable for remote

access, retail and industrial application, data collection and other applications requiring

high speed RS-232 communication ports.

WEIGHT 0.3 lbs

DIMENSIONS 2.83(L) x 2.29(W)(3.20in with ears) x .895in(H)

CABLE LENGTH 3ft.

UPC 729440690731

WARRANTY 1 year from date of purchase

COLOR Black

PORTS (1) DB-9 Male Serial Port / (1) USB Type-B Female Port

1.1 Features

•TAA Compliant

•2000V DC optical isolation.

•25KV ESD surge protection.

•Industrial metal housing with DIN rail

bracket.

•Full RS-232 modem control signals and

hardware/software flow control

•Windows 98, Me, XP, 2000, 2003, CE,

Vista, Windows 7, and Windows 8

•

Linux, Mac OS 10.X

•Baud Rate from 300bps up to

921.6Kbps supported.

•128 byte transmit FIFO & 384 byte

receive FIFO.

•Transmit (TxD) and Receive(RxD) LEDS

on unit for visual reference.

•Universal Serial Bus(USB) port offers

easy plug and Play Operation.

1.2 Optical Isolation and Surge Protection

Each RS-422/485 port is individually optically isolated with 2000 Volt DC optical

isolation. The optical isolation protects your PC or notebook from spikes and surges on

the RS-422/485 network, by converting the electrical pulse into an optical signal and

then changing it back into an electrical pulse. Your computer is well protected, since the

USB-COM-Si-M – Product Manual 5

www.coolgear.com

surges and spikes cannot cross the optical link. Each RS-422/485 port is individually

protected by surge protector to withstand electrostatic discharge and power surges up

to 25KV ESD. Surge suppression on all signals prevent from damages caused by lightning

or high voltage.

1.3 Power Requirement

If your USB to Serial Adapter is provided with external power adapter, you need to plug

the power adapter to the power source after driver installation.

6 USB-COM-Si-M – Product Manual

www.coolgear.com

2. Windows 7 / Vista / 2003 / XP / 2000 Driver Installation

You need to have administrator privileges to install any new drivers under Windows 7/

Vista / 2003 / XP / 2000. To install the driver or update the configuration please log onto

Windows as "Administrator" or ask your system administrator to install the USB-COM

driver.

Note: You need to install driver first, prior to hardware installation. Do not connect the

USB-to-Serial Adapter to the USB port of your computer, before you finish driver

installation.

Please proceed with the following steps to install the driver:

1. Insert the “USB COM Series Driver and Utility” CD into your CD-ROM.

2. The “USB COM Series Driver and Utility CD” dialog box appears.

3. Under “Driver Installation”, double click “Windows 7, Vista, 2003, XP, 2000

driver” to install the device driver.

4. The USB COM install program will auto-detect the OS type and install the driver

automatically. (Note: in Windows 7 or Vista OS you will find another dialog box,

please click on “OK” to confirm the drivers install program).

Figure 1

5. After the message “FTDI CDM Driver installation process completed” appears,

press “Enter” to complete the driver installation.

6. Plug in the USB to Serial Adapter to the USB port of your computer. Windows

will finish installing the driver files.

USB-COM-Si-M – Product Manual 7

www.coolgear.com

3. Check Installation

You can now verify the installation has been completed successfully by looking under

Device Manager of the System Properties screen. (Go there by Start-Setting- Control

Panel-System Properties-Hardware-Device Manager.

The device should have installed as a "USB Serial Port (COMx)" attached to "USB Serial

Converter (A/B or A/B/C/D)".

3.1 Change COM Port Properties & COM Port Number

This feature is particularly useful for programs, such as HyperTerminal, which only work

with COM1 through COM4. Please ensure that you do not change the COM Port

Number already in use.

To change the virtual COM port properties:

•Select the "USB Serial Port"

•Click “Properties”.

•Select "Port Setting" and “Advanced”.

•Click the drop down arrow on COM Port Number and scroll to the required COM

port. Select "OK".

•Return to the Device Manager Screen. You will see that the USB Serial Port

installation has been changed to the new COM Port Number.

3.2 Uninstalling Windows 2003 / XP / 2000 Drivers

Please proceed with the following steps to uninstall the 2003/XP/2000 driver:

1. Insert the “USB COM Series Driver and Utility” CD into your CD-ROM.

2. The “USB COM Series Driver and Utility CD” dialog box appears.

3. Under “Driver Uninstalling”, double click “Windows 2003, XP, 2000 driver

uninstall” to uninstall the device driver.

4. When following dialog box appears, double click “Clean System” to uninstall the

2003/XP/2000 drivers.

8 USB-COM-Si-M – Product Manual

www.coolgear.com

Figure 2

5. You need to disconnect all USB to Serial Adapters from your PC, when the

message below appears. Double click “OK” to start uninstalling Windows

2003/XP/2000 USB to Serial drivers.

Figure 3

6. Double click “Yes” to confirm it.

Figure 4

7. Click “No” to proceed.

Figure 5

USB-COM-Si-M – Product Manual 9

www.coolgear.com

8. When the message “Status: System clean completed” appears, double click

“Exit” to complete the USB to serial drivers uninstall.

Figure 6

9. Press “Start” button and select “Control Panel”.

10. Open the Add or Remove program.

Figure 7

11. Remove the first “Windows Driver Package – FTDI CDM Driver Package (…)”.

12. Click “Change/Remove” and “Yes” to remove the first Windows Driver Package.

13. Remove the second “Windows Driver Package – FTDI CDM Driver Package (…)”.

14. Click “Change/Remove” and “Yes” to remove the second Windows Driver

Package.

15. Reboot the computer to complete the driver uninstall.

10 USB-COM-Si-M – Product Manual

www.coolgear.com

4. Uninstalling Windows 7 or Vista Drivers

Windows 7 and Vista have many new security features. You need to proceed with the

following steps to uninstall the Vista driver:

1. The USB to serial devices must connect to the PC.

2. Press “Start” button and select “Control Panel”.

3. Select “Classic View” from the top left hand corner and then “System” from the

list.

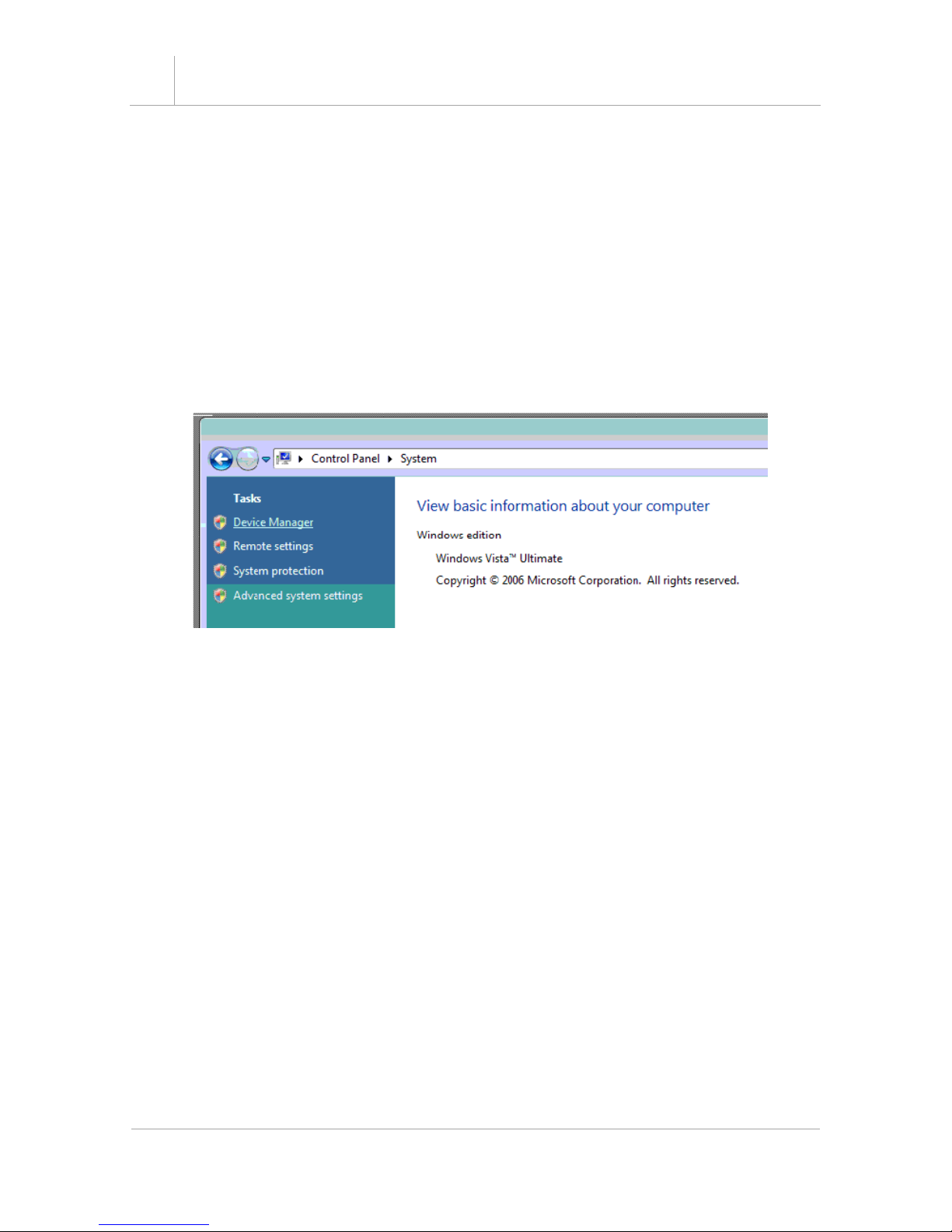

4. Select “Device Manager” from the top left hand corner.

Figure 8

5. Locate your device under the ports (COM & LPT) section and right click on it to

bring up the menu shown.

Figure 9
