Wir l ss Control Syst m

User Guide

A Step-by-Step Guide for

Planning, Installing, and

Operating a Complete Designer

Wireless Control System

http://waterheatertimer.org/How-to-wire-Intermatic-CA3750.html

___________________________________________________________________________

(T IS PAGE INTENTIONALLY LEFT BLANK)

Congratulations!

Congratulations on your Purchas of an

Wir l ss Control Syst m!

Part of the next generation of convenient, dependable, and user-friendly wireless controls, your new system

allows you to create a wireless, two-way network within your family home, condo, or apartment. The network

puts you in command of a large number of compatible devices from a single, remote control. Some of the

benefits that you will enjoy with your new wireless control system include:

• Convenience and Versatility – use the centralized control system for home lighting controls, and appliances.

• Security – enjoy a safe arrival at night by coming home to a well-lit house by simply triggering your Z-Wave

enabled garage door opener

• Enhanced ome Experience – set the mood for entertainment, romance, or relaxation by setting all light

levels for any group of fixtures with the touch of a button

• Ease of Installation – benefit from the simple and practical set-up process with a quick and painless install

every time

• Time and Energy Savings – turn off groups of lights from any location in the home and reduce energy bills

with one-touch control

Table of Contents

Using This Guid

We recommend that you carefully review the contents of this guide to get the most from your wireless

system. Although previous verions of the User Guide are mostly valid, Version B of the User Guide is best

suited for software version 1.1.2. If you have additional questions related to the installation or the operation

of your Aspire RF Wireless Control System, please call 1-866-853-4293 or go to

cooperwiringdevices.com/AspireRF.

Safety Information and FCC Information........................................................................... 6

Introduction .......................................................................................................... 7

Important Notes ................................................................................................. 7

ow the System Works ........................................................................................ 7

Quick Reference Guide ............................................................................................. 8

Optional Accessories ............................................................................................... 10

Get Started ........................................................................................................... 11

Navigate Menu Screens ........................................................................................ 11

Create Custom Names ......................................................................................... 12

Set Current Day and Time ...................................................................................... 13

Install and Control Devices ....................................................................................... 14

Install a Device .................................................................................................. 14

Configure a Device .............................................................................................. 15

Configure Off Delay ............................................................................................. 16

Configure ALL ON and ALL OFF Group ....................................................................... 16

Configure Panic On and Off Times ............................................................................ 18

Configure Power On State ...................................................................................... 19

Configure Ramp Time .......................................................................................... 20

Non-Cooper Parameters ........................................................................................ 21

Activate Individual Devices .................................................................................... 23

Check Device Status ............................................................................................ 24

Rename a Device ............................................................................................... 25

Change a Location of a Device ............................................................................... 26

Activate ALL ON and ALL OFF ................................................................................. 27

Activate Panic Mode ............................................................................................ 28

Customize Panic Group ........................................................................................ 29

ide Devices ..................................................................................................... 29

Create and Control Scenes ........................................................................................ 31

Create a Scene .................................................................................................. 31

Activate a Scene ................................................................................................. 33

Create Favorite Scenes ......................................................................................... 34

Rename a Scene ................................................................................................ 35

Renumber a Scene .............................................................................................. 36

Delete a Scene .................................................................................................. 37

Edit a Scene ..................................................................................................... 38

Transfer a Scene to a Wall Mount Controller ................................................................ 39

ide Scenes ..................................................................................................... 40

Devices Scenes Events Settings Away

Table of Contents

Devices Scenes Events Settings Away

Create and Control Events ......................................................................................... 41

Create an Event .................................................................................................. 41

Activate or Deactivate an Event ................................................................................ 44

Activate or Deactivate All Events .............................................................................. 44

Rename an Event ............................................................................................... 45

Delete an Event .................................................................................................. 46

Edit an Event ..................................................................................................... 47

Edit and Control the Away Feature ............................................................................... 50

Edit the Away Feature ........................................................................................... 50

Activate or Deactivate the Away Feature ...................................................................... 54

ake Advanced Changes to Your System ....................................................................... 55

Create an Association Between Devices ...................................................................... 55

Replicate andheld Information to a Second Controller .................................................... 56

Select a New Primary Controller ............................................................................... 58

Uninstall a Device ............................................................................................... 59

Activate Child Lockout .......................................................................................... 60

Reset the System ................................................................................................ 61

Scan for Devices ................................................................................................ 62

Troubleshooting Guide and aintenance ....................................................................... 63

Retrieve Version Information about your System ............................................................ 63

Retrieve Version Information about Individual Devices ..................................................... 64

Retrieve Device Information (“Who Are You” feature) ....................................................... 65

Update Secondary Controller Device Information (“Get Name & Locn” feature) ......................... 65

Replace a Failed Device ........................................................................................ 66

Remove a Failed Device ........................................................................................ 67

Utilize Network Discovery ...................................................................................... 68

Ordering Information for Cooper Wiring Devices .............................................................. 69

Glossary .............................................................................................................. 71

Warranty .............................................................................................................. 73

Safety Information & FCC Information

Saf ty First

WARNING

• Turn OFF circuit breaker or remove fuse(s) and test that power is off before wiring.

• Never wire any electrical device with power turned on. Wiring device (switch, dimmer, receptacle)

energized may cause permanent damage to device and void warranty.

• If you are not sure about any part of these instructions, please contact a licensed electrician.

CAUTION

• Use only with 120V AC 60 z.

• Do not exceed maximum rating of the devices as indicated on the product.

• Must be installed and used in accordance with electrical codes.

• If a bare copper or green ground connection is not available in the wallbox, contact a licensed electrician

for installation.

• Use only #14 or #12 copper wire with these devices.

FCC INTERFERENCE STATEMENT

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions:

1: This device may not cause harmful interference, and

2: This device must accept any interference received, including interference that may cause

undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. owever, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC CAUTION:

Any changes or modifications not expressly approved by Cooper Wiring Devices could void the user’s

authority to operate the equipment.

Cooper Wiring Devices, 203 Cooper Circle, Peachtree City, GA 30269 • 866-853-4293

Introduction

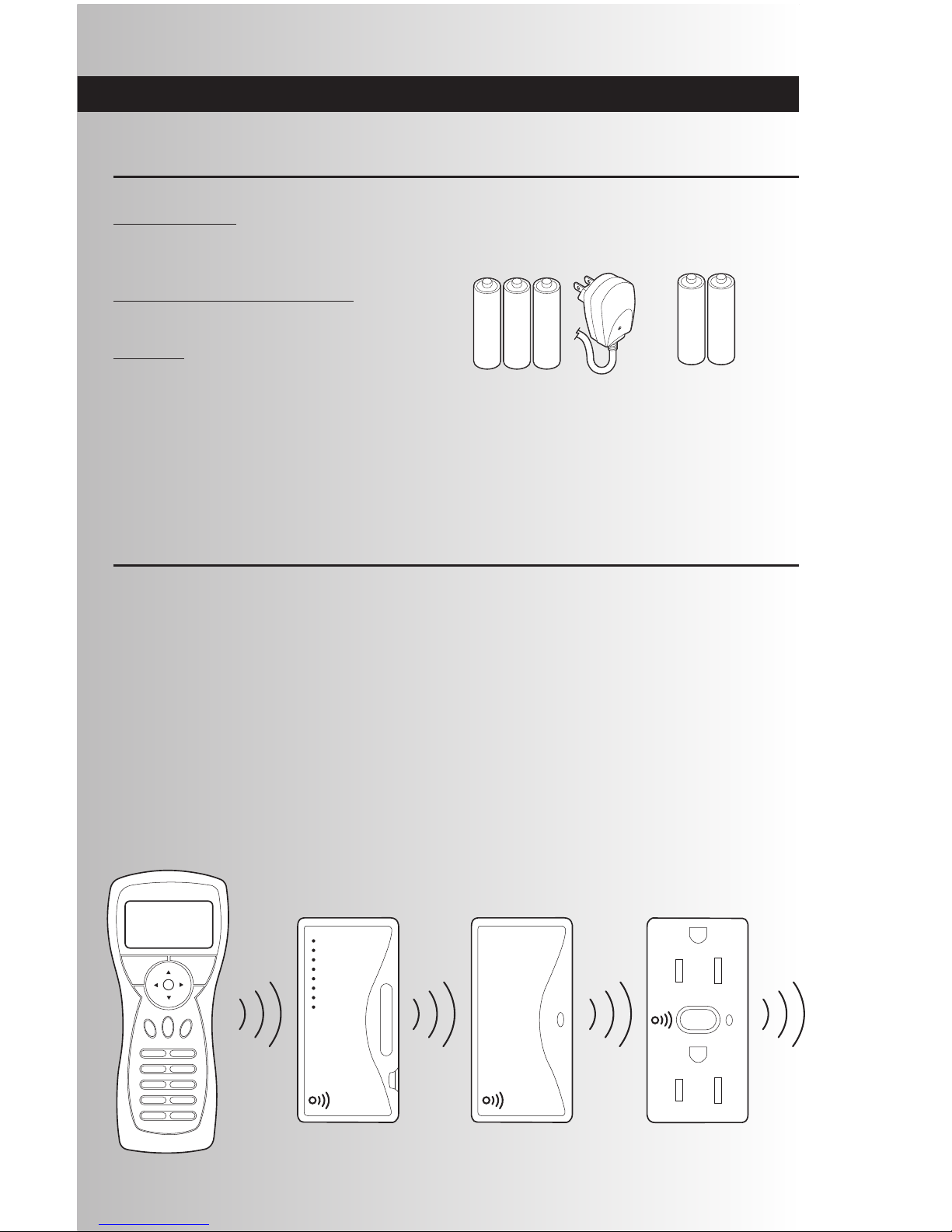

How th Syst m Works

Batteries Required

In order to power on, the tabletop controller requires AA batteries or AC adapter and the handheld controller

requires AA batteries.

Powering On and Off the Controllers

Pressing any button will activate the controllers.

Timing Out

The display backlight will turn itself off after a period of

10 seconds of inactivity. After 60 seconds of inactivity,

the controller will automatically power off. This will cause

all unsaved data to be lost.

Your ASPIRE RF devices function as both receivers, allowing you to control the loads to which they are

attached, and as repeaters, extending and improving signals throughout your home. Rather than depending

on line-of-site communications like other technologies, Aspire RF employs Z-Wave technology that creates

a “mesh” network.

The controller is a portable device capable of both managing your Z-Wave network and controlling all of

the devices on your network.

In addition to your ASPIRE RF Wireless Control System, ASPIRE offers a fully integrated array of devices and

accessories, including smart dimmers, switches, duplex receptacles, and a wealth of accessories to link

your entire network.

This product works with other Z-Wave products from different vendors and product categories as part of the

same Z-Wave network.

Controller Dimmer

switch

Switch Receptacle

Handheld controller

2 AA batteries

Tabletop controller

3 AA batteries

or AC adapter

Important Not s

Quick Reference Guide

Menu Back

ALL

OFF

AC adapter plug-in

OK button

Primary Controller

Callout

ALL OFF/Dim

button

Panic button

ALL ON/Brighten

button

Favorite Scene

buttons

Eight of your favorite scenes

can be accessed directly with

an easy one-touch control.

Use this button to select

settings in menus.

Indicates if it is the

primary controller.

Battery Status

Indicator

Appears when battery is low

on power. Arrow pad

Navigate through menus and

screens, create custom names,

and change various settings.

Turn all devicesin the ALL ON group on

at once. Brightens selected dimmer

switches.

Turn all devicesin the ALL OFF group off

at once. Dims selected dimmer switches.

Trigger agroup of devicesto turn off and on

in a pattern that attracts attention.

Devices

Mon 12:00 AM

Menu/Save

button

Access the main menu

and save desired settings.

Back/Cancel

button

Exit a menu screen and return

to the previous menu.

Devices enu

A device can be a dimmer switch, a regular switch, or a receptacle. Use this menu to

install and configure each device. From this menu you can also activate individual

devices, check device status, rename a device, change the location of a device, and add a

device to the ALL ON / ALL OFF group. Some advanced functions in this menu include:

Creating an association between devices, activating child lockout, and uninstallation of a

device.

Scenes enu

A scene is a combination of lighting or appliance devices selected by the user that can be

controlled as a group by the wireless system. Once you’ve installed devices into the

system, you can program your controllers to create and control up to 64 scenes in your

home. You can create a list of favorite scenes (such as Bedtime, Movie Time, or Dinner)

that can be accessed with an easy one-touch control. Use this menu to create a scene,

activate a scene, create favorite scenes, rename a scene, renumber a scene, edit a scene,

and delete a scene.

Example: For watching movies, you can create a Scene that dims the overhead

light and turns on accent lights. The scene can then be easily accessed with a

one-touch control.

M nus

Tabl top Controll r

Quick Reference Guide

Events enu

An event is a scheduled one-time or recurring program that launches a scene at a desired

time. You can program your controllers to create and control up to 32 events in your

home. Use this menu to schedule, create, name, edit, change, delete, activate and de-

activate events.

Example: If you plan on a romantic dinner, you can schedule an event to

automatically start a scene which dims the lights for the dinner.

Settings enu

Use this menu to customize your controller with your preferences for day/time, panic

mode settings, add a device to the Panic group, system information, replicating controller

information to a second controller, retrieving version information about your system, and

operating network discovery.

Away enu

The Away feature allows you to edit and control functions that give the impression that

your house is occupied when you’re away for an extended period of time. Use this menu

to activate, de-activate, and edit the Away feature.

Example: If you’re going on vacation you can schedule certain lights to turn on

during evening hours and then turn off at daybreak.

ALL

OFF

Menu Back

9 10

Menu/Save

button

OK button

ALL ON/Brighten

button

Back/Cancel

button

Arrow pad

All OFF/Dim

button

Number pad

Access the main menu

and save desired settings.

Battery Status

Indicator

Appears when battery

power is low.

Use this button to select

settings in menus.

Panic button

Trigger agroup of devicesto

turn off and on in a pattern

that attracts attention.

Turn all devicesin the ALL ON

group on at once. Brightens

selected dimmer switches.

Exit a menu screen

and return to the

previous menu.

Navigate through menus

and screens, create custom

names,and change

various settings.

Turn all devicesin the

ALL OFF group off at once.

Dims selected dimmer

switches.

Select and activate scenes.

Enter numerical info.

Devices

Mon 12:00 AM

Primary Controller

Callout

Indicates if it is the

primary controller.

Handh ld Controll r

Optional Accessories

RFWDC – Wall-mount 5-button Scene Controller

This controller stores up to five scenes for easy one-

touch activation and offers an ALL/OFF button for

turning all devices off controlled by this specific Scene

Controller. Mounts in any standard single-gang

wallbox and requires 120 VAC. A primary controller

( andheld, Tabletop, USB, or SDIO card) must be

used to program this device.

Optional Controll rs

RFUSB – USB Controller

RFUSB-PRO – USB Installer Controller

Allows for any PC or Laptop running Windows 2000

or newer to create, manage and control network

devices, scenes and events. Software and extension

cord is included with this controller and requires a USB

port. Can be set as a primary or secondary controller.

RF CC – SDIO Card Controller

Allows for any PDA running Windows Mobile to create,

manage and control network devices, scenes and

events. Software is included with this controller and

requires a SD card slot. Can be set as a primary or

secondary controller.

Inhaltsverzeichnis

Andere Cooper Steuerungssystem Handbücher

Cooper

Cooper GUV Bedienungsanleitung

Beliebte Steuerungssystem Handbücher anderer Marken

Pentair Pool Products

Pentair Pool Products Compool Bedienungsanleitung

ComfortNET

ComfortNET CTK04 Bedienungsanleitung

Fireye

Fireye InSight II 95DSS3 Bedienungsanleitung

CAME

CAME G3000 Bedienungsanleitung

Idemia

Idemia MorphoAccess VP MD Bedienungsanleitung

Axis

Axis P1445-LE-3 Bedienungsanleitung

HEIDENHAIN

HEIDENHAIN TNC 150 B Bedienungsanleitung

CNC-Step

CNC-Step High-Z T-Series Bedienungsanleitung

Doosan

Doosan DVF Series Bedienungsanleitung

Honeywell

Honeywell KAP 140 Bedienungsanleitung

Honeywell

Honeywell vk41 series Bedienungsanleitung

AirBench

AirBench FPW Installationsanleitung

Cypress

Cypress HHR-3160 Bedienungsanleitung

CAME

CAME GLT40AOS Bedienungsanleitung

Zonex

Zonex GEN II -VVT Benutzerhandbuch

Altronics

Altronics K 9650 Bedienungsanleitung

micro-trak

micro-trak RoadMaster Bedienungsanleitung

micro-trak

micro-trak Calc-An-Acre II Bedienungsanleitung
