High Resolution Video to VGA Converter

ITEM NO.: 15-AD01

User’s Manual

The information in this document is subject to change without notice and does not

represent a commitment on the part of the developer.

This document contains materials protected by copyright. All rights are reserved.

No part of this manual may be reproduced or transmitted in any form, by any

means or for purpose without express written consent.

Federal Communications Radio Frequency Interference Statement.

Note: This equipment has been tested and found to comply with the limits for a

Class B digital device, Pursuant to part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference when the

equipment is operated in a residential installation. This equipment generates, uses

and can radiate radio frequency energy and if not installed and used in accordance

with the instruction manual may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in

a particular installation. If this equipment does cause harmful interference to radio

of television reception, which can be determined by turning the equipment off or on,

the user is encouraged to try to correct the interference by one or more of the

following measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and receiver.

 Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

 Consult the dealer or an experienced radio TV technician for help.

Notice :

（1.）The changes or modifications not expressly approved by the party

responsible for compliance could void the user authority to operate the equipment.

（2.）Shielded interface cables and AC power adapter, if any must be used in order

to comply with the emission limits.

CE DECLARATION

This device complies with CE class B.

*EN50081-2 *EN50082-1

EN55011 IEC 801-2

EN61000-3-2 IEC 801-3

EN61000-3-3 IEC 801-4

Printed in Taiwan R.O.C.

All contents are subject to change without notice.

All trademarks are the property of their respective owner.

Chapter 1. Welcome to Video Converter………………. 1

1.1 Introduction……………………………………… 1

1.2 Product Features……………………………….. 1

1.3 System Requirements…………………………. 2

1.4 Package Contents……………………………… 2

Chapter 2. Install Video Converter..…………………….. 3

2.1 Connectors of Video Converter…………… 3

2.2 Panel Buttons and Switch of Video Converter 3

2.3 Remote controller function button……………. 5

2.4 Installation for IBM PC User…………………... 6

Chapter 3.

Trouble Shooting ……………………………

Version : GEI-WEI-01

• Supports function OSD (on screen display) control.

• OSD control menu : BRIGHTNESS, CONTRAST, COLOR, HUE, SHARPNESS,

PICTURE MODE, RESOLUTION, FREQUENCY, RESET.

• PICTURE MODE : SPORT MODE, STATIC MODE.

• RESOLUTION : 640*480, 800*600 and 1024*768.

• FREQUENCY : 60 Hz and 75 Hz for each resolution.

• RESET : RESET to default setting.

• Panel button supports POWER, SOURCE, MENU, ENTER, UP & DOWN.

CHAPTER 1 • Built-in microprocessor.

Analog To Digital Converter

Video to VGA converter for High Resolution Video Picture

1.1 Introduction

Welcome to the colorful multimedia world. Using the video converter, you have made a best

choice. The video converter is a Video to VGA converter for Playing High Resolution Video

Picture game. The DEINTERLACE can provide high quality picture & give sharp, stable

image output to VGA. Input Video System 50-to-60 HZ frame rate detection and Output to

60Hz & 75Hz to CRT/LCD monitor. OSD (on screen display) adjustment menu. It is easy to

install, easy to operate, instantly switch the source between PC, Video and S-Video with a

single button and turn your monitor into a high resolution picture output. VGA o/p can be up

to 1024*768 ( 60Hz & 75Hz ) resolution. Plug it, you will extend the functions of your

computer, enjoy the Game, DVD programming freely and easily.

1.2 Product Features

• The DEINTERLACE can provide high quality picture, It can give sharp, stable image

output to VGA.

• Compatible for Multi Signal inputs: Video, S-Video, PC ( bypass ).

• Input Video system 50-to-60HZ frame rate detection (NTSC/PAL(SECAM) for Video,

S-Video).

• The DEINTERLACE output mode can be changed from 640*480, 800*600 to 1024*768.

( 60 Hz & 75 Hz )

• No software driver required. It is applicable to all the O/S.

• Compact body and easy installation, no need to uncover PC case. No PC compatibility

problem.

• Supports 3:2 pulldown conversion for film mode.

• Supports 2:2 pulldown graphic mode.

• 3 D Motion-adaptive interfiled de-interlacing.

1.3 System Requirements

• No specific PC system required.

• VESA compatible VGA monitor.

• Video input device (e.g.VCR, VCD, DVD, V8, LD player, TV game devices, etc.)

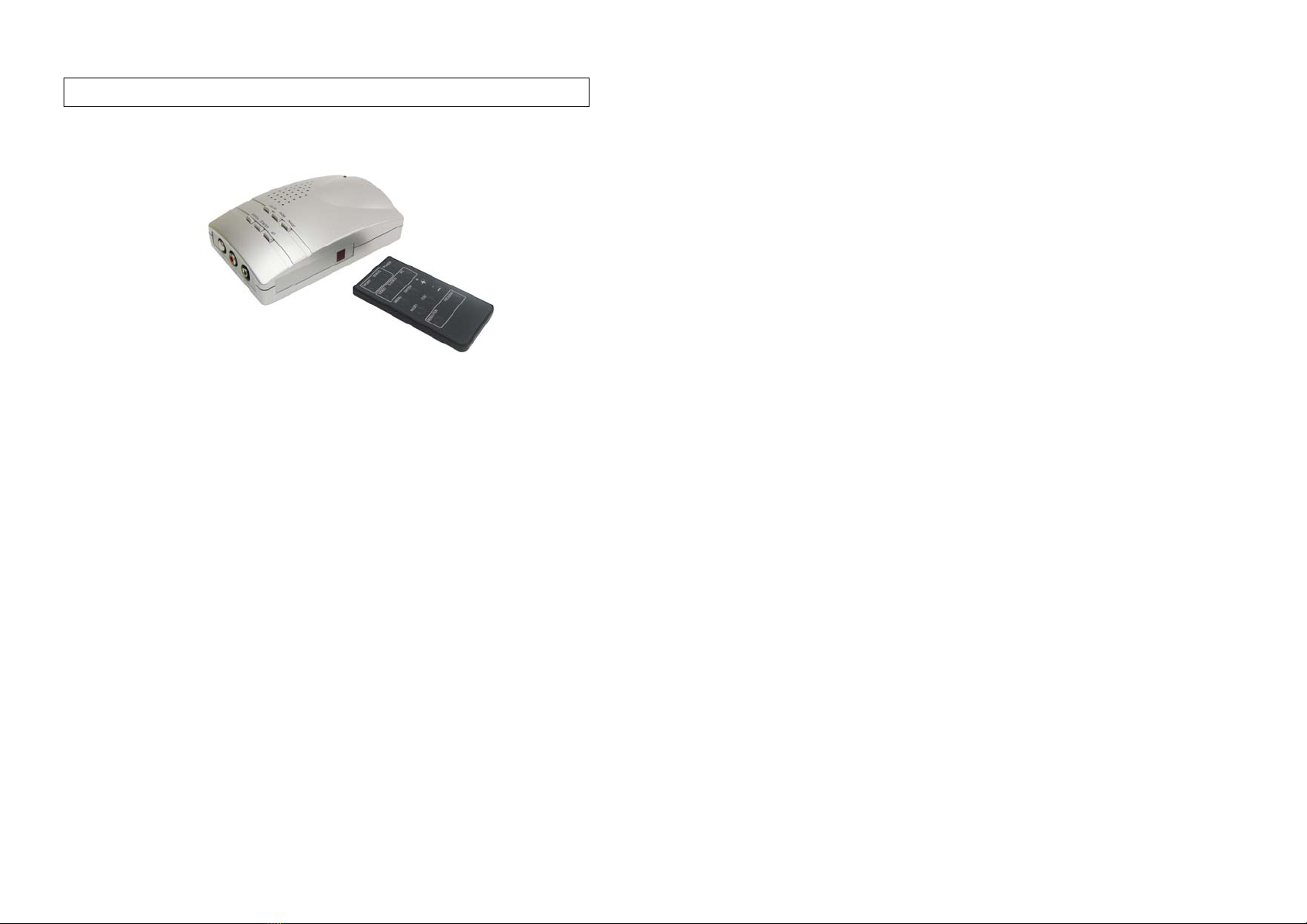

1.4 Package Contents

This package contains the following items:

• Video Converter x 1

• User's Manual x 1

• VGA 15 Pin to 15 Pin cable x 1

• Remote Control x 1 ( Optional )

• Power Adapter ( 6VDC, 800mA) x 1

VGA 15 Pin to 15 Pin cable

-1-

CHAPTER 2 (for menu).

• ENTER button : Enter the Present MODE(for menu).

Install A to D Converter • MENU button : The MENU functions are BRIGHTNESS, CONTRAST, COLOR, HUE,

SHARPNESS, PICTURE MODE, RESOLUTION, FREQUENCY and RESET, and press

UP button or DOWN button to select.

The following section shows the function of controlling the video converter. Please refer to

Figure1 for the Outline of Video Converter.

＞BRIGHTNESS

Press ENTER button and UP/DOWN button to modify BRIGHTNESS value.

PressUP button to increment, Press DOWN button to reduce. This item value is

form 0 to 100.(Default value is 50)

＞CONTRAST

Press ENTER button and UP/DOWN button to modify CONTRAST value.

PressUP button to increment, Press DOWN button to reduce. This item value is

form 0 to 100.(Default value is 50)

＞COLOR

Press ENTER button and UP/DOWN button to modify COLOR value.

PressUP button to increment, Press DOWN button to reduce. This item value is

form 0 to 100.(Default value is 50)

＞HUE

Press ENTER button and UP/DOWN button to modify HUE value.

PressUP button to increment, Press DOWN button to reduce. This item value is

form 0 to 100.(Default value is 50)

＞SHARPNESS

PressENTER button and UP/DOWN button to modify SHARPNESS value.

FIG.1 Outline of Video Converter PressUP button to increment, Press DOWN button to reduce. This item value is

form 0 to 15.(Default value is 8)

2.1 Connectors of Video Converter ＞PICTURE MODE

• IR SENSOR (optional) : Infrared input of remote controller. Press ENTER button and UP/DOWN button to chang mode.

• AUDIO OUTPUT : Stereo audio signal output, connect to ( amplified ) speaker. Press UP button to chang SPORT picture mode.

• AUDIO IN/R & AUDIO IN/L : Connects to sound device or AUDIO OUTPUT of a

VCD/DVD/V8/CCD etc. Press DOWN button to chang STATIC picture mode.

＞RESOLUTION

• DC IN : Plug with power cable. Press ENTER button and UP/DOWN button to chang mode of 640*480, 800*600 or

1024*768.

• PC AUDIO IN : Connects to your PC’s sound card output.

• VIDEO IN : Connects to VIDEO OUT of video source (e.g. VCD/LD/DVD/V8

or TV GAME devices). ＞FREQUENCY

Press ENTER button and UP/DOWN button to chang mode of 60HZ or 75HZ.

• S-VIDEO IN : Connects to S-VIDEO OUT of video source (e.g. VCD/LD/

DVD/V8 or TV GAME devices). ＞RESET

Press ENTER button to reset to Default setting.

• VGA IN : Connects the VGA cable to your PC.

• VGA OUT : Connects to your VGA monitor (CRT/LCD) supporting non-interlace format.

2.2 Panel Buttons and Switch of Video Converter

• POWER button : Toggle between power on & off. Automatically save the setting when

you turn off the power button.

• SOURCE button : Select the input from VGA IN , VIDEO IN or S-VIDEO IN, then you

will get the picture.

• UP/DOWN button : Press UP and DOWN to select item or modify value

-3- -4-

2.3 Remote Controller function button • + : To select the mode and UP adjustment for Variable.

• - : To select the mode and Down adjustment for Variable.

• POWER : Toggle between power on & off.

Automatically save the setting when you turn off the

power button.

• SATATIC : Static picture mode while viewing photo dise.

• SPORT : Sports picture mode for PS2, X box, VCR,

DVD, … Game .

• PC : To select the PC (VGA ) input.

• S-VIDEO : To select the S-Video input.

• VIDEO : To select the Video input.

• ENTER : Enter the Present MODE(for menu).

• MENU : Press + button or – button to select

BRIGHTNESS, CONTRAST, COLOR, HUE, SHARPNESS,

PICTURE MODE, RESOLUTION, FREQUENCY or RESET.

• ESC : Esc from present MODE.

• RESET : Reset to Default setting.

• RESOLUTION : To select the mode of 640*480, 800*600 or 1024*768.

• FREQUENCY : To select the mode of 60Hz or 75Hz.

2.4 Installation for IBM PC Users

The Video Converter is a “Plug and Display” Video to PC converter.

Please read the following steps carefully for the installation of the hardware & refer to Fig.2

for the installation for IBM PC Users.

＞BRIGHTNESS

Press ENTER button and + / - button to modify BRIGHTNESS value.
