FEATURES:

NoRdic ccU0150 SERiES

Under CoUnter CUbed ICe Maker

CG5053-0112 Cubed ICe

Protected by Agion

• Produces up to 174 lbs. (79 Kgs.) of ice per day

• 100 lbs. (45 Kgs.) built-in application storage

• Built in Agion Antimicrobial product protection

effective against mold, mildew and fungus

• Ultra-low proﬁle – only 39" (991 mm) tall and 24" (605 mm) wide

• Durable, rotomolded exterior cladding

• Large bin door opening for easy access

• Adjustable leg height

Agion is a trademark of Agion Technologies, Wakeﬁeld, MA.

Protected by Agion

For more information or to place an order, contact your sales representative or authorized distributor.

OUTSIDE THE U.S.A.

Ph: 763.488.8200

Email: [email protected]

IN THE U.S.A.

Ph: 800.238.3600

Fax: 800.258.0255

101 Broadway Street West

Osseo, MN 55369

www.cornelius.com

NUMBER OF WIRES . . . . . . . . . . . 3

MAX. FUSE SIZE . . . . . . . . . . . . . . 15

SHIPPING WEIGHT LBS (KGS.) . . 160 (73)

AGENCY LISTINGS . . . . . . . . . . . .

oPeratInG LIMItS

Ambient Temp. Range Air & Water 50° - 100°F (10° - 38°C)

Water Temp. Range 40° - 100°F (4.5° - 38°C)

Water Pressure Ice Maker Water in Min. 20 psi (1.4 bar)

Max. 60 psi (4.1 bar)

Condenser Inlet Water

(Water cooled only)

Min. 20 psi (1.4 bar)

Max. 60 psi (4.1 bar)

Model No.

Cond.

Unit

Ice Prod.

per 24 hrs.

at 70° Air /

50° Water

lbs. (Kgs.)

Ice Prod.

per 24 hrs.

at 90° Air /

70° Water

lbs. (Kgs.)

Water Used-Gals. (Ltrs.)

per 100 lbs. of ice 90°

Air / 70° Water

Kilowatts

Used per

100 lbs.

of ice 90°

Air / 70°

Water

Heat

Rejection

(Btuh)

Electrical

Rating

Min.

Circuit

Amp.

Ice Prod.

Use Cond. Use

CCu0150A*11 Air 174 (79) 112 (51) 34 n/a 11.8 3572 115/60/1 9.7

* Represents cube size. For full cube substitute an “F”, for half cube substitute an “H”.

Please note: air-cooled units require 6” (152 mm) clearance for air intake and exhaust.

Note #1: Application bin storage is 100 lbs. (45 Kgs.) = 90% of Internal Volume x 34 lbs. per cubic foot

Note #2: ARI bin storage is 74 lbs. (34 Kgs.) = 80% of Internal Volume x 30 lbs. per cubic foot

1. 90°/70° ﬁgures are rated in accordance with ARI Standard 810.

24" (610 mm)

33"

(838 mm)

23 5/8"

(600 mm)

6" (152 mm) to 7" (178 mm)

Adjustable Legs

24" (610 mm)

17 1/2" (444 mm)

16 3/8" (416 mm)

2 5/8" (67 mm)

Electrical Inlet

7/8" (22 mm) D Hole

Icemaker — Water IN

1/4" (6 mm) Male Flare

30 1/16"

(764 mm)

Water Condenser — Water OUT

3/4" (19 mm) FPT

Water Cooled Units Only

Water Condenser — Water IN

3/8" (10 mm) FPT

Water Cooled Units Only

3/4"

(19 mm)

(152 mm)

(229 mm)

4 3/16"

(106 mm)

Icemaker Drain

9/16" (14 mm) I.D. hose

Bin Drain

9/16" (14 mm) I.D. hose

32" (813 mm)

1 7/16" (37mm)

39"

(991 mm)

24"

(610 mm)

Air In -

Right Front

of icemaker

Air Out -

Left Front

of icemaker

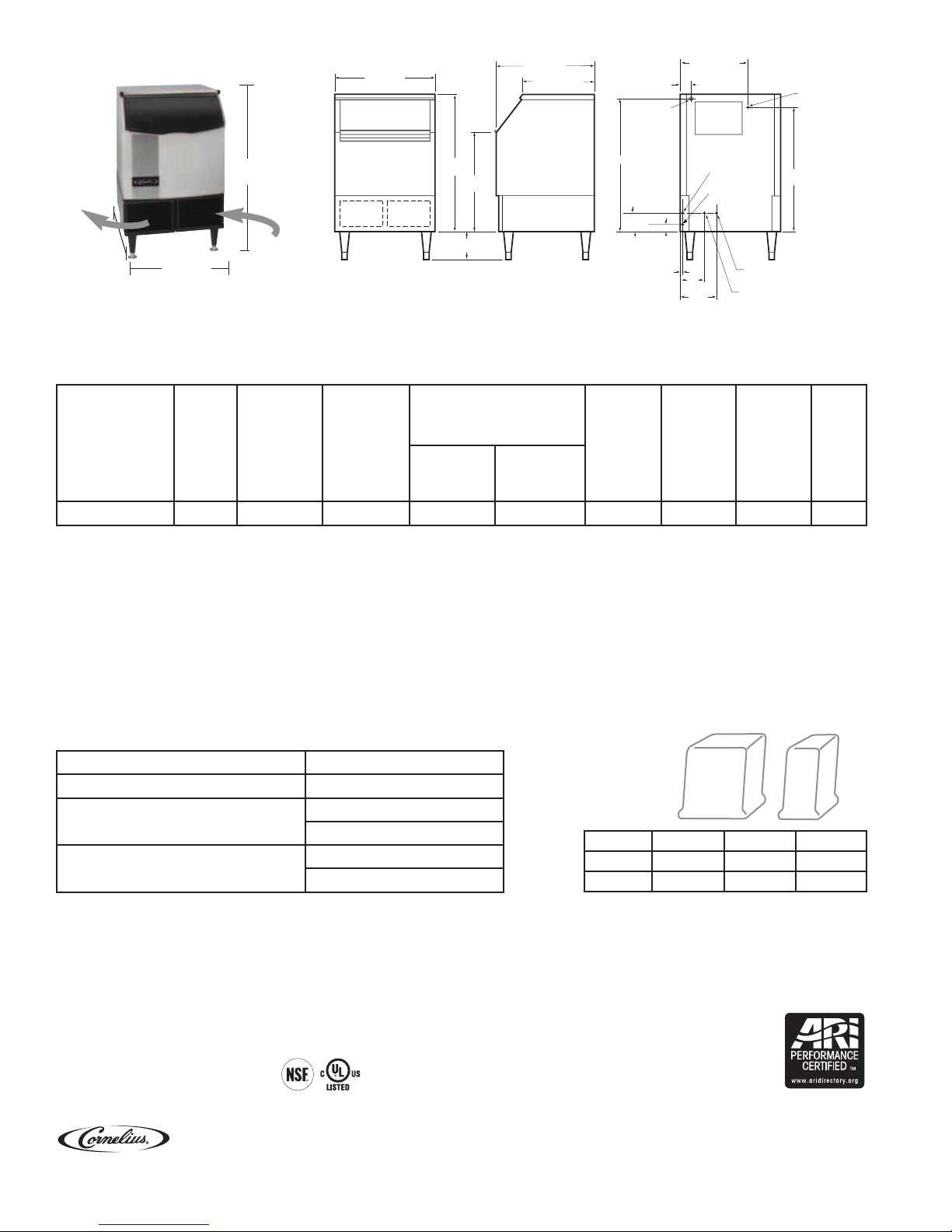

Dimensions and Air Flow

24"

(610 mm)

Cube Size: Width Depth Heigth

Full 7/8" (22mm) 7/8" (22mm) 7/8" (22mm)

Half 3/8" (10mm) 7/8" (22mm) 7/8" (22mm)
