2014 Code Black
Covert Scouting Camera Instruction Manual
Watch the set up video on our website at:
www.covertscoutingcameras.com
Page2
Table of Contents
Camera button control diagram: ...................... 4
Installing the batteries:..................................... 5
Formatting the SD card:................................................. 12
Send a test photo:........................................... 22
Understanding main screen info: ................... 23
Customizing the camera settings:................... 24
Setting the camera mode: ............................................. 25
Camera mode settings: .................................................. 25
Video mode settings: (Fig 21) ....................................... 26
PIR tab:........................................................................... 28
NET tab:.......................................................................... 32
Controlling your camera using SMS:.............................. 33
SYS tab: .......................................................................... 38
Viewing photos on the color display:............................. 43
Troubleshooting:............................................................ 45
Tricks and tips on field setup: ........................................ 48
Covert Scouting Cameras Warranty:.............................. 50
Covert Warranty Policy and Procedure: ........................ 50
Covert International Warranty Policy and Procedure: .. 52
Code Black Set Up on a MAC: ........................................ 58
Page3
Congratulations on your purchase of the 2014 Code
Black Covert Scouting Camera! We truly value your
business and will strive to provide you top quality
customer service should you ever need help with
any of our products.
Check out our other products on our website at:
www. covertscoutingcameras.com
New for 2014 is the 3G (WCDMA) model. This will
allow for better signal in more areas!
We know the first big question you are going to
have once you purchase your Code Black is, “How
do I get it set up to work over the cellular network?”
This is very easy if you follow the steps laid out for
you in this manual starting on the following pages.
We hope you enjoy hassle free performance from
this quality product for years to come.
Page4
Camera button control diagram:
Play
Antenna
Color LCD
Navigation
arrows
Select/OK
Menu
Selector switch
SIM card slot
Delete
Take photo
manually
Aux battery
jack
USB
SD card
slot
Figure 1
Page5
Installing the batteries:
Your Code Black can function short term on 4-AA
batteries. Improved battery life on 8-AA, but we
suggest you use 12-AA batteries to get the most out
of your cameras battery life. Using Covert
rechargeable NiMH, 2300mAh, AA batteries can
extend the battery life significantly.
Install the batteries by sliding the top battery in to
the sleeve first, then depressing the spring with the
other battery and snapping down in place. Pay
attention to the (+) or (-) molded into each sleeve to
determine if you insert the positive or negative end
into the sleeve first. Negative battery terminal
always contacts the spring. (Fig. 2)
Figure 2
Page6
Purchasing your SIM card:
The Code Black is designed to send the photos via
MMS or DATA through SIM card technology over
the cellular network to any phone # or email
instantly once the photo is taken.
You will have to purchase a texting package from
any GSM (WCDMA) provider to set up your wireless
feature to send to a phone # as a text.
When sending to an email you will need a SIM card
with DATA.
If your SIM card only has DATA it will NOT send via
MMS as a text message. If your SIM card only has
TEXT it will NOT send via email.
This camera will function as a regular trail camera if
the SIM card is not active. All photos will store to
the SD card.
To have your Code Black send pictures to your cell
Page7
phone or email address, you will need to get a
standard size SIM card from any 3G GSM (WCDMA)
networks that provide a SIM card.
*Sprint and Verizon are NOT GSM (WCDMA)
providers.
*Camera will send the pictures to any provider;
however the SIM card in the camera must be
through a GSM (WCDMA) provider.
Installing your SIM card:
Now that you have your SIM card, open your
camera housing to expose the control panel. Make
sure your camera mode selector switch is in the OFF
position. On the left side of the camera control
Page8
Figure 3

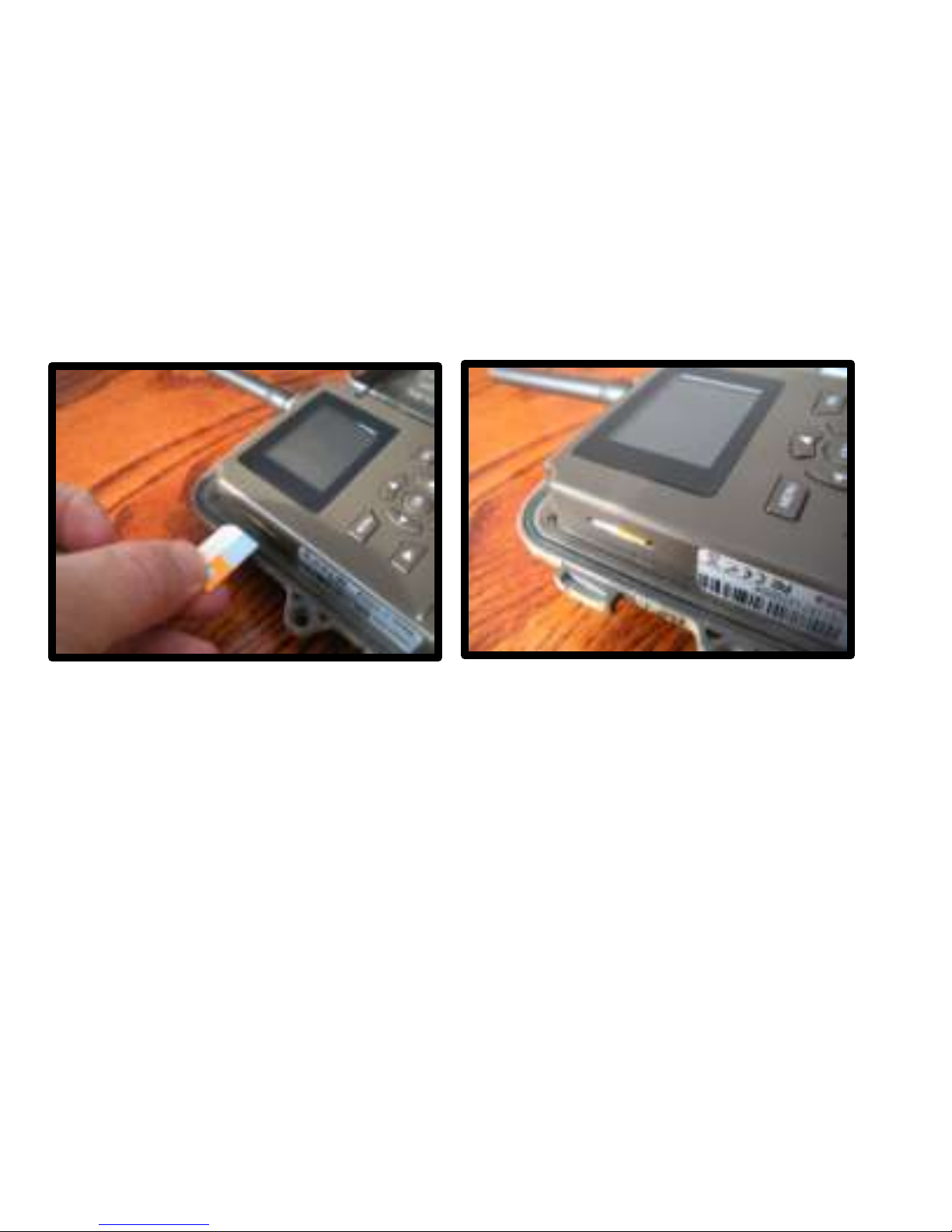

panel towards the top is a small card slot. See
Figures 3 & 4 below.
Press the card in until it bottoms out and then
release. It will snap in place.
To remove the SIM card, simply press in on the card
until it clicks and then release it.
Figure 4
Page9
Installing the SD card:
Now that you have your SIM card and it has been
installed in the camera you will need to install a
Covert SD card in the bottom of the camera. See
figure 5 below for card orientation. The card
installs the same way as the SIM card did. Push in
until it clicks and release. To remove, repeat that
process, the card will pop out enough to remove.
You can use any SD card size up to 32GB. You must
have the SD card in the camera to be able to turn
the camera on and set it up.
Figure 5
NOTE: Every photo
taken with this
camera will be saved
to the SD card even if
it is sending the
photos wireless. You
will always have
access to the high
resolution photos on
the SD card just like
with standard game
cameras.
Page10
Setting up the wireless network:
1) Slide selector switch to the right to the SETUP
position. Press the MENU button You will see
the screen shown below (Fig 6):
2) Press the ►button 2times to highlight the NET
tab in yellow. Press the ▼button to highlight
the Send Mode option. Press the ►button to
toggle the option in the white box to INSTANT.
Press OK to save this setting. You will then be
asked a max number. 0-99. To receive an
Figure 6
