Cozzia Qi SE Bedienungsanleitung

CZ-710/Qi SE

COZZIA CZ-710/Qi SE.

COZZIA

Assembly Instructions

CZ-710 Massage chair arrives in 3 boxes.

Open box 1 and remove all contents. Remove the packing materials. Take the chair out of the box. Collect

all the accessories and put them aside.

Adjust chair position. Use the power cord to connect the chair to the power supply and turn on the power

switch. The chair will go back to home position. Then disconnect the power cord.

Open box 3 with footrest. Take out footrest and remove the cotter pin and bolt and put aside.

Here is where the cotter pin and bolt are located.

Here is what it will look like after the cotter pins and bolts

have been removed

Here are the cotter pins and bolts.

Remove cotter pins and bolts from chair base. Locate the two cotter pins and bolts on the chair base.

Take them oﬀ and put them aside, then take oﬀ the cable ties to release the link rod.

Connect footrest to base. Move footrest closer to the chair. Engage the link rod with footrest joint. Then insert

the bolt and lock with the cotter pin.

Here is what is should look like with all wires connected.

Here is what it will look like after you detach the side

board cover.

Here is what the eight pin connectors look like.

Here are the two side boards.

Connect wires in footrest. Connect both footrest wire connectors and screw the caps tight. Then connect the

air hose.

Caution: After the wire connectors have been connected the cap must be screwed tight.

Fully connect footrest to base. Move the footrest closer to the chair. Engage the joints of the footrest and the base.

Lift footrest up to align the holes on the joints, then insert the bolt and lock it with cotter pin (that you had set aside).

Open box 2 with side boards. Take out the side boards. Detach the cover from the side board.

Attach the right side board. Remove the cable tie to release the air hose ﬁrst. Then ﬁx the ﬁve

double-threaded screws onto the frame.

Here is what the four pin connectors look like.

Here is the cable tie you are to cut oﬀ. Here is what it will look like once you have fastened in the

double-threaded screws.

Here is how you detach the side board cover.

Attach the right side board cont. Move the right side board close to the chair. Route the air hose through the

hole of the side board. Then ﬁx the side board with screw nut and washer.

Attach the left side board cont. Repeat 9,10,11 to ﬁx the left side board onto the chair. And please note that

left side board only has one way air hose.

Connect all wires in the right side board. Connect the wire connector and ﬁve way air hose to the side board.

Then connect the one way air hose.

Here is the wire connector. Here is the ﬁve way air hose.

Here is the one way air hose. Here is what it will look like with all the wires connected.

Assemble the decoration strip. First, attach the decoration strip. Then ﬁx it with six cross recessed pan head

screws.

Attach the side board covers. There are two pillars on the side board and two pillars on the side board cover. Move

the side board cover close to the side board and align the snap joints. Pinch the lower side board to connect. Then

knock the edge of the side board cover to make all the snap joints are clamped.

Attach the speaker covers. These are also attached by snap joints. Attach the side covers ﬁrst, then the decoration

strip on the top.

Attach the remote control holder. Remove the screw ﬁrst, then ﬁx the remote control holder onto the armrest.

Secure it with the screw nut. Then attach the touch-pad on to the holder.

16 Attach the backrest pad to the backrest. Zip the zipper on top of the backrest. Then ﬁx the elastics of the

backrest pad to the backrest.

Attach the seat pad. Zip the three zippers to ﬁx the seat pad onto the base. Then zip the zipper between

seat pad and footrest cushion.

18 Turn on the chair. Connect the chair to power supply and turn on the power switch. The chair will now be

ready to start.

USER MANUAL CZ-710/Qi SE

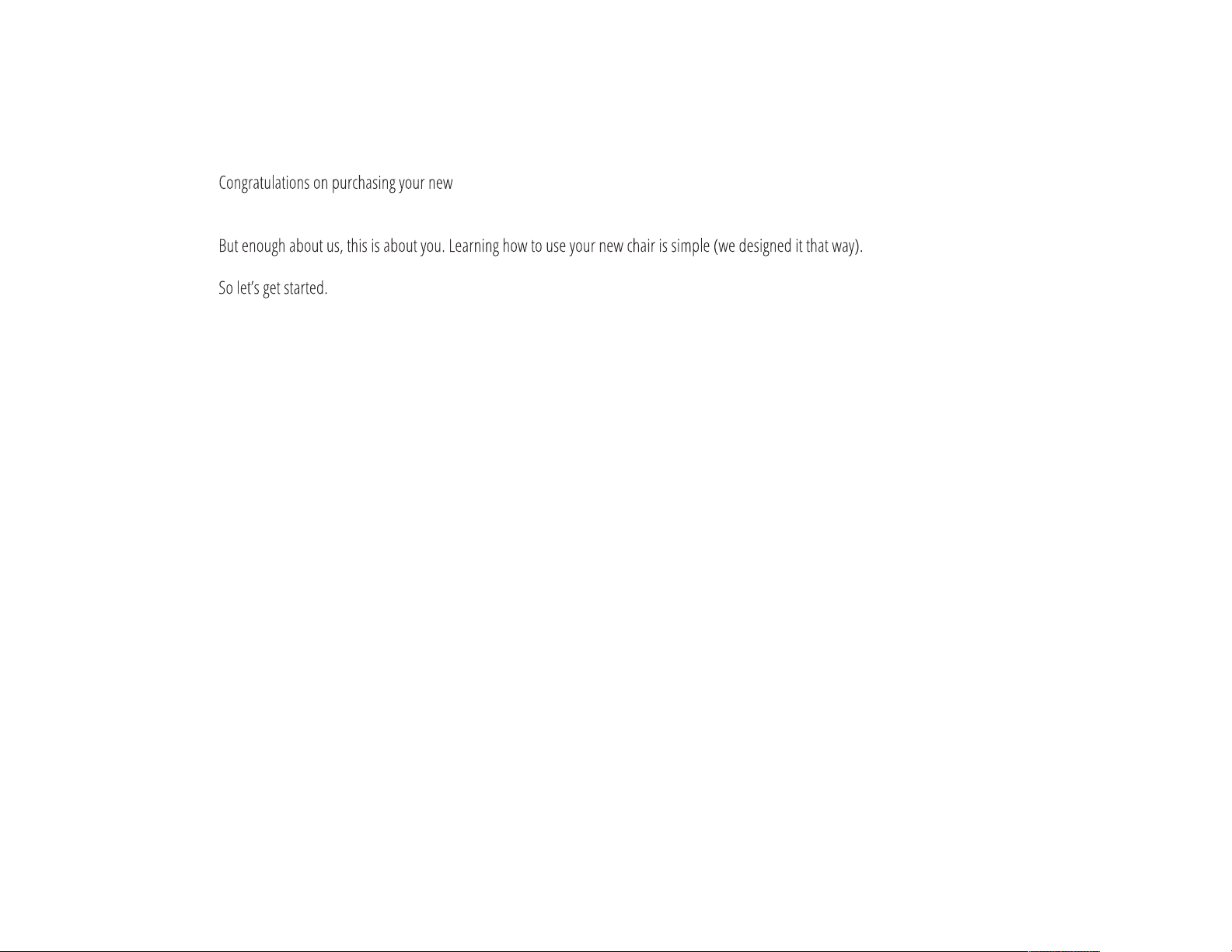

Hello.

Cozzia Qi SE.

At Cozzia we understand that every body is diﬀerent and have carefully designed your massage chair with that in mind.
