INSTALLATIONS
1. Use the supplied three screws to attach the bracket to wall. Drill a hole in advance on the proper position of the
wall for the Power and Video Cable to pass through later.
2. Remove the Joint Lock from the bracket by turning it counterclockwise. Then, screw the Joint Lock to the
backside of the camera (turn clockwise)*.
NOTE: There are two screw holes on the backside of the camera. Please choose the proper one which
best suits your installation environment.
3. Screw the camera with the Joint Lock connected to the bracket. After that, secure the Joint Lock to fix. Then,
pass the Power and Video Cable through the hole drilled in Step 1 to hide it.

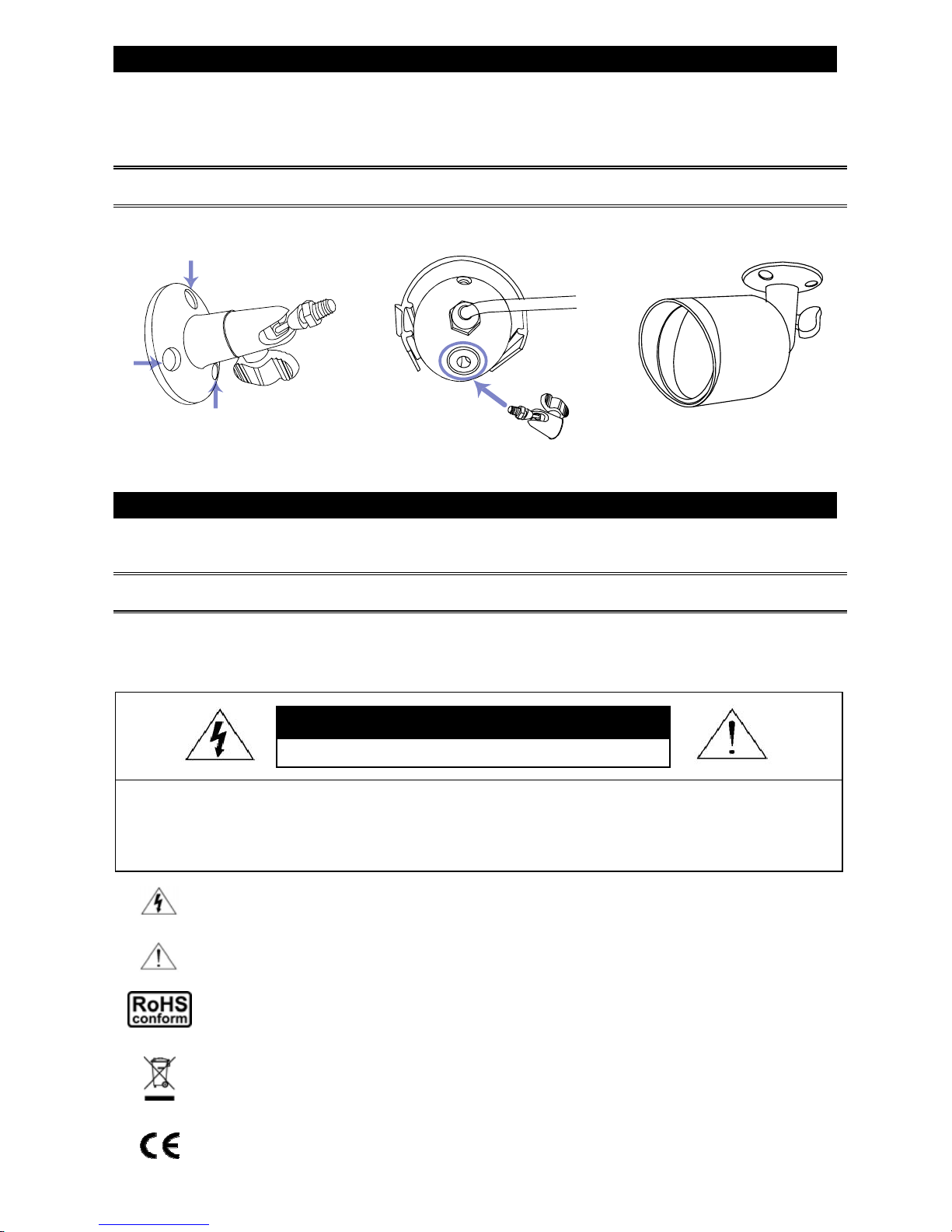

Figure 1 Figure 2 Figure 3
CONNECTION
1. DC12V Input Terminal
Connect the power terminal of the camera to a 12V DC regulated power supply.
NOTE: Please use the correct power adaptor, DC12V (regulated), to operate this unit. The power
tolerance of this unit is DC12V ± 10%. Over maximum DC 12V power input will damage this unit.
2. Video Output Connector (VIDEO OUT)
Connect the camera video output and the monitor video input with 75Ωcoaxial cable.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
This exclamation point within an equilateral triangle is intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature accompanying the appliance.
ROHS Announcement
All lead-free products offered by the company comply with the requirements of the European law on the Restriction
of Hazardous Substances (RoHS) directive, which means our manufacture processes and products are strictly
“lead-free” and without the hazardous substances cited in the directive.
The crossed-out wheeled bin mark symbolizes that within the European Union the product must be collected
separately at the product end-of-life. This applies to your product and any peripherals marked with this symbol. Do
not dispose of these products as unsorted municipal waste.
CE Mark
This apparatus is manufactured to comply with the radio interference.
The company does not warrant that this manual will be uninterrupted or error-free. We reserve the right to revise or
remove any content in this manual at any time.
C
CA
AU
UT
TI
IO
ON
N:
:
To reduce the risk of electric shock, do not expose this apparatus to rain or moisture.
Only operate this apparatus from the type of power source indicated on the label.
The company shall not be liable for any damages arising out of any improper use, even if we have been advised of the possibility of such
damages.
C
CA
AU
UT
TI
IO
ON
N
R
RI
IS
SK
K
O
OF
F
E
EL
LE
EC
CT
TR
RI
IC
C
S
SH
HO
OC
CK
K
