Createbot R3D S1 Benutzerhandbuch
R3D S1 3D Printer
Quick Operation Guide
*Please read the Quick Operation Guide carefully before using the
product and keep it in a safe place.
Packing list
1
S1 Machinex1
After opening the product packaging, please confirm whether the 3D printer is in good condition,
and confirm whether the accessories are complete according to the following figure.
Filament Holderx1 Soft magnetic plate
（120x120mm)x1
USB Cablex1
SD Card and Card Readerx1 Wrenchx5Tweezersx1
Appearance introduction
2
SD Slot
Printing
Platform
Filament Holder Filament
Feed Tube
Filament
Extruder
Operartion Guide
Step1
Install the filament holder
First, aim the inner hole of the filament spool at the plastic part of the wire feed frame, and
gently push it in, then it will buckle up automatically. Note that the tangent direction of
filament is shown in the picture.
Install the filament spool
M4*16 screws
Filament Holder
Insert two M4*16 screws first, then fix them in the threaded holes as specified
and tighten them.
Filament Spool
filament
Step2
SD Card Printing
Copy the file name 3d,gcode into the SD card,and then insert the SD card into the
corresponding card slot.
First put the filament through the feed hole, and then push it in the direction of the feed pipe
until it can't move.
Filament
Feed Tube Faliment
Insert Feed
Filament Loading and Unloading
Note:only one filename is allowed for files
3d.gcode
Adapter installation
Step3
The soft magnetic plate shall be parallel and perpendicular to the platform plate.
Step4
Soft magnetic plate fixed notes
5
Insert the power adapter into the corresponding DC interface. As shown in the figure, the
machine will automatically print the SD card and wait for about 3 minutes before the
printing starts.
Step5
Check and adjust the pulley
6
Slicing software installation
Take out the SD card in the 3D printer, copy the slicing software in the SD card(as shown in the
figure below) to the computer desktop, then double-click the installation file to enter the
installation interface, and select the next installation step.
Slice software installation files
After receiving goods at the first time, need to check pulley, because shake can bring about
pulley to sway on orbit, so need to twist screw with Allen wrench inside only half circle
arrives 1 circle till pulley is not shaken so far.
Run the slice parameter configuration for the first time
Open the slicing software, pop up the first run wizard,select the corresponding language,
set the machine to R3D S1,and then Next.
8
After opening the software, drag the model onto the platform. After waiting for a while,
the model will automatically finish slicing.
select the model, can rotate the model, zoom in and out, mirror command.
After slicing, the file must be saved with a unique name. 3d format is gcode.
Inhaltsverzeichnis
Andere Createbot 3D-Drucker Handbücher
Createbot
Createbot MaxI Bedienungsanleitung
Createbot
Createbot Super Mini Bedienungsanleitung
Createbot
Createbot Mini I Bedienungsanleitung
Createbot
Createbot MAX Bedienungsanleitung
Createbot

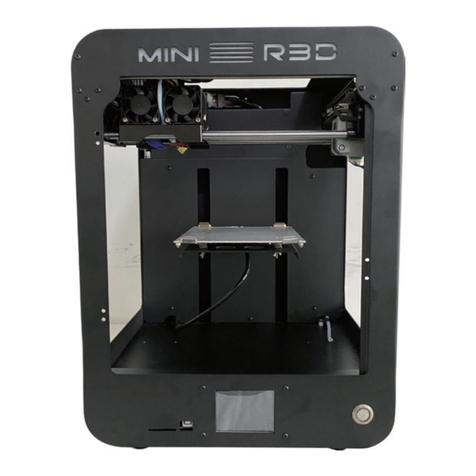

Createbot MINI-Pro Bedienungsanleitung
