Creative SOUND BLASTER X5 Bedienungsanleitung

Select a language:

EN – English

DE – Deutsch

FR – Français

ES – Español

CZ – Český

PL – Polski

SK – Slovenský

RU – Русский

JP – 日本語

CS – 简体中文

CT – 繁體中文

KO – 한국어

󲖸󷳋󲖸󱿠



HI-RES DUAL DAC USB SOUND CARD

WITH FULLY BALANCED XAMP HEADPHONE BI-AMPLIFIER

QUICK START GUIDE

使用产品前请阅读使用说明

MULTI-LANGUAGE QUICK START GUIDE DOWNLOAD

creative.com/support/SBX5

[EN] MULTI-LANGUAGE QUICK START GUIDE DOWNLOAD

[FR] TÉLÉCHARGEMENT DU GUIDE DE DÉMARRAGE RAPIDE MULTI-LANGUES

[DE] MEHRSPRACHIGE SCHNELLSTARTANLEITUNG HERUNTERLADEN

[ES] DESCARGA DE LA GUÍA DE INICIO RÁPIDO EN MÚLTIPLES IDIOMAS

[IT] DOWNLOAD DELLA GUIDA DI AVVIO RAPIDO MULTILINGUA

[NL] MEERTALIGE SNELSTARTGIDS DOWNLOAD

[RU] МНОГОЯЗЫЧНОЕ КРАТКОЕ РУКОВОДСТВО ЗАГРУЗИТЬ

[PL] POBIERZ PRZEWODNIK SZYBKIEGO STARTU W WIELU JĘZYKU

[CZ] STÁHNOUT VÍCEJAZYKOVÝ RYCHLÝ NÁVOD K POUŽITÍ

[SK] STIAHNUŤ SI RÝCHLY NÁVOD NA ŠTARTOVANIE VIAC JAZYKOV

[JP] 󲡕󸌫󸑤

[CS] 󱘕󸱠󲡕󸛓󸌫󳗐󸷀󱮧󹠗󳬘󱻣

[CT] 󱘕󸮛󲡕󸑤󸌫󳗐󸷀󱮧󹝭󳬘󱻣

[KO] 󻁓󺫜󼌣󾖴󻯏󻛧󾖴󼁋󼔀󾖴󺥯󼓣󻉋󾖴󻁓󼐣󻗋󻉋

[NO] NEDLASTING AV HURTIGSTARTVEILEDNING FOR FLERE SPRÅK

[FI] MONIKIELINEN PIKA-ALOITUSOPPAAN LATAUS

[SV] FLERSPRÅKIG SNABBSTARTSGUIDE LADDA NER

[DA] DOWNLOAD AF HURTIG STARTVEJLEDNING PÅ FLERE SPROG

OVERVIEW (FRONT) OVERVIEW (BACK)

1. Power Button with LED

2. Mic Mute / Unmute Button with LED

3. Bluetooth®Button with LED

4. Mic Gain Knob

5. Info Display Button

6. Headphones Gain Switch

7. LED Display

8. Speaker / Headphones Switch Button

16. Line-out (Right) Port

17. Line-out (Left) Port

18. Line-in (Right) Port

19. Line-in (Left) Port

9. Mic-in Port

10. DSP / Direct Mode Switch Button

11. Headphones-out (Unbalanced) Port

12. Equalizer Button

13. Headphones-out (Balanced) Port

14. PC / Console Switch

15. Volume Control Knob with LED

20. TOSLINK Optical-out Port

21. TOSLINK Optical-in Port

22. USB-C Power and Data Transfer Port

23. USB-A Host Audio Streaming Port

(Max. Power 5V 100 mA)

8 9 16 2018 2217 2119 2311 1310 12 14

1 2 4 63 5 7

Button

Action

LED Display

Power On

Power On (Standalone Mode)

Power O / Standby

i) Supported USB-A Port

ii) DC Adapter (Min. 5V 1A)

USB-C to USB-A Cable

“WELCOME” is the default LED display when Sound Blaster X5 is connected to a PC / Mac using a USB-C

data cable.

“OFFLINE” is the default LED display when Sound Blaster X5 is powered by an external power source

using a USB-C charging cable and has devices connected to one or more of the available input sources.

Use cases include, but not limited to: TV, Blu-ray / DVD player, and / or a set-top box

POWERING UP SOUND BLASTER X5 CONNECTING EXTERNAL DEVICES TO SOUND BLASTER X5 (FRONT)

Balanced Headphones

Microphone

USB

Headphones / Headset / Earphones

CONNECTING EXTERNAL DEVICES TO SOUND BLASTER X5 (BACK) CONNECTING EXTERNAL DEVICES TO SOUND BLASTER X5 (BACK)

PC / Mac, PS5™, and PS4™

USB audio streaming

AV Receiver

Speakers with Optical-in

Blu-ray and DVD Players

Turntable with Line-out

Set-top Box

USB DACs Wireless Audio

Transmitter

USB Headset USB Microphone

External USB

Speakers

The USB-A host audio streaming port supports

USB Audio Class devices of up to 5V 100 mA

2.0 / 2.1 Analog

Speaker System

Stereo AmpliersPowered Speakers

Analog Stereo /

Tube Ampliers

Bluetooth Connectivity

Button Action LED DisplayLED Indicator

Enter Bluetooth Pairing Mode Blinking Blue

Bluetooth Paired / Connected Solid Blue

O

Flashing Blue

N / A

Exit Bluetooth Pairing Mode

Trigger BLE connection via the

Creative app

Reset Bluetooth Settings

Example:

LED Display

The LED Display oers direct view of Sound Blaster X5’s status and information. Details displayed

include volume level, playback format, speaker / headphones output, DSP / direct mode, selected EQ,

Bluetooth status, and other device messages.

Button Action LED Display

O

Auto Bright (100%) Dark (50%)

Playback Volume

Audio Format DSP / Direct Mode

OutputMic-in Status

DISPLAY AND CONTROL INTERFACE

Example:

Volume Knob Control

Note: When master volume is muted, the volume knob’s LED will blink white

Button Action LED DisplayLED Indicator

Solid White

Mic Gain Control

Example:

Button Action LED Display

Increase / Decrease Mic Gain Level

Mic Mute / Unmute

Button Action LED Indicator

x1 Muted – Solid Red

Unmuted – O

UNMUTEMUTE

1110

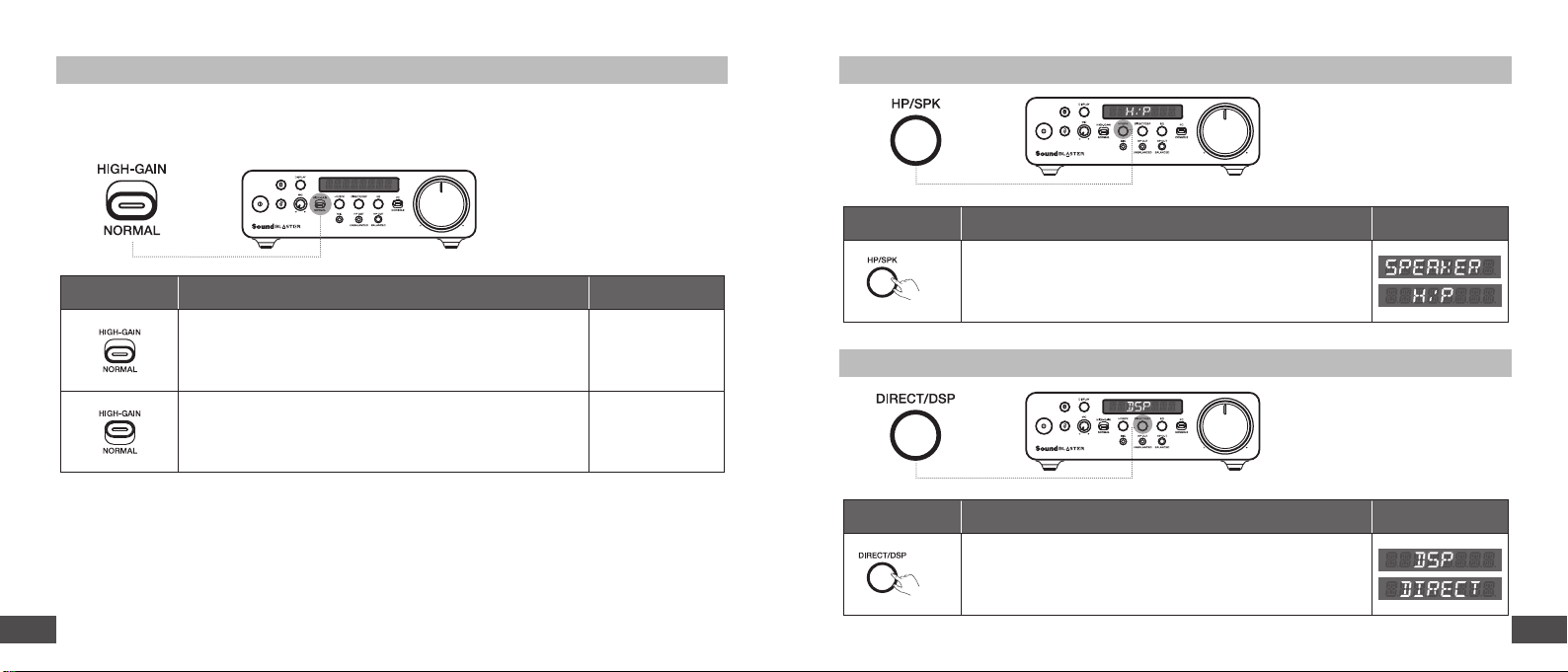

Headphones Gain Switch

The gain switch oers users the ability to further boost audio volume by amplifying incoming

signals from playback source if the connected device oers compatible capabilities.

N / A

Button Action LED Display

Normal Mode

High Gain Mode

(For in-ear / over-ear headphones with < 150Ω)

(For planar-magnetic headphones or headphones

with > 150Ω)

Speaker / Headphones Switch

Button Action LED Display

Speaker Mode / Headphones Mode

(Default: Speaker Mode)

DSP / Direct Mode Switch

Button Action LED Display

DSP Mode / Direct Mode

(Default: DSP Mode)

1312

Equalizer

Example:

Note: You may also create your own personal sound signature by customizing and assigning fully-

customizable DSP-controlled hardware 10-band EQs to any of the EQ modes on the Creative app.

Button Action LED Display

x1 EQ O

EQ 1 – Music EQ 2 – Movies

EQ 3 – Gaming

PC / Console Switch

(Default: PC Mode)

(Default: EQ O)

N / A

Button Action LED Display

Console Mode

PC Mode

1514
