Congratulations!
Your Creative Xmod™ Wireless harnesses Creative's X-Fi™ technology to
give you audio beyond CD quality. No software is required, so connect Xmod
Wireless to your computer and stereo speakers, and start enjoying music
with the X-Fi difference.
Read on to learn how to get started with your Xmod Wireless!
Contents
About Your Xmod Wireless ........................................................ 2
About Your Remote Control ......................................................... 3
Setting Up Your Xmod Wireless ................................................... 4
Playing Music From Your Computer ........................................... 6
Using Your Xmod Wireless .......................................................... 6
Using X-Fi Enhancements ........................................................... 9
Connecting Headphones .......................................................... 10
Connecting To An External Stereo Audio Device ...................... 11
FAQs ........................................................................................... 12
General Specifications ............................................................... 16
Safety Information ..................................................................... 17
Declaration of Conformity ......................................................... 18
Bob UG.fm Page 1 Thursday, February 22, 2007 4:04 PM
About Your Xmod Wireless 2
About Your Xmod Wireless
98
10
6
7
1
5
4
( )
2
3
11
1 Play/Pause button
2 Previous/Rewind button
3 Next/Fast-forward button
4 Volume LED ring
5 Volume Control
See “Using Your Xmod Wireless”
on page 6.
6 Power/Standby LED
7 Headphone jack
8 Audio Line In jacks
9 Audio Line Out jack
10 USB port
11 Link LED and Connect
button
For use with X-Fi Wireless
Receivers.
Bob UG.fm Page 2 Thursday, February 22, 2007 4:04 PM
About Your Remote Control 3
About Your Remote Control
Your remote control has an operating distance of up to three meters
(approximately 9.8 feet).
1
2
3
4
7
6
11
8
10
9
12
5
5a
5b
5c
5e
5d
1 Power/Standby button
2 Mute on/off button
3 Volume buttons
4 Menu button*
This launches the default media player on your
computer.
5 Navigation keypad*
5a. Scrolls up.
5b. Skips to the next track or fast-forwards a
track.
5c. Executes a selected option in a menu.
5d. Scrolls down.
5e. Skips to the previous track or rewinds a track.
6 Broadcasting and Zone control buttons
For use with X-Fi Wireless Receivers. See “Enabling
wireless features” on page 9
7 Play/Pause button
8 Display button*
9 Media Player Shuffle button*
10 Media Player Repeat button*
11 X-Fi Crystalizer™ on/off buttons
12 X-Fi CMSS®-3D on/off buttons
NOTES *With some media players,
some functions are not
accessible via the Xmod
Wireless remote control.
Bob UG.fm Page 3 Thursday, February 22, 2007 4:04 PM
Setting Up Your Xmod Wireless 4
Setting Up Your Xmod Wireless
Step 1: Connect Your Xmod Wireless
Turning on Xmod Wireless
When Xmod Wireless turns on, your wireless connection is being prepared,
so that when it is needed, the best connection can be made without any
interference. During this time, the Power/Standby LED will flash red and
finally light up blue.
2a
2b
1
1 Powered stereo or 2.1 speakers 2a USB-to-Mini-USB cable
2b Computer
Bob UG.fm Page 4 Thursday, February 22, 2007 4:04 PM
Configuring Your Computer 5
Step 2: Configuring Your Computer
Make sure your Xmod Wireless is connected to your computer and all
existing applications are closed.
For Microsoft®Windows Vista™
1Click Start Control Panel Hardware and Sound Sound.
The Sound dialog box appears.
2Click the Playback tab page.
3Select Creative Xmod Wireless and click the Set Default button.
4Click the Recording tab page.
5Select Creative Xmod Wireless and click the Set Default button.
6Click the OK button.
For Windows®XP
1Click Start Control Panel Sounds and Audio Devices.
The Sounds and Audio Devices Properties dialog box appears.
2Click the Audio tab page.
3In the Sound Playback section, select Creative Xmod Wireless as the
default device.
4In the Sound Recording section, select Creative Xmod Wireless as the
default device.
5Click the Apply button.
6Click the OK button.
Bob UG.fm Page 5 Thursday, February 22, 2007 4:04 PM
Playing Music From Your Computer 6
Playing Music From Your Computer
Launch your favorite media player and start playing music to enjoy the X-Fi
difference.
Using Your Xmod Wireless

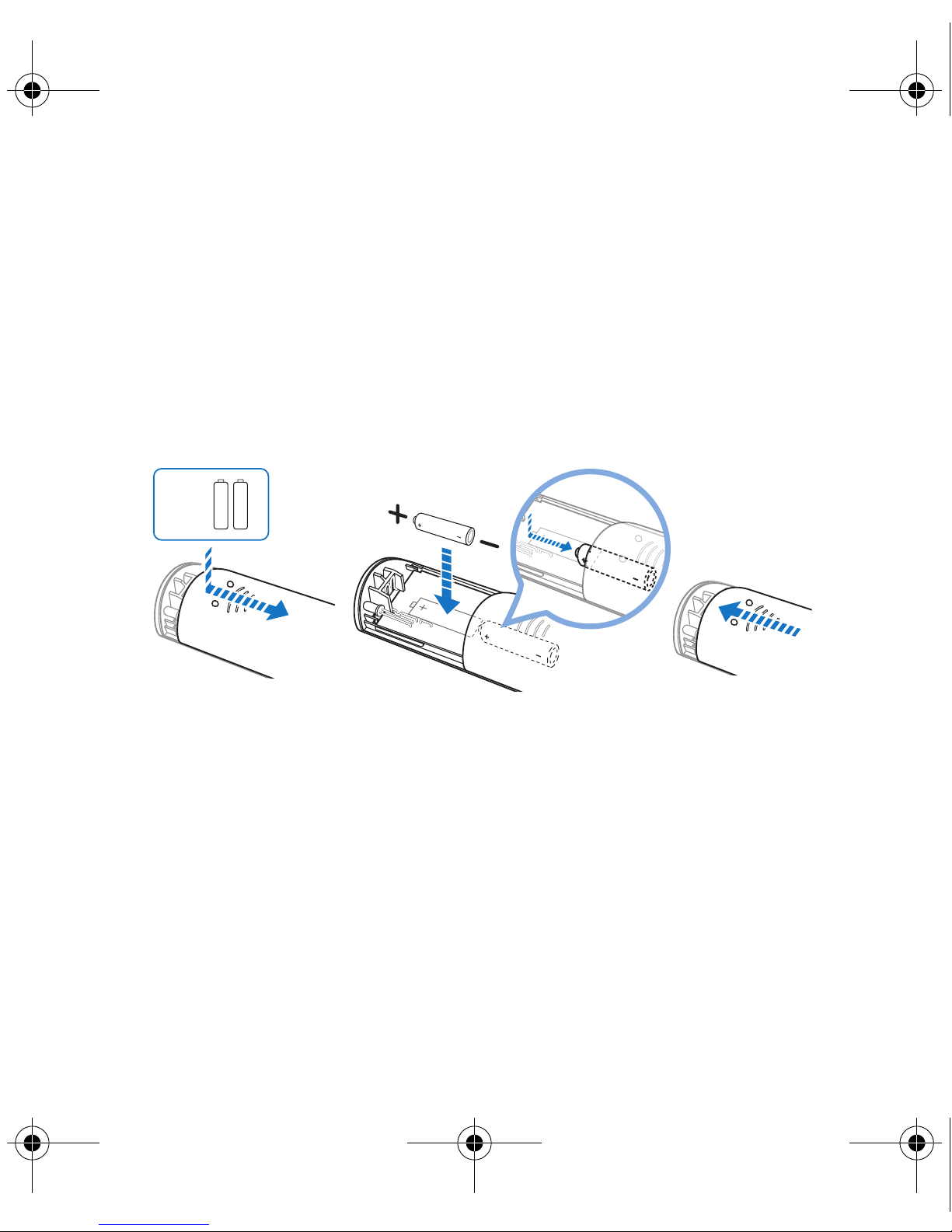

Inserting batteries into your remote control
IMPORTANT The cover on the remote control can only be opened halfway. Do
not try to detach the cover when inserting batteries.
AAA
AAA
2 x
Bob UG.fm Page 6 Thursday, February 22, 2007 4:04 PM
Using Your Xmod Wireless 7
Adjusting volume
When you adjust the volume, the Volume LED ring indicates for about four
seconds the level selected. Subsequently, the entire Volume LED ring
remains lit.
Muting audio
When you mute audio, the Power/Standby LED flashes red.
To unmute, press the Mute button again. The Power/Standby LED lights up
blue.
NOTES You can also use the Volume Control on your Xmod Wireless or the
volume setting on your computer’s media player.
NOTES You can also press the Volume Control on your Xmod Wireless or
the mute button on your computer’s media player.
Bob UG.fm Page 7 Thursday, February 22, 2007 4:04 PM
Using Your Xmod Wireless 8
Turning on Xmod Wireless or enabling Standby mode
Press the Power/Standby button on your remote control to turn on Xmod
Wireless or enable Standby mode. For Power/Standby LED information, see
below.
Returning to factory default settings
Press and hold the Previous/Rewind and Next/Fast-forward buttons on your
Xmod Wireless together for three seconds. The Volume LED ring lights up.
For more information, see “FAQs” on page 14.
Understanding the Power/Standby LED
IMPORTANT To save your volume and X-Fi enhancements on/off settings,
enable Standby mode. The Power/Standby LED lights up red. You
may then unplug Xmod Wireless from your computer.
NOTES You can also press down and hold the Play/Pause button on
your Xmod Wireless for 3 seconds to enable Standby mode. To turn
on Xmod Wireless, press the Play/Pause button.
LED Behavior Status
Blue Stable Turned on and ready for use.
Red Stable In Standby mode.
Flashing Muted.
NOTES For more information on the Link LED, see the Creative X-Fi
Wireless Receiver User’s Guide.
Bob UG.fm Page 8 Thursday, February 22, 2007 4:04 PM
Using X-Fi Enhancements 9
Enabling wireless features
With one or more X-Fi Wireless Receivers, you can stream music wirelessly
throughout the house and control playback from one location using your
Xmod Wireless broadcasting and zone control features.
For more information on X-Fi Wireless Receivers, see the Creative X-Fi
Wireless Receiver User’s Guide.

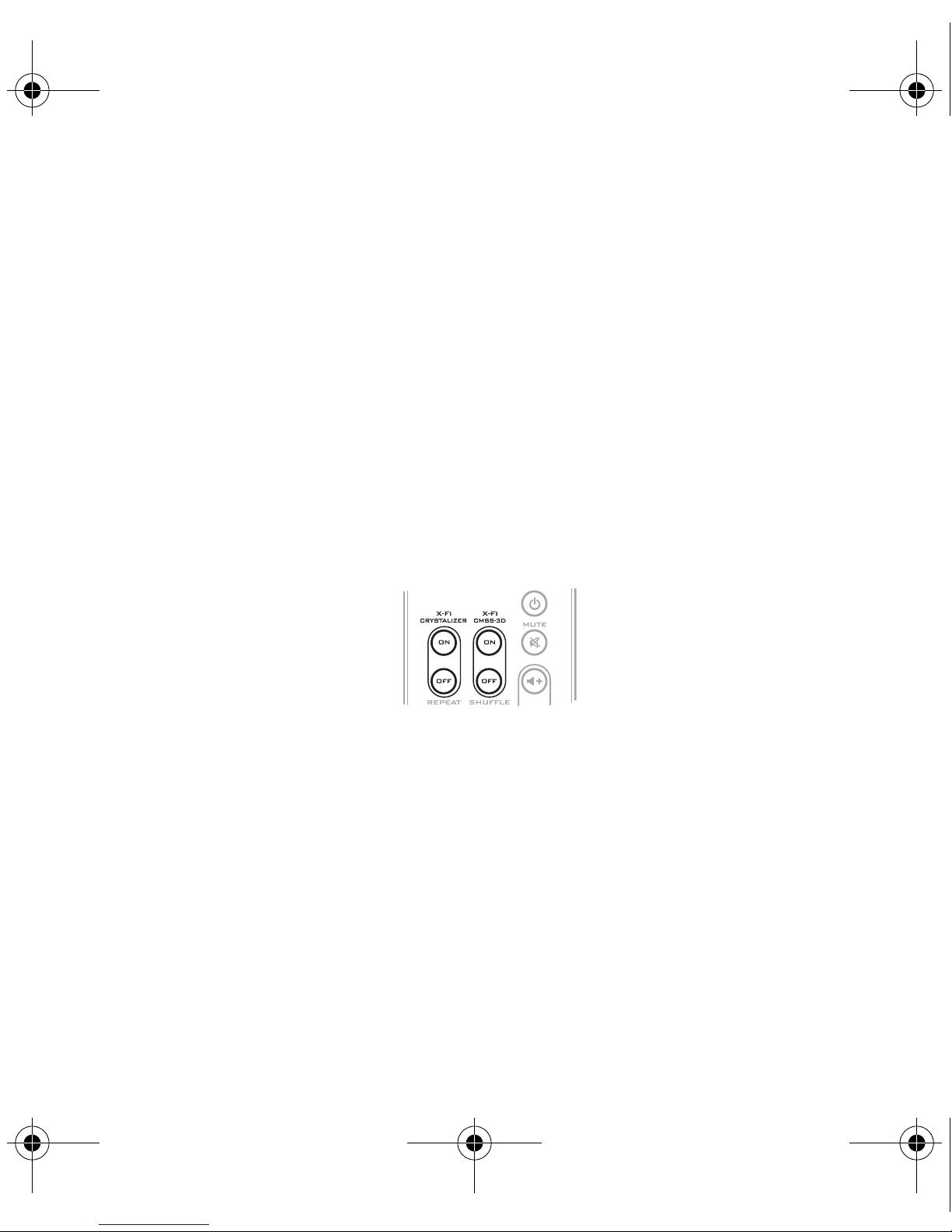

Using X-Fi Enhancements
X-Fi Crystalizer and X-Fi CMSS-3D enhancements have been optimally
calibrated for your listening pleasure. Use the remote control to turn the
X-Fi Crystalizer or X-Fi CMSS-3D enhancements on or off.
By default, X-Fi Crystalizer and X-Fi CMSS-3D enhancements are enabled.
X-Fi CMSS-3D is dependant on your speaker or headphone setup.
X-Fi CMSS-3D Virtual - Enjoy immersive surround sound when your Xmod
Wireless is connected to your Hi-Fi system or any powered stereo speaker
system.
X-Fi CMSS-3D Headphone - Obtain immersive surround sound when your
Xmod Wireless is connected to your headphones.
Bob UG.fm Page 9 Thursday, February 22, 2007 4:04 PM
