LPN00447X0001A0_F

1 of 2

INSTALLATION INSTRUCTIONS

Link With SmartCast®Technology

IMPORTANT SAFEGUARDS

When using electrical equipment, basic safety precautions should always be followed including the following:

READ AND FOLLOW ALL SAFETY INSTRUCTIONS

1. Suitable for ambient of 25C.

Peut etre utilise pour 25C temperature ambiante.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

HARDWARE SETUP

STEP 1:

Connect the DC adapter to Link box and to AC power source. After

connections to the AC power are made the unit will power on.

STEP 2:

Plug your Enterprise network cable into the Eth1 port on the back of

the Link. Eth1 is used for inbound local Enterprise access to Link and

outbound Internet connectivity. See Figure 1.

STEP 3:

For SmartCast®Wireless lighting network:

You need to install a SmartCast®Wireless Gateway

for each of your lighting networks. Refer to the SmartCast®Link

Configuration Guide for further information on how to configure your

SmartCast®Wireless Gateway. www.cree.com/smartcast.

For SmartCast®PoE lighting network:

Each virtual local area network (VLAN) that contains SmartCast®

wireless fixtures should be plugged into the Link, which can support up

to five PoE lighting networks using the Eth2-Eth6 ports on the back of the

Link. See Figure 1.

STEP 4:

For further configuration of the Link, please refer to our SmartCast®

Link Configuration Guide, which can be found at www.cree.com/

smartcast.

WHAT’S IN THE BOX:

1- Link Hardware server box

1- AC power cord

1 -DC power adapter

2- 19" rack mounting hardware

2- Wall Mount Bracket

1- DIN rail mounting kit

(OPTIONAL/Sold separately)

Power Button

DHCP SERVICE IS REQUIRED FOR INITIAL INSTALLATION/CONFIGURATION (SEE FIGURE 1 BELOW)

SmartCast Link™requires an external DHCP service for initial configuration of the SmartCast Link™device. The

Smart Cast Link’s™Admin Tools provide an option to configure a static TCP/IP address on the Link device after initial

configuration is complete.

The SmartCast Link™device requires IP multicast for communication with SmartCast®Lighting Networks. Please make

sure your lighting networks have multicast enabled.

LPN00447X0001A0_F

2 of 2

www.lighting.cree.com

See http://lighting.cree.com/warranty for warranty and specifications. Cree®and SmartCast®are registered trademarks, and

the Cree logo, and OneButton™ are trademarks of Cree, Inc.

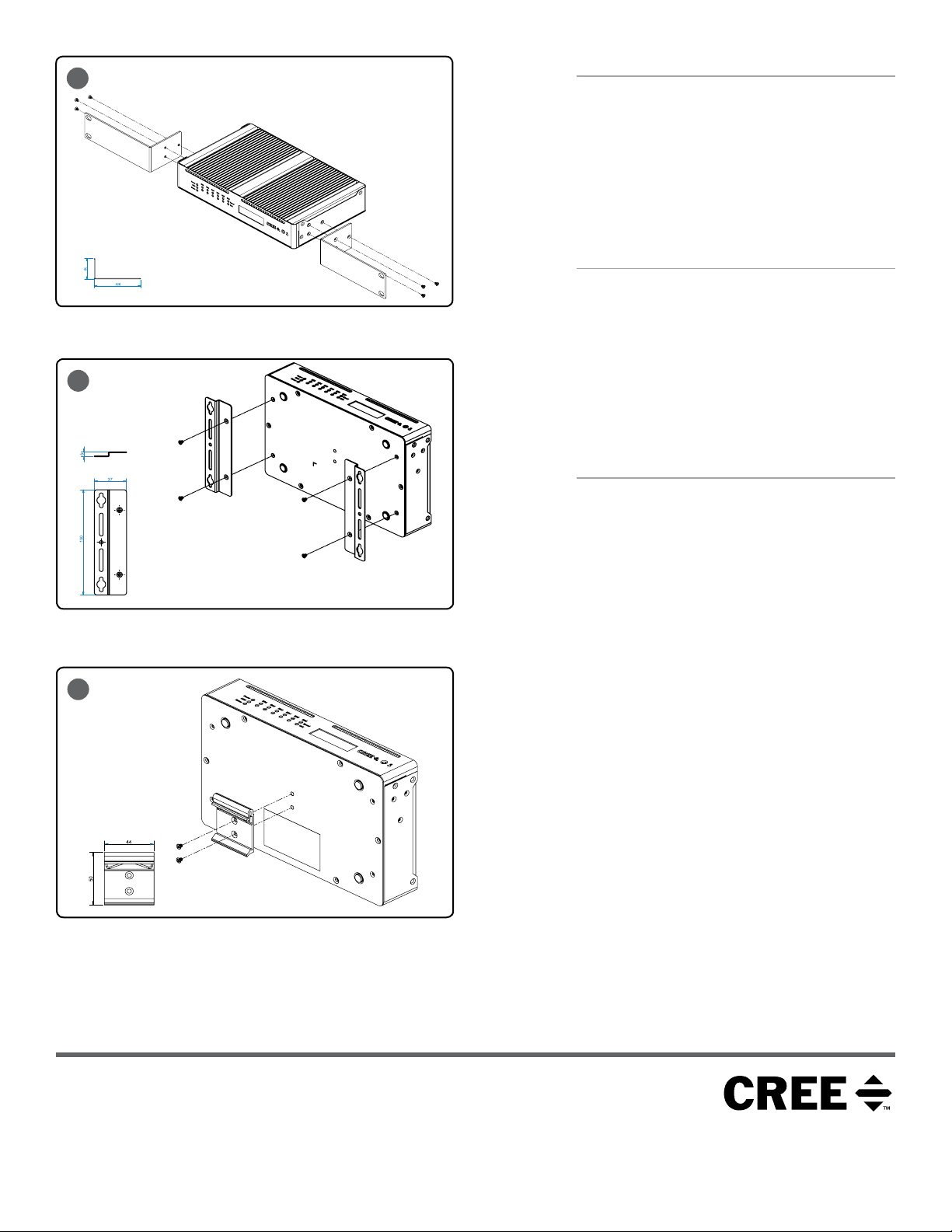

19" RACK MOUNTING INSTALLATION (INCLUDED)

STEP 1:

Attach one of the 19”rack mounting brackets to the side

of the Link box using three (3) provided screws as shown

in Figure 2.

STEP 2:

Attach the second 19" rack mounting bracket to the

opposite side of the Link box using three (3) provided

screws as shown in Figure 2.

WALL MOUNT INSTALLATION (INCLUDED)

STEP 1:

Attach one of the wall mounting bracket to the under

side of the Link box using the two (2) provided screws as

shown in Figure 3.

STEP 2:

Attach the second wall mounting bracket to the under

side of the Link box using the two (2) provided screws as

shown in Figure 3.

DIN RAIL MOUNTING INSTALLATION

(SOLD SEPARATELY/OPTIONAL)

STEP 1:

Attach the DIN rail mounting bracket to the under side of

the Link box using two (2) provided screws as shown in

Figure 4.
