Crestron DM-NVX-D30 Bedienungsanleitung

DM-NVX-D30/E30(C)

DM NVX® 4K60 4:4:4 HDR Network AV

Decoder

Web Interface Configuration Guide

Crestron Electronics, Inc.

Original Instructions

The U.S. English version of this document is the original instructions.

All other languages are a translation of the original instructions.

Crestron product development software is licensed to Crestron dealers and Crestron Service Providers (CSPs) under a

limited nonexclusive, nontransferable Software Development Tools License Agreement. Crestron product operating

system software is licensed to Crestron dealers, CSPs, and end-users under a separate End-User License Agreement.

Both of these Agreements can be found on the Crestron website at www.crestron.com/legal/software_license_

agreement.

The product warranty can be found at www.crestron.com/warranty.

The specific patents that cover Crestron products are listed at www.crestron.com/legal/patents.

Certain Crestron products contain open source software. For specific information, visit www.crestron.com/opensource.

Crestron, the Crestron logo, Crestron Toolbox, DM NAX, DM NVX, and DM NVX Director are either trademarks or

registered trademarks of Crestron Electronics, Inc. in the United States and/or other countries. macOS and Safari are

either trademarks or registered trademarks of Apple, Inc. in the United States and/or other countries. Chrome is either a

trademark or registered trademark of Google Inc. in the United States and/or other countries. HDMI and the HDMI logo

are either trademarks or registered trademarks of HDMI Licensing LLC in the United States and/or other countries.

Active Directory, Microsoft Edge, and Windows are either trademarks or registered trademarks of Microsoft Corporation

in the United States and/or other countries. Firefox is either a trademark or a registered trademark of the Mozilla

Foundation in the United States and/or other countries. Other trademarks, registered trademarks, and trade names

may be used in this document to refer to either the entities claiming the marks and names or their products. Crestron

disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for errors in typography

or photography.

Contents

Introduction 1

Web Interface Overview 1

Access the Web Interface 1

Access Web Interface with a Web Browser 1

Access Web Interface With Crestron Toolbox™ Software 2

Status 4

Device 5

Network 6

DM NVX Director 6

DM NAX (AES67) Audio 7

Control System 7

Input (DM-NVX-E30 Only) 8

Output (DM-NVX-D30 Only) 9

Settings 10

System Setup 11

Stream 16

DM NAX (AES67) Audio 20

Subscriptions 22

Routing 23

Inputs 24

Outputs 24

IR Ports 25

Security 26

Current User 28

Users 29

Create New Local User 30

Add Active Directory User 30

Delete User 31

View User Details 31

Update User Details 32

Groups 33

Create Local Group 34

Add Active Directory Group 34

Delete a Group 35

View Group Details 35

802.1x Configuration 36

Configure DM-NVX-D30/E30(C) for 802.1X Authentication: 37

Web Interface Configuration Guide — Doc. 8874D Contents • i

ii • Contents Web Interface Configuration Guide — Doc. 8874D

Web Interface Configuration Guide — Doc. 8874D DM-NVX-D30/E30(C) • 1

Introduction

The DM-NVX-D30/E30(C) is a reliable compact decoder that supports HDR10 and HDCP 2.2 and

transports 4K60 4:4:4 video over standard Gigabit Ethernet with no perceptible latency or loss of

quality.

Web Interface Overview

The web interface of the DM-NVX-D30/E30(C) allows you to view status information for the

DM-NVX-D30/E30(C) and configure its network and device settings.

Access the Web Interface

The web interface is accessed from a web browser. The following table lists various operating

systems and the corresponding supported web browsers.

OPERATING SYSTEM SUPPORTED WEB BROWSERS

Windows® operating system Chrome™ web browser, version 31 and later

Firefox® web browser, version 31 and later

Microsoft Edge® web browser

macOS® operating system Safari® web browser, version 6 and later

Chrome™ web browser, version 31 and later

Firefox® web browser, version 31 and later

Operating System and Supported Web Browsers

To access the user interface, do either of the following:

lOpen it directly in a web browser.

lOpen a web browser from within the Crestron Toolbox™ application.

Access Web Interface with a Web Browser

1. Enter the IP address of the DM-NVX-D30/E30(C) into a web browser.

NOTE: To obtain the IP address, press the Setup button on the front panel of the DMF-

CI-8 chassis of the DM-NVX-D30/E30(C). The IP address will appear on a display

connected to the HDMI® output.

2 • DM-NVX-D30/E30(C) Web Interface Configuration Guide — Doc. 8874D

2. Enter your credentials in the Device Administration dialog (note that the user name and

password are case sensitive). The default user name is

admin

, and the default password is

admin

NOTE: For enhanced security, it is recommended that the default password be changed.

Device Administration Login Page

3. Click Sign In.

Access Web Interface With Crestron Toolbox™ Software

To access the user interface by opening a web browser within the Crestron Toolbox™ application,

do the following:

Web Interface Configuration Guide — Doc. 8874D DM-NVX-D30/E30(C) • 3

1. Open the Crestron Toolbox™ application.

2. From the Tools menu, select Device Discovery Tool. You can also access the Device

Discovery Tool by clicking the Device Discovery Tool button in the Crestron Toolbox

toolbar. The DM-NVX-D30/E30(C) is discovered and is listed in the device list on the left

side of the screen. The associated host name, IP address, and firmware version are also

displayed.

NOTE: If there is security software running on the computer, a security alert might be

displayed when the Crestron Toolbox application attempts to connect to the network.

Make sure to allow the connection, so that the Device Discovery Tool can be used.

3. In the Device Discovery Tool list, double-click your DM-NVX-D30/E30(C) device.

4. Enter your credentials in the Authentication dialog that opens, and then click Log In.

Authentication Dialog Box

5. Click the Web Configuration button in the Configuration page displayed on the left side of

the Device Discovery Tool.

4 • DM-NVX-D30/E30(C) Web Interface Configuration Guide — Doc. 8874D

Status

The Status page is the first page that is displayed when opening the web interface of the DM-

NVX-D30/E30(C). It displays general information about the DM-NVX-D30/E30(C) (such as

model name, serial number, and firmware version), current network settings (such as host name

and IP address, etc.), as well as information about the connection to the control system.

The Status page can be accessed at any time by clicking the Status tab in the navigation bar of

the web user interface of the DM-NVX-D30/E30(C).

DM-NVX-D30 Status Page

Web Interface Configuration Guide — Doc. 8874D DM-NVX-D30/E30(C) • 5

DM-NVX-E30 Status Page

Device

Displays the Model,Serial Number, and Firmware Version of the DM-NVX-D30/E30(C).

Status Page - Device

Click on + More Details to see additional information about the DM-NVX-D30/E30(C).

6 • DM-NVX-D30/E30(C) Web Interface Configuration Guide — Doc. 8874D

Network

Displays the Host Name,Domain Name,DHCPEnabled,IPAddress,DNS Servers,Default

Gateway,Link Active,Mac Address, and Subnet Mask of the DM-NVX-D30/E30(C).

NOTE: By default, the host name of DM-NVX-D30/E30(C) consists of the model name

followed by the MAC address of the device. For example, DM-NVX-D30/E30(C)- .

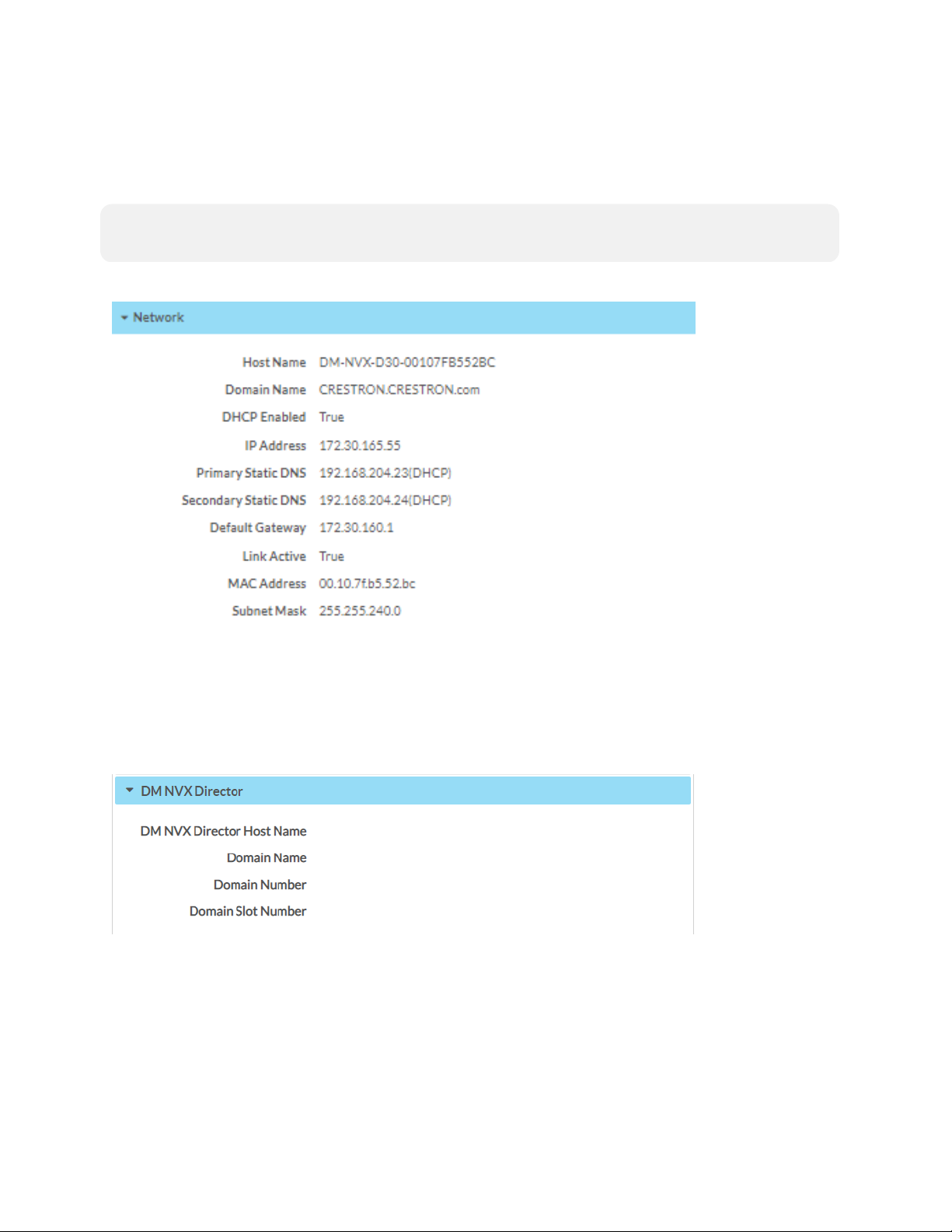

Status Page - Network

DM NVX Director

Displays the settings of the DM NVX Director® virtual switching appliance. Note that the fields

below will not be populated when using XiO-Director v 1.0.

Status Page - DM NVX Director

lDM NVX Director HostName: Displays the host name of the DM-NVX-Director.

lDomain Name: Displays the domain name of the DM-NVX-Director.

lDomain Number: Displays the domain number of the DM-NVX-Director.

lDomain Slot Number: Displays the domain slot number of the DM-NVX-Director.
