The UC-MX50-Z-UPGRD solution provides all of the necessary

components to upgrade a deployed Crestron Flex tabletop conference

device and camera to a complete video conference system for use with

Zoom Rooms® software. It supports up to three video displays and

features a UC bracket assembly, cables, and power supplies.

Minimum Requirements:

lA Crestron Flex tabletop conference device and camera solution

(CCS-UC-1-XKIT).

lA video display (not included) connected to the UC Engine. A second

display is optional.

lA Zoom Rooms account or activation code (not included).

In the Box

UC Bracket Assembly

1 UC Bracket Assembly with UC Engine and HDMI® or AV

over CAT5 content ingest (UC-BRKT-260-P-Z-ASSY,

6512692)

2 Anchor, Drywall, Plastic, 3/8 in. x 1/2 in. (9.5mm x

12.7mm) (2052565)

1 Key, Anchor (4529654)

1 Power pack (2045870)

2 Screw, 8-AB x 1-1/2 in. (38.1 mm), Pan Head, Combo

(2052567)

4 Tie Wrap (2047935)

Additional Items

1 Camera wall mount kit (6510998)

1 Cable, CAT5e, RJ-45 - RJ-45, 7 ft (2.1 m) (6509924)

1 Cable, DisplayPort™ to HDMI, 6 ft (1.8 m) (6508282)

Configure the Conference Device

Prior to making system connections, deployed conference devices must

be configured to operate as part of a complete Zoom Rooms system.

Some deployed conference devices may be operating in Crestron

Default mode.

To configure the conference device to operate in Zoom Rooms Video

mode:

1. On a computer, enter the IP address displayed on the conference

device into a web browser.

NOTES:

lThe device and computer must be on the same network switch

and VLAN.

lA login with administrative rights for the device is required.

2. Log in to the device and navigate to DEVICE >Applications.

3. From the Application Mode drop down menu, select Zoom Rooms

Video.

4. Select Save Changes. The conference device will reboot in Zoom

Rooms Video modeand log out all users.

For system configuration, refer to Configure.

UC-MX50-Z-UPGRD QuickStart

Crestron Flex Advanced Medium Room Upgrade Solution with Zoom Rooms® Software

Mount Devices

Mount the UC Bracket Assembly

Mount the UC Bracket Assembly to VESA® compliant display devices, a

wall, or other building structure. Anchors and screws are supplied for

installation on walls with 3/8 in. (9.5mm) to 3/4 in. (19mm) thickness.

CAUTION: Preinstalled screws may protrude from the back of the

UC Bracket Assembly. Exercise caution when handling the UC

Bracket Assembly to avoid scratching or damaging surfaces.

NOTE: The integrated cable tie wraps are reusable. Avoid damaging

the cable tie wraps.

Mount the Camera

Mount the camera included with the conference device according to the

UC-CAM-WMK Quick Start (Doc. 8257).

UC-MX50-Z-UPGRD QuickStart

Crestron Flex Advanced Medium Room Upgrade Solution with Zoom Rooms® Software

Connect

System Overview

When connections are complete, the system appears as shown below. Refer to Make Connections for detailed connection instructions.

UC-MX50-Z-UPGRD QuickStart

Crestron Flex Advanced Medium Room Upgrade Solution with Zoom Rooms® Software

Make Connections

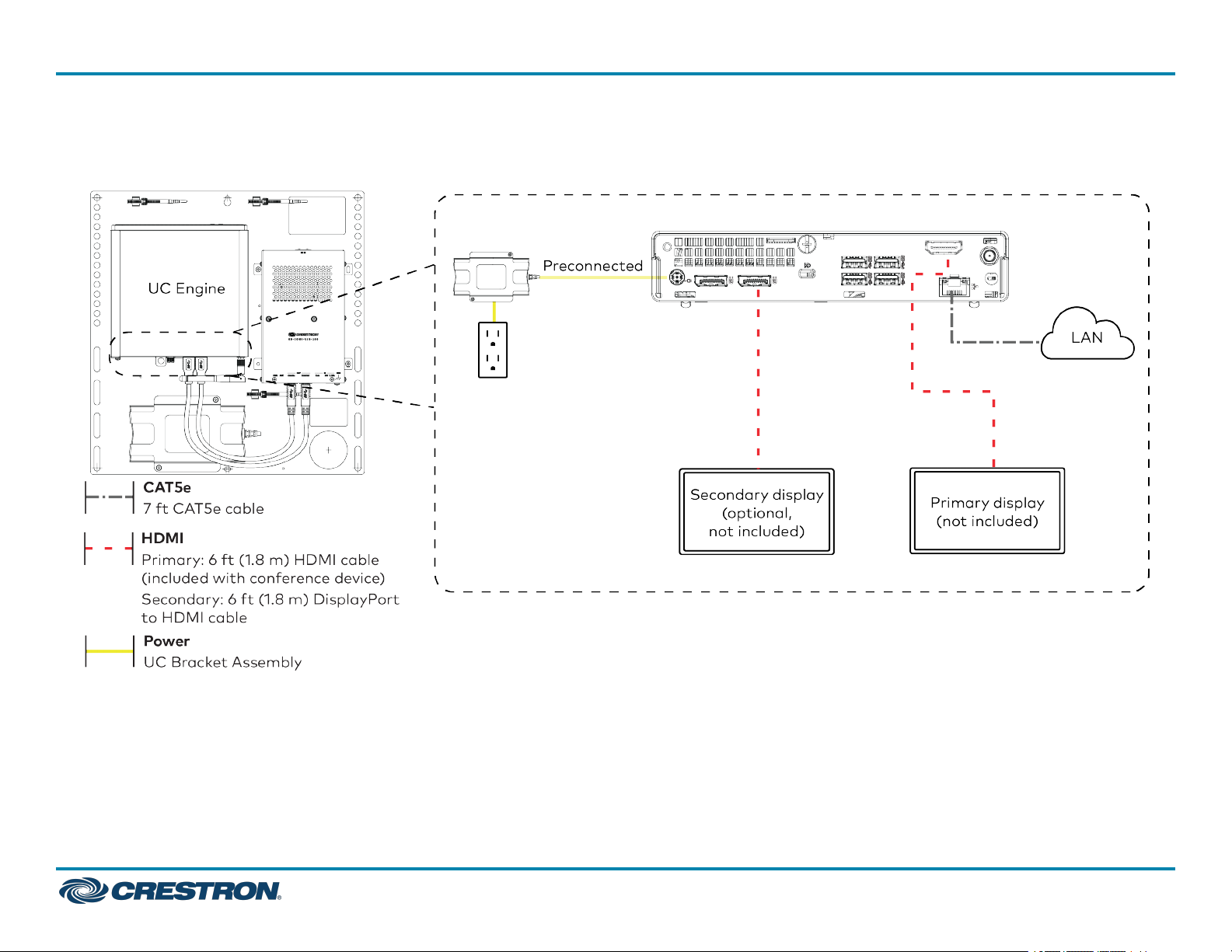

1. Make UC Engine connections as shown in the following illustration.

UC-MX50-Z-UPGRD QuickStart

Crestron Flex Advanced Medium Room Upgrade Solution with Zoom Rooms® Software

2. Connect the power supply and camera to the bottom of the content ingest device (HD-CONV-USB-260). Connect the power supply to an AC

power outlet.

UC-MX50-Z-UPGRD QuickStart

Crestron Flex Advanced Medium Room Upgrade Solution with Zoom Rooms® Software

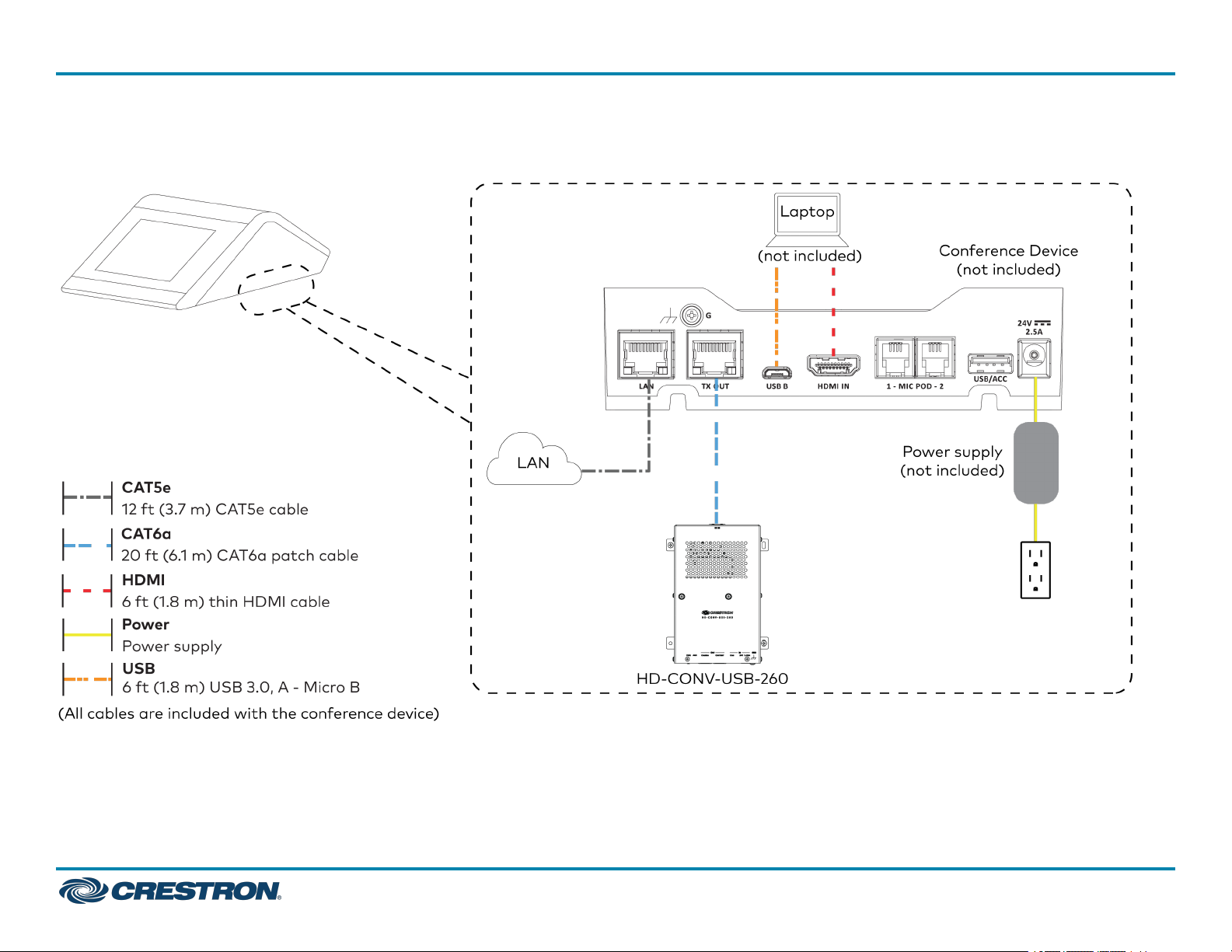

2. Make network, content ingest, laptop, and power connections on the bottom of the conference device. Connect the conference device's power

supply to an AC power outlet.

3. Bundle the cables to the bracket assembly with the integrated cable tie wraps. The cable tie wraps are reusable.

UC-MX50-Z-UPGRD QuickStart

Crestron Flex Advanced Medium Room Upgrade Solution with Zoom Rooms® Software

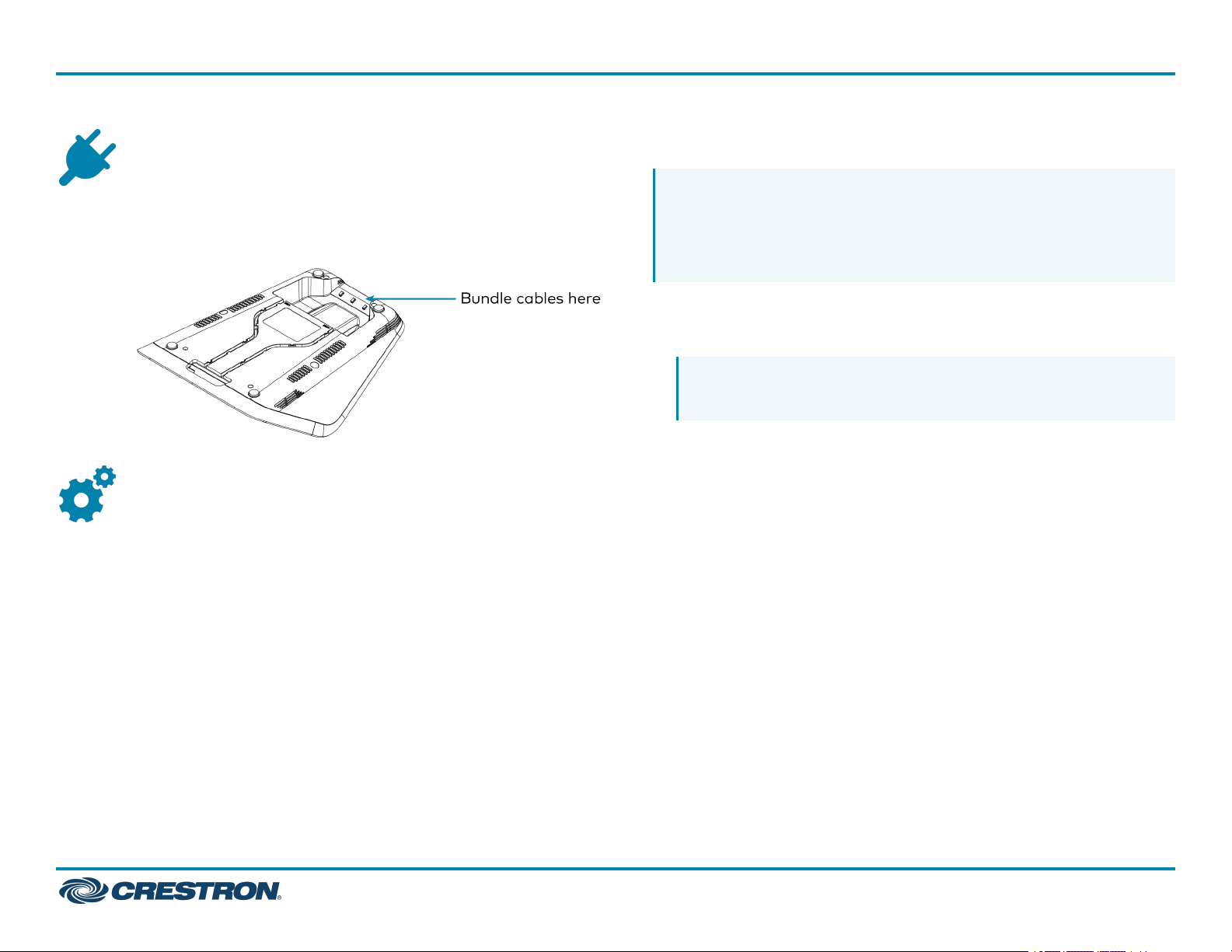

Bundle Cables

Bundle the cables together and use a provided tie wrap to secure the

bundle to one of the positions on the cable retention plate at the rear of

the device. Avoid bundling power and data cables together.

Configure

Apply Power

Press the power button on the bottom of the UC Engine and apply

power to all of the other devices in the system.

Complete the Conference Device Configuration

To configure the conference device to operate in Zoom Rooms Video

mode:

1. On a computer, enter the IP address displayed on the conference

device into a web browser.

NOTES:

lThe device and computer must be on the same network switch

and VLAN.

lA login with administrative rights for the device is required.

2. Enter the following information in the appropriate fields:

lUC-Engine Address: Enter the IP address or hostname of the UC

Engine.

NOTE: The hostname is printed on a label affixed to the UC

Engine.

lUC-Engine Port: By default, port number 49500 is used. If a

different port number has been configured on the UC Engine,

enter that port number instead.

lUC-Engine Admin Username: Enter the username for the UC

Engine. The default username is “admin”.

lUC-Engine Admin Password: Enter the login password for the UC

Engine. The default password is “crestron”.

3. Select Save Changes.

UC-MX50-Z-UPGRD QuickStart

Crestron Flex Advanced Medium Room Upgrade Solution with Zoom Rooms® Software

4. On the UC Engine, connect a USB keyboard and mouse (not included)

to sign in to the Zoom Rooms service with an activation code or sign-

in credentials (email and password).

NOTE: The Zoom Rooms Video mode allows sign-in only through

the UC Engine. Therefore, to view the following instructions, use

the conference room display connected to the UC Engine.

lActivation Code:

a. Select Enter Activation Code.

b. Enter the 16-digit activation code provided by the

ITadministrator managing the Zoom portal to activate the

Zoom Room assigned to the activation code. The Zoom Rooms

Conference Room screen is shown on the display.

lSign In:

a. Select Sign In.

b. Enter the Zoom Room credentials and tap Sign In.

c. Select the conference room name from the list and tapNext.

The Zoom Rooms Conference Room screen is shown on the

display.

5. Visit the Zoom portal, navigate to Room Management >Zoom

Rooms >(Room Name) >Room Settings >Rooms Profile >Devices.

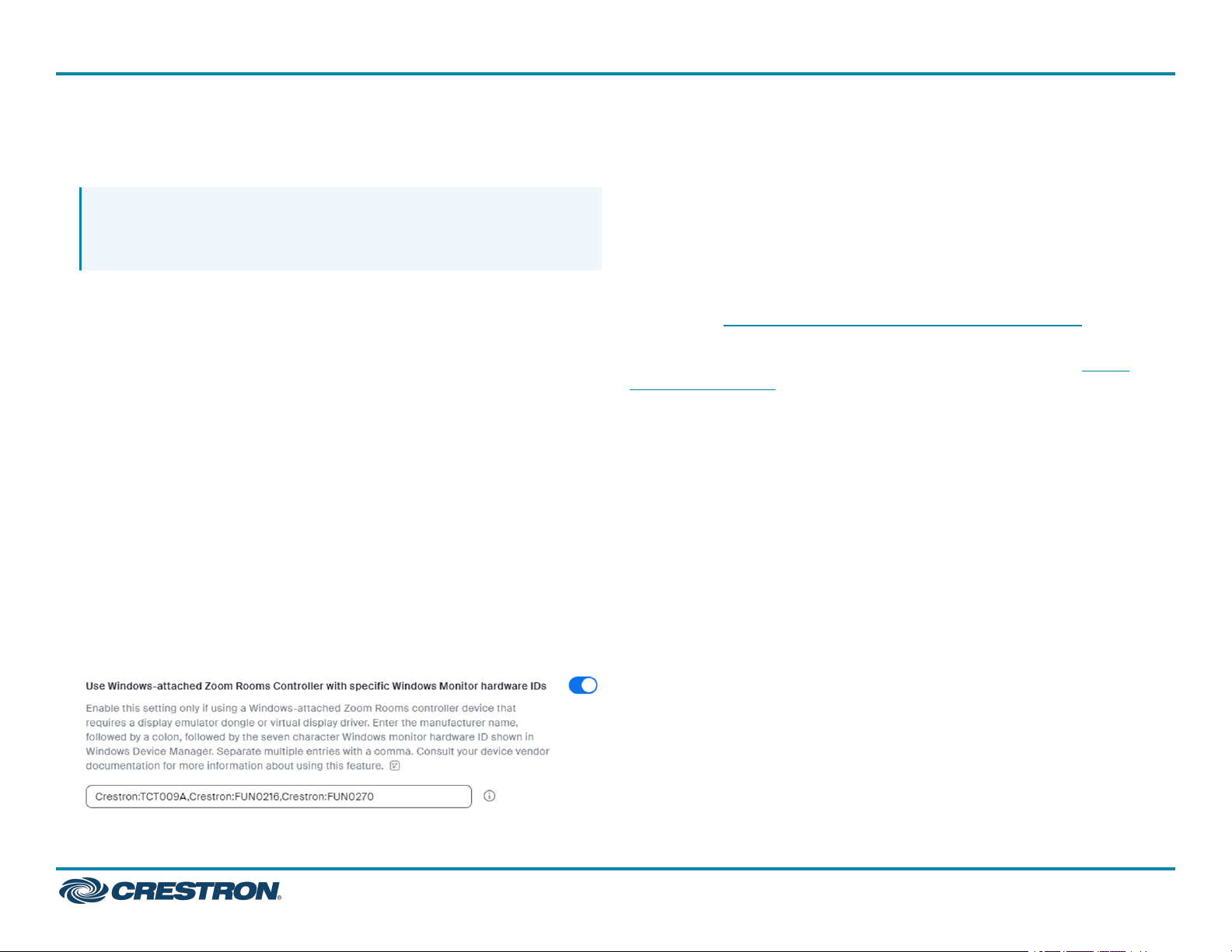

6. Enable the Use Windows-attached Zoom Rooms Controller with

specific Windows Monitor Hardware IDs setting. Then, copy and

paste the following string into the text field:

Crestron:TCT009A,Crestron:FUN0216,Crestron:FUN0270

7. On the conference device, tap Settings. If a password is required,

enter the password (the default password is "1234"). The Settings

screen is displayed.

8. Tap Microphone and select the conference device as the source.

9. Tap Speaker and select the conference device as the source.

10. Tap Home to exit.

Configure the System

Refer to the Crestron Flex Unified Communications Solution product

manual to configure system features.

For detailed information on using Zoom Rooms, refer to the Zoom

Rooms Help Center.

UC-MX50-Z-UPGRD QuickStart

Crestron Flex Advanced Medium Room Upgrade Solution with Zoom Rooms® Software

Visit the Product Page

Scan the QR code to visit the product page.

UC-MX50-Z-UPGRD

www.crestron.com/model/6511959

Additional Information

Original Instructions

The U.S. English version of this document is the original instructions.

All other languages are a translation of the original instructions.

Crestron product development software is licensed to Crestron dealers and Crestron

Service Providers (CSPs) under a limited nonexclusive, nontransferable Software

Development Tools License Agreement. Crestron product operating system software

is licensed to Crestron dealers, CSPs, and end-users under a separate End-User

License Agreement. Both of these Agreements can be found on the Crestron website

at www.crestron.com/legal/software_license_agreement.

The product warranty can be found at www.crestron.com/warranty.

The specific patents that cover Crestron products are listed at

www.crestron.com/legal/patents.

Certain Crestron products contain open source software. For specific information,

visit www.crestron.com/opensource.

Crestron and the Crestron logo are either trademarks or registered trademarks of

Crestron Electronics, Inc. in the United States and/or other countries. HDMI is either

a trademark or registered trademark of HDMI Licensing LLC in the United States

and/or other countries. USB-C is either a trademark or registered trademark of USB

Implementers Forum, Inc. in the United States and/or other countries. DisplayPort

and VESA are either trademarks or registered trademarks of Video Electronics

Standards Association in the United States and/or other countries. Zoom Rooms is

either a trademark or registered trademark of Zoom Video Communications, Inc. in

the United States and/or other countries. Other trademarks, registered trademarks,

and trade names may be used in this document to refer to either the entities claiming

the marks and names or their products. Crestron disclaims any proprietary interest in

the marks and names of others. Crestron is not responsible for errors in typography

or photography.

Doc. 9301B

09/11/23

UC-MX50-Z-UPGRD QuickStart

Crestron Flex Advanced Medium Room Upgrade Solution with Zoom Rooms® Software
