The UC-C100-T-WM Crestron Flex integrator kit provides customizable
video conference solution for use with Microsoft Teams® Rooms
software. It supports single or dual video displays and features a wall
mount touch screen and a UC bracket assembly.
The firmware update for all connected peripherals is managed by the
UC Engine and Windows Update.
Minimum Requirements:
lA certified USB Camera (not included)
lA certified, AEC-enabled USB speakerphone or DSP device (not
included)
lA video display (not included) connected to the UC Engine. A second
display is optional.
lA Microsoft Teams Rooms provisioned or Skype® for Business
account (not included)
lAn environment running Microsoft Exchange Server® software (2013
SP1 or later for on-premises installation or Microsoft 365® software
for Cloud) for scheduling and/or Skype for Business 2015 (on-
premises installation or Microsoft 365 software for Cloud) (not
included)
In the Box
Wall Mount Touch Screen
1 10.1 in. Wall Mount Touch Screen (6511975)
Mounting hardware
UC Bracket Assembly
1 UC Bracket Assembly with UC Engine and HDMI® content
ingest (UC-BRKT-200-S-T-ASSY,6512689)
2 Anchor, Drywall, Plastic, 3/8 in. x 1/2 in. (9.5mm x
12.7mm) (2052565)
1 Key, Anchor (4529654)
2 Screw, 8-AB x 1-1/2 in. (38.1 mm), Pan Head, Combo
(2052567)
4 Tie Wrap (2047935)
Additional Items
1 PoE injector (6502429)
1 Cable, CAT6a, RJ-45 - RJ-45, 20 ft (6.1 m) (6507640)
2 Cable, CAT5e, RJ-45 - RJ-45, 7 ft (2.1 m) (6509924)
1 Cable, DisplayPort™ to HDMI, 6 ft (1.8 m) (6508282)
1 Cable, HDMI, 20 ft (6.1 m) (6503567)
1 Cable, HDMI, 6 ft (1.8 m) (6503565)
1
UC-C100-T-WM QuickStart
Crestron Flex Video Conference System Integrator Kit with a Wall Mounted Control Interface for
Microsoft Teams® Rooms
Mount Devices
Mount the UC Bracket Assembly
Mount the UC Bracket Assembly to VESA® compliant display devices, a
wall, or other building structure. Anchors and screws are supplied for
installation on walls 3/8 in. (9.5mm) to 3/4 in. (19mm) thickness.
CAUTION: Preinstalled screws may protrude from the back of the
UC Bracket Assembly. Exercise caution when handling the UC
Bracket Assembly to avoid scratching or damaging surfaces.
NOTE: The integrated cable tie wraps are reusable. Avoid damaging
the cable tie wraps.
Mount the Touch Screen
Mount the included touch screen according to the TSW-1070 Quick
Start (Doc. 8552).
2
UC-C100-T-WM QuickStart
Crestron Flex Video Conference System Integrator Kit with a Wall Mounted Control Interface for
Microsoft Teams® Rooms
4
UC-C100-T-WM QuickStart
Crestron Flex Video Conference System Integrator Kit with a Wall Mounted Control Interface for
Microsoft Teams® Rooms

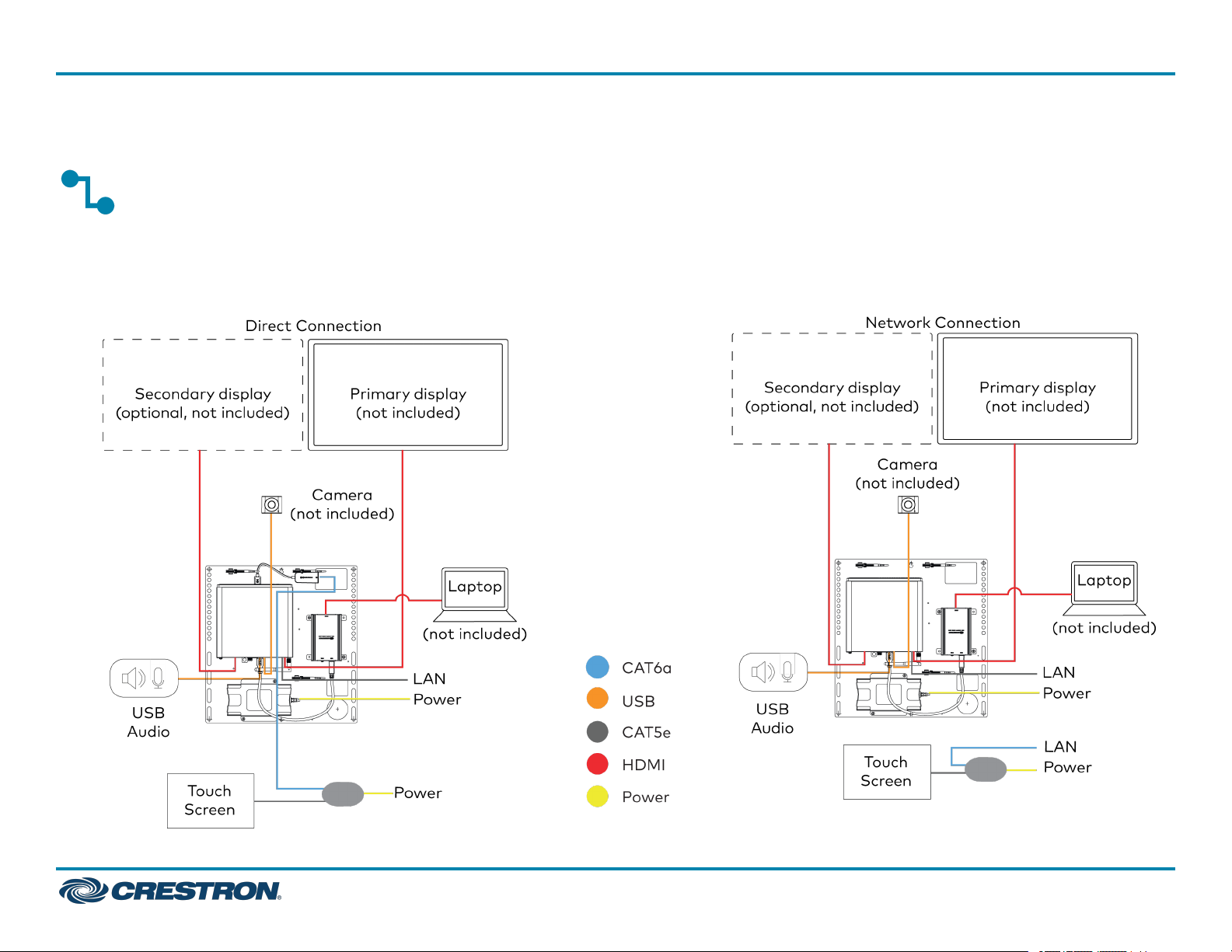

Make Connections
1. Make UC Engine connections as shown in the following illustrations. The touch screen can communicate with the UC Engine over a direct
connection or a network connection. Select one of the connection types as described below.
lMake a direct connection for simple installation and setup. Only use the direct connect adapter to connect the touch screen's PoE injector to
the UC Engine. Do not use the direct connect adapter to connect the UC Engine to the network.

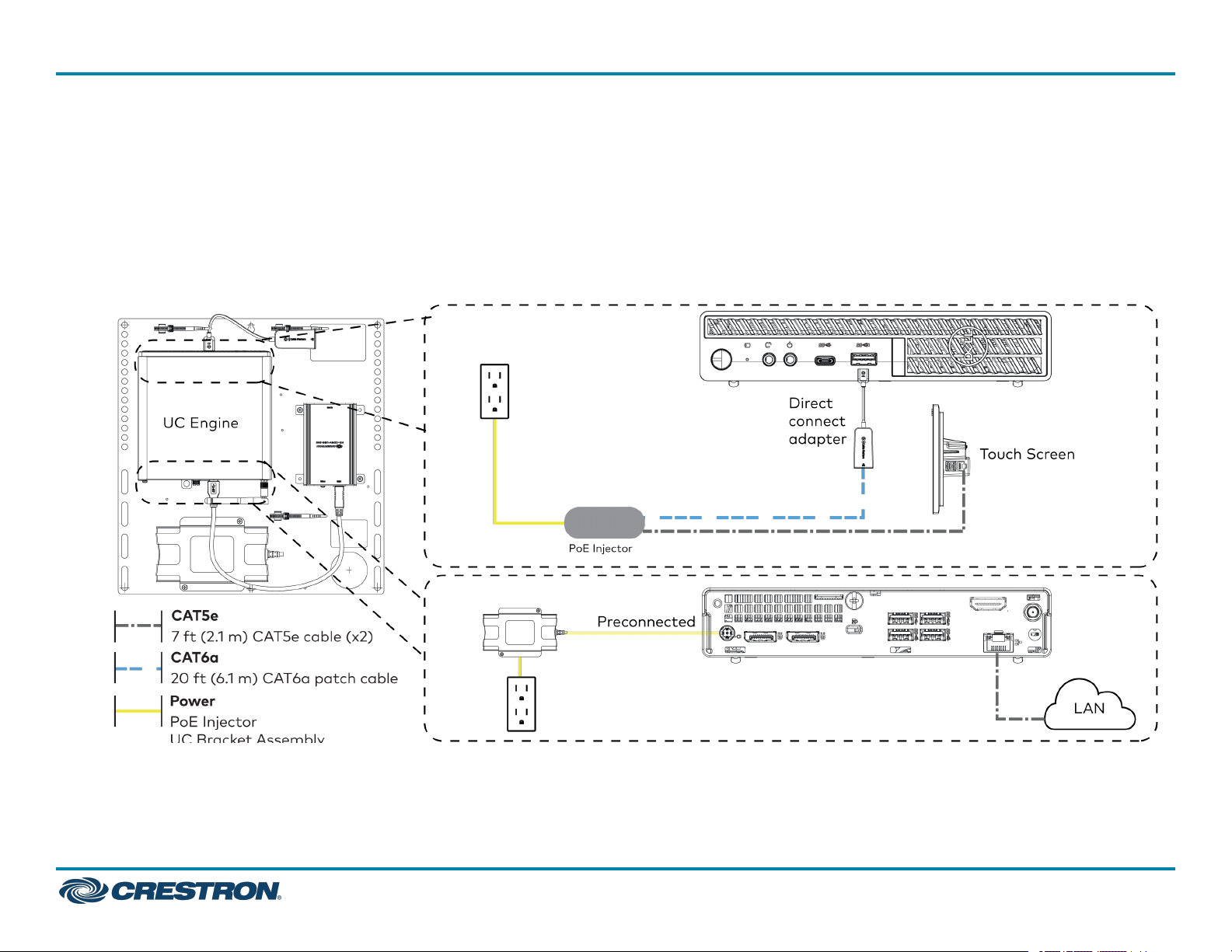

Direct Connection
5
UC-C100-T-WM QuickStart
Crestron Flex Video Conference System Integrator Kit with a Wall Mounted Control Interface for
Microsoft Teams® Rooms
lMake a network connection if the system is to be managed by the XiO Cloud® service.

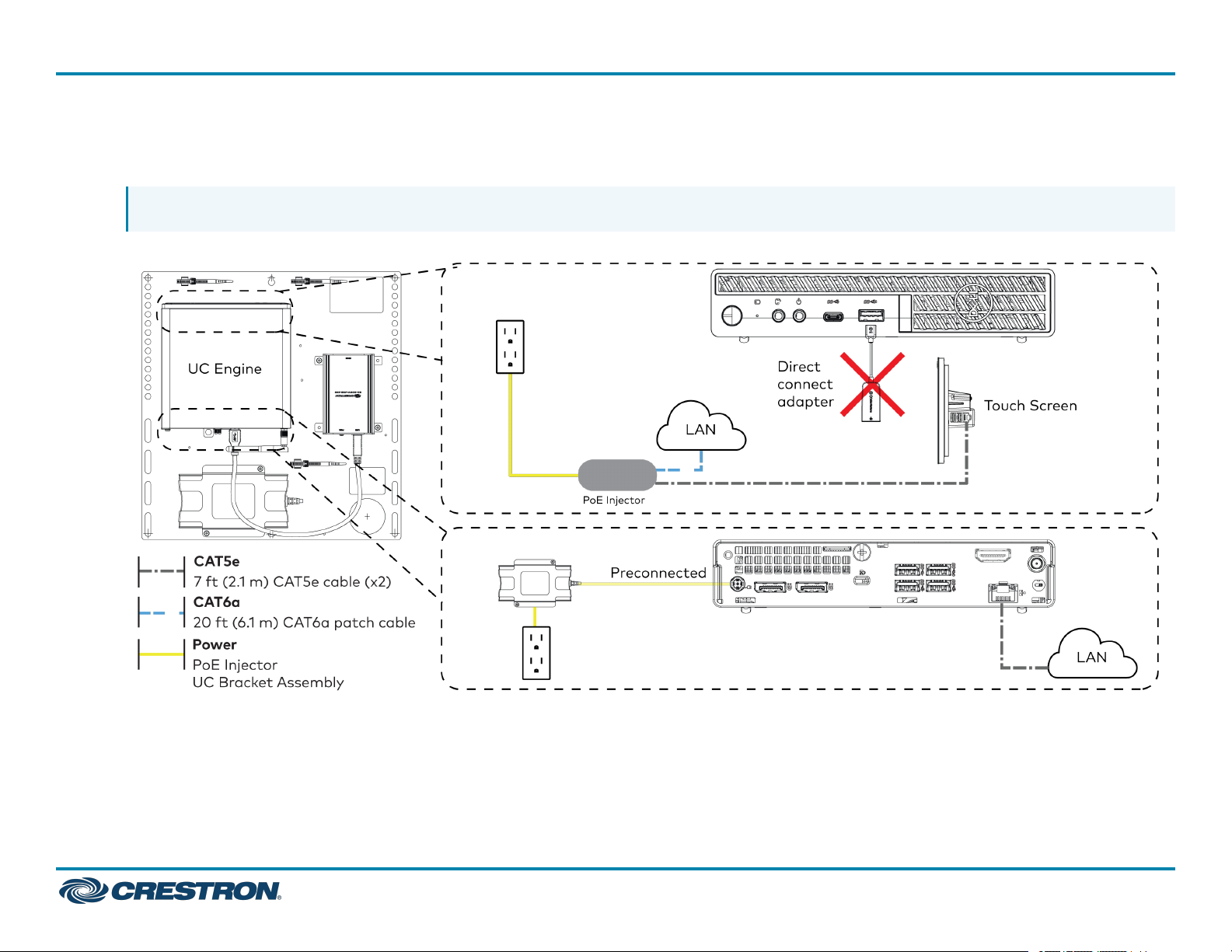

NOTE: When a network connection is used, disconnect the direct connect adapter from the UC Engine.
Network Connection
6
UC-C100-T-WM QuickStart
Crestron Flex Video Conference System Integrator Kit with a Wall Mounted Control Interface for
Microsoft Teams® Rooms

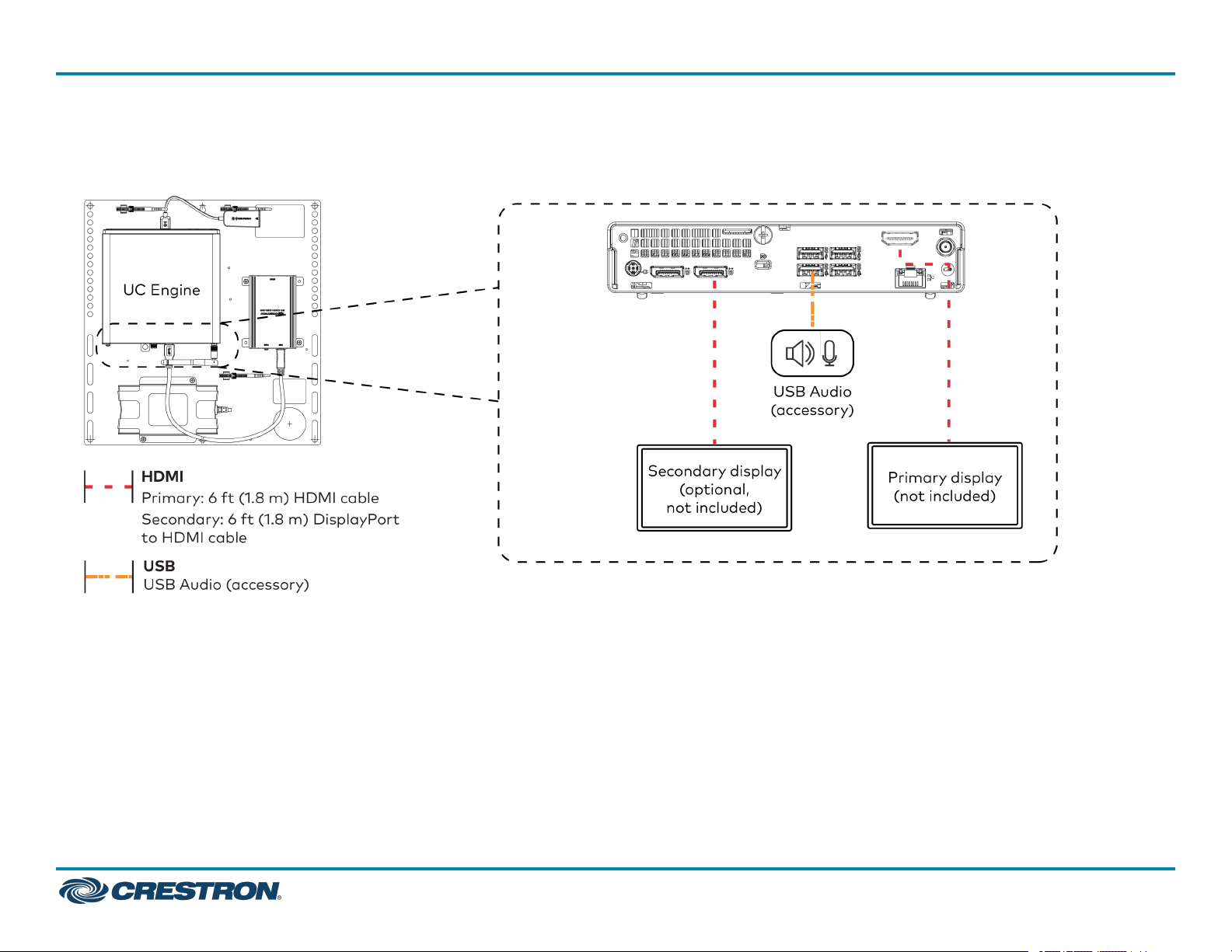

2. Connect a USB audio source (accessory) and displays to the UC Engine.
7
UC-C100-T-WM QuickStart
Crestron Flex Video Conference System Integrator Kit with a Wall Mounted Control Interface for
Microsoft Teams® Rooms

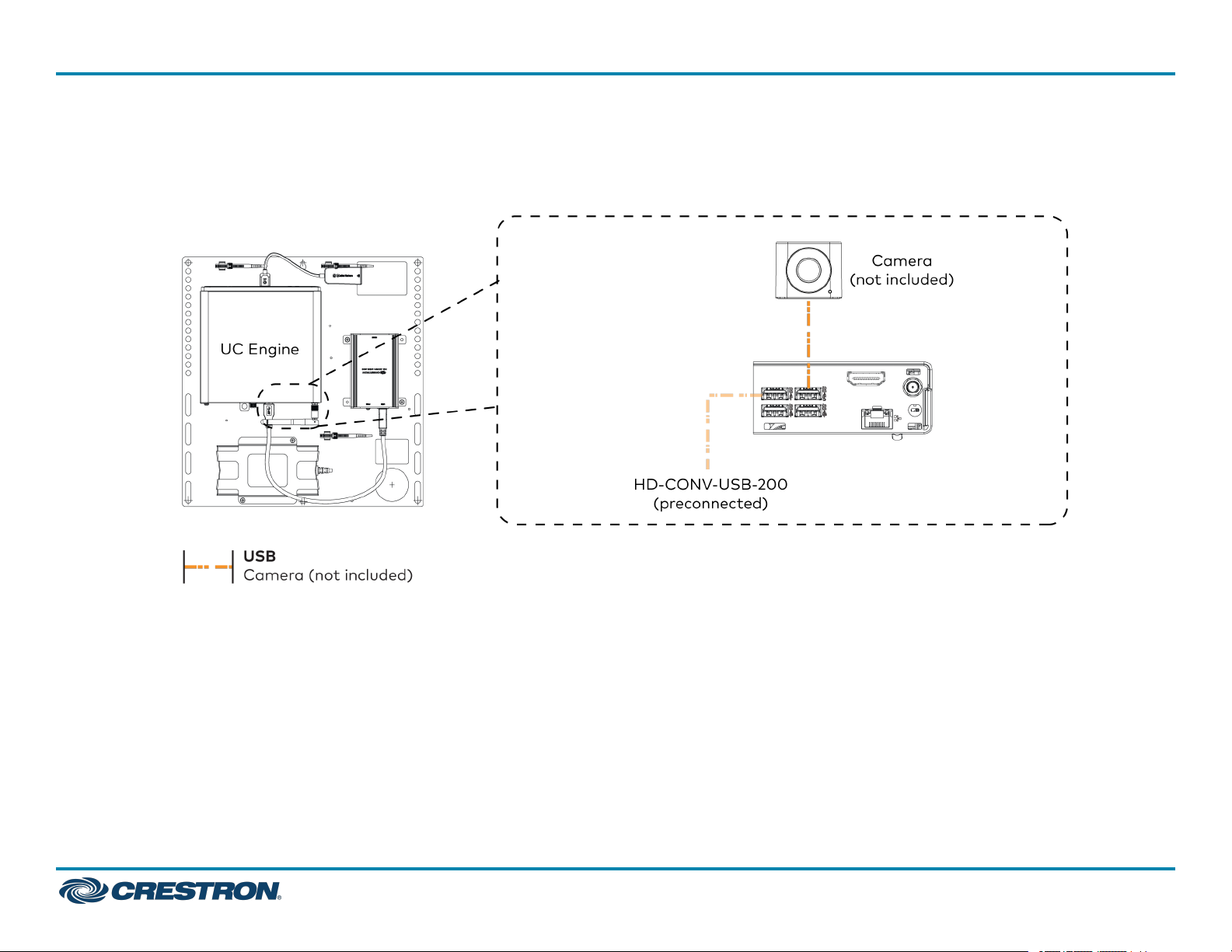

3. Connect a camera (not included) to the UC Engine as shown in the image below. Do not connect the camera to any of the other USB ports.
8
UC-C100-T-WM QuickStart
Crestron Flex Video Conference System Integrator Kit with a Wall Mounted Control Interface for
Microsoft Teams® Rooms

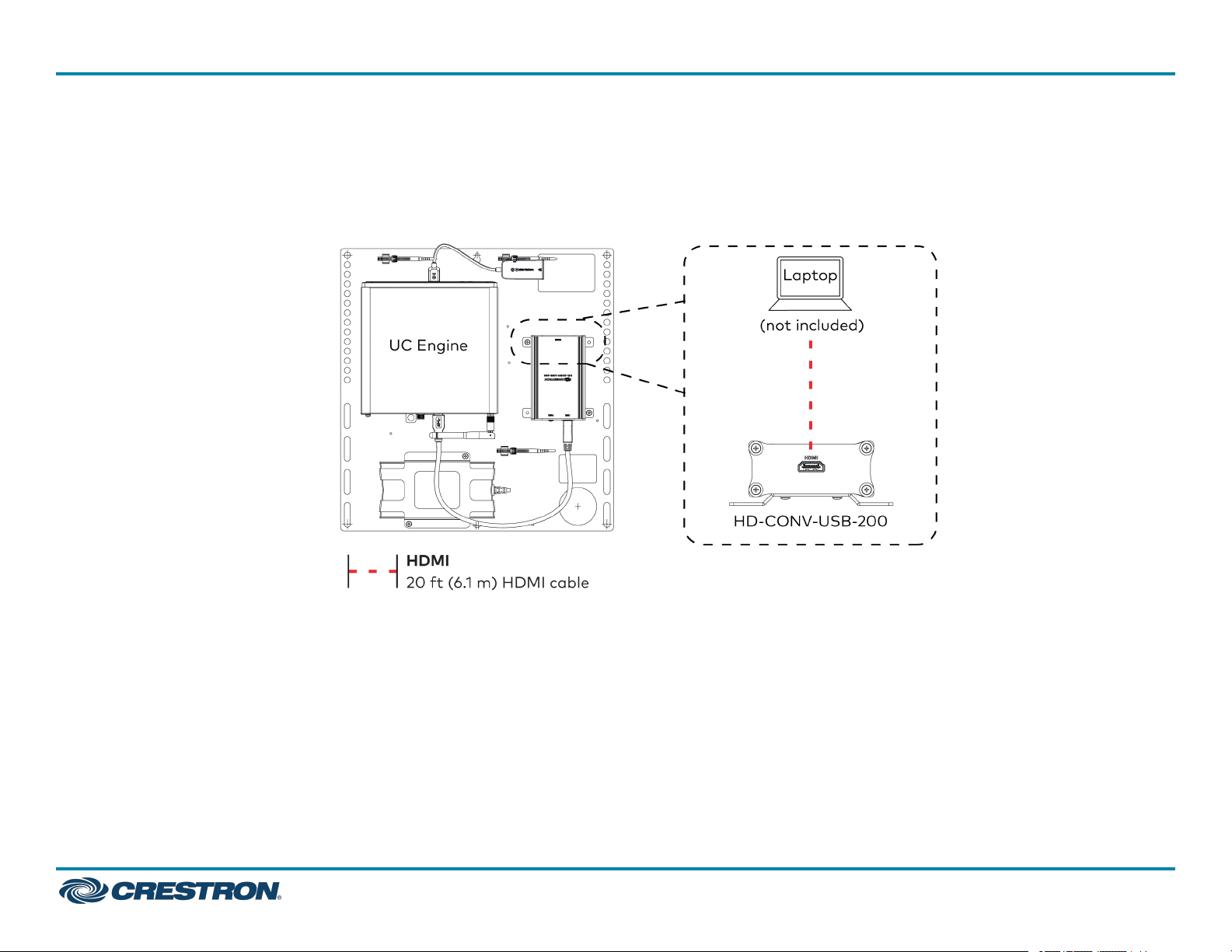

4. Connect a laptop to the content ingest device (HD-CONV-USB-200).
5. Bundle the cables to the bracket assembly with the integrated cable tie wraps. The cable tie wraps are reusable.
Configure
Apply Power
Press the power button on the bottom of the UC Engine and apply
power to all of the other devices in the system.
Configure the Touch Screen
NOTE:If a direct connection was made during installation, skip to
Configure the System.
1. On a computer, open a web browser to the IP address of the touch
screen. Log in and navigate to Settings >Applications.
NOTES:
lThe touch screen (via the PoE injector) and computer must be
on the same network switch and VLAN.
lA login with administrative rights for the touch screen is
required.
2. Enter the following information in the appropriate fields:
lTeams Video PC Address: Enter the IP address or hostname of the
UC Engine.
NOTE: The hostname is printed on a label affixed to the UC
Engine (mounted on the UC bracket assembly).
lTeams Video PC Port: By default, port number 49500 is used. If a
different port number has been configured on the UC Engine,
enter that port number instead.
lTeams Video Username: Enter the login username for the UC
Engine. (The default username is “admin”.)
lTeams Video Password: Enter the login password for the UC
Engine. (The default password is “sfb”.)
3. Click Save Changes.
Configure the System
Use the touch screen and your Microsoft Teams or Skype account
credentials to configure the UC Engine. For detailed information on
deploying Microsoft Teams Rooms, refer to the Microsoft Teams Rooms
documentation.
9
UC-C100-T-WM QuickStart
Crestron Flex Video Conference System Integrator Kit with a Wall Mounted Control Interface for
Microsoft Teams® Rooms
Visit the Product Page
Scan the QR code to visit the product page.
UC-C100-T-WM
www.crestron.com/model/6511933
Additional Information
Original Instructions
The U.S. English version of this document is the original instructions.
All other languages are a translation of the original instructions.
Crestron product development software is licensed to Crestron dealers and Crestron
Service Providers (CSPs) under a limited nonexclusive, nontransferable Software
Development Tools License Agreement. Crestron product operating system software
is licensed to Crestron dealers, CSPs, and end-users under a separate End-User
License Agreement. Both of these Agreements can be found on the Crestron website
at www.crestron.com/legal/software_license_agreement.
The product warranty can be found at www.crestron.com/warranty.
The specific patents that cover Crestron products are listed at
www.crestron.com/legal/patents.
Certain Crestron products contain open source software. For specific information,
visit www.crestron.com/opensource.
Crestron, the Crestron logo, and XiO Cloud are either trademarks or registered
trademarks of Crestron Electronics, Inc. in the United States and/or other countries.
HDMI is either a trademark or registered trademark of HDMI Licensing LLC in the
United States and/or other countries. Microsoft 365, Microsoft Exchange Server,
Microsoft Teams, andSkype are either trademarks or registered trademarks of
Microsoft Corporation in the United States and/or other countries. DisplayPort and
VESA are either trademarks or registered trademarks of Video Electronics Standards
Association in the United States and/or other countries. Other trademarks,
registered trademarks, and trade names may be used in this document to refer to
either the entities claiming the marks and names or their products. Crestron disclaims
any proprietary interest in the marks and names of others. Crestron is not responsible
for errors in typography or photography.
©2022 Crestron Electronics, Inc.
Doc. 9287A
04/27/22
10
