Crestron UC-C100-T Bedienungsanleitung

The Crestron Flex UC-C100-T integrator kit provides a custom

conference solution for use with the Microsoft Teams® Rooms intelligent

communications platform. It supports a single video display and features

a tabletop touch screen device and UC Bracket Assembly.

Minimum Requirements

lA USB Camera

lAn AEC-enabled USB speakerphone or DSP device

lA video display, connected to the UC Engine.

lA Microsoft Teams or Skype® for Business software account

lAn environment running Microsoft Exchange Server® software (2013

SP1 or later for on-premises installation or Microsoft 365® software

for Cloud) for scheduling and/or Skype for Business 2015 (on-

premises installation or Microsoft 365 software for Cloud)

In the Box

Tabletop Touch Screen Device

1 10.1 in. Tabletop Touch Screen (6510821)

1 Grommet, Cable, Closed (2055455)

1 Grommet, Cable, Open (2055456)

1 Cover, Cable compartment (2055457)

UC Bracket Assembly

1 UC Bracket Assembly with UC Engine and HDMI® content

ingest (6511478)

1 Power cord (2053985)

Mounting hardware

Additional Items

1 PoE injector (6502429)

1 Cable, CAT6a, RJ-45 - RJ-45, 20 ft (6.1 m) (6507640)

2 Cable, CAT5e, RJ-45 - RJ-45, 7 ft (2.1 m) (6509924)

1 Cable, HDMI, 20 ft (6.1 m) (6503567)

1 Cable, HDMI, 6 ft (1.8 m) (6503565)

1 EDID passthrough (2055728)

UC-C100-T QuickStart

Crestron Flex Video Conference System Integrator Kit for Microsoft Teams® Rooms

Connect

To make system connections:

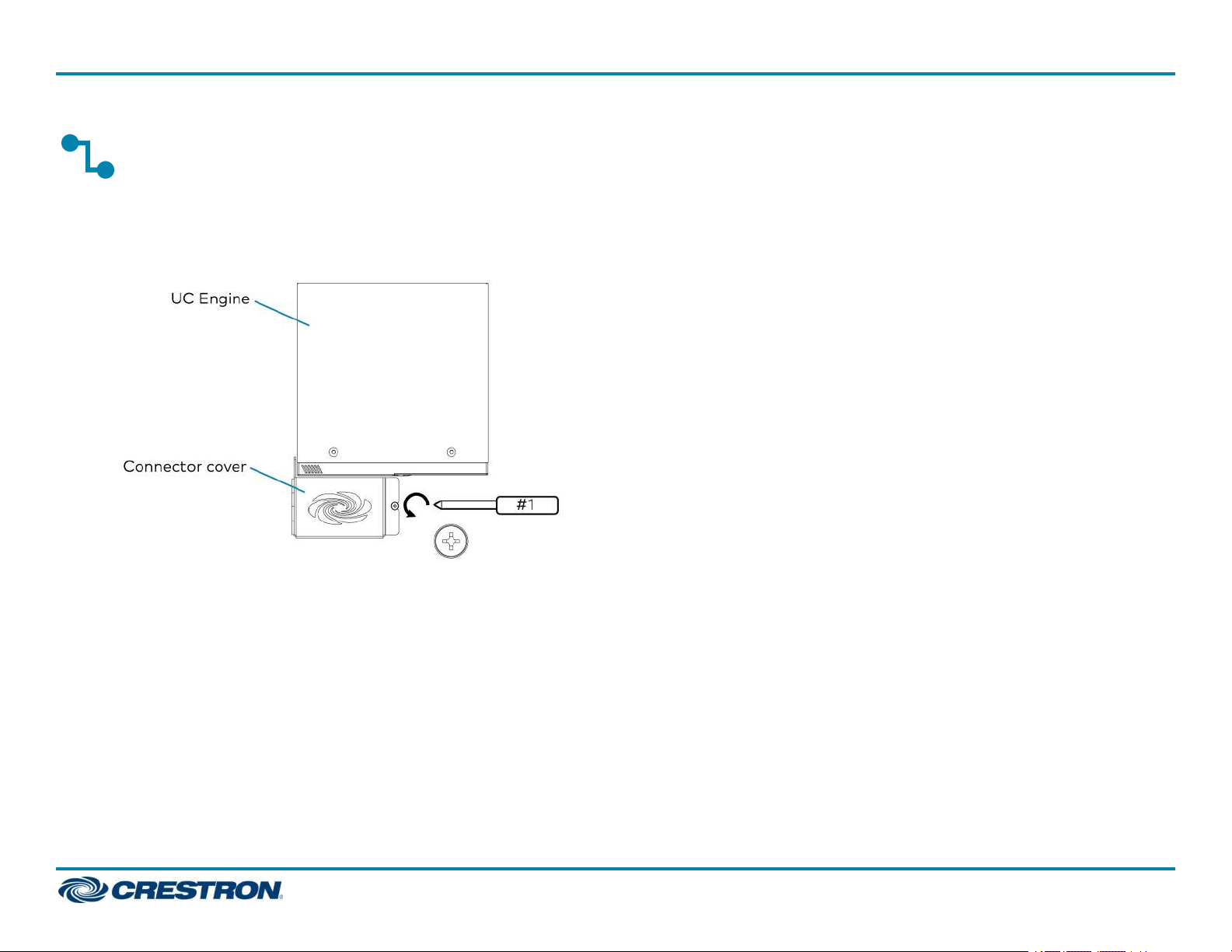

1. Remove the connector cover prior to making connections on the

bracket assembly.

2. Make system connections as shown in the following illustrations.

The touch screen can communicate with the bracket assembly over a

direct connection or a network connection.

lChoose a Direct Connection for simple installation and setup.

lChoose a Network Connection if the touch screen is to be managed

by the XiO Cloud® service.

UC-C100-T QuickStart

Crestron Flex Video Conference System Integrator Kit for Microsoft Teams® Rooms

Direct Connection

For simplified installation and configuration, use a direct Ethernet connection between the LAN port on the touch screen and the direct connect adapter

on the top of the UC Engine.

CAUTION: Only use the direct connect adapter to connect the touch screen to the bracket assembly. Do not use the direct connect adapter to connect

the bracket assembly to the network.

NOTE: To manage the touch screen with the XiO Cloud® service, make network connections as shown on the following page.

UC-C100-T QuickStart

Crestron Flex Video Conference System Integrator Kit for Microsoft Teams® Rooms

Network Connection

Use a network connection for full network control of the touch screen with the XiO Cloud service.

NOTE: When a network connection is used, disconnect the direct connect adapter from the UC Engine.

UC-C100-T QuickStart

Crestron Flex Video Conference System Integrator Kit for Microsoft Teams® Rooms

3. Make the remaining system connections as shown below.

UC-C100-T QuickStart

Crestron Flex Video Conference System Integrator Kit for Microsoft Teams® Rooms

4. Bundle the cables with the integrated cable tie wraps. The cable tie

wraps are reusable.

5. After completing the connections, secure the connector cover using a

#1 Phillips head screwdriver to replace the screw.

Configure

Apply Power

Press the power button on the bottom of the UC Engine and apply power

to all of the other devices in the system.

Configure the Touch Screen

NOTE:If a direct connection was made during installation, perform

steps 1 and 2 below, and skip to Configure the System.

1. Tap Touch Here to Enable a Specific Application on the bottom of the

touch screen. A list of applications is displayed.

2. Tap Teams Video, and then tap Confirm. The touch screen will reboot.

3. On a computer, open a web browser to the IP address of the touch

screen. Log in and navigate to Settings >Applications.

NOTES:

lThe touch screen (via the PoE injector) and computer must be on

the same network switch and VLAN.

lA login with administrative rights for the touch screen is required.

4. Enter the following information in the appropriate fields:

lTeams Video PC Address: Enter the IP address or hostname of the

UC Engine.

NOTE: The hostname is printed on a label affixed to the UC Engine

(mounted on the UC bracket assembly).

lTeams Video PC Port: By default, port number 49500 is used. If a

different port number has been configured on the UC Engine, enter

that port number instead.

lTeams Video Username: Enter the login username for the UC

Engine. (The default username is “admin”.)

lTeams Video Password: Enter the login password for the UC

Engine. (The default password is “sfb”.)

5. Click Save Changes.

UC-C100-T QuickStart

Crestron Flex Video Conference System Integrator Kit for Microsoft Teams® Rooms

Configure the System

Use the touch screen and your Microsoft Teams or Skype account

credentials to configure the UC Engine. Refer to the Crestron Flex UC

Video Conference Systems (Doc. 8360) for more information.

Visit the Product Page

Scan the QR code to visit the product page.

UC-C100-T

www.crestron.com/model/6511589

Additional Information

Original Instructions

The U.S. English version of this document is the original instructions.

All other languages are a translation of the original instructions.

Crestron product development software is licensed to Crestron dealers and Crestron

Service Providers (CSPs) under a limited nonexclusive, nontransferable Software

Development Tools License Agreement. Crestron product operating system software is

licensed to Crestron dealers, CSPs, and end-users under a separate End-User License

Agreement. Both of these Agreements can be found on the Crestron website at

www.crestron.com/legal/software_license_agreement.

The product warranty can be found at www.crestron.com/warranty.

The specific patents that cover Crestron products are listed at

www.crestron.com/legal/patents.

Certain Crestron products contain open source software. For specific information, visit

www.crestron.com/opensource.

Crestron, the Crestron logo, and XiO Cloud are either trademarks or registered

trademarks of Crestron Electronics, Inc. in the United States and/or other countries.

HDMI is either a trademark or registered trademark of HDMI Licensing LLC in the

United States and/or other countries. Microsoft 365, Microsoft Exchange Server,

Microsoft Teams, andSkype are either trademarks or registered trademarks of

Microsoft Corporation in the United States and/or other countries. DisplayPort is either

a trademark or registered trademark of Video Electronics Standards Association in the

United States and/or other countries. Other trademarks, registered trademarks, and

trade names may be used in this document to refer to either the entities claiming the

marks and names or their products. Crestron disclaims any proprietary interest in the

marks and names of others. Crestron is not responsible for errors in typography or

photography.

Doc. 8804A

08/28/20

UC-C100-T QuickStart

Crestron Flex Video Conference System Integrator Kit for Microsoft Teams® Rooms
