Crestron UC-MM30-T Bedienungsanleitung

The UC-MM30-T(-I) Crestron Flex tabletop conferencing system

provides small room video conference solution for use with Microsoft

Teams® Rooms software. It supports single or dual video displays and

features a Crestron Flex tabletop conference device, a UC bracket

assembly, and a collaboration camera.

Minimum Requirements:

lA video display (not included) connected to the UC Engine. A second

display is optional.

lA Microsoft Teams Rooms provisioned or Skype® for Business

account (not included)

lAn environment running Microsoft Exchange Server® software (2013

SP1 or later for on-premises installation or Microsoft 365® software

for Cloud) for scheduling and/or Skype for Business 2015 (on-

premises installation or Microsoft 365 software for Cloud) (not

included)

In the Box

Tabletop Conference Device

1 Flex MM Tabletop Conference Device, Microsoft Teams

video (6511613 or 6511614)

1 PoE+ Injector (2055605)

2 Cable, CAT5e, RJ-45 - RJ-45, 11.8 ft (3.6 m) (2056204)

1 Cable, USB 2.0, A - Micro B, 5.8 ft (1.8 m) (2055579)

UC Bracket Assembly

1 UC Bracket Assembly with UC Engine and HDMI® content

ingest (UC-BRKT-200-S-T-ASSY,6512689)

2 Anchor, Drywall, Plastic, 3/8 in. x 1/2 in. (9.5mm x

12.7mm) (2052565)

1 Key, Anchor (4529654)

2 Screw, 8-AB x 1-1/2 in. (38.1 mm), Pan Head, Combo

(2052567)

4 Tie Wrap (2047935)

Additional Items

1 Collaboration camera (6510482)

1 Camera wall mount kit (6510998)

1 Cable, CAT6a, RJ-45 - RJ-45, 20 ft (6.1 m) (6507640)

1 Cable, CAT5e, RJ-45 - RJ-45, 7 ft (2.1 m) (6509924)

1 Cable, DisplayPort™ to HDMI, 6 ft (1.8 m) (6508282)

1 Cable, HDMI, 20 ft (6.1 m) (6503567)

1 Cable, HDMI, 6 ft (1.8 m) (6503565)

1 Cable, USB 3.0, Right angle USB-C® to A, 6 ft (1.8 m)

(6511591)

1 Cable, USB Extension, USB Type A Male-to-Female, 15 ft

(4.6m) (6508260)

UC-MM30-T(-I) QuickStart

Crestron Flex Tabletop Small Room Video Conference System for Microsoft Teams® Rooms

Mount Devices

Mount the UC Bracket Assembly

Mount the UC Bracket Assembly to VESA® compliant display devices, a

wall, or other building structure. Anchors and screws are supplied for

installation on walls 3/8 in. (9.5mm) to 3/4 in. (19mm) thickness.

CAUTION: Preinstalled screws may protrude from the back of the

UC Bracket Assembly. Exercise caution when handling the UC

Bracket Assembly to avoid scratching or damaging surfaces.

NOTE: The integrated cable tie wraps are reusable. Avoid damaging

the cable tie wraps.

Mount the Camera

Mount the included camera according to the UC-CAM-WMK Quick Start

(Doc. 8257).

UC-MM30-T(-I) QuickStart

Crestron Flex Tabletop Small Room Video Conference System for Microsoft Teams® Rooms

Connect

System Overview

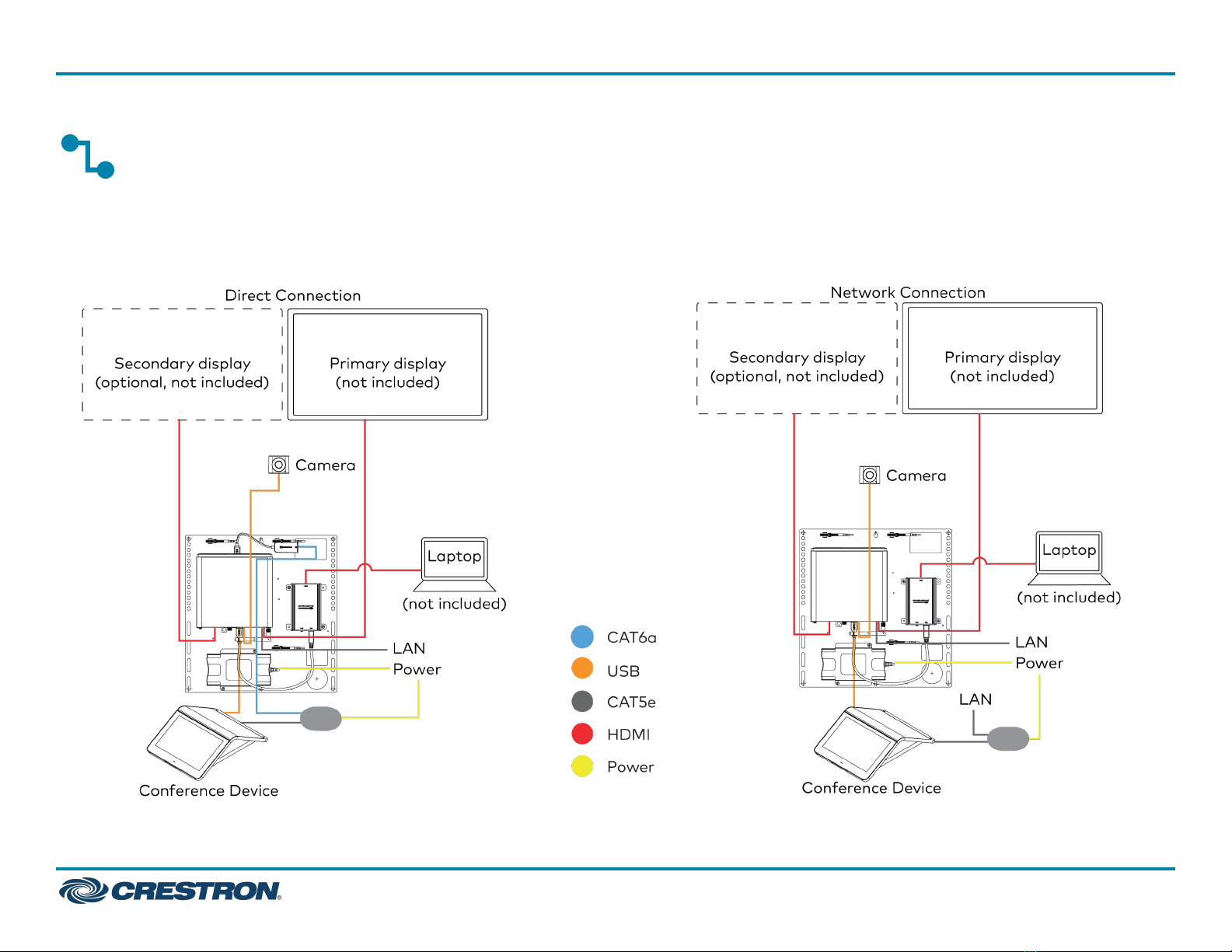

When connections are complete, the system appears as shown below. Refer to Make Connections for detailed connection instructions.

UC-MM30-T(-I) QuickStart

Crestron Flex Tabletop Small Room Video Conference System for Microsoft Teams® Rooms

Make Connections

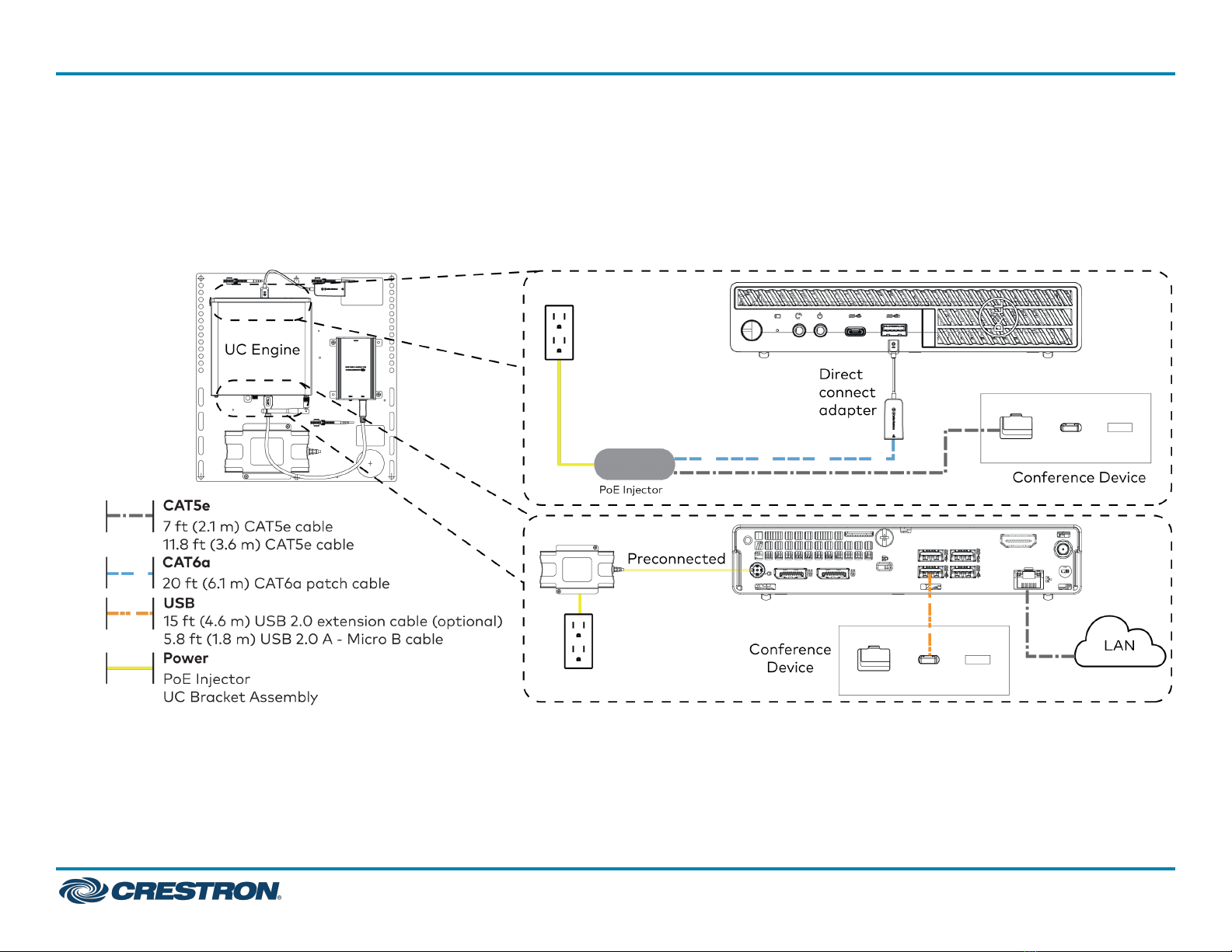

1. Make UC Engine connections as shown in the following illustrations. The conference device can communicate with the UC Engine over a direct

connection or a network connection. Select one of the connection types as described below.

lMake a direct connection for simple installation and setup. Only use the direct connect adapter to connect the conference device to the UC

Engine. Do not use the direct connect adapter to connect the UC Engine to the network.

Direct Connection

UC-MM30-T(-I) QuickStart

Crestron Flex Tabletop Small Room Video Conference System for Microsoft Teams® Rooms

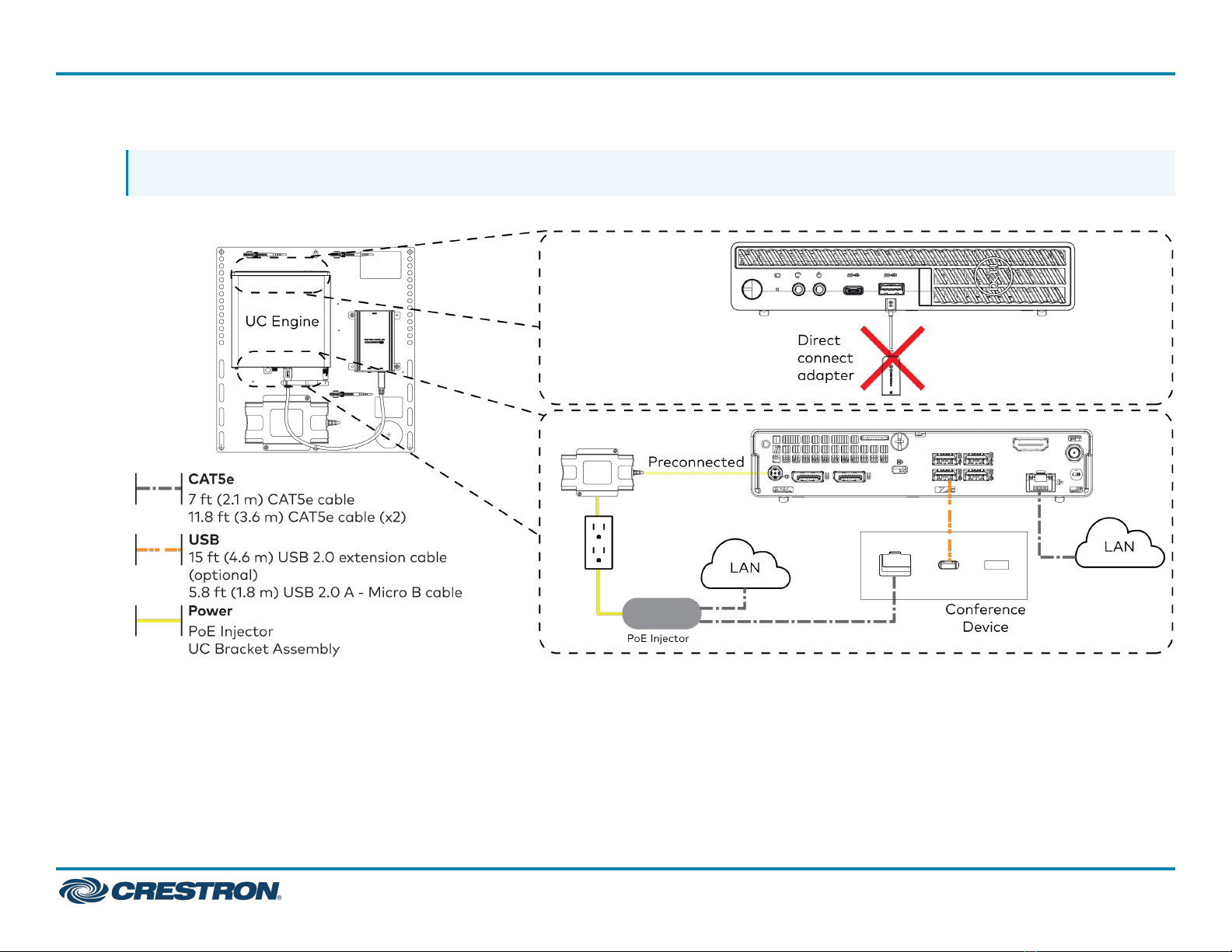

lMake a network connection if the system is to be managed by the XiO Cloud® service.

NOTE: When a network connection is used, disconnect the direct connect adapter from the UC Engine.

Network Connection

UC-MM30-T(-I) QuickStart

Crestron Flex Tabletop Small Room Video Conference System for Microsoft Teams® Rooms

2. Connect displays to the UC Engine.

UC-MM30-T(-I) QuickStart

Crestron Flex Tabletop Small Room Video Conference System for Microsoft Teams® Rooms

3. Connect the camera to the UC Engine as shown in the image below. Do not connect the camera to any of the other USB ports.

UC-MM30-T(-I) QuickStart

Crestron Flex Tabletop Small Room Video Conference System for Microsoft Teams® Rooms

4. Connect a laptop to the content ingest device (HD-CONV-USB-200).

5. Bundle the cables to the bracket assembly with the integrated cable tie wraps. The cable tie wraps are reusable.

UC-MM30-T(-I) QuickStart

Crestron Flex Tabletop Small Room Video Conference System for Microsoft Teams® Rooms

Configure

Apply Power

Press the power button on the bottom of the UC Engine and apply

power to all of the other devices in the system.

Configure the Conference Device

NOTE:If a Direct Connection was made between the conference

device and the UC Engine, skip to Configure the System.

1. On a computer, open a web browser to the IP address found in the

conference device's settings.

NOTES:

lThe device and computer must be on the same network switch

and VLAN.

lA login with administrative rights for the device is required.

2. Log in to the device and navigate to DEVICE >Applications.

3. Enter the following information in the appropriate fields:

lTeams Video PC Address: Enter the IP address or hostname of the

UC Engine.

NOTE: The hostname is printed on a label affixed to the UC

Engine.

lTeams Video PC Port: By default, port number 49500 is used. If a

different port number has been configured on the UC Engine,

enter that port number instead.

lTeams Video Username: Enter the login username for the UC

Engine. (The default username is “admin”.)

lTeams Video Password: Enter the login password for the UC

Engine. (The default password is “sfb”.)

4. Click Save Changes.

Configure the System

Use the conference device and your Microsoft Teams or Skype account

credentials to configure the UC Engine. For detailed information on

deploying Microsoft Teams Rooms, refer to the Microsoft Teams Rooms

documentation.

NOTE: Microsoft Teams does not support emergency calling in

Japan. For more information on emergency calling from Microsoft

Teams, refer to Manage emergency calling.

UC-MM30-T(-I) QuickStart

Crestron Flex Tabletop Small Room Video Conference System for Microsoft Teams® Rooms

Factory Reset

A factory reset may be performed when troubleshooting the conference

device.

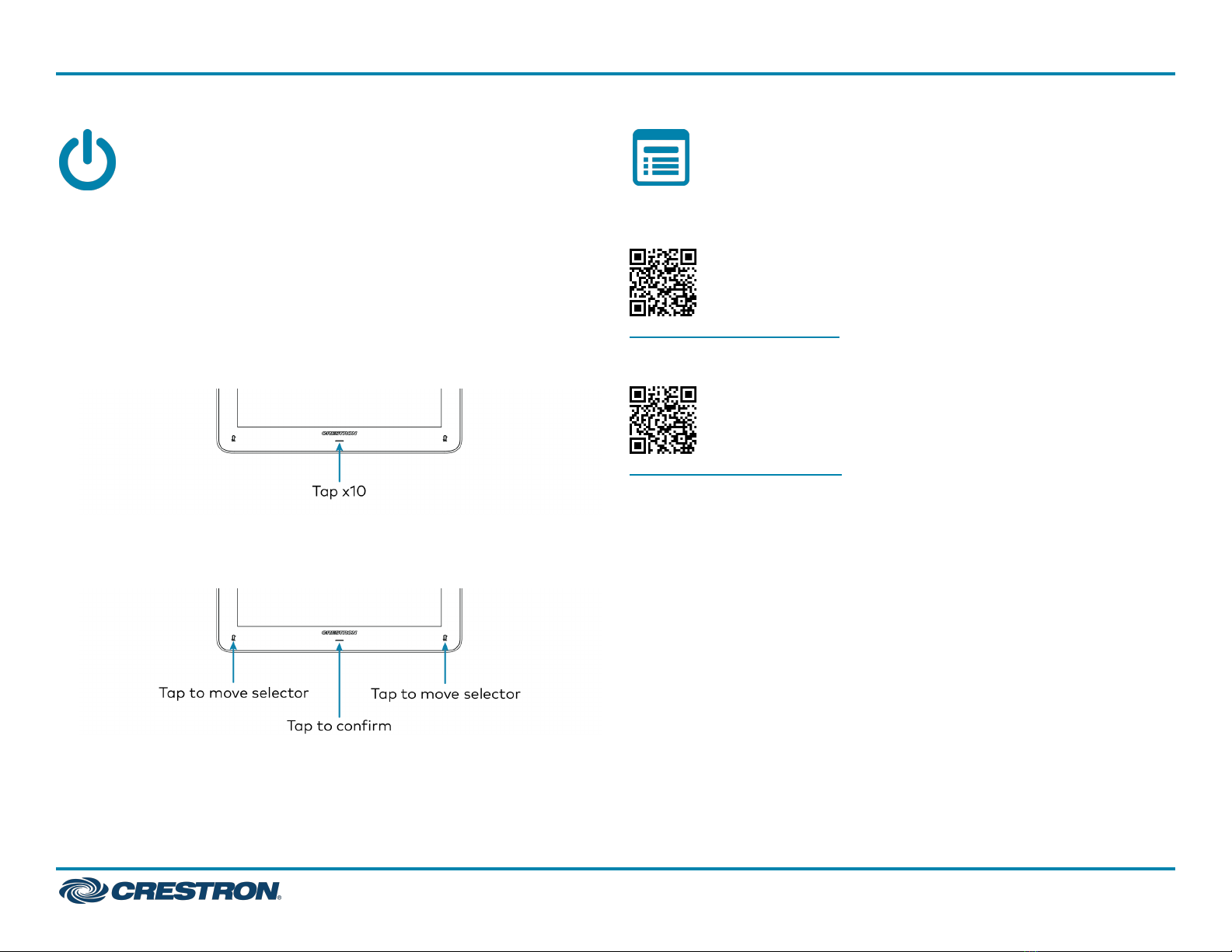

To perform a factory reset on the conference device:

1. Power cycle the device by disconnecting and reconnecting the CAT5e

cable from the conference device.

2. When the device powers on and the LEDs flash green, tap the button

below the Crestron® logo 10 times. A factory reset confirmation

screen appears.

3. Tap one of the mute buttons to move the selector on the factory

reset confirmation screen to Yes. Tap the button below the Crestron

logo to confirm the factory reset.

4. The device will reboot. Configure the device as described in Configure.

Visit the Product Page

Scan the QR code to visit the product page.

UC-MM30-T

www.crestron.com/model/6511339

UC-MM30-T-I

www.crestron.com/model/6511340

UC-MM30-T(-I) QuickStart

Crestron Flex Tabletop Small Room Video Conference System for Microsoft Teams® Rooms
