Crestron UC-MX50-Z Bedienungsanleitung
The UC-MX50-Z Crestron Flex advanced tabletop conferencing system
provides a medium room video conference solution for use with Zoom
Rooms™ software. It supports up to three video displays and features a
Crestron Flex tabletop conference device, UC bracket assembly, and an
collaboration camera.
Minimum Requirements:
lA video display (not included) connected to the UC Engine. A second
or third display is optional.
lA Zoom Rooms account or activation code (not included)
In the Box
Tabletop Conference Device
1 Tabletop Conference Device, Zoom Rooms Software
(6510610)
1 Cable, CAT5e, RJ-45 - RJ-45, 12 ft (3.7 m) (2033988)
1 Cable Retention Plate (2047908)
1 Power supply (2045873) with cord (2042043)
3 Tie Wrap (2047935)
UC Bracket Assembly
1 UC Bracket Assembly with UC Engine and HDMI® or AV
over CAT5 content ingest (UC-BRKT-260-P-Z-ASSY,
6512692)
2 Anchor, Drywall, Plastic, 3/8 in. x 1/2 in. (9.5mm x
12.7mm) (2052565)
1 Key, Anchor (4529654)
1 Power pack (2045870)
2 Screw, 8-AB x 1-1/2 in. (38.1 mm), Pan Head, Combo
(2052567)
4 Tie Wrap (2047935)
Additional Items
1 Collaboration camera (6510482)
1 Camera wall mount kit (6510998)
2 Cable, CAT6a, RJ-45 - RJ-45, 20 ft (6.1 m) (6507640)
1 Cable, CAT5e, RJ-45 - RJ-45, 7 ft (2.1 m) (6509924)
1 Cable, DisplayPort™ to HDMI, 6 ft (1.8 m) (6508282)
1 Cable, thin HDMI®, 6 ft (1.8 m) (6510946)
1 Cable, HDMI, 6 ft (1.8 m) (6503565)
1 Cable, USB 2.0, A - Micro-B, 6 ft (1.8 m) (6510947)
1 Cable, USB 3.0, Right angle USB-C® to A, 6 ft (1.8 m)
(6511591)
1 Power supply (6500187)
1
UC-MX50-Z QuickStart
Crestron Flex Advanced Tabletop Medium Room Video Conference System for Zoom Rooms™ Software
Mount Devices
Mount the UC Bracket Assembly
Mount the UC Bracket Assembly to VESA® compliant display devices, a
wall, or other building structure. Anchors and screws are supplied for
installation on walls 3/8 in. (9.5mm) to 3/4 in. (19mm) thickness.
CAUTION: Preinstalled screws may protrude from the back of the
UC Bracket Assembly. Exercise caution when handling the UC
Bracket Assembly to avoid scratching or damaging surfaces.
NOTE: The integrated cable tie wraps are reusable. Avoid damaging
the cable tie wraps.
Mount the Camera
Mount the included camera according to the UC-CAM-WMK Quick Start
(Doc. 8257).
2
UC-MX50-Z QuickStart
Crestron Flex Advanced Tabletop Medium Room Video Conference System for Zoom Rooms™ Software
Make Connections

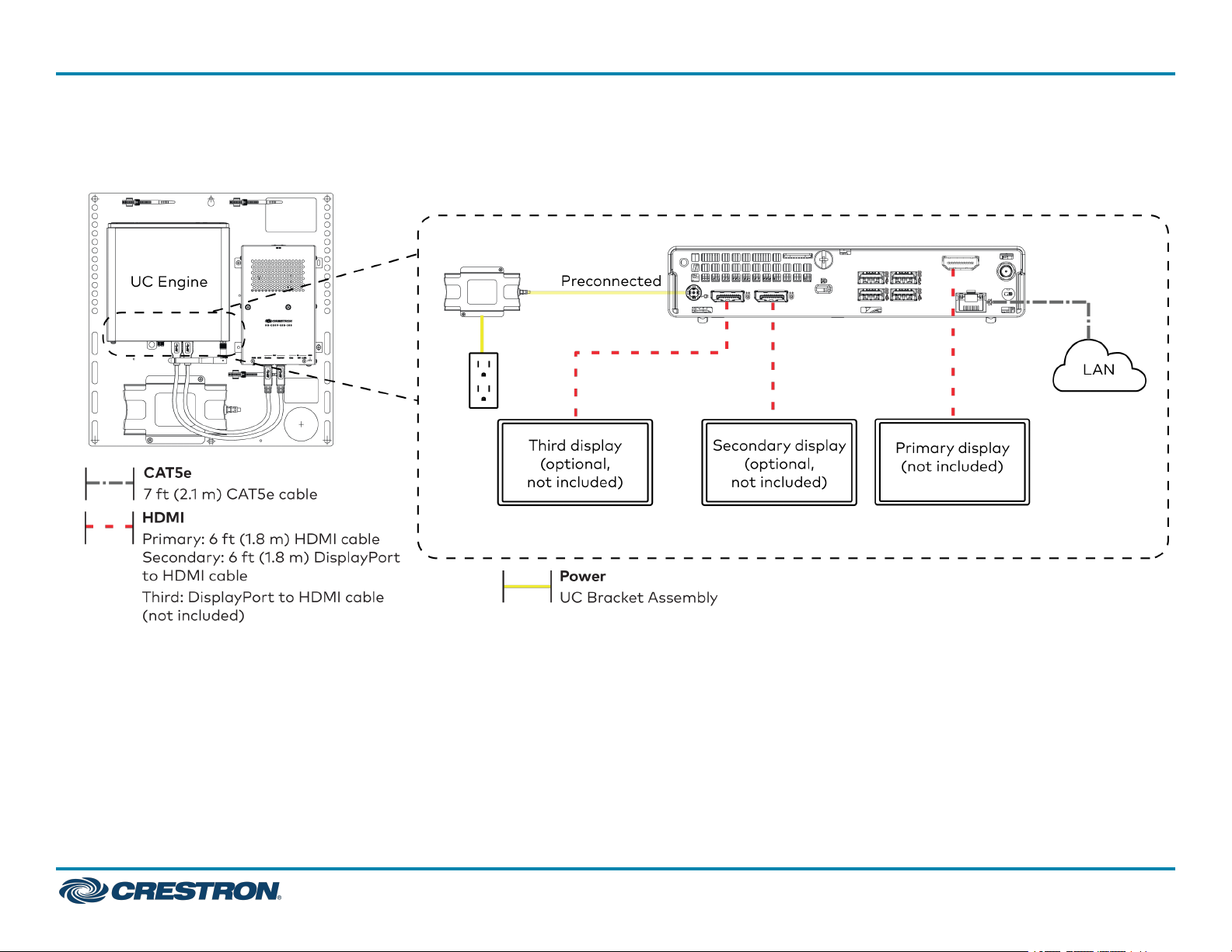

1. Make UC Engine connections as shown in the following illustration.
4
UC-MX50-Z QuickStart
Crestron Flex Advanced Tabletop Medium Room Video Conference System for Zoom Rooms™ Software

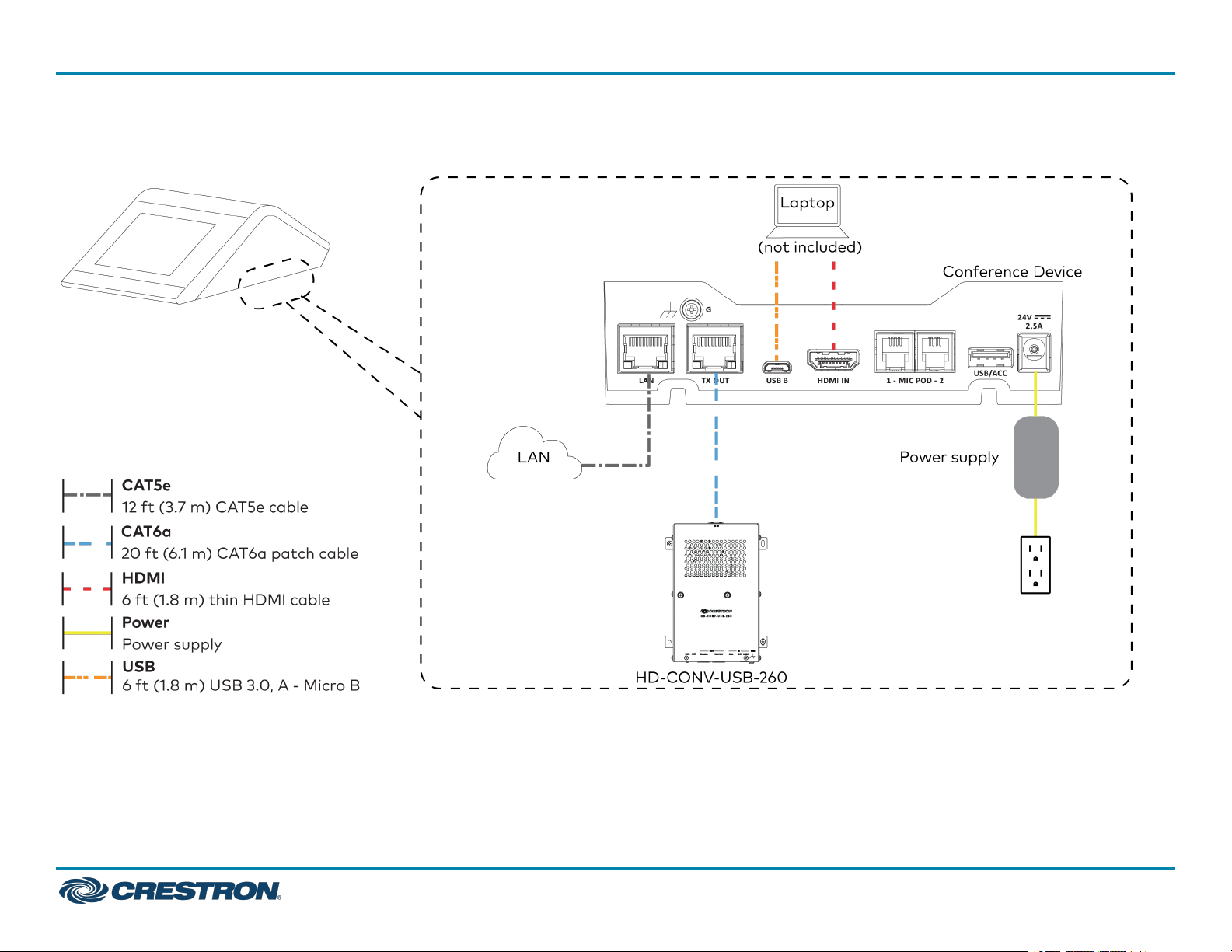

2. Make network, content ingest, laptop, and power connections on the bottom of the conference device. Connect the conference device's power
supply to an AC power outlet.
5
UC-MX50-Z QuickStart
Crestron Flex Advanced Tabletop Medium Room Video Conference System for Zoom Rooms™ Software

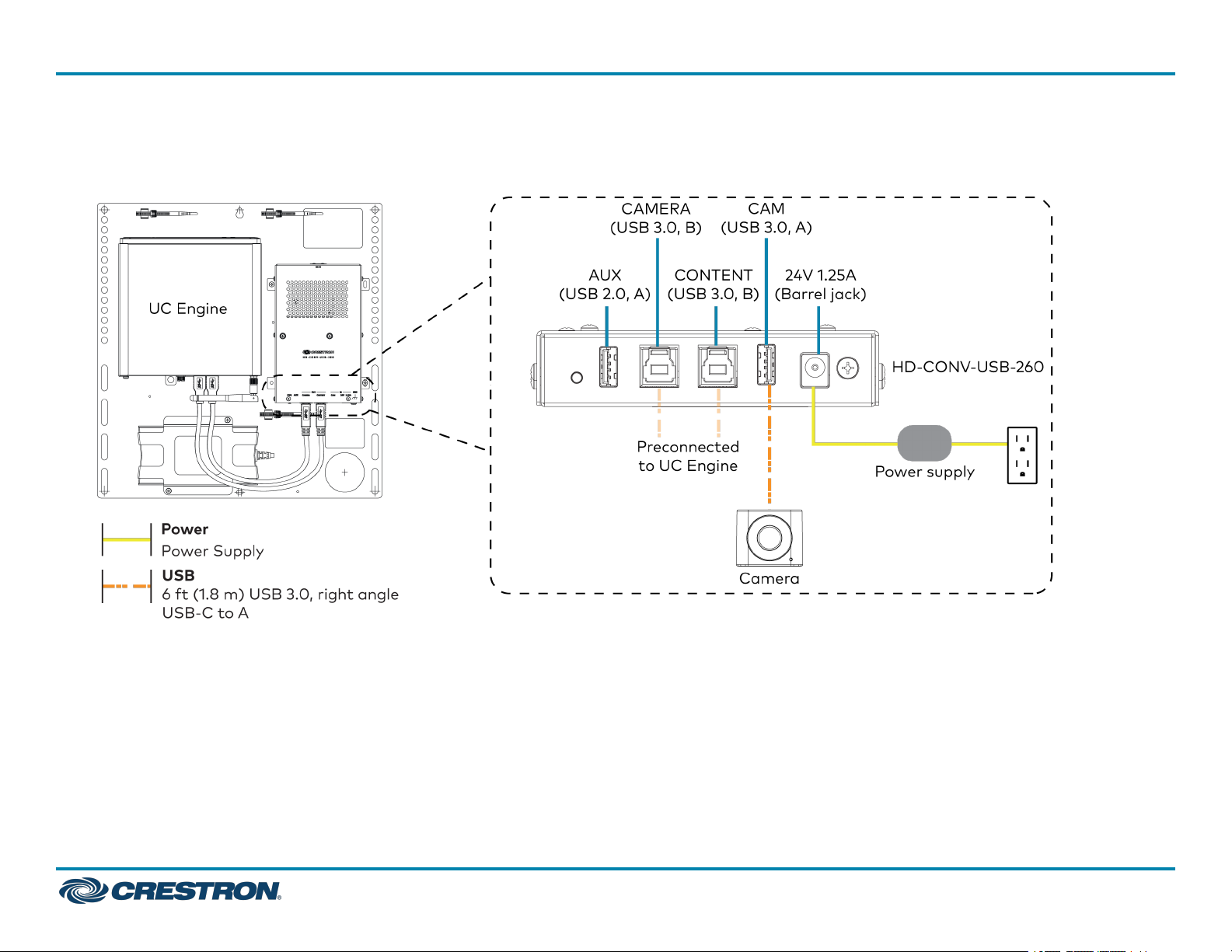

3. Connect the power supply and camera to the bottom of the content ingest device (HD-CONV-USB-260). Connect the power supply to an AC
power outlet.
4. Bundle the cables to the bracket assembly with the integrated cable tie wraps. The cable tie wraps are reusable.
6
UC-MX50-Z QuickStart
Crestron Flex Advanced Tabletop Medium Room Video Conference System for Zoom Rooms™ Software
Configure
Apply Power
Press the power button on the bottom of the UC Engine and apply
power to all of the other devices in the system. The connected display
device will show a pairing code.
Log In to the Zoom Rooms Service
Use the conference device to sign in to the Zoom Rooms service using an
activation code or a Zoom Room Sign-In.
1. Tap Zoom and then tap OK. The device will reboot.
2. Enter the pairing code shown on the display to pair the device with
the UC Engine. The Zoom Rooms controller app is displayed.
3. Log in to the Zoom Rooms service with an activation code or Zoom
Rooms Credentials (email and password).
lActivation Code:
a. Tap Enter Activation Code.
b. Enter the 16-digit activation code provided by the
administrator to activate the Zoom Room that is assigned to
the activation code. The Zoom Rooms Conference Room screen
is shown on the display.
lSign In:
a. Tap Sign In.
b. Enter the Zoom Room credentials and tap Sign In.
c. Select the conference room name from the list and tapNext.
The Zoom Rooms Conference Room screen is shown on the
display.
4. Tap Settings. If a password is required, enter the password (the
default password is "1234"). The Settings screen is displayed.
5. Tap Microphone and select the conference device as the source.
6. Tap Speaker and select the conference device as the source.
7. Tap Meet Now to exit.
Configure the System
Connect a USB keyboard and mouse (sold separately) to a USB port on
the UC Engine to configure system features. For detailed information on
using Zoom Rooms, refer to the Zoom Rooms Help Center.
7
UC-MX50-Z QuickStart
Crestron Flex Advanced Tabletop Medium Room Video Conference System for Zoom Rooms™ Software
Visit the Product Page
Scan the QR code to visit the product page.
UC-MX50-Z
www.crestron.com/model/6511601
Additional Information
Original Instructions
The U.S. English version of this document is the original instructions.
All other languages are a translation of the original instructions.
Crestron product development software is licensed to Crestron dealers and Crestron
Service Providers (CSPs) under a limited nonexclusive, nontransferable Software
Development Tools License Agreement. Crestron product operating system software
is licensed to Crestron dealers, CSPs, and end-users under a separate End-User
License Agreement. Both of these Agreements can be found on the Crestron website
at www.crestron.com/legal/software_license_agreement.
The product warranty can be found at www.crestron.com/warranty.
The specific patents that cover Crestron products are listed at
www.crestron.com/legal/patents.
Certain Crestron products contain open source software. For specific information,
visit www.crestron.com/opensource.
Crestron and the Crestron logo are either trademarks or registered trademarks of
Crestron Electronics, Inc. in the United States and/or other countries. HDMI is either
a trademark or registered trademark of HDMI Licensing LLC in the United States
and/or other countries. USB-C is either a trademark or registered trademark of USB
Implementers Forum, Inc. in the United States and/or other countries. DisplayPort
and VESA are either trademarks or registered trademarks of Video Electronics
Standards Association in the United States and/or other countries. Zoom Rooms is
either a trademark or registered trademark of Zoom Video Communications, Inc. in
the United States and/or other countries. Other trademarks, registered trademarks,
and trade names may be used in this document to refer to either the entities claiming
the marks and names or their products. Crestron disclaims any proprietary interest in
the marks and names of others. Crestron is not responsible for errors in typography
or photography.
©2022 Crestron Electronics, Inc.
Doc. 9308A
04/27/22
8
UC-MX50-Z QuickStart
Crestron Flex Advanced Tabletop Medium Room Video Conference System for Zoom Rooms™ Software
