Crestron UC-B31-T-WM Bedienungsanleitung

The UC-B31-T-WM Crestron Flex conferencing system provides a small

room video conference solution for use with Microsoft Teams® Rooms

software. It supports single or dual video displays and features a wall

mount touch screen, UC bracket assembly, and smart soundbar and

camera.

The firmware update for all connected peripherals is managed by the

UC Engine and Windows Update.

Minimum Requirements:

lA video display (not included) connected to the UC Engine. A second

display is optional.

lA Microsoft Teams Rooms provisioned or Skype® for Business

account (not included)

lAn environment running Microsoft Exchange Server® software (2013

SP1 or later for on-premises installation or Microsoft 365® software

for Cloud) for scheduling and/or Skype for Business 2015 (on-

premises installation or Microsoft 365 software for Cloud) (not

included)

In the Box

Wall Mount Touch Screen

1 10.1 in. Wall Mount Touch Screen (6511975)

Mounting hardware

Smart Soundbar with Camera

1 Jabra® PanaCast 50 Video Bar (6512600)

UC Bracket Assembly

1 UC Bracket Assembly with UC Engine and HDMI® content

ingest (UC-BRKT-200-S-T-ASSY,6512689)

2 Anchor, Drywall, Plastic, 3/8 in. x 1/2 in. (9.5mm x

12.7mm) (2052565)

1 Key, Anchor (4529654)

2 Screw, 8-AB x 1-1/2 in. (38.1 mm), Pan Head, Combo

(2052567)

4 Tie Wrap (2047935)

Additional Items

1 PoE injector (6502429)

1 Cable, CAT6a, RJ-45 - RJ-45, 20 ft (6.1 m) (6507640)

2 Cable, CAT5e, RJ-45 - RJ-45, 7 ft (2.1 m) (6509924)

1 Cable, DisplayPort™ to HDMI, 6 ft (1.8 m) (6508282)

1 Cable, HDMI, 20 ft (6.1 m) (6503567)

1 Cable, HDMI, 6 ft (1.8 m) (6503565)

UC-B31-T-WM QuickStart

Crestron Flex Small Room Conference System with Jabra® PanaCast 50 Video Bar and Wall Mounted

Control Interface for Microsoft Teams® Rooms

Mount Devices

Mount the UC Bracket Assembly

Mount the UC Bracket Assembly to VESA® compliant display devices, a

wall, or other building structure. Anchors and screws are supplied for

installation on walls 3/8 in. (9.5mm) to 3/4 in. (19mm) thickness.

CAUTION: Preinstalled screws may protrude from the back of the

UC Bracket Assembly. Exercise caution when handling the UC

Bracket Assembly to avoid scratching or damaging surfaces.

NOTE: The integrated cable tie wraps are reusable. Avoid damaging

the cable tie wraps.

Mount the Soundbar with Camera

Mount the included Jabra PanaCast 50 soundbar with camera

according to its included documentation.

Mount the Touch Screen

Mount the included touch screen according to the TSW-1070 Quick

Start (Doc. 8552).

UC-B31-T-WM QuickStart

Crestron Flex Small Room Conference System with Jabra® PanaCast 50 Video Bar and Wall Mounted

Control Interface for Microsoft Teams® Rooms

UC-B31-T-WM QuickStart

Crestron Flex Small Room Conference System with Jabra® PanaCast 50 Video Bar and Wall Mounted

Control Interface for Microsoft Teams® Rooms

Connect

System Overview

When connections are complete, the system appears as shown below. Refer to Make Connections for detailed connection instructions.

UC-B31-T-WM QuickStart

Crestron Flex Small Room Conference System with Jabra® PanaCast 50 Video Bar and Wall Mounted

Control Interface for Microsoft Teams® Rooms

Make Connections

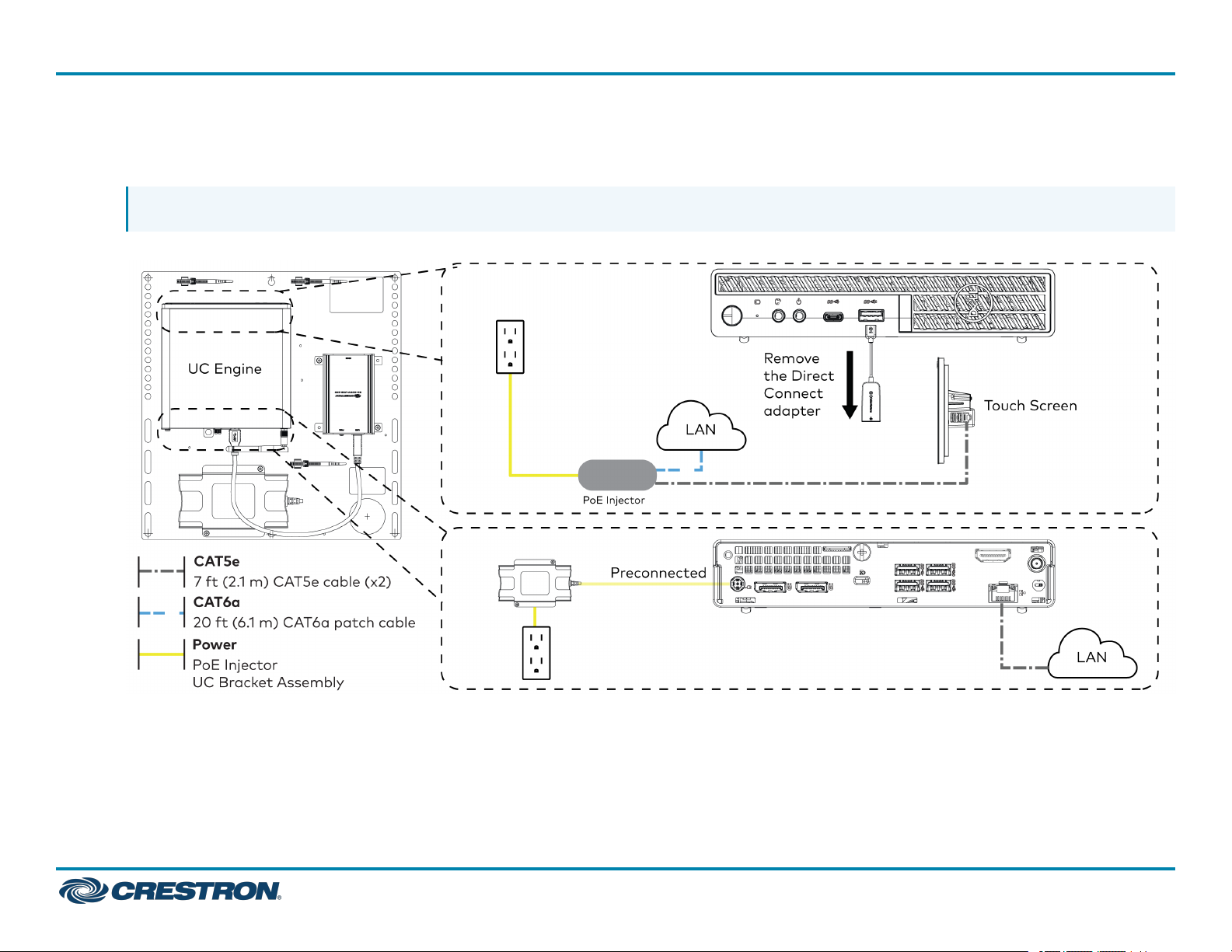

1. Make UC Engine connections as shown in the following illustrations. The touch screen can communicate with the UC Engine over a direct

connection or a network connection. Select one of the connection types as described below.

lMake a direct connection for simple installation and setup. Only use the direct connect adapter to connect the touch screen's PoE injector to

the UC Engine. Do not use the direct connect adapter to connect the UC Engine to the network.

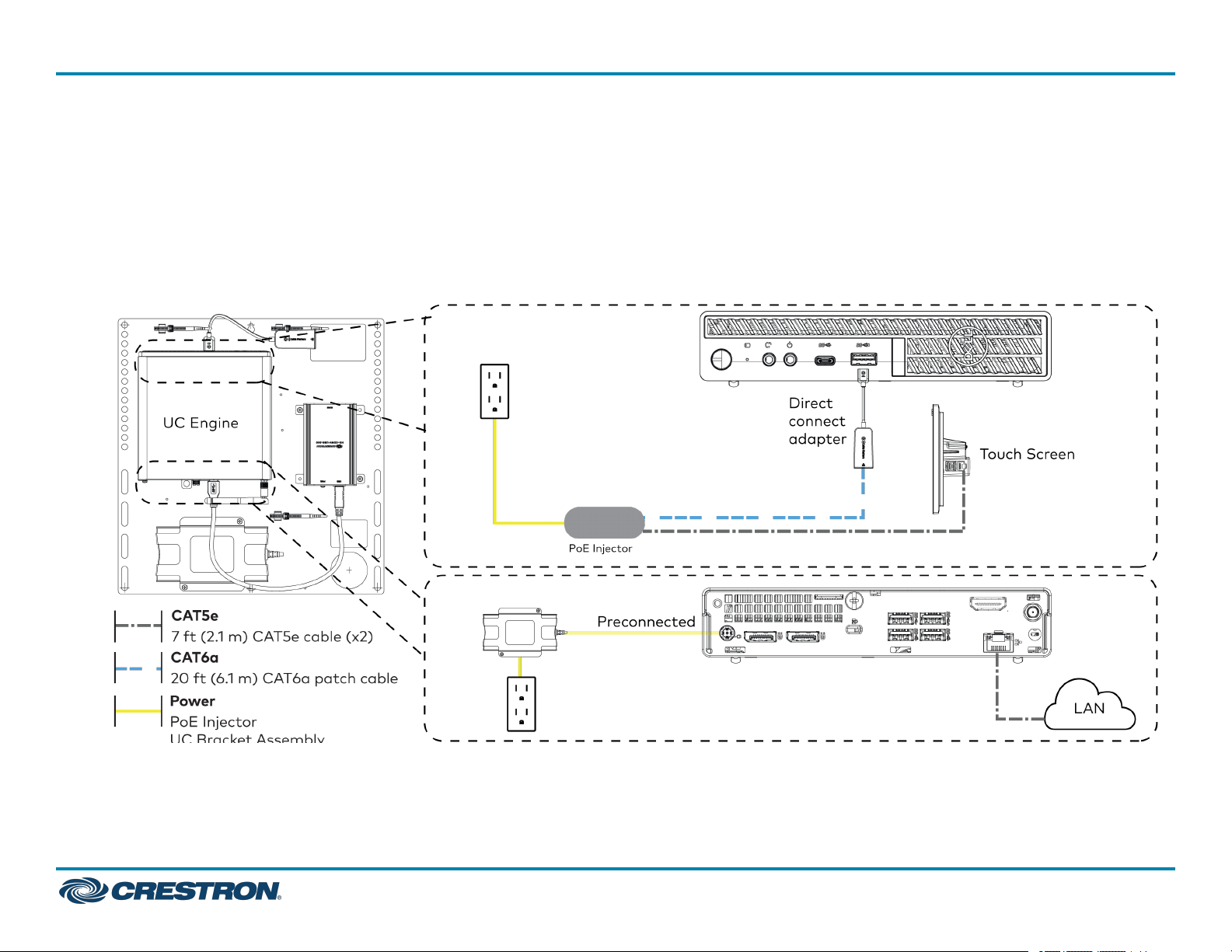

Direct Connection

UC-B31-T-WM QuickStart

Crestron Flex Small Room Conference System with Jabra® PanaCast 50 Video Bar and Wall Mounted

Control Interface for Microsoft Teams® Rooms

lMake a network connection if the system is to be managed by the XiO Cloud® service.

NOTE: When a network connection is used, disconnect the direct connect adapter from the UC Engine.

Network Connection

UC-B31-T-WM QuickStart

Crestron Flex Small Room Conference System with Jabra® PanaCast 50 Video Bar and Wall Mounted

Control Interface for Microsoft Teams® Rooms

2. Connect displays to the UC Engine.

UC-B31-T-WM QuickStart

Crestron Flex Small Room Conference System with Jabra® PanaCast 50 Video Bar and Wall Mounted

Control Interface for Microsoft Teams® Rooms

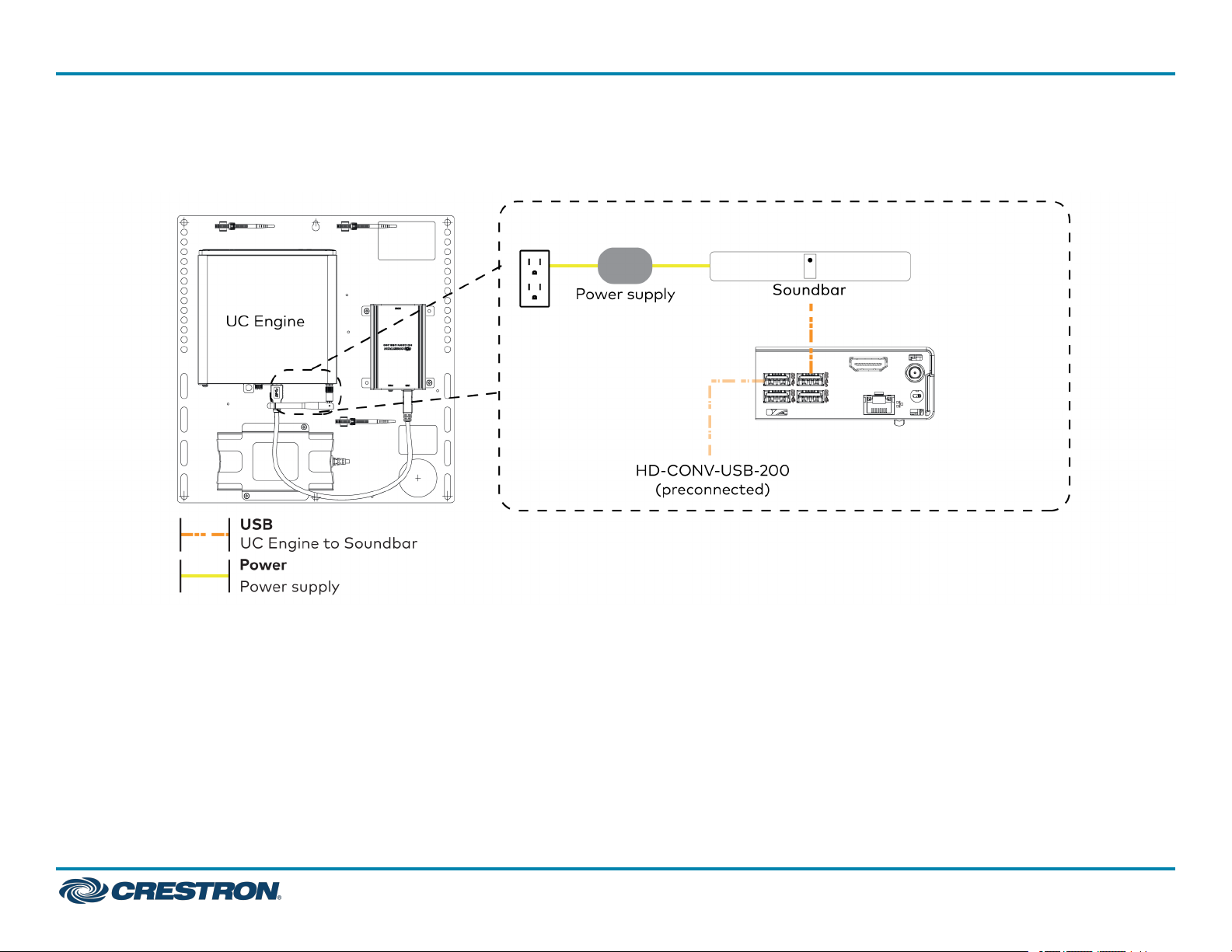

3. Connect the soundbar to the UC Engine as shown in the image below. Do not connect the soundbar to any of the other USB ports.

UC-B31-T-WM QuickStart

Crestron Flex Small Room Conference System with Jabra® PanaCast 50 Video Bar and Wall Mounted

Control Interface for Microsoft Teams® Rooms

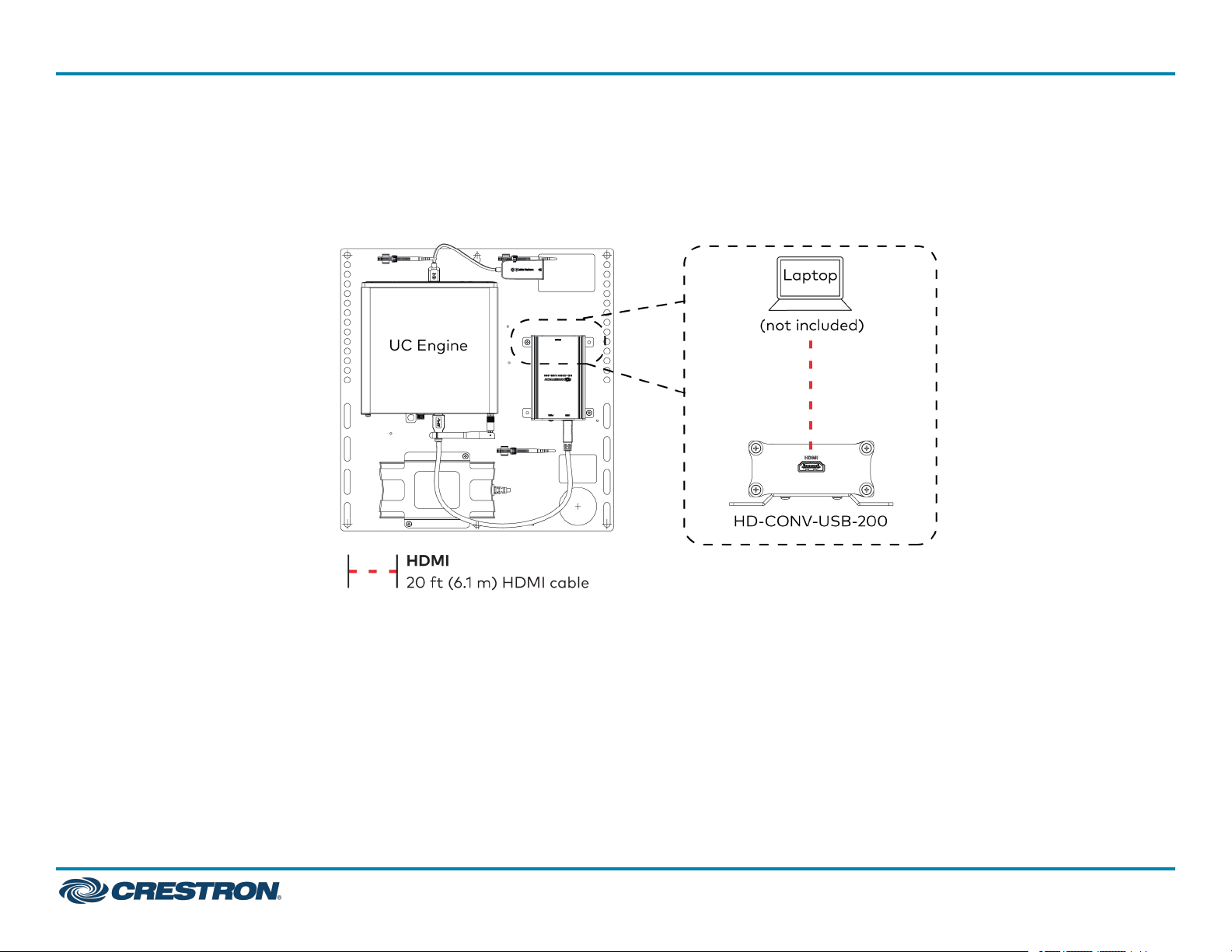

4. Connect a laptop to the content ingest device (HD-CONV-USB-200).

5. Bundle the cables to the bracket assembly with the integrated cable tie wraps. The cable tie wraps are reusable.

Configure

Apply Power

Press the power button on the bottom of the UC Engine and apply

power to all of the other devices in the system.

Configure the Touch Screen

NOTE:If a direct connection was made during installation, skip to

Configure the System.

1. On a computer, open a web browser to the IP address of the touch

screen. Log in and navigate to Settings >Applications.

NOTES:

lThe touch screen (via the PoE injector) and computer must be

on the same network switch and VLAN.

lA login with administrative rights for the touch screen is

required.

2. Enter the following information in the appropriate fields:

lTeams Video PC Address: Enter the IP address or hostname of the

UC Engine.

NOTE: The hostname is printed on a label affixed to the UC

Engine (mounted on the UC bracket assembly).

lTeams Video PC Port: By default, port number 49500 is used. If a

different port number has been configured on the UC Engine,

enter that port number instead.

lTeams Video Username: Enter the login username for the UC

Engine. (The default username is “admin”.)

lTeams Video Password: Enter the login password for the UC

Engine. (The default password is “sfb”.)

3. Click Save Changes.

Configure the System

Use the touch screen and your Microsoft Teams or Skype account

credentials to configure the UC Engine. For detailed information on

deploying Microsoft Teams Rooms, refer to the Microsoft Teams Rooms

documentation.

UC-B31-T-WM QuickStart

Crestron Flex Small Room Conference System with Jabra® PanaCast 50 Video Bar and Wall Mounted

Control Interface for Microsoft Teams® Rooms

Visit the Product Page

Scan the QR code to visit the product page.

www.crestron.com/model/6512602

Additional Information

Original Instructions

The U.S. English version of this document is the original instructions.

All other languages are a translation of the original instructions.

Crestron product development software is licensed to Crestron dealers and Crestron

Service Providers (CSPs) under a limited nonexclusive, nontransferable Software

Development Tools License Agreement. Crestron product operating system software

is licensed to Crestron dealers, CSPs, and end-users under a separate End-User

License Agreement. Both of these Agreements can be found on the Crestron website

at www.crestron.com/legal/software_license_agreement.

The product warranty can be found at www.crestron.com/warranty.

The specific patents that cover Crestron products are listed at

www.crestron.com/legal/patents.

Certain Crestron products contain open source software. For specific information,

visit www.crestron.com/opensource.

Crestron, the Crestron logo, and XiO Cloud are either trademarks or registered

trademarks of Crestron Electronics, Inc. in the United States and/or other countries.

Jabra is a trademark of GN Audio A/S in the United States and/or other countries.

HDMI is either a trademark or registered trademark of HDMI Licensing LLC in the

United States and/or other countries. Microsoft 365, Microsoft Exchange Server,

Microsoft Teams, andSkype are either trademarks or registered trademarks of

Microsoft Corporation in the United States and/or other countries. DisplayPort and

VESA are either trademarks or registered trademarks of Video Electronics Standards

Association in the United States and/or other countries. Other trademarks,

registered trademarks, and trade names may be used in this document to refer to

either the entities claiming the marks and names or their products. Crestron disclaims

any proprietary interest in the marks and names of others. Crestron is not responsible

for errors in typography or photography.

Doc. 9192A

09/15/22

UC-B31-T-WM QuickStart

Crestron Flex Small Room Conference System with Jabra® PanaCast 50 Video Bar and Wall Mounted

Control Interface for Microsoft Teams® Rooms
