Crestron PAC2M Bedienungsanleitung

The Crestron® PAC2M is a compact control system designed for small

lighting and automation applications.

In the Box

1 PAC2M, Professional Automation Mini Computer

Additional Items

4 Screw, 08-8B x 1/4 in., Phillips (2007277)

1 Cable, Interconnect, 22 AWG, 10 in. (4531256)

2 Assembly, 3-Pin, 3.5 mm plug with jumper wire (4502793)

2 Connector, 2-Pin (2003574)

8 Connector, 4-Pin (2003576)

1 Connector, 5-Pin (2003577)

1 Connector, 8-Pin (2003580)

1 Terminal Block, Bussing Strip (2003729)

1 Label, Cabinet Identification (2003925)

Install the Device

Mount the PAC2M in a CAEN

The PAC2M can be installed in both CAEN and CAENIB automation

enclosures. For simplicity in this guide, the term "CAEN" will be used.

CAUTION: The CAEN houses equipment that needs to be air cooled.

Therefore, mount it in a well-ventilated area. The ambient temperature

range must be 32°F to 104°F (0°C to 40°C). The relative humidity must

range from 10% to 90% (non-condensing). Allow adequate clearance

in front of the vented cover for servicing and ventilation.

NOTES:

lThe CAEN is intended for indoor use only.

lReliable earth grounding of equipment mounted in a CAEN

should be maintained. Particular attention should be given to

supply connections other than direct connections to the branch

circuit (for example, use of power strips).

lTo ensure access to the connectors and memory card slot at the

bottom of the PAC2M, mount the unit so that all CLX- (or

CLSI-) Series modules are above it within the CAEN.

Refer to the latest version of the CAEN Automation Enclosures

Installation Guide (Doc. 5940) and the CAENIB Automation Enclosures

Installation Guide (Doc 6562) at www.crestron.com/manuals for more

information on the CAEN and CAENIB.

PAC2M QuickStart

Professional Automation Mini Control System for CAEN Automation System Enclosures

The PAC2M has two flanges that allow the unit to be mounted in a CAEN.

The following procedure assumes installation in a double-wide CAEN. A #2

Phillips screwdriver is required.

1. Use the #2 Phillips screwdriver to attach the four included self-tapping

screws (8B x 1/4 in.), screwing them in partially to allow room to

mount the PAC2M. Refer to the illustration that follows.

2. Mount the PAC2M in the CAEN, where the screws were attached,

sliding the unit to the right to ensure the screws fully engage the slots

in the flanges.

3. Tighten the screws.

NOTE: For installation in a single-wide CAEN, attach the right-side

screws (screw them in partially), mount the PAC2M on those screws,

and then attach the screws on the left. Fully tighten all screws.

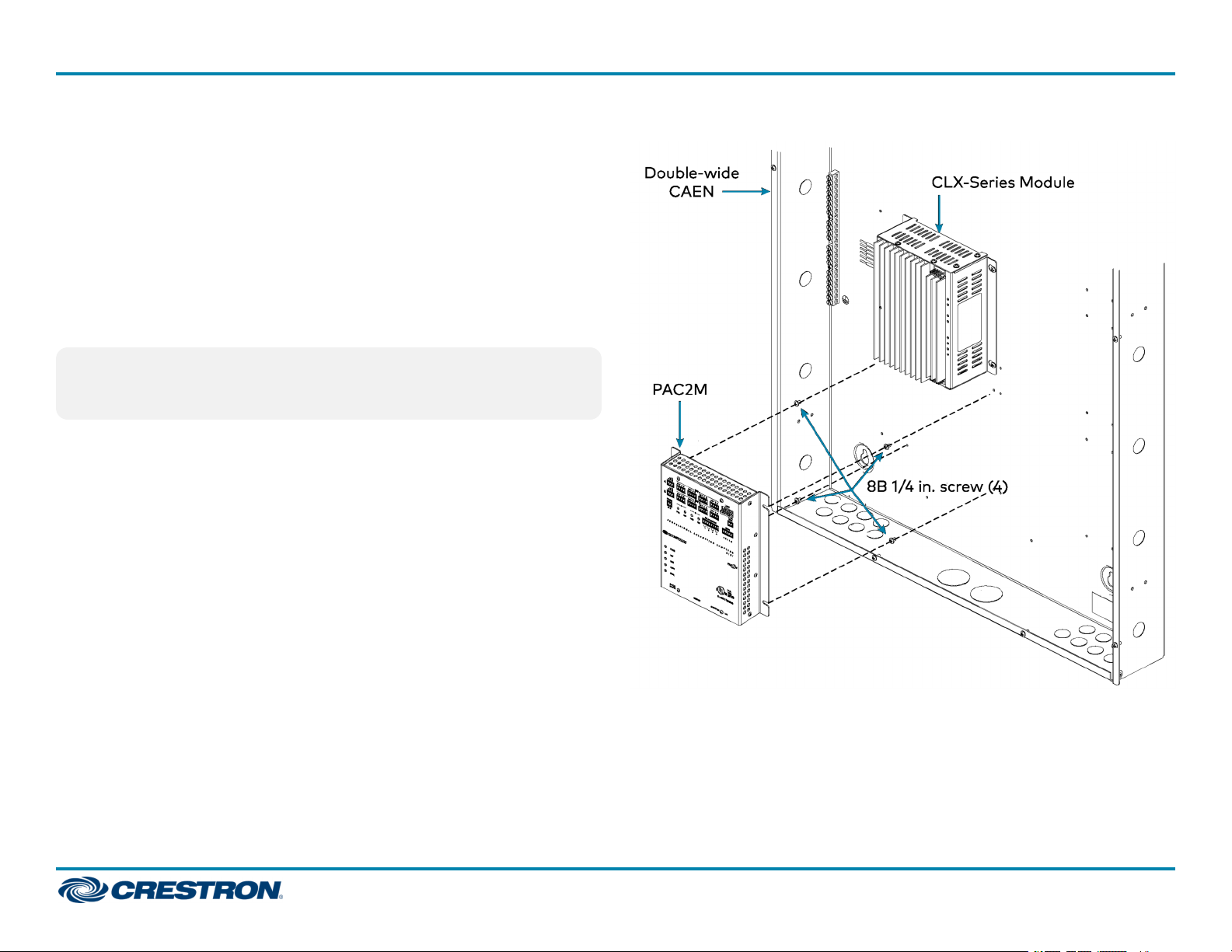

PAC2M in a CAEN

PAC2M QuickStart

Professional Automation Mini Control System for CAEN Automation System Enclosures

Power Options

The PAC2M can be powered via the 2-pin PWR connector or by an external

power pack (such as the PW-2420RU, sold separately) but not by both.

Using the PW-2420RU, the PAC2M can provide power to peripheral

Cresnet® devices (via the built-in Cresnet Hub/Repeater) up to a total of

45 Watts. If additional power is needed, Crestron recommends the

CNPWS-75, 75-Watt external power supply (sold separately).

Install the Bussing Strip

The PAC2M is supplied with a brass bussing strip to facilitate commoning

(linking) of multiple terminal block connections. The bussing strip is

constructed with four terminal block positions and may be trimmed to

size for various applications or different devices.

To utilize the bussing strip:

1. Determine the number of relays to be commoned for the equipment

being installed. If less than four, the strip can be trimmed to size with a

pair of scissors or wire snips.

2. Loosen the terminal block screws and insert the first leg of the bussing

strip into the first common position of the terminal block. The strip

engages the other common positions automatically.

3. Remove approximately 1/8 in. of the jacket from the common wire and

insert the conductor into one of the terminal block common positions.

Tighten the terminal block screws to lock the wire and bussing strip in

place. Insulate the strip by folding a piece of 3/4 in. wide vinyl electrical

tape over the spine and as much of the individual legs as possible.

Excess tape at each end of the strip should be pressed closed, then

trimmed to within approximately 1/16 in. of the end of the strip.

4. When wiring the remaining conductors, remove approximately 1/8 in.

of the jacket and insert the wires into the proper terminal block

positions. To prevent the possibility of electrical shorts, it is essential

that these conductors do not touch any uninsulated portion of the

bussing strip.

5. Securing a tie wrap around the bussing strip is a useful way to provide

strain relief for the wires connected to the terminal block.

PAC2M QuickStart

Professional Automation Mini Control System for CAEN Automation System Enclosures

Connect the Device

Connect the device as called out in the following illustrations. Connect

power last.

PAC2M Front

PAC2M QuickStart

Professional Automation Mini Control System for CAEN Automation System Enclosures

PAC2M Bottom

PAC2M QuickStart

Professional Automation Mini Control System for CAEN Automation System Enclosures

Visit the Product Page

Scan the QR code to visit the product page.

PAC2M

www.crestron.com/model/6500159

Additional Information

Original Instructions

The U.S. English version of this document is the original instructions.

All other languages are a translation of the original instructions.

Crestron product development software is licensed to Crestron dealers and Crestron

Service Providers (CSPs) under a limited nonexclusive, nontransferable Software

Development Tools License Agreement. Crestron product operating system software is

licensed to Crestron dealers, CSPs, and end-users under a separate End-User License

Agreement. Both of these Agreements can be found on the Crestron website at

www.crestron.com/legal/software_license_agreement.

The product warranty can be found at www.crestron.com/warranty.

The specific patents that cover Crestron products are listed at

www.crestron.com/legal/patents.

Certain Crestron products contain open source software. For specific information, visit

www.crestron.com/opensource.

Crestron, the Crestron logo, and Cresnet are either trademarks or registered

trademarks of Crestron Electronics, Inc. in the United States and/or other countries.

Other trademarks, registered trademarks, and trade names may be used in this

document to refer to either the entities claiming the marks and names or their

products. Crestron disclaims any proprietary interest in the marks and names of

others. Crestron is not responsible for errors in typography or photography.

Doc. 6507B

04/16/20

PAC2M QuickStart

Professional Automation Mini Control System for CAEN Automation System Enclosures
