Crestron FlipTop Basic FT-600 Anleitung zur Verwendung

Crestron FT-600

FlipTop™ Basic

Operations & Installation Guide

The specific patents that cover Crestron products are listed at patents.crestron.com.

Crestron, the Crestron logo, DigitalMedia, and FlipTop are either trademarks or registered trademarks of Crestron Electronics, Inc. in the United States

and/or other countries. Other trademarks, registered trademarks, and trade names may be used in this document to refer to either the entities claiming

the marks and names or their products. Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for

errors in typography or photography.

This document was written by the Technical Publications department at Crestron.

Regulatory Compliance

This product is Listed to applicable UL Standards and requirements by Underwriters Laboratories Inc.

As of the date of manufacture, the FT-600 has been tested and found to comply with specifications for CE

marking and standards per EMC and Radiocommunications Compliance Labelling.

Federal Communications Commission (FCC) Compliance Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions:

(1) This device may not cause harmful interference and (2) this device must accept any interference received,

including interference that may cause undesired operation.

CAUTION: Changes or modifications not expressly approved by the manufacturer responsible for

compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

•Reorient or relocate the receiving antenna

•Increase the separation between the equipment and receiver

•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected

•Consult the dealer or an experienced radio/TV technician for help

Industry Canada (IC) Compliance Statement

CAN ICES-3(B)/NMB-3(B)

Crestron FT-600 FlipTop Basic

Operations & Installation Guide – DOC. 7596A Contents •i

Contents

FlipTop Basic: FT-600 1

Introduction ............................................................................................................................... 1

Features and Functions ................................................................................................1

Specifications ..............................................................................................................3

Physical Description....................................................................................................4

Setup .......................................................................................................................................... 8

Supplied Hardware ......................................................................................................8

Installation ................................................................................................................... 8

Resources................................................................................................................................. 12

Further Inquiries ........................................................................................................ 12

Future Updates .......................................................................................................... 12

Return and Warranty Policies .................................................................................................. 13

Merchandise Returns / Repair Service ...................................................................... 13

Crestron Limited Warranty........................................................................................ 13

Crestron FT-600 FlipTop Basic

Operations & Installation Guide – DOC. 7596A FlipTop Basic: FT-600 •1

•Flush mount tabletop connectivity in a stylish FlipTop design

•An ideal complement to Crestron DigitalMedia

•Configurable connection compartment allows versatile combinations of

pull-out cables, cable retractors, connector plates, and AC power

outlets

•Tapered cable notch allows lid to be closed with cables plugged in

•Universal cutout size fits all new and future FlipTops

•Black anodized or brushed aluminum finish

FlipTop Basic: FT-600

Introduction

The FT-600 FlipTop™ Basic by Crestron®provides a highly configurable

connectivity solution in a stylish, flush mount tabletop design. Flipping open the

“FlipTop” lid accesses its connection compartment where interface cables and

connectors are kept at the ready for plugging in laptop computers, mobile devices,

AV source, and other equipment. A FlipTop is an ideal complement to a

DigitalMedia™ transmitter or any other AV interface device, providing easy access

to necessary connections while keeping the more intimidating and mundane

technology hidden away beneath the tabletop.

Features and Functions

FlipTop Design

Handsomely finished in a choice of black anodized or brushed aluminum, Crestron

FlipTops lend a contemporary metallic accent to conference tables and podiums. The

FT-600 installs cleanly in virtually any flat, horizontal surface up to 1 3/4” (44 mm)

thick. Beveled edges provide for a nearly flush appearance.

The FlipTop lid flips open with just the tip of a finger to access the connection

compartment. Once connections are made, the lid can be closed. A generous, tapered

notch at the front of the lid opening allows interface cables to remain connected even

when the lid is closed.

FlipTop Basic Crestron FT-600

2•FlipTop Basic: FT-600 Operations & Installation Guide – DOC. 7596A

Connection Compartment

The FT-600 is highly configurable to provide a well organized connectivity solution

tailored to each unique application. It provides options for both pullout and panel-

mounted connectors, with or without AC power outlets. It comes standard with two

cable pass-through plates and four blank plates, all of which can be swapped out for

a choice of cable retractors, connector plates, and AC power outlet modules.

•Cable Pass-Through Plates – Each cable pass-through plate provides four

grommeted holes to accommodate Crestron Certified Interface Cables* and

other AV, data, and communication cables. The user end of each cable

stows neatly within the connection compartment ready for use while excess

cable simply drops out of sight below the cable pass-through plate. The

grommets provide a smooth, slippery surface for easy pullout of each cable.

Blank caps are also provided to cover any unused holes. The cable

pass-through plates are positioned at the left and right sides of the

connection compartment. The FT-600 supports one or two cable

pass-through plates. Two are included.

•Cable Retractors – For an even more refined cable management solution,

the FT-600 accommodates up to six Crestron CBLR Cable Retractors*.

Crestron cable retractors feature a patent pending, lever actuated retraction

mechanism that ensures smooth operation while eliminating hanging cable

loops beneath the table. Up to three cable retractors can be installed in place

of each cable pass-through plate, allowing for a total of six cable retractors.

•Connector Plates – If panel mounted connectors are preferred, the FT-600

can accommodate up to four FTA-CP Connector Plates*. Connector plates

are offered with a variety of common AV and data connector types. Custom

connector plates may also be fabricated by the installer using the blank

plates provided. All four connector plates are positioned at the center of the

connection compartment.

•AC Power Outlet Modules – To provide power for laptops and other

portable devices, the FT-600 can be equipped with up to four AC power

outlets. A single FTA-PWR-102 Dual AC Power Outlet Module* can be

installed in place of the center two connector plates or two FTA-PWR-102s

can be installed in place of all four connector plates.

* Item(s) sold separately.

Crestron FT-600 FlipTop Basic

Operations & Installation Guide – DOC. 7596A FlipTop Basic: FT-600 •3

Specifications

Specifications for the FT-600 are listed in the following table.

FT-600 Specifications

SPECIFICATION DETAILS

Power Requirements

Utility power 10 amps at 125 Vac 50/60 Hz per each installed

Dual AC Power Outlet Module (FTA-PWR-102,

sold separately)

Environmental

Temperature 32º to 112º F (0º to 45º C)

Humidity 10% to 90% RH (non-condensing)

Enclosure

Chassis Metal, black

Cover Aluminum, black anodized or brushed aluminum

finish

Mounting Flush tabletop mount, 1 3/4 in (44 mm)

maximum surface thickness, 6 1/4” (159 mm)

deep x 7 1/2 in (190 mm) wide cutout (template

provided)

Dimensions

Height 7.06 in (180 mm)

10.80 in (275 mm) with lid open

Width 7.98 in (203 mm)

9.19 in (234 mm) with mounting brackets

Depth 6.77 in (172 mm)

7.88 in (200 mm) with lid open

Weight 5.6 lb (2.5 kg)

Available Models

FT-600-B FlipTop Basic, Black Anodized

FT-600-BALUM Flip Top Basic, Brushed Aluminum

Available Accessories

CBL Series Crestron Certified Interface Cables

CBLR Series Cable Retractors

CBLRA-BRKT-3-H Horizontal Mounting Option for CBLR

CBLRA-INSERT-2WIRE 2-Wire Insert for Cable Retractor Option

FTA-CP-DP-101 FlipTop Connector Plate, DisplayPort

FTA-CP-HD-101 FlipTop Connector Plate, HDMI

FTA-CP-RCA-103 FlipTop Connector Plate, RCA x 3

FTA-CP-RJ45-102 FlipTop 2 Connector Plate, RJ45 x 2

FTA-CP-USB-102 FlipTop Connector Plate, USB x 2

FTA-PWR-102 FlipTop Dual AC Power Outlet Module, NEMA 5

FlipTop Basic Crestron FT-600

4•FlipTop Basic: FT-600 Operations & Installation Guide – DOC. 7596A

Physical Description

This section provides information on the connections, controls, and indicators

available on the FT-600.

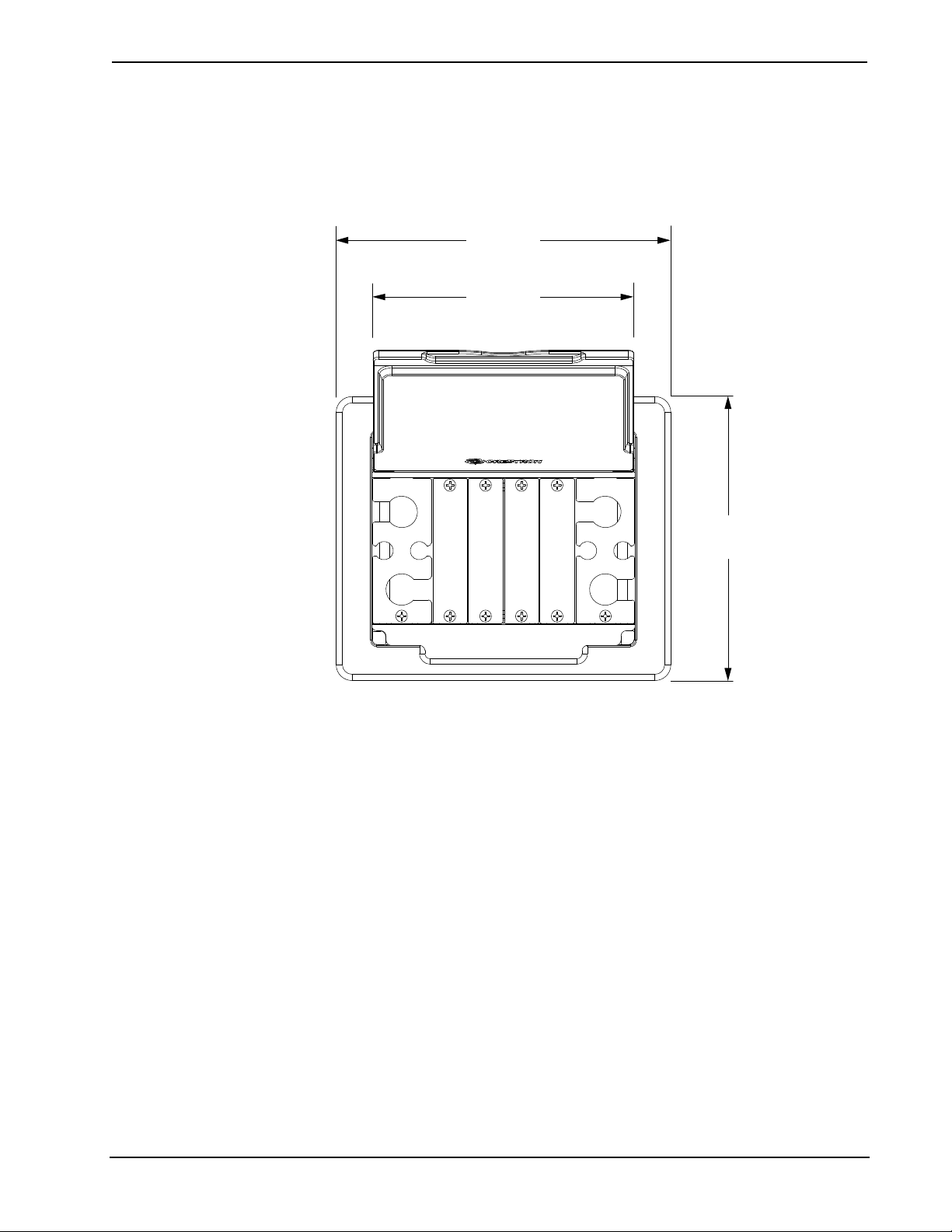

FT-600 Overall Dimensions (Top View)

6.22 in

(158 mm)

7.98 in

(203 mm)

6.77 in

(172 mm)

Crestron FT-600 FlipTop Basic

Operations & Installation Guide – DOC. 7596A FlipTop Basic: FT-600 •5

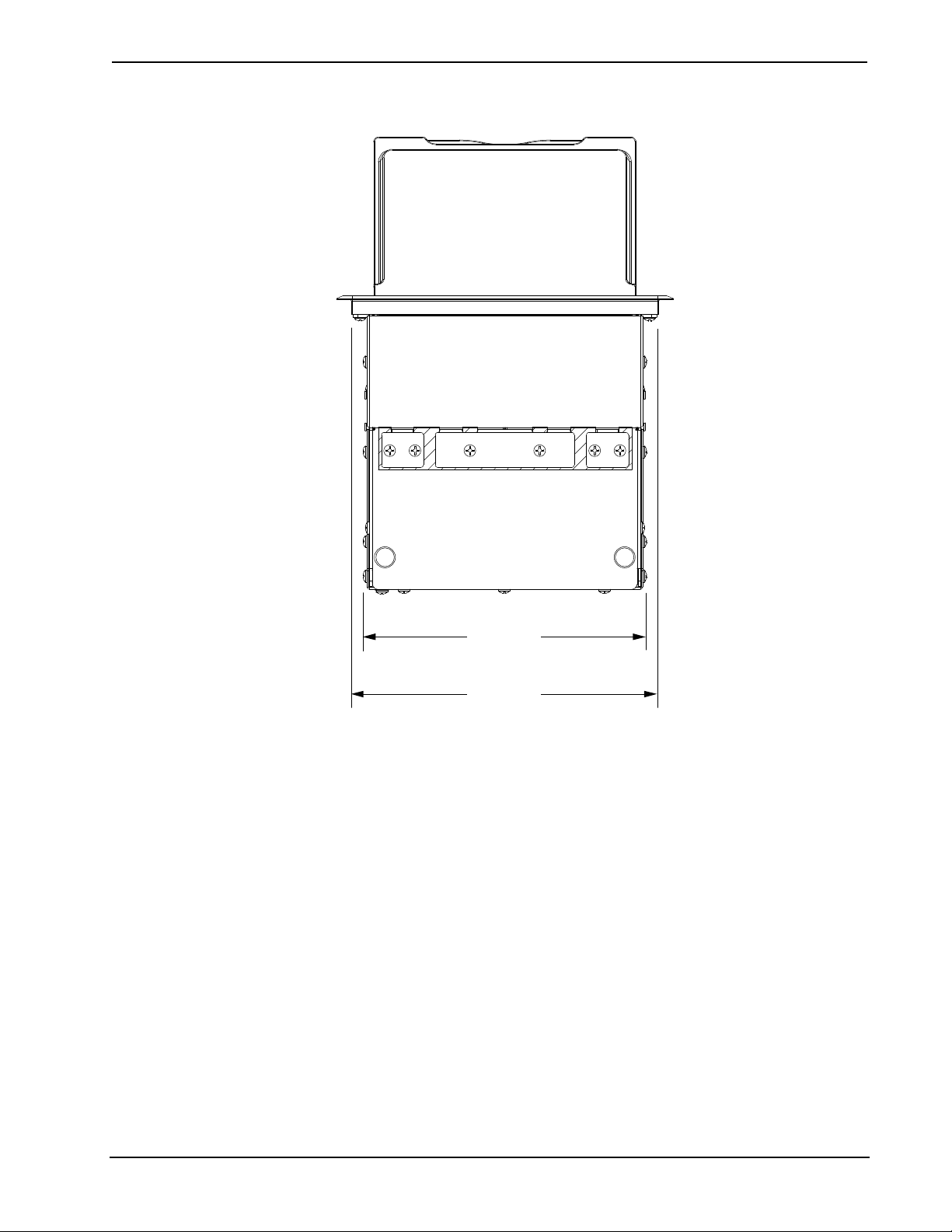

FT-600 Overall Dimensions (Front View)

7.28 in

(185 mm)

6.72 in

(171 mm)

FlipTop Basic Crestron FT-600

6•FlipTop Basic: FT-600 Operations & Installation Guide – DOC. 7596A

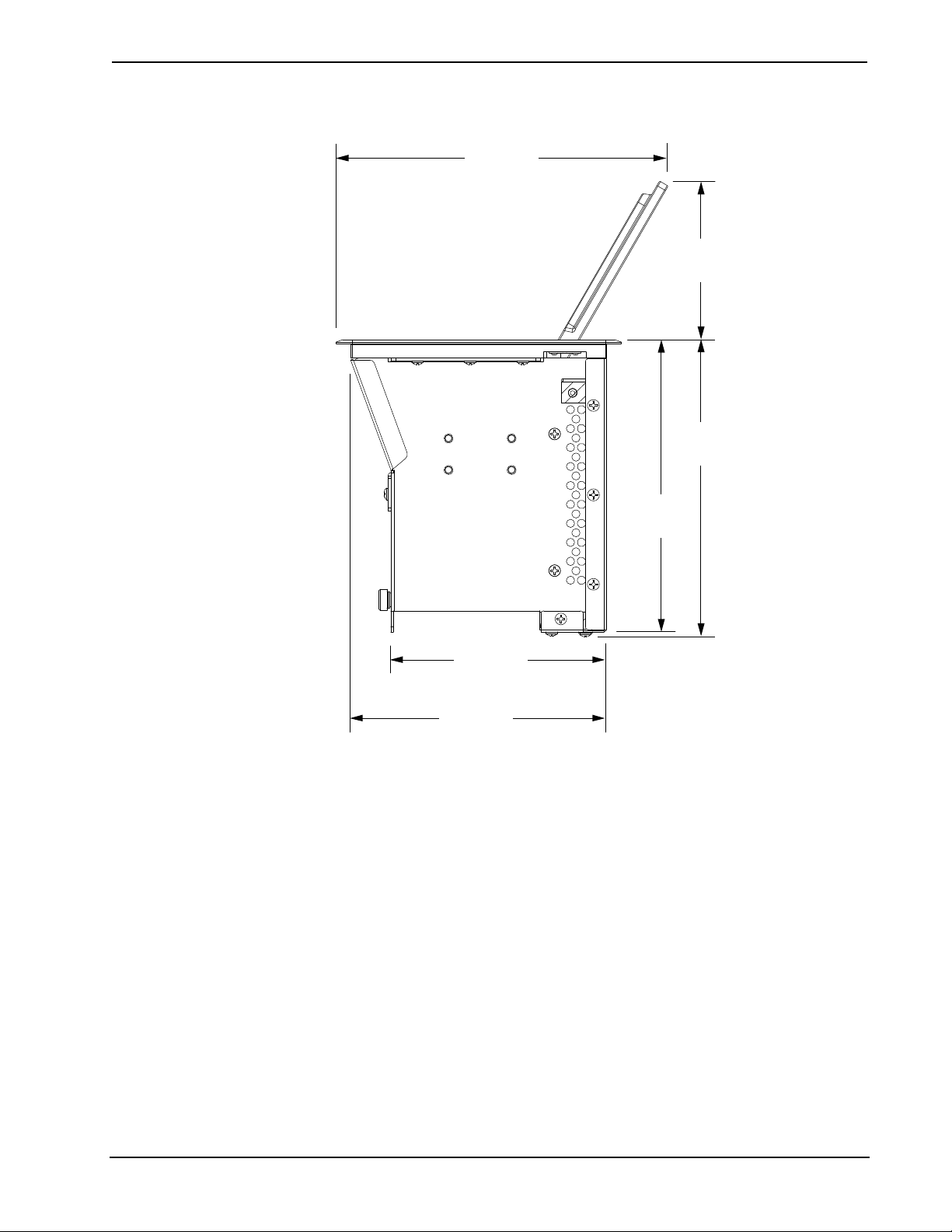

FT-600 Overall Dimensions (Side View)

7.06 in

(180 mm)

6.94 in

(177 mm)

3.75 in

(95 mm)

5.12 in

(130 mm)

6.07 in

(155 mm)

7.88 in

(200 mm)
